| ₹ 48180.0 includes GST and import duties. | |
| B2B customers can avail ₹ 7347.45 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 20W Stereo Amplifier
- 3-Channel Mixer
- 2x Stereo RCA Line Inputs
- 1x XLR Mic Input with Phantom Power
- Selectable 4 or 8? Output
- 2-Band Output EQ

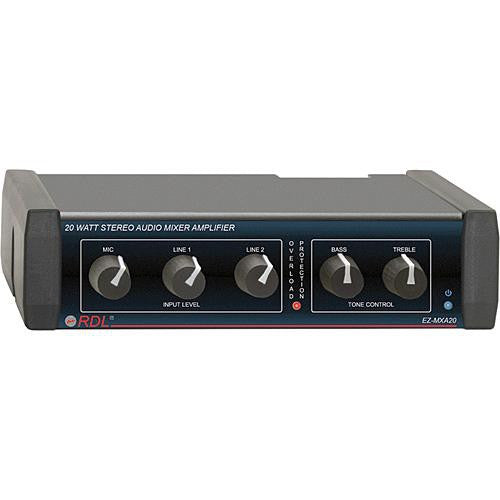

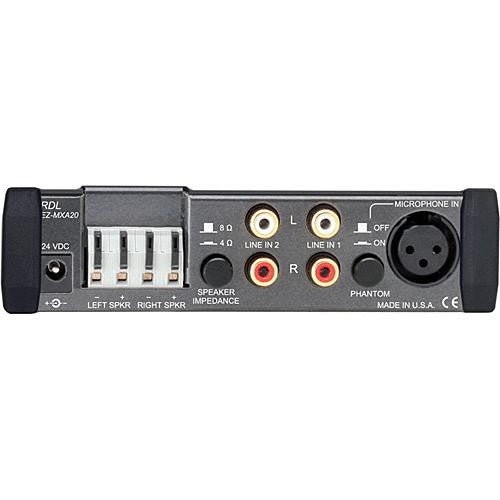

The EZ-MXA20 20-Watt Stereo Audio Mixer and Amplifier from RDL is a 3-channel mixer with an integrated 20-watt amplifier designed for use in a variety of applications in houses of worship, restaurants, meeting rooms, commercial sound systems, and more. It features 2 stereo line RCA inputs, and an XLR mic-level input with selectable phantom power for condenser microphones. Its speaker cable outputs can be switched between 4 and 8 ohm impedance for compatibility with a range of speakers. Additionally, the stereo output has a 2-band EQ to help you shape your sound. A USA power supply is included.
- Audio Amplifier with Mic and Line Input Mixer
- 10 Watts RMS Per Channel into 8 ?
- 8 Watts RMS Per Channel into 4 ?
- Switch-Selectable Load Impedance on Rear Panel
- Balanced Microphone Input on XLR
- Unbalanced Line Inputs on RCA Jacks
- Switch-Selectable Phantom on Mic Input
- Bass and Treble Tone Control Equalization
- Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping
- Limiter Produces Output Level Comparable to Higher Power Amp
UPC: 813721010001
In the Box
RDL EZ-MXA20 20-Watt Stereo Audio Mixer and Amplifier (USA Power Supply)
- PS-24AS Switching Power Supply
- Limited 3-Year Warranty
| Inputs | 1x 1.2 k? balanced mic-level XLR jack, -55 dBu minimum (for 10 W out) 2x stereo RCA jacks, 11 dBu maximum > 10 k?, -10 dBV nominal, -13 dBV minimum (for 10 W out), +22 dBV maximum |
| Gain | Mic: Off to 74 dB Line: Off to 32 dB |
| Outputs | Speaker wire outputs (L, R) 10 W RMS into 8 ? per channel or 8 W RMS into 4 ? per channel, switch-selectable output impedance |
| Equalization | �10 dB @ 10 kHz, �9 dB @ 80 Hz |
| Frequency Response | Mic Input: 50 Hz to 20 kHz (�1.5 dB, 10 W) Line Input: 35 Hz to 20 kHz (�1.5 dB, 10 W) |
| THD + N | <0.25% |
| CMRR | Mic: > -55 dB |
| Crosstalk | < -68 dB (1 kHz, line input) |
| Phantom Power | Switch-Selectable 24 V (IEC 61938: 2013) |
| Noise | Line: <-70 dB (below 10 W, -10 dBV) Mic: <-65 dB (below 10 W, -50 dBu) |
| Current | 24 VDC Power Supply Current: 170 mA (idle), 1000 mA (maximum) |
| Dimensions (LxWxD) | 4.7 x 1.5 x 5.7" (12 x 3.7 x 14.5 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 10.2 x 7.3 x 2.5" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 47216.4 |
| 3-5 | ₹ 46734.6 |
| 5-10 | ₹ 45771.0 |
| 10+ | ₹ 44807.4 |
Bulk discount will be automatically applied during checkout based on quantity.
