- Gold-Plated RCA Connectors
- Audio Ground-Loop Hum Elimination
- Unbalanced Stereo Galvanic Isolation
- Inputs & Outputs on RCA & Mini Jacks
- Switch-Selectable Ground Lift for Output
- Portable Use or Permanent Installation

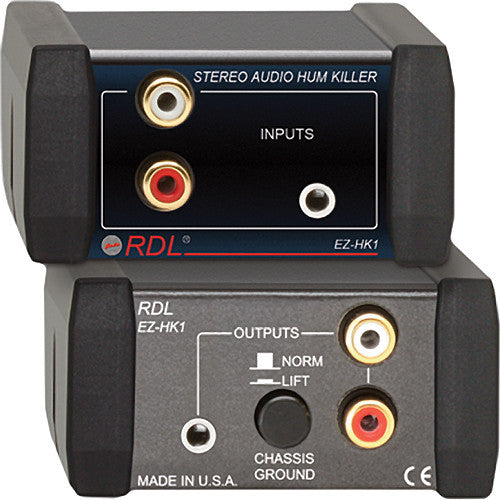

The RDL EZ-HK1 Stereo Audio Hum Killer is a stereo audio transformer isolation module. It's designed specifically for use with unbalanced, high-impedance audio inputs. The device features both input and output connections on gold-plated RCA jacks. Each input jack is electrically isolated from the case itself, as well as from the output ground. Each output jack is connected to the rear-panel ground-lift switch, which is designed to eliminate hum due to ground loops. Ground loops are common when the EZ-HK1 is installed between an unbalanced audio source (such as a computer, CD player, cassette player or other consumer audio product) and the input of a grounded amplifier in an audio system.
Key Features
- Stereo Audio Inputs
- Connect the output from an audio source to the RCA jacks or to the stereo mini-jack
- Stereo Audio Outputs
- Connect one of the EZ-HK1 outputs to the amplifier or system audio input
- Ground-Lift Switch
- The audio output cable shields are connected to the EZ-HK1 chassis when the switch is in the NORM position. In the unlikely event that the EZ-HK1 chassis is mounted to equipment with a different ground from the equipment the EZ-HK1 output is feeding, a ground loop could be produced. This ground loop is eliminated by setting the switch to the LIFT position
Highlights
- Audio ground-loop hum elimination
- Conversion between mini-jack and RCA formats
- Unbalanced stereo galvanic isolation
- Portable use or permanent installation
UPC: 813721010643
| Inputs | Stereo RCA Phono Jacks / Stereo Mini Jack (-10 dBV nominal, ground-isolated) |
| Input Impedance | 10 kohms |
| Outputs | Stereo RCA Phono Jacks / Stereo Mini Jack (-10 dBV nominal) |
| Output Impedance | 10 kohms |
| Output Isolation | Switch-Selectable |
| Gain | Unity Nominal (passive circuit) |
| Frequency Response | 20Hz - 20kHz (±1.0dB) |
| Total Harmonic Distortion (THD) | <0.05% (1.0kHz) |
| Crosstalk | <-75dB (20Hz - 10kHz) / <-65dB (10 - 20kHz) |
| Mounting Size | 1/6 rack width |
| Dimensions (WxD) | 2.9 x 3.0" (7.4 x 7.6 cm) |
| Weight | Not specified by manufacturer |
| Packaging Info |
| Package Weight | 0.4 lb |
| Box Dimensions (LxWxH) | 4.9 x 4.3 x 2.3" |
In the Box
RDL EZ-HK1 Stereo Audio Hum Killer
- 4 x Rubber Feet
- Set of Mounting Screws
- 3-Year Warranty
