RDL TPS6A Overview

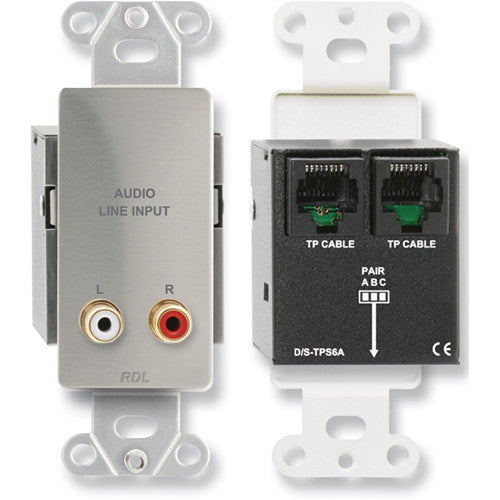

The stainless steel DS-TPS6A Format-A Passive Single-Pair Sender with Dual RCA Jacks from RDLis a single-pair audio sending module compatible with RDL Format-A twisted pair products. Its front panel features two gold plated phono jacks intended for stereo consumer line level audio sources. A studio quality transformer provides isolation between the audio source and the RJ-45 TP CABLE. It is a single-pair sender, which feeds the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ-45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. In addition, two other single-pair senders may be chained to a TP CABLE jack or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair A, B or C.
It must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C. It is a passive module that does not require power to operate. In addition, if power is present on a cable connected to a TP CABLE jack, then that power is passed through, to the modules connected to the other TP CABLE jack.In the Box
- RDL DS-TPS6A Format-A Passive Single-Pair Sender with Dual RCA Jacks (Stainless Steel)
- Limited 3-Year Manufacturer Warranty
RDL TPS6A Specs
| Input |
2 x RCA jacks, unbalanced stereo combined to mono
|
| Input Connector |
RJ45 TP CABLE, Format-A
|
| Input Level |
-10 dBV, +22 dBu maximum
|
| Signal Pair |
Switch-selectable A, B, or C (rear panel switch), Format-A
|
| Output |
RJ-45 TP CABLE RDL TP, Format-A
|
| Frequency Response |
20 Hz to 20 kHz (±0.5 dB)
|
| Total Harmonic Distortion (THD) |
up to 0.1% (50 Hz to 20 kHz)
up to 0.001% (1 kHz typ) |
| Power Requirement |
Passive
|
| Compliance |
RoHS, CE
|
| Dimensions |
1.60 x 4.11 x 1.89" (40.64 x 104.39 x 48.01 mm)
|
| Package Weight |
0.53 lb
|
| Box Dimensions (LxWxH) |
4.625 x 3.625 x 2.125"
|
