RDL DS-BT1A Wall-Mounted Bluetooth Audio Format-A Interface (Stainless Steel)

Bluetooth Audio In for Installed Sound

1-Button Pairing with LED Indication

Setup Requires No Special Software

Sends to RDL Format-A Receivers

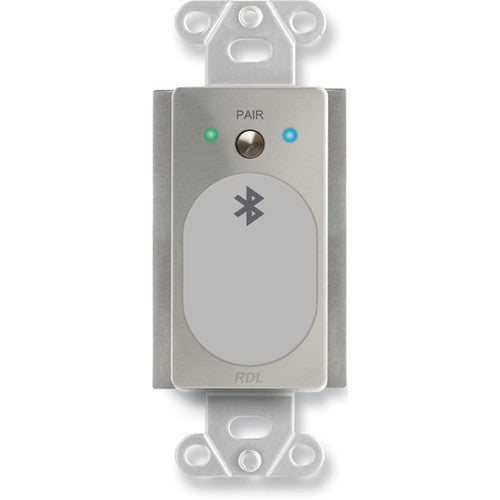

The stainless steel RDL DS-BT1A is a wall-mounted Bluetooth audio Format-A interface offering a sleek solution for integrating Bluetooth audio sources into installed sound systems in fitness facilities, retail stores, restaurants, and more. Since it requires no special software to configure and boasts 1-button pairing with LED indication, the DS-BT1A is simple and quick to set up.

Equipped with two RJ45 ports, the DS-BT1A can either send received Bluetooth audio in mono or stereo directly to an RDL Format-A receiver (available separately) or daisy-chain in mono with two other D-Series BT1A modules (available separately) to a single Format-A receiver.

The DS-BT1A is remotely powered through twisted pair cable and features signal and power pair pass-through on RJ45 jacks, eliminating the need for individual external power sources.

• Bluetooth audio input for installed sound system
• Intuitive single-button pairing with LED status indication
• Special software not required for module setup
• Customize the module ID name and programming password through the Bluetooth connection
• Sends received Bluetooth audio to RDL Format-A receivers

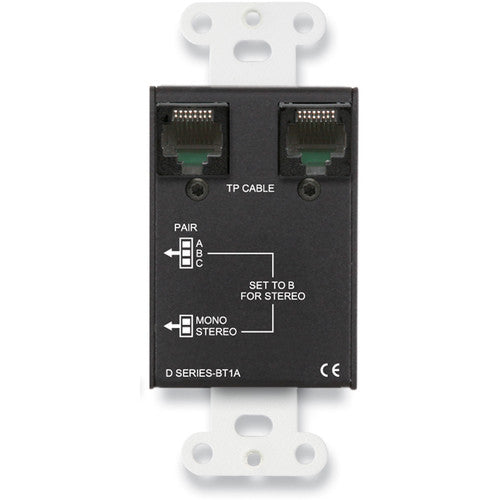

• Mono summed or stereo audio input mode is switch-selectable on rear panel
• Rear-panel switch selects which RJ45 pair (A, B, or C) is fed in mono summed mode
• Daisy-chain up to three D-Series BT1A modules to one Format-A receiver in mono mode
• Remotely powered through twisted pair cable
• Signal and power pair pass-through on RJ45 jacks

UPC: 813721011282

Input	RJ45 Loop In
Output	RJ45 RDL Format-A
Format	A, B, or C (Summed Mono Mode, Rear-Panel Switch-Selectable) B and C (Stereo Mode, Pair A Pass-Through)
Frequency Response	20 Hz to 20 kHz (&plusmn0.5 dB)
THD + N	<0.1%
Noise	< -70 dB (Below -20 dBFS)
Crosstalk	<70 dB (Channel to Channel)
Operating Level	-20 dBFS = +4 dBu (Balanced, Nominal)
Operating Temperature	32 to 104°F / 0 to 40°C
Power Requirement	24 VDC at 100 mA via RJ45
Dimensions (W x H x D)	1.7 x 4.1 x 1.6" / 4.4 x 10.4 x 4.1 cm
Weight	0.3 lb / 0.1 kg
