Description
RDL DB-TPA1A Overview

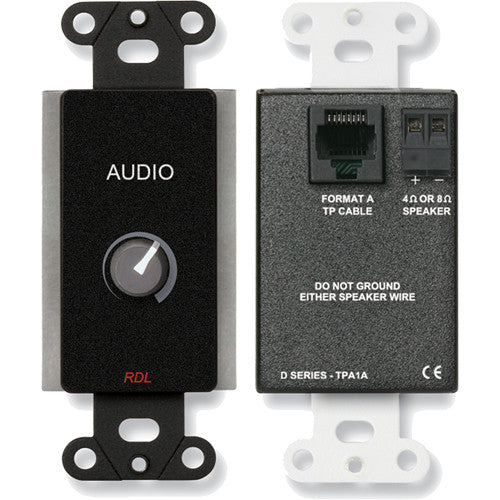

The black DB-TPA1A 3.5W Audio Power Amplifier from RDL is a 2-pair audio amplifier compatible with the RDL Format A twisted pair products. Each D-TPA1A receives stereo audio and 24VDC power through a rear-panel RJ-45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA, which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment.
The DB-TPA1A circuits are all designed for low power consumption. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This Sleep mode remains active until the user turns up the output level.
The output drives either a 4 or 8? speaker. The speaker cable connects to the module using a detachable terminal block. The front panel does not include any illuminated indicators, thereby making the DB-TPA1A Amplifier suitable for installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ-45.
The DB-TPA1A Amplifier may be fed and powered from any RDL Format-A sender, and is useful in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level).
Use the DB-TPA1A Audio Power Amplifier wherever a single speaker, user-adjustable, wall-mounted amplifier is needed. It can be combined with other RDL Format-A products for a cost-effective, high-performance audio system.
In the Box
- RDL DB-TPA1A 3.5W Audio Power Amplifier (Black)
- Limited 3-Year Manufacturer Warranty
RDL DB-TPA1A Specs
| Input | RDL format-A |
| Input Connector | RJ-45 |
| Gain | Adjustment: Single turn audio taper, VCA attenuator |
| Frequency Response | 50 Hz to 20 kHz (+/- 1.5 dB) |
| THD + N | < 0.1% (@ 1 kHz, 1 W) |
| Noise | <-70 dB (below 1 W rms) |
| CMRR | > 60 dB (50 Hz to 120 Hz) |
| Output Power | 3.5 W rms (maximum into 8 ?); 6.5 W rms (maximum into 4 ?) |
| Power Consumption | 45 mA (idle), 95 mA (1 W into 8 ?), 150 mA (1 W into 4 ?), 215 mA (3.5 W into 8 ?) |
| Sleep | Power Consumption: < 0.3 W Enable: Active at audio gain <-60 dB |
| Operating Environment | Maximum: 32 to 104°F (0 to 40°C) Recommended: 68°F (20°C) |
| Dimensions | 4.1 x 1.7 x 2.1" (10.4 x 4.3 x 5.3 cm) |
| Package Weight | 1.3 lb |
| Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
