Description
RDL DB-J1 Overview

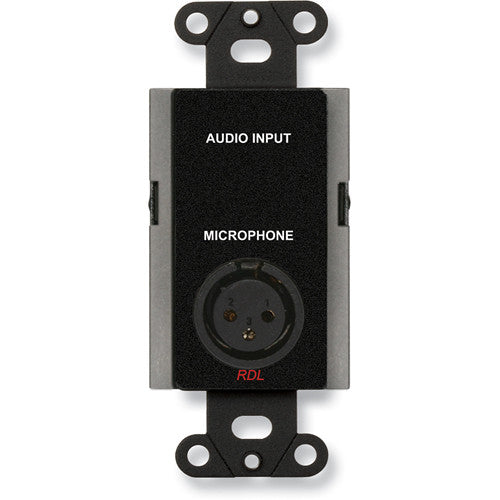

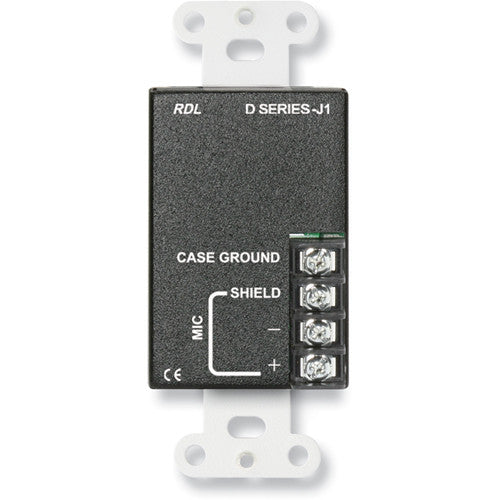

The black DB-J1 Microphone Input Assembly from RDL can be mounted in cabinets or most standard US single-gang electrical boxes. It also directly fits into RDL back boxes, or can be mounted on US or international walls via the WB-1U Universal Wall Box (available separately). Connections to the female XLR jack on the front panel can be made via the rear barrier block. Four output terminals are provided: case ground, shield (XLR pin 1), + (XLR pin 2), and - (XLR pin 3). A jumper may be installed between the shield connection and the case ground if desired. The back of the assembly is finished with a metal enclosure, clearly labeled for easy installation.
Wall mountable microphone input panel
XLR input connector with gold contacts
Barrier block wiring connections
Ground-lift terminals on barrier block
UPC: 813721015259
In the Box
- RDL DB-J1 Microphone Input Assembly (Black)
- Limited 3-Year Manufacturer Warranty
RDL DB-J1 Specs
| Input Connector |
XLR female gold contacts
|
| Output Connector |
Barrier block
|
| Output Connections |
CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
|
| Power Requirement |
Passive
|
| Mounting Box |
Dimensions (W / D): 1.80" (4.57 cm) / Depth: 1.75" (4.45 cm)
|
| Dimensions |
1.70 x 4.13 x 2.15" (4.32 x 10.49 x 5.47 cm)
|
Packaging Info
| Package Weight |
0.42 lb
|
| Box Dimensions (LxWxH) |
4.9 x 4.3 x 2.3"
|
