Description
- Supports 8 Audio Sources
- Numeric Display Indicates Source
- Mounts into Wall Box
- Balanced & Unbalanced Line Level Outputs

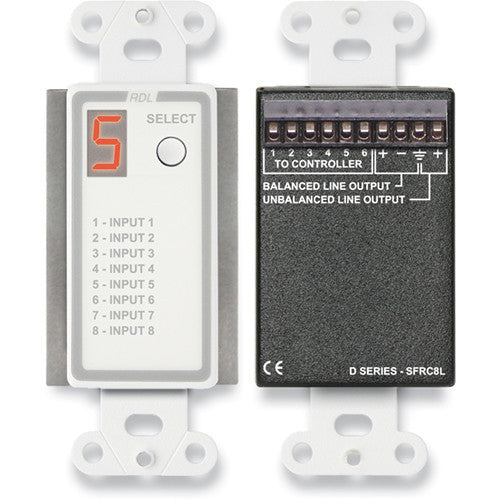

The D-SFRC8L Audio Selector for SourceFlex Distributed Audio System from RDL allows you to select between up to 8 audio sources and is designed for use in SourceFlex distributed audio systems. Its front-panel source selection push button allows you to toggle between its 8 inputs, while the numeric display indicates which source you have currently selected. The unit mounts into a wall box, and has both balanced and unbalanced line outputs.
- Single Room Listening Station with In-Wall Controls
- Source Selection Push button
- Selection From up to 8 Audio Sources
- Line-Level Audio Output
- Mounts In Wall Using US Single Gang Electrical Box or RDL WB-1U
- Compatible with Other RDL Wall Plates and Controls
- For Office Distributed Sound Systems with Music and Paging
In the Box
RDL D-SFRC8L Audio Selector for SourceFlex Distributed Audio System
- Limited 3-Year Warranty
| Input | 10-position detachable terminal block |
| Display | 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel) |
| Selector Push Buttons | Momentary button channel |
| Frequency Response | 20 Hz to 20 kHz (�0.1 dB) |
| THD + N | < 0.1% (20 Hz to 20 kHz) |
| Noise | <-85 dB (Below +4 dBu) |
| Control Signal | DC (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller) |
| Line Outputs | 2x Line Outputs +4 dBu balanced, -10 dBV unbalanced, nominal |
| Power Requirement | 24 VDC @ 30 mA, Supplied from SourceFlex controller |
| Operating Environment | Ambient Operating Environment: 32° to 122°F (0° to 50°C), 68°F (20°C) recommended |
| Dimensions (HxWxL) | 4.1 x 1.1 x 1.7" (10.4 x 2.9 x 4.4 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.44 lb |
