| ₹ 26510.0 includes GST and import duties. | |
| B2B customers can avail ₹ 4042.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

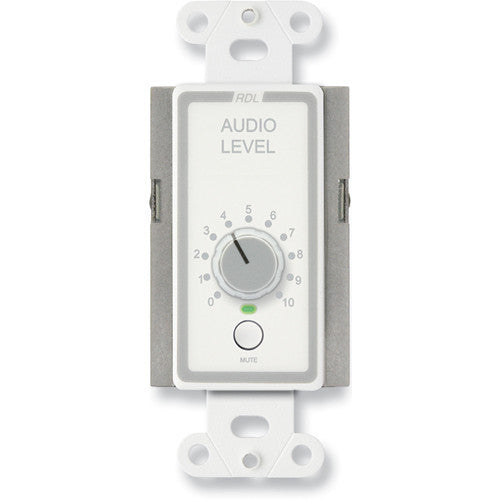

The white D-RLC10KM Remote Level Control with Muting, Rotary from RDL is a remote level control panel featuring a mute button, designed for VCA modules. The MUTE button alternately mutes or un-mutes the audio in the associated RDL VCA product. A LED mute indicator glows red when the output is muted (0 volts dc), and turns green when the output is active (dc output voltage set by control). The front panel has 10 graphic increments which provide a visual LED indication of the level setting. The D-RLC10KM contains a long life 10 k? potentiometer for setting the control voltage. It can be installed in a standard one-gang electrical box.
- Mute button toggles output on and off
UPC: 813721015112
In the Box
RDL D-RLC10KM Remote Level Control with Muting, Rotary (White)
- Limited 3-Year Warranty
| Indicators | 1 x LED, Mute 11 x LED, Active |
| Connection | 25 mA open-collector |

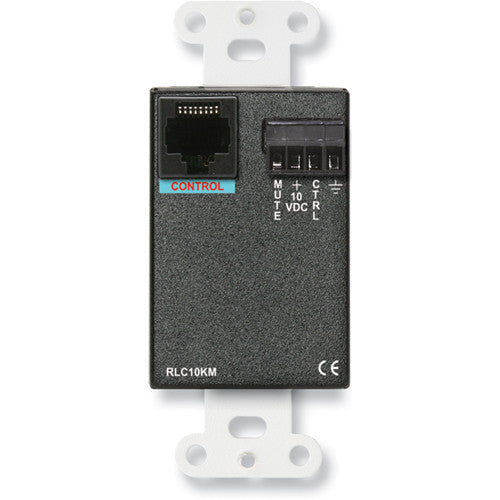

| Connectors | 1 x RJ-45, control 4 x Screw terminal block, power and control |
| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes |
| Dimensions (H x W x D) | 4.1 x 1.7 x 2" (10.4 x 4.3 x 5 cm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.45 lb |
| Box Dimensions (LxWxH) | 4.9 x 4.4 x 2.2" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 25979.8 |
| 3-5 | ₹ 25714.7 |
| 5-10 | ₹ 25184.5 |
| 10+ | ₹ 24654.3 |
Bulk discount will be automatically applied during checkout based on quantity.
