Description
RDL D-AVM4 Overview

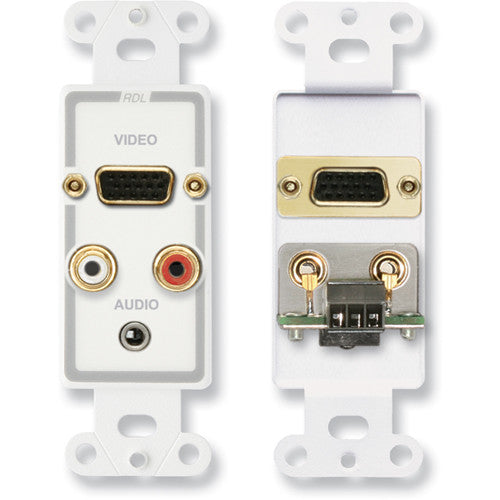

The white/gray D-AVM4 Audio and Video Monitor Jack Panels from RDL is a suitable choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors, and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel. The front panel features a pass-through video monitor connector. Video connections are made on the front and rear panel using a standard DB-15 video connector.
The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are fed to a rear-panel detachable terminal block. In addition, the audio signals are unbalanced and intended for short wiring runs, where balanced lines are not required.
UPC: 813721014948
In the Box
- RDL D-AVM4 Audio and Video Monitor Jack Panels (White/Gray)
- Limited 3-Year Manufacturer Warranty
RDL D-AVM4 Specs
| Input Connectors |
Audio:
2 x RCA jacks with gold contacts (left and right) 1 x Mini-jack 3.5 mm (stereo) Video: 1 x Female DB-15 |
| Output Connectors |
Audio:
Detachable terminal block (left and right unbalanced audio) Video: Female DB-15 (pass-through from front panel) |
| Dimensions |
1.3 x 4.1 x 1.8" (3.3 x 10.4 x 4.5 cm)
|
Packaging Info
| Package Weight |
0.155 lb
|
| Box Dimensions (LxWxH) |
4.7 x 2 x 2"
|
