| ₹ 358185.0 includes GST and import duties. | |
| B2B customers can avail ₹ 54623.21 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

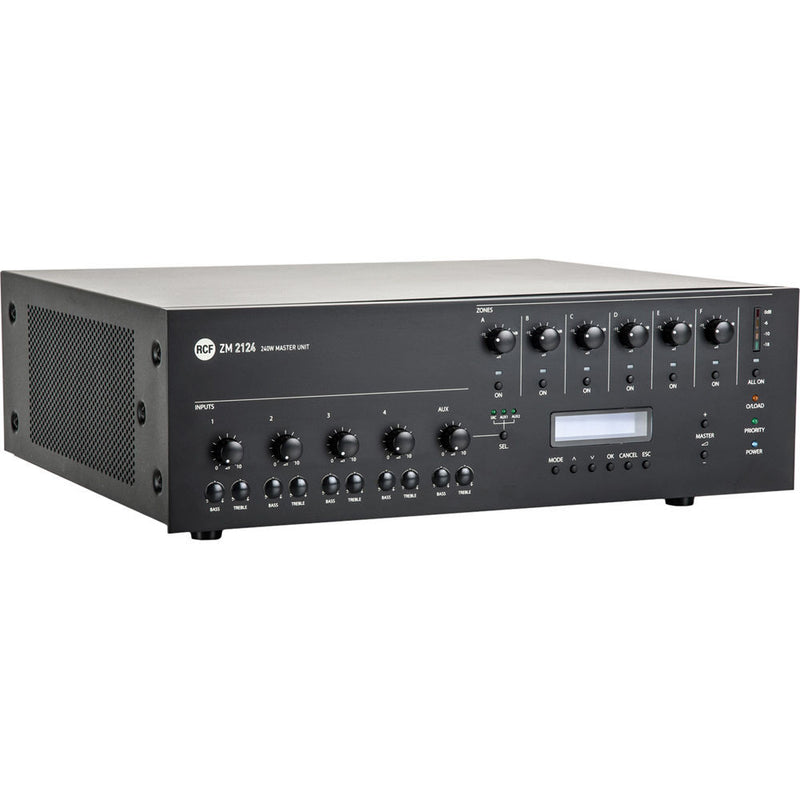

The ZM 2124 240W 6 Zones Powered Master Unit from RCF is a system main unit that includes a preamplifier with 6-zone selection and a built-in 240W amplifier. It is suitable for small systems, where the required power per zone is limited. It has input connectors for sources and can manage priority and route the two buses to the system zones. It includes an output level control for each of the 6 zones powered by the internal 240W amplifier. An additional external amplifier is needed to keep the music program in zones not involved by paging.
- Dual-bus system architecture
- System paging consoles input for up to 6 selective devices daisy chained, aux input and overall emergency input on precedence primary bus
- 4 inputs of which 2 microphone and 2 universal, 3 selectable aux inputs with individual volume and tone controls with configurable priority on secondary bus
- 240W constant voltage power amplifier with VU-meter for output signal level and overload indication
- Auxiliary external amplifier input and output terminals to manage primary and secondary buses independently
- Volume attenuators and switches with indicators to send or not the secondary bus program (i.e. music) on each of the 6 speaker line outputs
- Link to connect up to eight ZE 2200 6-zone Expansion Unit (sold separately) to built-up paging systems in excess of 50 zones
- Wall mounting system remote control allows you to remote the main commands available on the master unit
- Priority indicator to show when any system priority circuit has been triggered
- Selectable chime generator is available on announcements
- GPI and GPO logic ports are available for interface purposes with third party systems and for monitoring feedback
- RS 232 port for FW upgrade and communication/interface purposes
- Power supply AC or 24 VDC, 3U 19" rack mounting
In the Box
RCF ZM 2124 240W 6 Zones Powered Master Unit
- Limited 3-Year Warranty
| Amplifier | |
|---|---|
| Internal | Type: Analog Maximum Output Power: 240 W Output Voltage: 100 V or 70 V (direct), 100 V (6 zones) |
| Frequency Response | (+1 / -3 dB) Mic: 60 Hz to 15 kHz Aux: 50 Hz to 20 kHz |
| Distortion | < 1% at maximum power |
| Input | |
|---|---|
| Mic | Input Sensitivity: 1.5 mV (- 54 dBu) Input Signal / Noise Ratio: > 60 dB Input Impedance: 600 Ohms (balanced) |
| Line | Input Sensitivity: 200 mV (- 12 dBu) Input Signal / Noise Ratio: > 70 dB Input Impedance: 600 Ohms (balanced) |
| Aux | Input Sensitivity: 200 mV (- 12 dBu) Input Signal / Noise Ratio: > 75 dB Input Impedance: 10 kOhms (unbalanced) |
| Input | 1 to 4, Aux Bass Tone Control: 100 Hz � 10 dB 1 to 4, Aux Treble Tone Control: 10 kHz � 10 dB |
| Emergency | Input Sensitivity: 100 mV (balanced audio signal), 100 V line Input Signal / Noise Ratio: > 70 dB Input Impedance: 600 Ohms (100 mV balanced audio signal) |
| Paging | (RJ 45) Input Sensitivity: 1 V (+ 2 dBu) |
| Output | |
|---|---|
| Max. Output Level | Pre Output: 1 V MOH Signal: 1 V (+ 2 dBm @ 600 Ohms, balanced) |
| Output Power | MOH Amplified: 1 W (on an 8 Ohms load) |
| Maximum Power | Amplifier 100 V Input: 240 W |
| Power Requirement | |
|---|---|
| Power Supply | 115 V / 230 VAC; 50 - 60 Hz switchable or 24 VDC |
| Maximum Power Consumption | 720 W |
| Operating Temperature | 14 to 113�F (-10 to 45�C) |
| Physical | |
|---|---|
| Dimensions (W x H x D) | 17 x 5.2 x 14.3" (43.0 x 13.3 x 36.5 cm) 19" rack, 3 units |
| Weight | 35.4 lb (16.1 kg) |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 351021.3 |
| 3-5 | ₹ 347439.45 |
| 5-10 | ₹ 340275.75 |
| 10+ | ₹ 333112.05 |
Bulk discount will be automatically applied during checkout based on quantity.
