Description

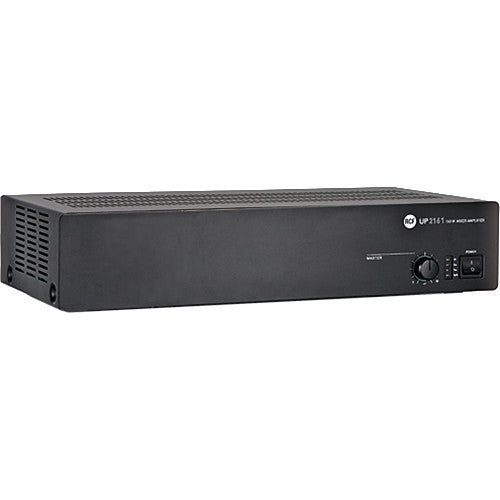

The 160W UP 2161 Power Amplifier from RCF is equipped with a Microphone/Line main input via a removable connector, an XLR connector, or an RJ45 port. The amplifier also features an RCA Auxiliary input for music sources such as CD players and tuners. The amplifier output is available for either low impedance speakers or 100-70 constant voltage line. The Class D amplifier features a switching power supply. The UP 2161 is designed for the transmission of announcements and musical programs. It is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems and similar applications.
- 160W RMS digital technology power amplifier
- Main input on either removable connector or XLR or RJ45
- Main input can have priority over the aux input
- Main input has a presence control command
- Main input has a high-pass filter useful for improving speech intelligibility
- Aux input for music sources on RCA type connector
- Aux input with volume and tone controls
- 100 V - 70 V and 4 ohm outputs
- Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
In the Box
RCF UP 2161 Power Amplifier (160W)
- Limited 3-Year Warranty
| Power Output | 160 W RMS |
| Frequency Response | 50 Hz to 18 kHz |
| Connectors | 1 x XLR, microphone/line input 1 x RJ45, paging microphone input 2 x RCA, L/R auxiliary input 1 x 4-pin terminal, input command control |
| Distortion | < 0.3% |
| Signal / Noise | Inputs 1-4: > 60 dB AUX Input: > 80 dB |
| Crosstalk | Inputs 1-4: > 60 dB AUX Input: > 80 dB |
| Line Input Sensitivity | Mic: -58 dBu Phantom: -21 dBu Line: 0 dBu Aux: -6 to 13 dBu |
| Input Impedance | Mic: 10 kOhms Phantom: 5 kOhms Line: 10 kOhms Aux: 20 kOHms |
| Tone Frequency | Bass: 80 Hz, ±8 dB Treble: 13 kHz, ±8 dB |
| Presence Frequency Bands | 2.15 kHz, +10 dB |
| High-Pass Filter | 150 Hz |
| Output Impedance | 4 ohms |
| Output Voltage | 70 V (31 ohms) / 100 V (62 ohms) |
| Operating Voltage | 115-230 V, 50/60 Hz |
| Power Consumption | 350 W |
| Controls | Master volume, Treble, Bass, Gain, Presence |
| Protections | Overload, short circuit, thermal |
| Dimensions | 3.4 x 17.4 x 8.6" (88 x 444 x 220 cm) |
| Weight | 8.81 lb (4 kg) |
