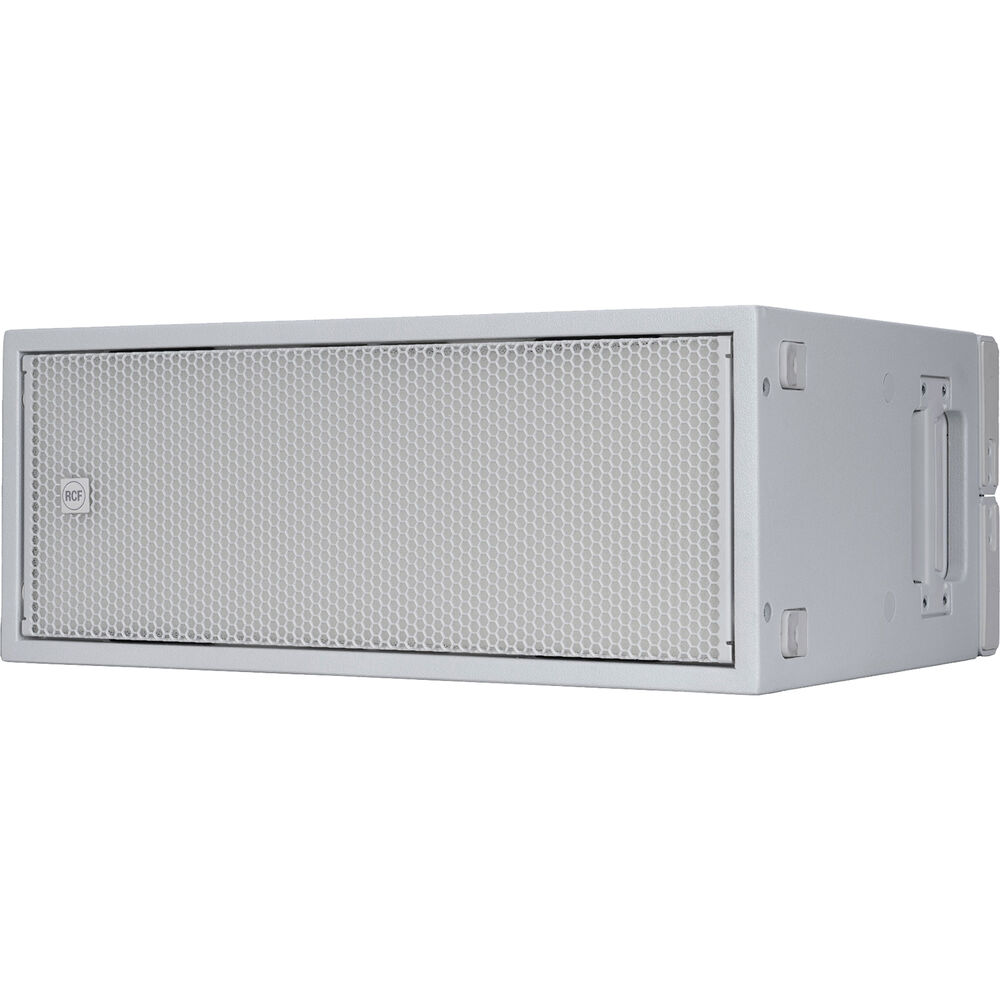

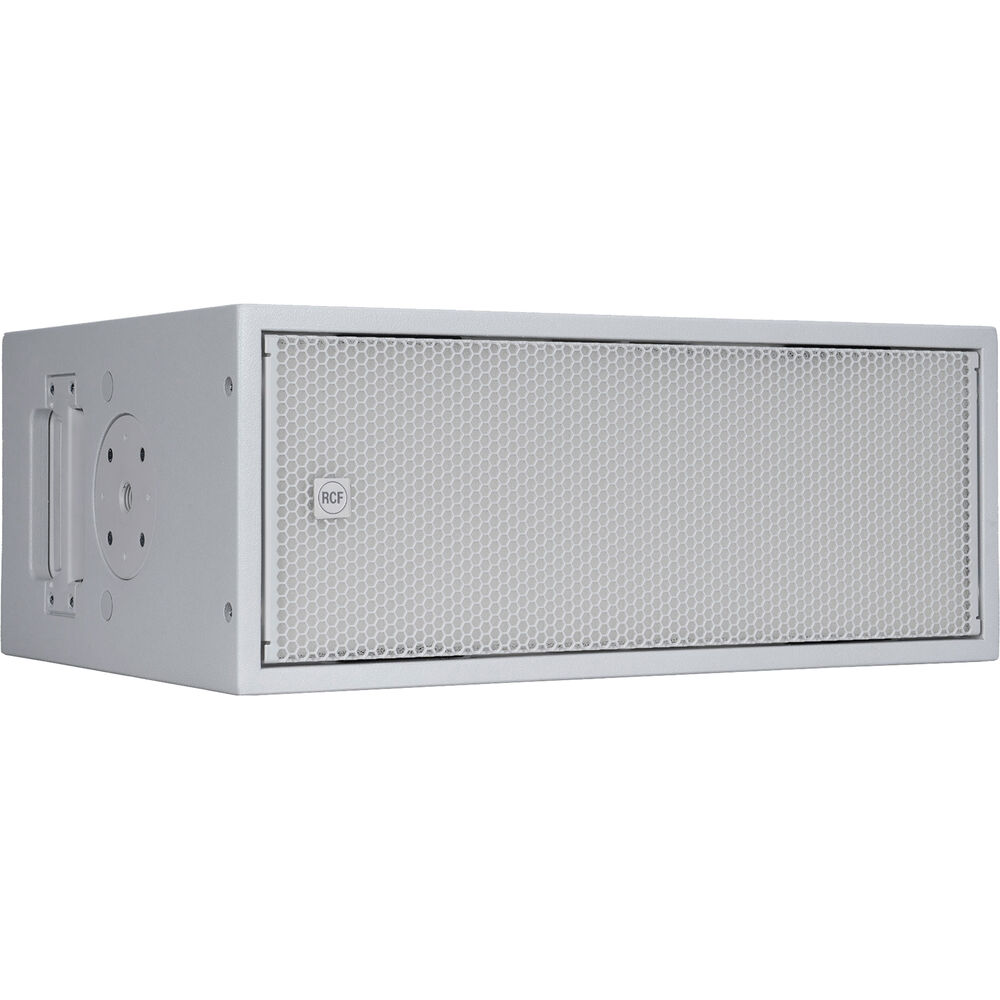

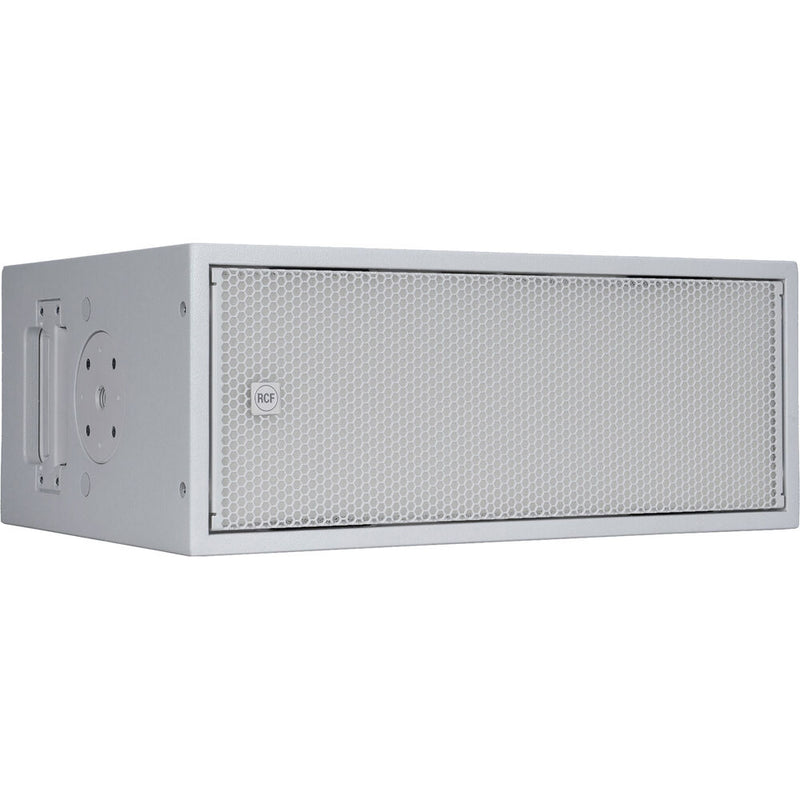

RCF SUB 808-AS Dual 8" 2000W High-Performance Active Subwoofer (White)

At a Glance

• 129 dB max SPL
• 40 to 400 Hz frequency range
• 2 x 8" neodymium woofers, 2.5" v.c.
• 2000W Class-D Amplifier
• RDNet Networked Management
• Bass Motion Control excursion management
• powerCON TRUE1 TOP mains connectors

Advanced Electronics

• The high-powered Class-D amplifiers, tailored for each transducer, deploy pristine sound with efficient heat dissipation at the lowest possible distortion, along with low power consumption.
• High-end AD/DA conversion up to 96 kHz, 32-bit floating-point, and onboard DSP for the best sound quality. Thanks to the proprietary RDNet networked management and control, every KX speaker provides in-depth remote monitoring through multiple sensors. The system engineer has immediate feedback of transducer status, fan speed, temperature, VU meters, limiters, and much more.

Legendary Woofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, and smaller dimensions compared to others in its category. Self-powered design, RDNet remote control, easy configuration of subwoofer arrays (i.e. cardioid subs), and impressive size/weight to SPL output ratio create an engaging, immersive experience for any audience.

RDNet

• RDNet is an advanced platform for integrated monitoring and control of sound systems, from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.
• Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

Complete Sound System

A stunning sound system

• Pair your KX 515-A with the SUB 808-AS subwoofer to extend the low-frequency range and create a powerful full-range main system with an incredibly small footprint. With multiple configuration options, the powerful DSP and RDNet remote management, there isn't a venue too big or too small.

Good things come in small packages

• Uncompromising fidelity and power with KX sonic signature. This means you have perfect phase and frequency compatibility among all KX speakers, so you can serve up a breathtaking sonic experience in all your applications.

An unobstructed stage

• Uncompromised sound without blocking critical sightlines. The ultimate flexibility for tight spaces, small stages, and small gigs with extreme portability. You can pack a full-range stereo system with two KX 515-A, two 808-AS subwoofers, poles, and cables in less than a 200-liter volume.

Built for Everyday Use

Use it as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength Baltic birch plywood coated with black, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Rig It Anywhere

• The only limit is your imagination. With multiple rigging accessories and the unobtrusive form factor of the cabinet, KX 515-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting�at any angle, in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.
• The speaker�s rigging is fast and easy when using the practical Quick Fit socket to easily install accessories such as the clamp mount, pole mount, and horizontal brackets, or you can use the two M10 threads on top and bottom of the cabinet.

Tour-Ready Construction

Attached to a machined-solid-aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced, sturdy, and equipped with waterproof powerCON TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.

Bass Motion Control

• When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting woofer stability and with extended linearity and better sound integrity.
• The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits overexcursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

RCF SUB 808-AS Specs

Configuration	Active Subwoofer
Enclosure Type	Subwoofer
Total Power Capacity	2000 W Peak
HF Driver	No
MF Driver	No
LF Driver	8x 8" / 203.2 mm Woofer
Wireless Connectivity	No
Color	White

Enclosure Type	Subwoofer
Total Power Capacity	2000 W Peak
Amplifier Class	Class-D

HF Driver	No
MF Driver	No
LF Driver	8x 8" / 203.2 mm Woofer
LF Voice Coil	2.5" / 63.5 mm

Frequency Response	40 Hz to 400 Hz
Maximum SPL	129 dB
Input Sensitivity	+4 dBu to -2 dB
Protections	RMS, Thermal

Audio I/O	1x XLR 3-Pin Line Input 1x XLR 3-Pin Link Output
Network I/O	1x etherCON/RJ45 (RDNet) Input 1x etherCON/RJ45 (RDNet) Output
USB I/O	No
Wireless Connectivity	No
Bluetooth	No
Mobile App Compatible	No App Name: Functionality:

EQ	Yes
Parametric EQ	No
Semi-Parametric EQ	No
Dynamic Processing	Soft Limiter
Alignment Delay	Yes
Phase Adjustment	Yes

AC Input Power	100 to 240 VAC, 50 / 60 Hz
AC Power I/O	1x powerCON Input 1x powerCON Output
Power Consumption	300 W

Color	White
Mounting	2 x M20 Pole Socket (Side, Top)
Handles	1x Each Side
Cooling	Convection
Construction Material	Plywood, Steel
Dimensions	23.6 x 22.4 x 20.9" / 59.9 x 56.9 x 53.1 cm
Weight	99.2 lb / 45 kg
