| ₹ 321275.0 includes GST and import duties. | |
| B2B customers can avail ₹ 48994.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 800W Peak Output
- 127dB SPL
- Stage Monitoring or PA Applications
- Integrated DSP Optimization
- 10" Woofer
- 1.7" High Frequency Driver

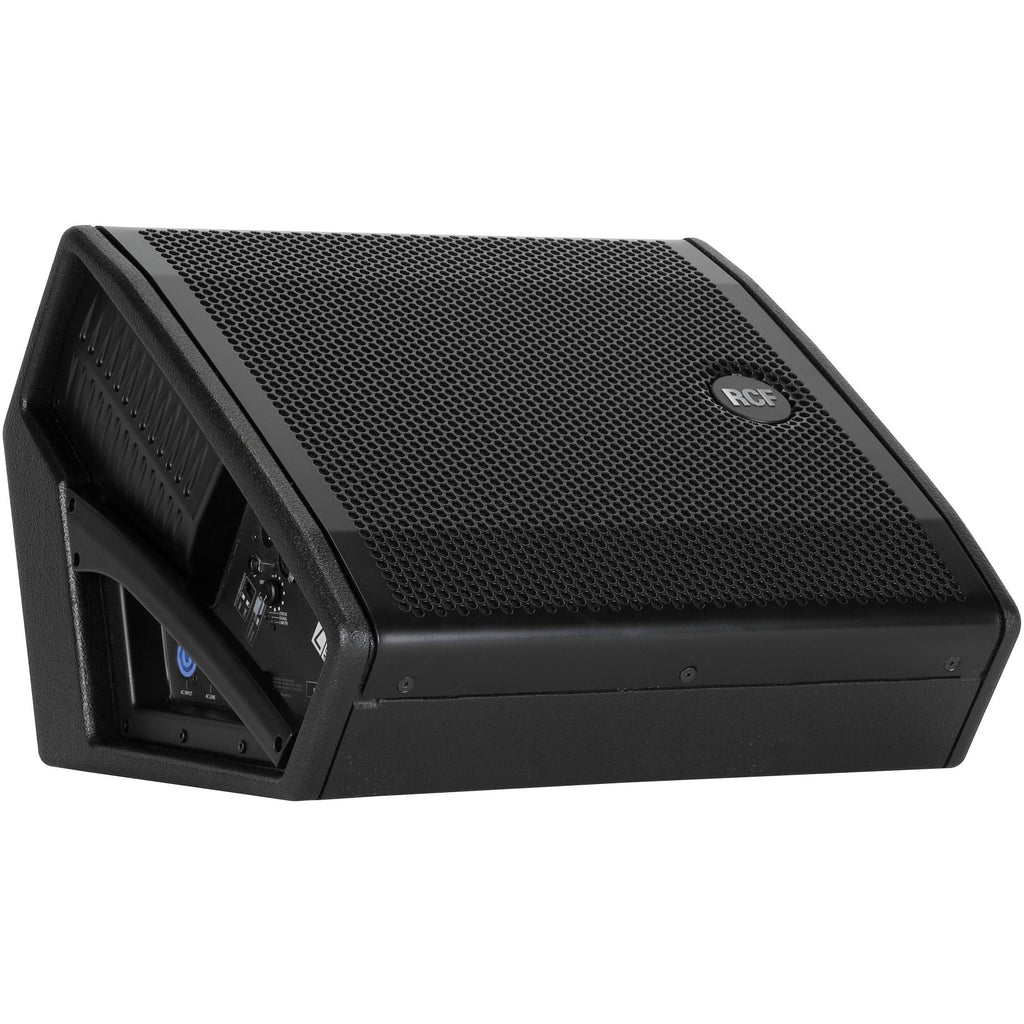

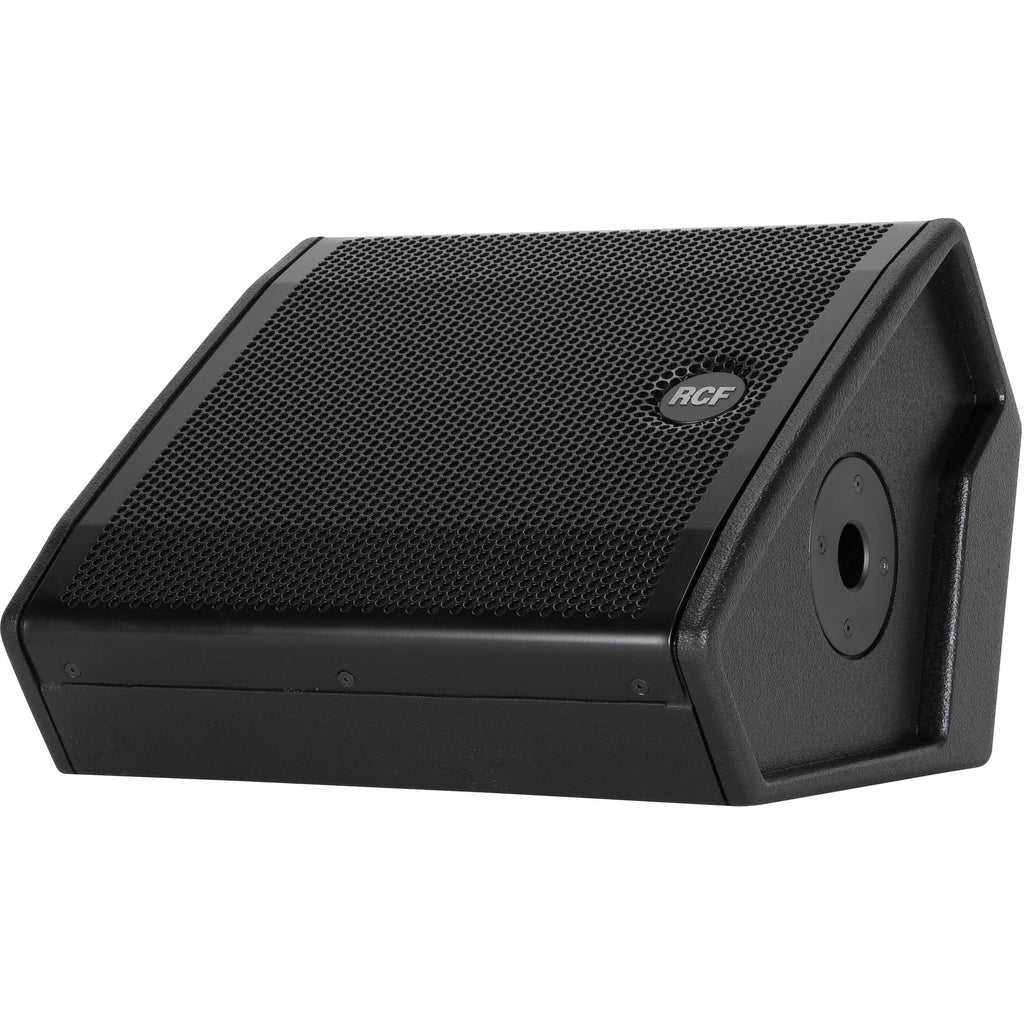

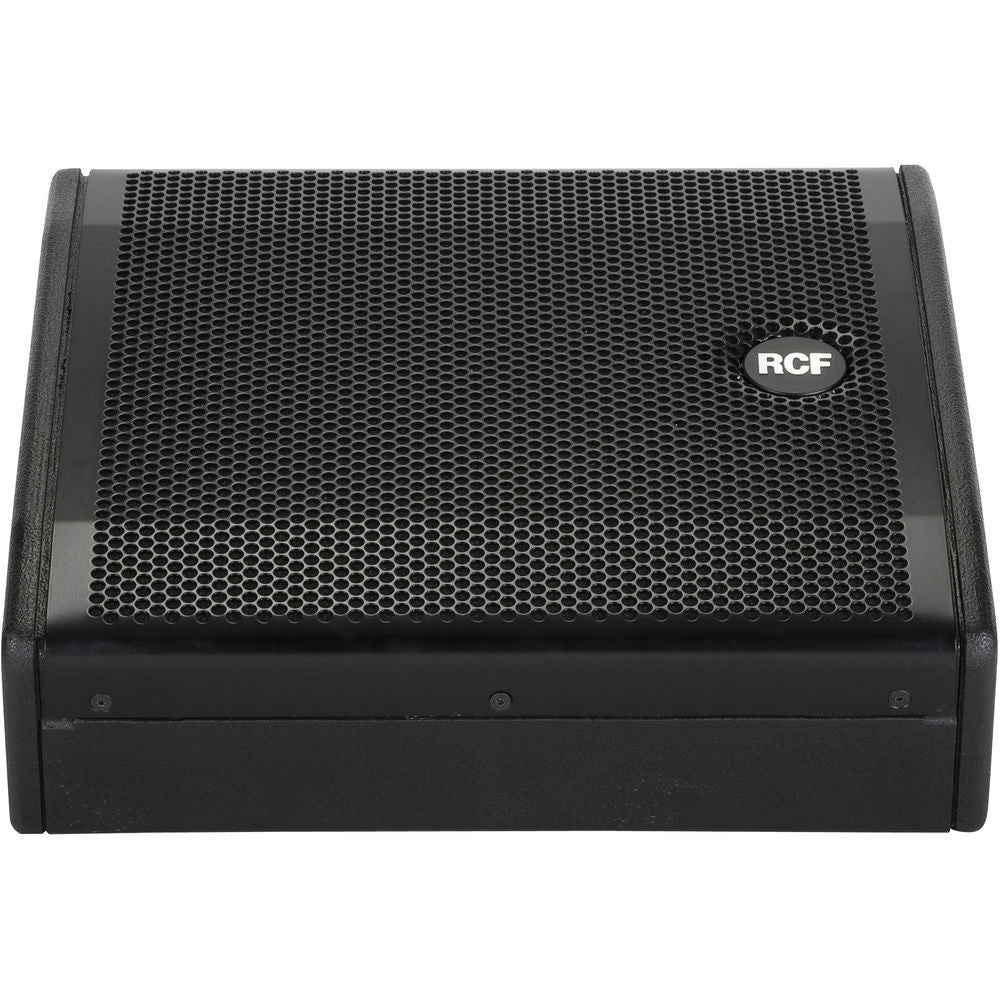

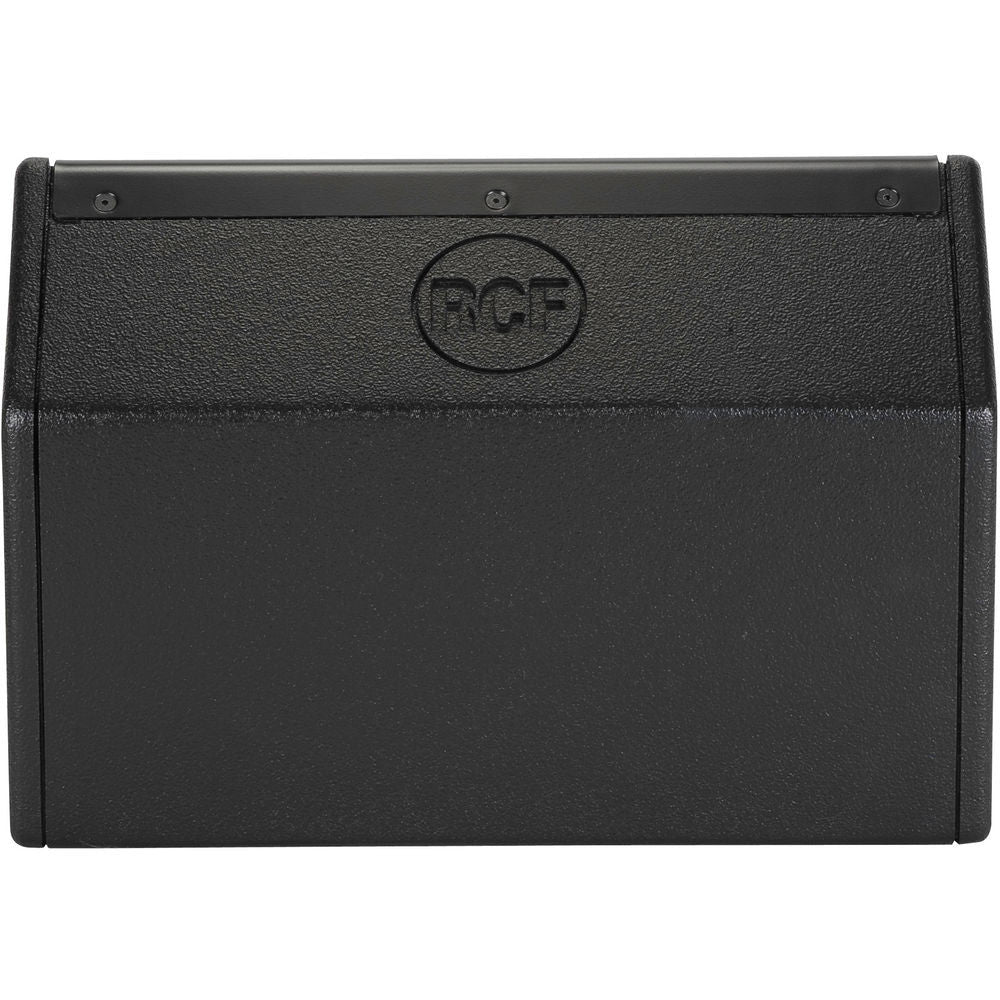

The NX 10-SMA Active Coaxial Stage Monitor from RCF is a powered monitor that can be used as either a floor monitor or mounted for use as a stand-alone PA for small venues. It is capable of up to 800-watts peak performance, providing output up to 127dB SPL. The monitor has integrated DSP for limiting functions as well as a switchable EQ mode that provides optimized performance for stage monitoring or PA applications.
- Coaxial Neodymium Transducers
- The coaxial neodymium transducers are designed for audio quality and definition as well as a lightweight final system
- Absence of Feedback
- The advantage of coaxial transducers is the absence of feedback, and thanks to the coherent single spherical wave front with dispersion control, a wide ideal listening position
- Single Neodymium Ring
- The single neodymium ring magnet provides a high flux density and BL factor
- Hyper-Vented Basket
- Both of the transducers are equipped with a hyper-vented basket and magnetic assembly that provide heat dissipation and lower power compression
- Amplification
- The NX Coaxial Stage Monitors are provided with digital amplifiers with DSP processing
- Input Board
- The input board is equipped to configure the stage monitors for most stage situations, and includes:
- XLR input and output
- Jack input
- Input sensitivity switch
- Free field - floor switch
- Status LEDs
- Powercon AC input and output
- Ergonomic Handle
- Cabinets are made with Baltic Birch plywood and finished with a resistant paint for extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport
- EQ
- In order to control the response of the speaker in different applications, RCF has incorporated two Equalization Modes:
- Floor, for stage monitoring
- Free Field, for the use of the speakers as a stand-alone PA
- 800 Watt peak, 400 Watt RMS digital bi-amplification
- 127 dB maximum SPL
- 60� x 60� constant directivity horn
- 10" High power neodymium woofer, 2.5" voice coil
- 1.7 kapton dome, 1" exit, neodymium high frequency driver
- DSP processing, floor field equalization, soft limiter and protection
In the Box
RCF NX 10-SMA Active Coaxial Stage Monitor
- Limited 1-Year Warranty
| Acoustical | |
|---|---|
| Frequency Response | 60 Hz to 20 kHz, -3 dB |
| Maximum SPL | 127 dB |
| Coverage Angle | Horizontal: 60° Vertical: 60° |
| Driver | Compression Driver: 1.7" (43 mm) kapton dome, 1" (25 mm) exit, neodymium Woofer: 10" (254 mm) neodymium, 2.5" (63.5 mm) voice coil |
| I/O | |
|---|---|
| Input Connectors | XLR, jack |
| Output Connector | XLR |
| Processor | |
|---|---|
| Limiter | Soft limiter |
| Controls | Freefield, floor |
| Amplifier | |
|---|---|
| Total Power | Peak: Total Power: 800 W High Frequencies: 200 W Low Frequencies: 600 W RMS Total Power: 400 W High Frequencies: 100 W Low Frequencies: 300 W |
| Construction | |
|---|---|
| Material | Baltic birch |
| Hardware | 1x Pole mount/cap |
| Handles | 1x Side |
| Grille | Steel |
| Dimensions & Weight | |
|---|---|
| Dimensions (HxWxD) | 12.7 x 17.7 x 16.4" (324 x 450 x 417 mm) |
| Weight | 31.96 lb (14.50 kg) |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 314849.5 |
| 3-5 | ₹ 311636.75 |
| 5-10 | ₹ 305211.25 |
| 10+ | ₹ 298785.75 |
Bulk discount will be automatically applied during checkout based on quantity.
