RCF KX 515-A High-Performance 2-Way Point-Source Powered PA Speaker with Integrated DSP

At a Glance

• 127 dB max SPL
• Rotatable 100 x 70° CMD horn
• LF 2 x 5� neodymium woofer, 2� voice coil
• HF 1.75� titanium dome, neodymium comp. driver
• 2 x Class-D amplifiers, 2000W total power
• DSP processing with FiRPHASE and BMC
• RDNet Networked Management
• powerCON TRUE1 TOP mains connectors

Fits in the Palm of Your Hand

• The two-channel 2000W (1000W RMS) amplifier is small, ultra-silent, and fanless.
• Producing a Max SPL of 127 dB, is perfect for 3D/immersive sound, nearfield systems, and productions that demand extreme sound quality.
• The rotatable 100x70 degree pattern reaches a wide area, perfectly matching the directivity of the woofers.
• The internal DSP has a whole range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve coherent distribution of sound without phase distortion and deep, tight bass at any volume.

Precision Transducers

Low Frequency

• Two 5� cone drivers on a custom-designed phase plug to enhance midrange efficiency and extend horizontal coverage, matching the waveguide dispersion for perfect coverage continuity around the crossover point.

High Frequency

• The high-performance 1.75" titanium-dome compression driver is fitted on a 100x70° rotatable constant-directivity waveguide. This special waveguide and high-frequency-transducer design allow excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.

RDNET

• RDNet is an advanced platform for integrated monitoring and control of sound systems from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.
• Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

Robust and Durable

The enclosure is made of high-quality Baltic-birch plywood glued with water-resistant adhesive and coated with weatherproof polyurea paint, ensuring excellent waterproofing, UV resistance, corrosion protection, and durability against abrasion, impacts, and mechanical stress. The solid machined aluminum structure efficiently dissipates heat fanlessly, improving enclosure stiffness, while the high-strength structural steel rigging ensures a high safety factor for secure weight management. Die-cast aluminum handles with ergonomic rubber grips enhance usability.

• High safety factor
• Water-resistant birch enclosure
• Durable polyurea paint
• High-strength steel
• Ergonomic handles
• Machined aluminum heat sink

Built for Everyday Use

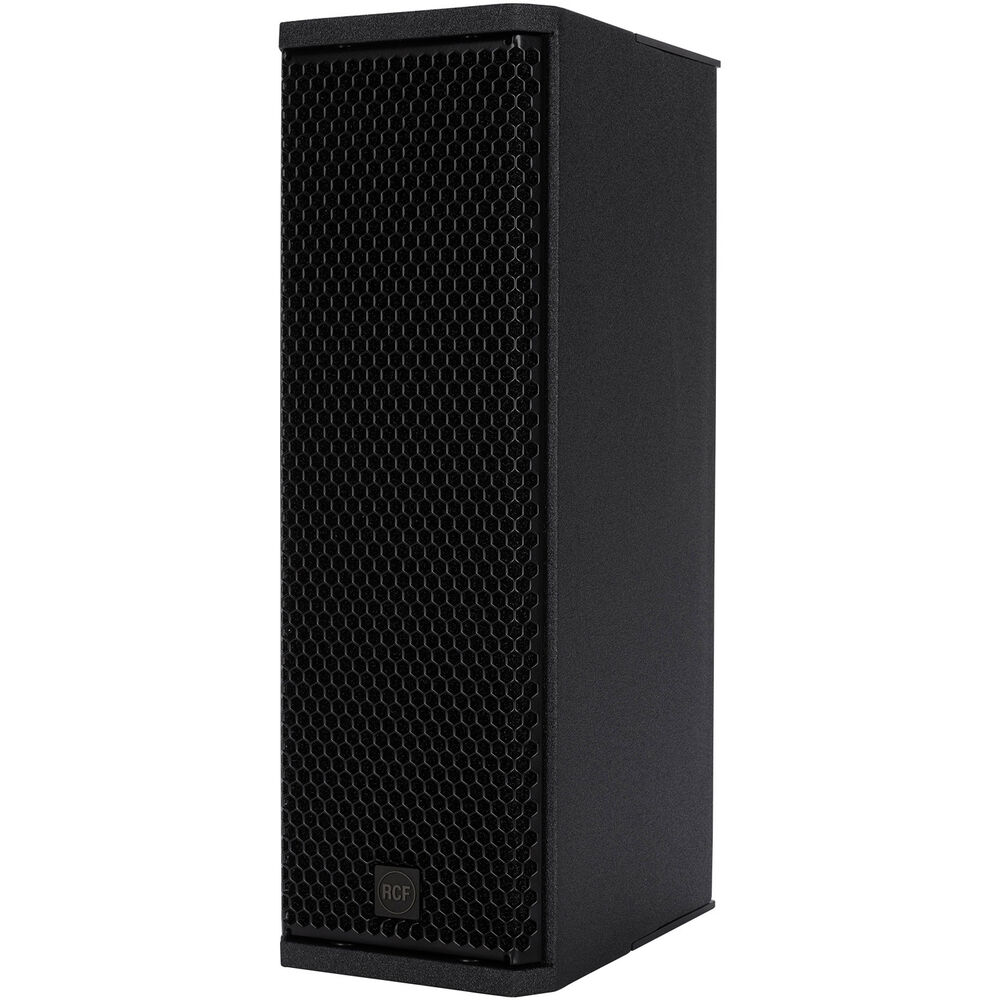

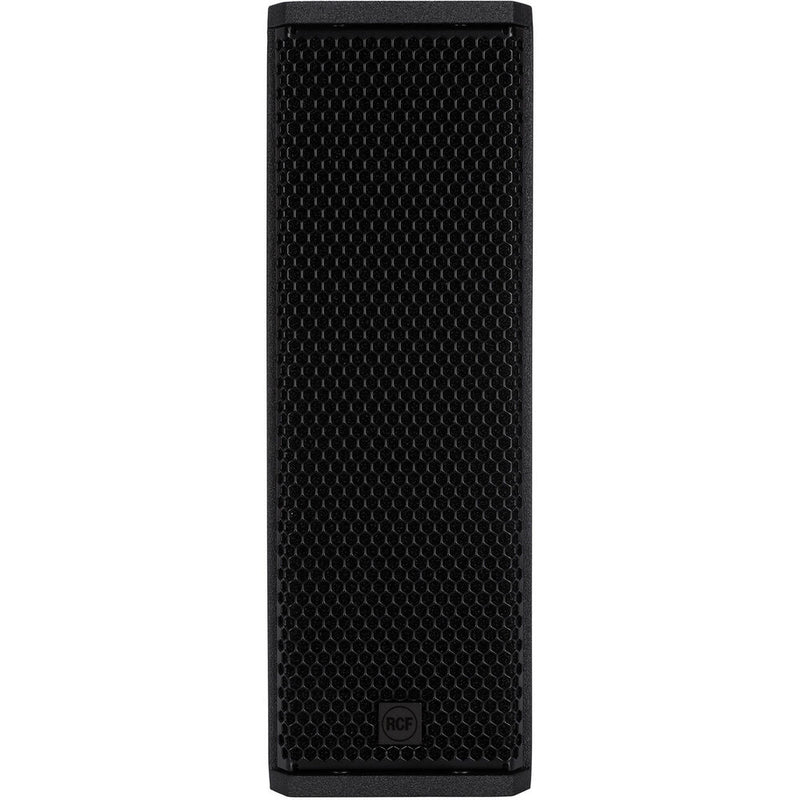

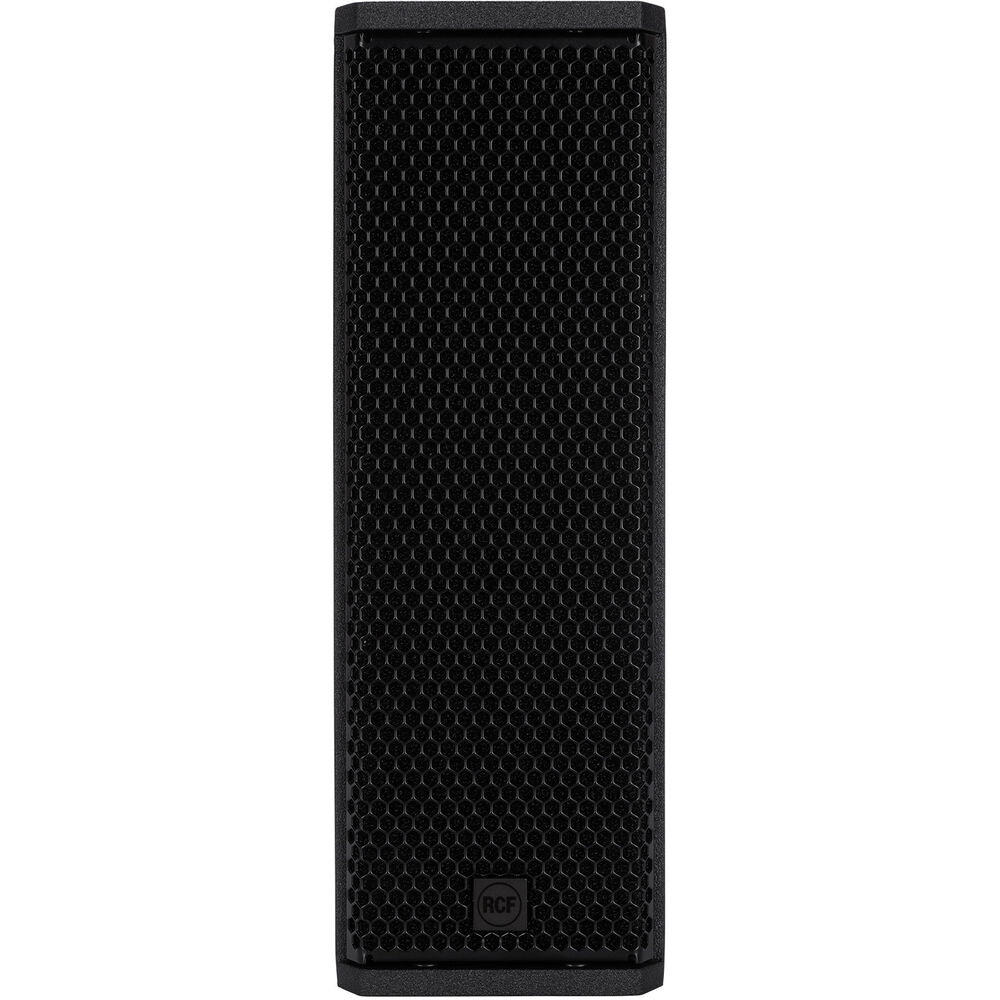

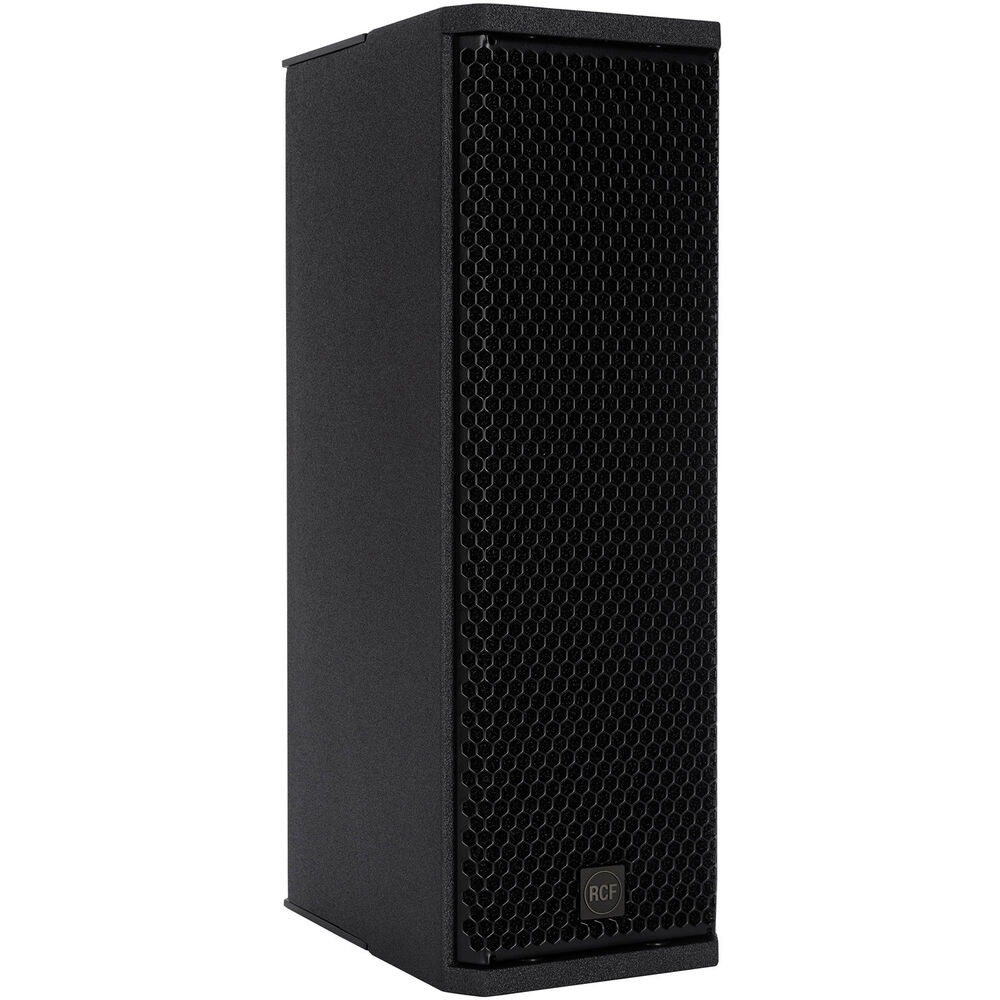

Use it as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength Baltic-birch plywood coated with black, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Rig It Anywhere

• The only limit is your imagination. With multiple rigging accessories and the unobtrusive form factor of the cabinet, KX 515-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting�at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.
• The speaker�s rigging is fast and easy using either the practical Quick Fit socket to easily install accessories such as the clamp mount, pole mount, horizontal brackets, or the two M10 threads on the top and bottom of the cabinet. You will always find a place for KX 515-A.

Tour-Ready Construction

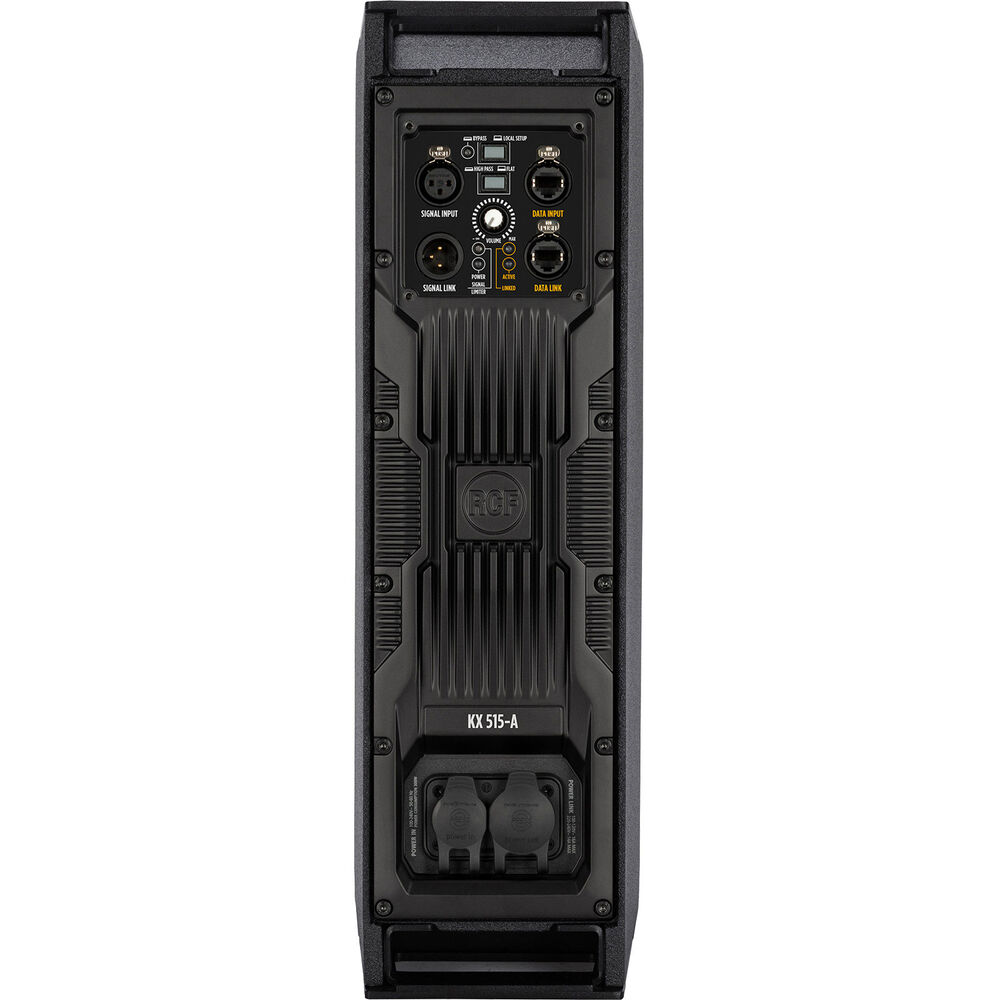

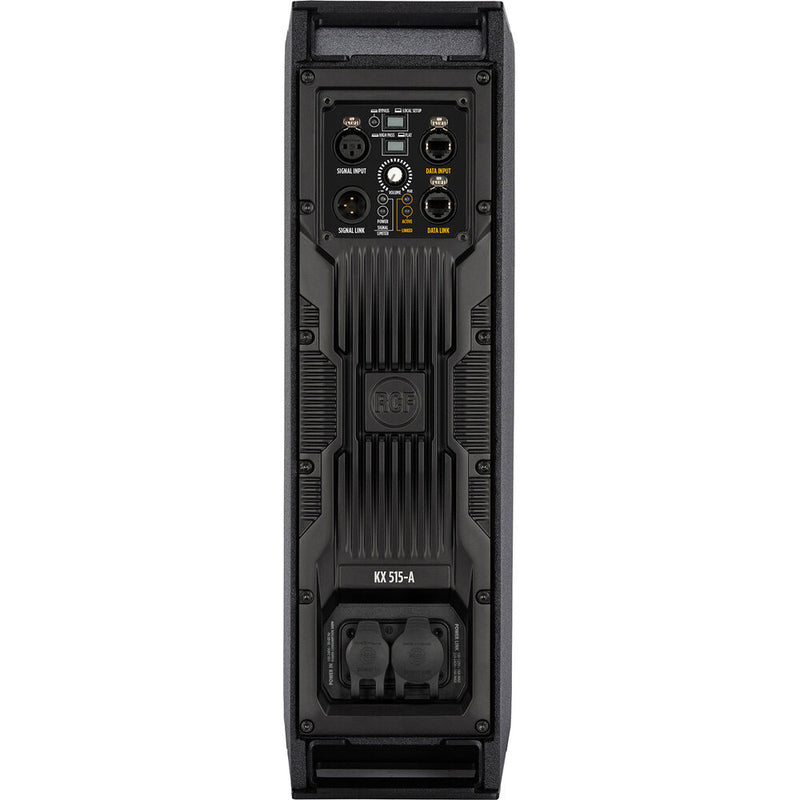

Attached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced, sturdy, and equipped with waterproof powerCON TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.

Bass Motion Control

KX speakers equipped with Bass Motion Control (BMC) produce the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity. The BMC method creates a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that limits over-excursions. Traditional high-pass filters protect the woofer from over-excursion but change the phase/frequency response. In contrast, the new BMC algorithm protects the woofer allowing total freedom of signal reproduction.

FiRPHASE

KX speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE processing distributes sound to all listeners without phase distortions, ensuring minimum latencies in the system. The algorithm corrects phase and amplitude (if necessary) by taking into account the weak points of the transducers and the resonances or cancellations due to the cabinet of the loudspeaker.

True Resistive Waveguide

• The True Resistive Waveguide is the result of several refinements in both the transducers' and the vented ports' design, with Finite Element Analysis and constant measurement in RCF anechoic chambers.
• Thanks to FiRPHASE technology, the new shape, and the placement of the ports, the speaker now acts as a single ideal source for a perfect sound image.
• Acoustically, the TRW waveguide mimics a resonance-free pure resistive load, reducing the high-frequency distortion of a classic horn. With its asymmetrical sound shaping, the coverage angle of the waveguide provides constant directivity to the entire listening area and improved stereo panorama.

Remarkable Transducers

• High Frequencies: The 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs, making it 10x more durable than previous designs. The redesigned phase plug increases sound clarity, enhancing transient response and improving coupling with the low-frequency transducer.
• Low Frequencies: Low-frequency transducer design gains more stability over higher currents and with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. The woofers are tested with 200 hours of continuous signal to stress the transducer at extreme levels.

RCF KX 515-A Specs

Configuration	Active 2-Way
Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	2000 W
HF Driver	1x 1" / 25.4 mm Rotatable Horn Titanium Compression Driver
MF Driver	No
LF Driver	2x 5" / 127 mm Woofer
Wireless Connectivity	No
Color	Black

Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	2000 W
Amplifier Power Rating	LF: 1400 W Peak HF: 600 W Peak
Amplifier Class	Class-D

HF Driver	1x 1" / 25.4 mm Rotatable Horn Titanium Compression Driver
HF Voice Coil	1.75" / 44.45 mm
MF Driver	No
LF Driver	2x 5" / 127 mm Woofer
LF Voice Coil	2" / 50.8 mm

Frequency Response	70 Hz to 20 kHz
Maximum SPL	127 dB (Peak)
Coverage Angle	100° H x 70° V
Protections	Excursion

Audio I/O	1x XLR 3-Pin Input 1x XLR 3-Pin Thru/Output
Network I/O	2x RJ45 (RDNet) In/Out
USB I/O	No
Wireless Connectivity	No
Bluetooth	No
Mobile App Compatible	No

Crossover	High-Pass: 1200 Hz (Internal)
EQ	No
Parametric EQ	No
Semi-Parametric EQ	No
Dynamic Processing	Fast Limiter
Alignment Delay	Yes
Phase Adjustment	Yes
Digital Signal Processing	FIR Filter, Venue Settings

AC Input Power	Universal: 100 to 240 VAC, 50 / 60 Hz
AC Power I/O	1x powerCON TRUE1 Input 1x powerCON TRUE1 Output
Power Consumption	300 W

Color	Black
Mounting	2 x M10 Fly Point (Bottom, Top) 1 x Pole Socket
Handles	1x Top 1x Bottom
Cooling	Convection, Heat Sink
Construction Material	Composite, Stainless Steel Grille
Dimensions	18 x 6 x 9.4" / 457.2 x 152.4 x 238.8 mm
Weight	21.6 lb / 9.8 kg
