Description
RCF KPS168 Overview
The KPS168 Class-D Power Amp with DSP (8x160W) from RCF delivers professional audio performance and excellent reliability for fixed installations.
Designed to integrate with RCF passive speakers, they include a comprehensive set of presets to simplify setup and ensure optimal sound quality. The Class-D output stage uses a full-bandwidth pulse-width modulator (PWM) to represent the entire 20 Hz to 20 kHz range with minimal phase shift. High-speed switching and real-time global feedback keep total harmonic distortion below 0.05%. Installation-specific features enhance usability and efficiency, including advanced system status monitoring for proactive maintenance, LAN Control and GPIO connectivity for expanded control capabilities, flexible signal routing for customized installations, and complete integration with RCF's proprietary RDSpace management platform. Digital S/PDIF inputs and outputs are also included.
- Delivers 8 independent 160W RMS channels into a compact 1 RU chassis
- Intelligent power-sharing architecture can reallocate balancing absorption on channel pairs
- Gives installers flexibility to distribute power asymmetrically across outputs, without engaging bridge mode or reducing channel count
- Adaptive software for KPS Series management.
- Available for macOS/Windows platforms, or as a web app connecting the browser (from smartphones or computers) directly to the amplifier.
- Handle every stage of deployment?input routing, zone definition, output optimization, and speaker calibration?with real-time monitoring through a single interface.
- Scales smoothly from small venues to large, multi-zone networks, giving operators quick access to presets or deeper configuration tools as the project demands.
- Allows management of linear-phase FIR filtering, speaker presets and user presets, flexible routing, parametric EQ, precision delay, and full device control.
- All configuration and monitoring take place in a single application, with the same unified interface, giving operators complete command of the entire audio system from every screen.

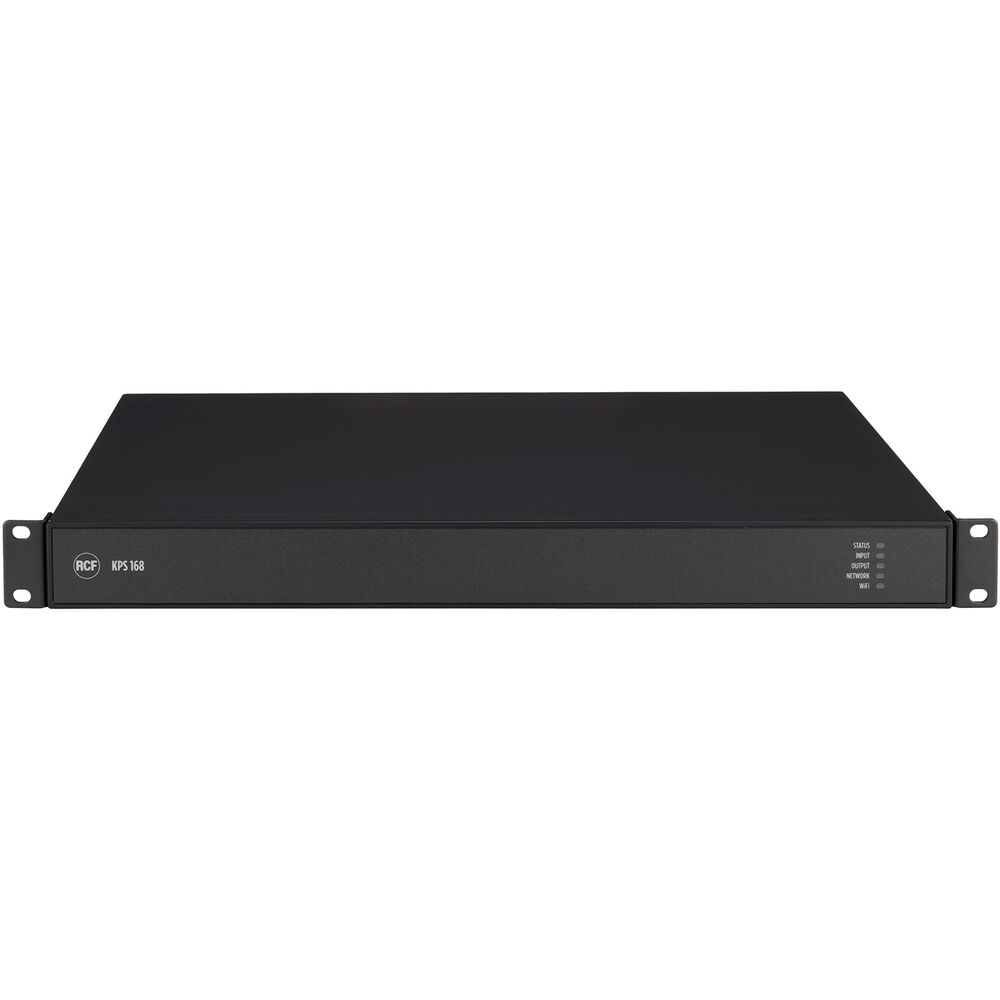

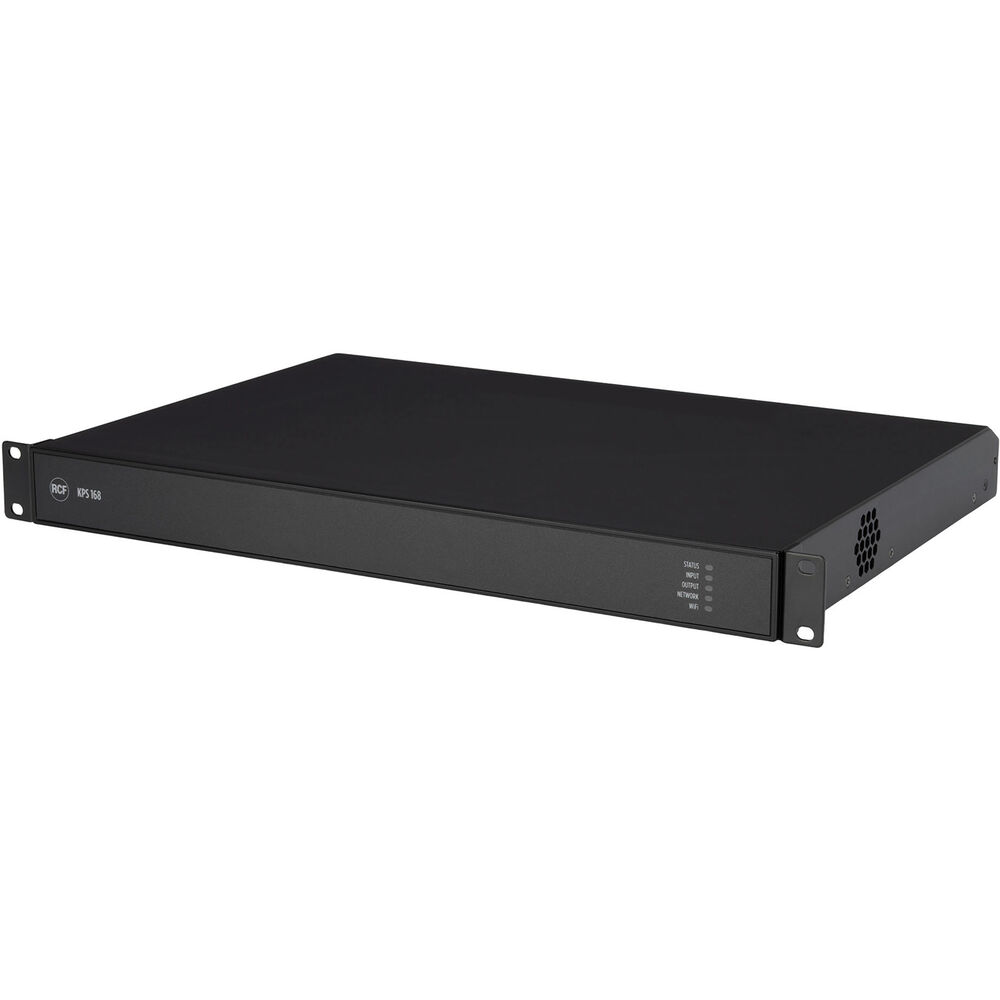

- RCF KPS168 Class-D Power Amp with DSP (8x160W)
- Limited 2-Year Manufacturer Warranty
No additional resources available
RCF KPS168 Specs
| Item Type |
Distribution Amplifier
|
| Number of Mixer Inputs |
8
|
| Number of Distribution Outputs |
8x Stereo
|
| Number of Amplifier Channels |
8
|
| Load Impedance/Voltage Support |
2 / 4 / 8 Ohms
|
| Power Rating per Channel |
8x 160 W at 4/8 Ohms
|
| Amplifier Class |
Class-D
|
| Protections |
DC Fault, Short Circuit, Thermal
|
| Frequency Response |
20 Hz to 20 kHz
|
| SNR/Noise |
> 108 dB SNR (Analog, A-Weighted)
> 108 dB SNR (Digital, A-Weighted) Tested at A-Weight |
| THD/Distortion |
? 5% THD
|
| Compatibility |
RDSPace, AMX, CRESTRON, Q-SYS, Symetrix, Control
|
| DSP |
Yes
|

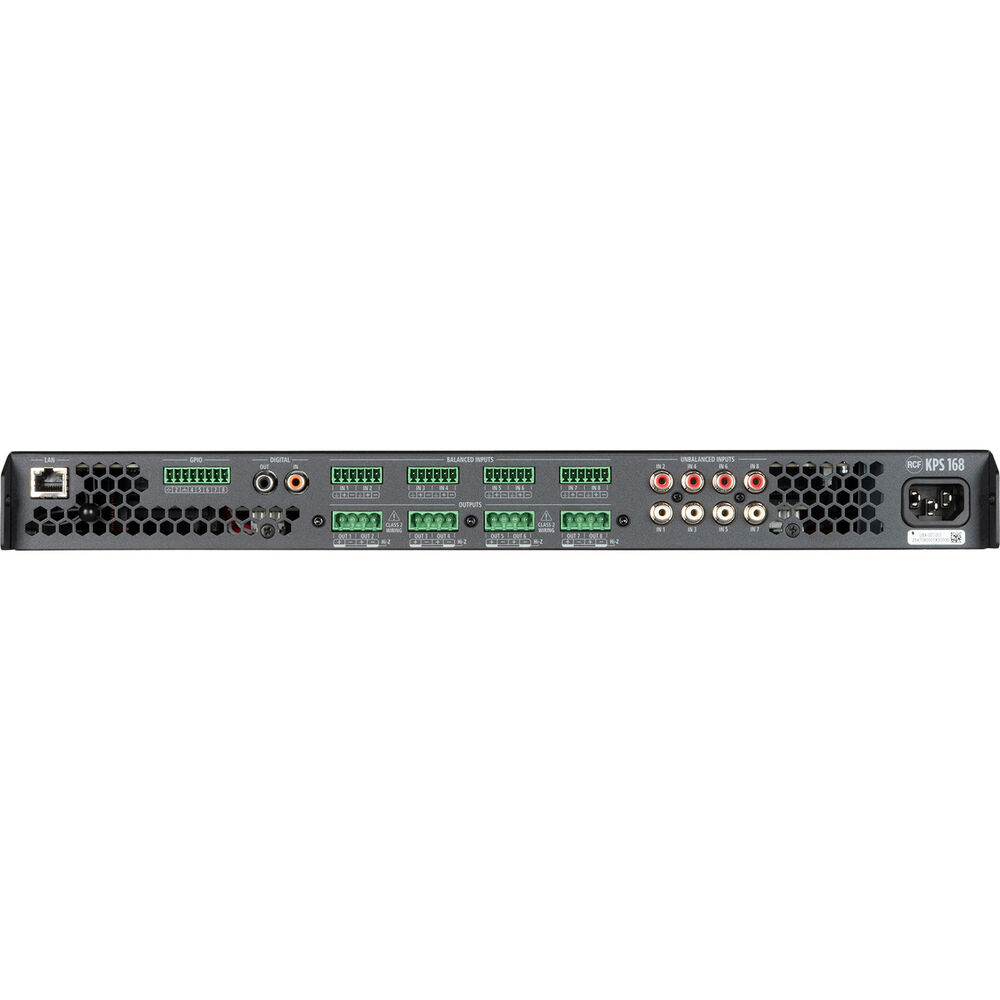

| Analog Audio I/O |
8x Block 3-Pin Balanced Line/Mic Input
8x RCA Balanced Line Input 8x Block 2-Pin Speaker Output |
| Digital Audio I/O |
1x RCA Coaxial S/PDIF Input
|
| Network I/O |
1x RJ45 Ethernet
|
| USB I/O |
No
|
| Wireless |
No
|
| Input Power |
90 to 240 VDC
|
| Power Consumption |
300 W
|
| Display |
No
|
| Rackmount Size |
1 U (with Included Hardware)
|
| Certifications |
CE
|
| Dimensions |
19 x 12.6 x 1.7" / 482 x 319 x 44 mm
|
| Weight |
8.38 lb / 3.8 kg
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 558541.2 |
| 3-5 | ₹ 552841.8 |
| 5-10 | ₹ 541443.0 |
| 10+ | ₹ 530044.2 |
Bulk discount will be automatically applied during checkout based on quantity.
