Description
RCF HDL 20-A Overview
- 1Description
- 2Tour Sound in a Compact Size
- 3Power Class-D Amplifiers
- 4RCF Precision Transducers
- 5At a Glance

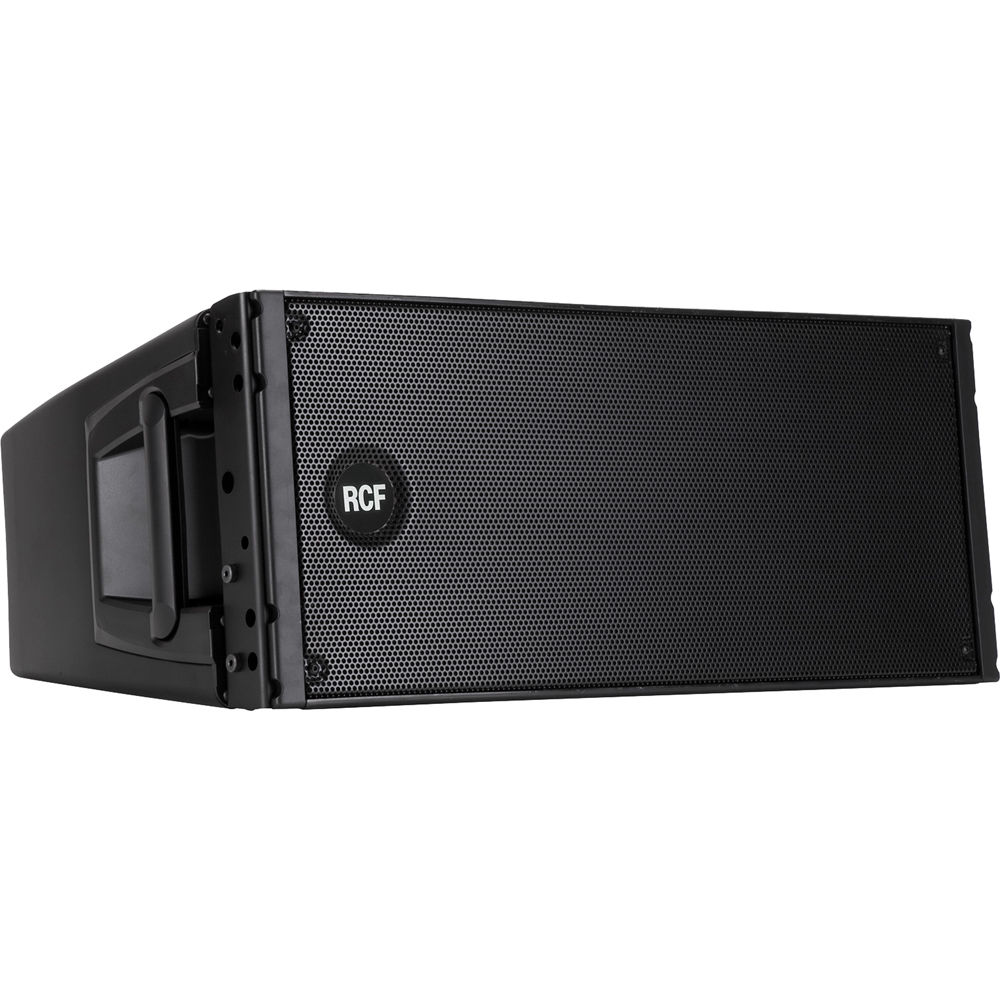

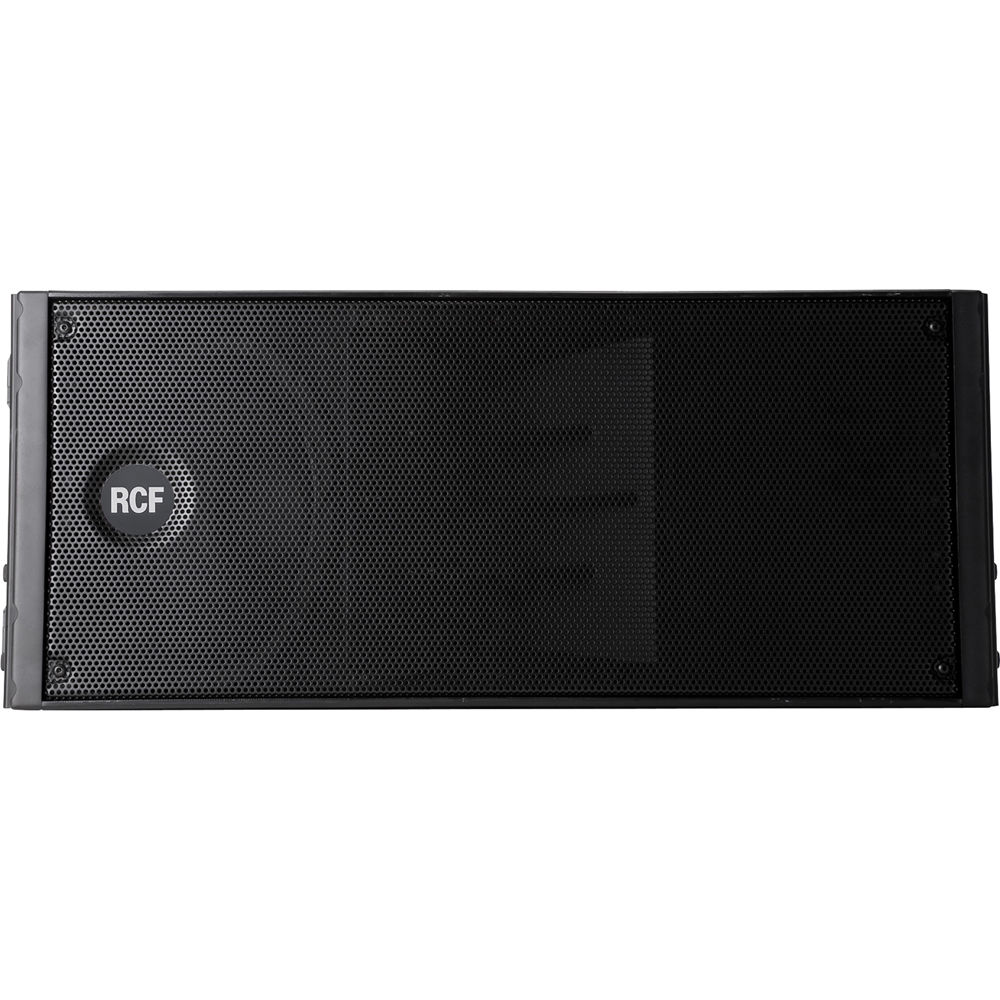

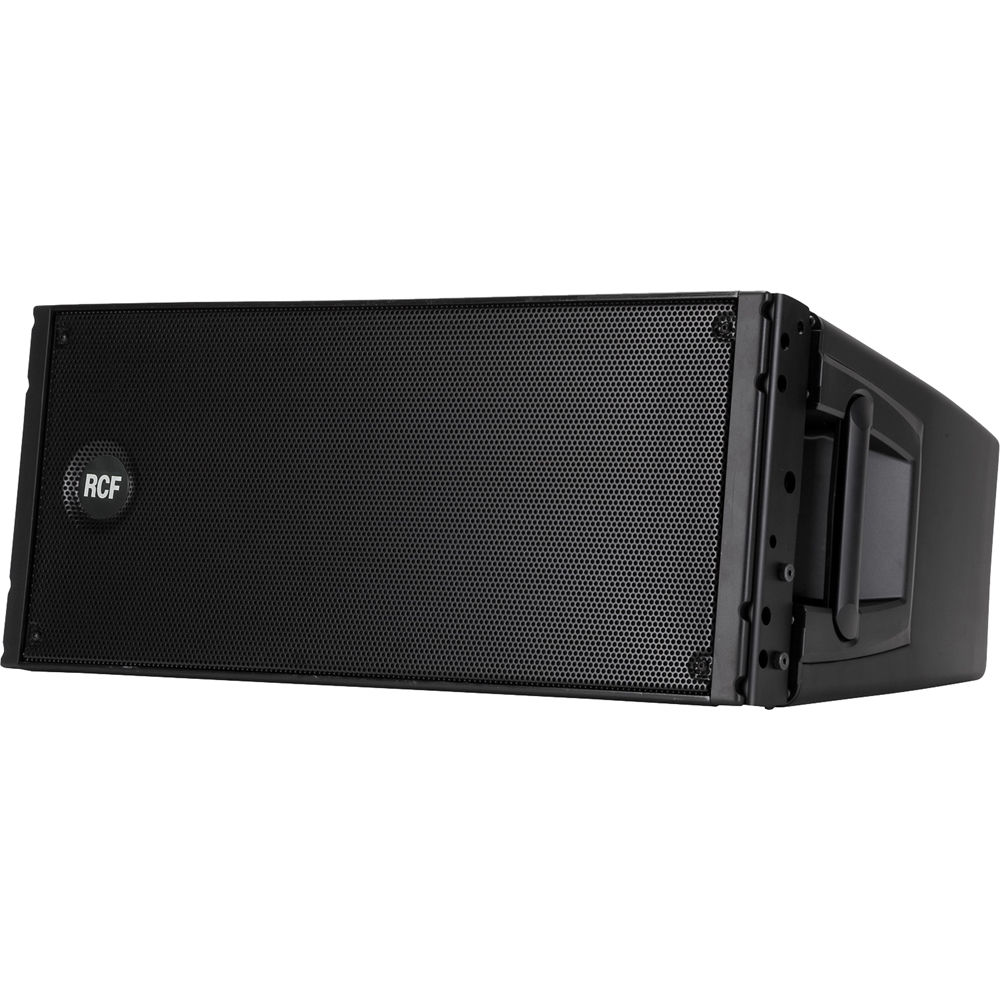

Audio professionals in search of a compact line array module for live sound reinforcement and reliable installation applications will be impressed with the RCF HDL 20-A, a powered line array module with a fast and easy setup well suited for touring bands, concerts, clubs, festivals, or anywhere line array performance is needed.
The module features a 1400W bi-amplifier that delivers 1000W to the dual 10" woofers and 400W to the 3" compression driver, which combine for a frequency response of 55 Hz to 20 kHz and a maximum SPL of 135 dB. The integrated DSP includes cluster and high-frequency projection correction and special new presets for indoor and high-curving situations. There are XLR inputs and outputs and powerCON inputs and outputs for daisy chaining multiple line array modules.
Tour Sound in a Compact Size
The HDL 20-A is a true active and high-power, ready-to-use touring system equipped with a high-efficiency digital amplifier that delivers superior SPL, reducing energy requirement. The integrated processing and the cabling reduction will make the set up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.
Power Class-D Amplifiers
RCF's Class-D power amplifier technology packs huge performance, operating with high efficiency into a lightweight solution. HDL amplifiers deliver an ultrafast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminum structure, which not only stabilizes the amplifier during transportation, but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
RCF Precision Transducers
High frequencies:
- The CD850 large-format compression driver delivers one of the key advantages of the HDL 20-A, the 3" voice coil allows a crossover point of 800 Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.
Low frequencies:
- High power woofers. Very-high efficient and controlled bass reproduction.
- 2 x 10" woofers, 2,5" inside-outside voice coil
- Water-resistant fiber doped cone
- Polycotton M-roll surround
- Hypervented magnetic structure
At a Glance
- 1400W peak power / 700W RMS
- 135 dB max SPL
- 55 Hz to 20 kHz frequency response
- DSP controlled -input section with selectable presets
- Tour-grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
In the Box
- RCF HDL20-A Dual 10" 1400W Active Line Array Module
- Power Cord
Table of Contents
- Description
- Tour Sound in a Compact Size
- Power Class-D Amplifiers
- RCF Precision Transducers
- At a Glance
RCF HDL 20-A Specs
| Configuration | Active Full-Range |
| Enclosure Type | Bass-Reflex Line Array |
| Total Power Capacity | 1400 W Peak 700 W RMS |
| Amplifier Power Rating | HF: 400 W Peak 200 W RMS LF: 1000 W Peak 500 W RMS |
| Amplifier Class | Class-D |
Drivers
| HF Driver | 1 x 2" / 5.1 cm Compression Driver |
| HF Voice Coil | 3" / 7.6 cm |
| MF Driver | None |
| LF Driver | 2 x 10" / 25.4 cm Woofer |
| LF Voice Coil | 2.5" / 6.3 cm |
Performance
| Frequency Response | 55 Hz to 20 kHz |
| Maximum SPL | 135 dB |
| Coverage Angle | 100° H x 15° V |
| Protections | RMS, Thermal |
Connectivity

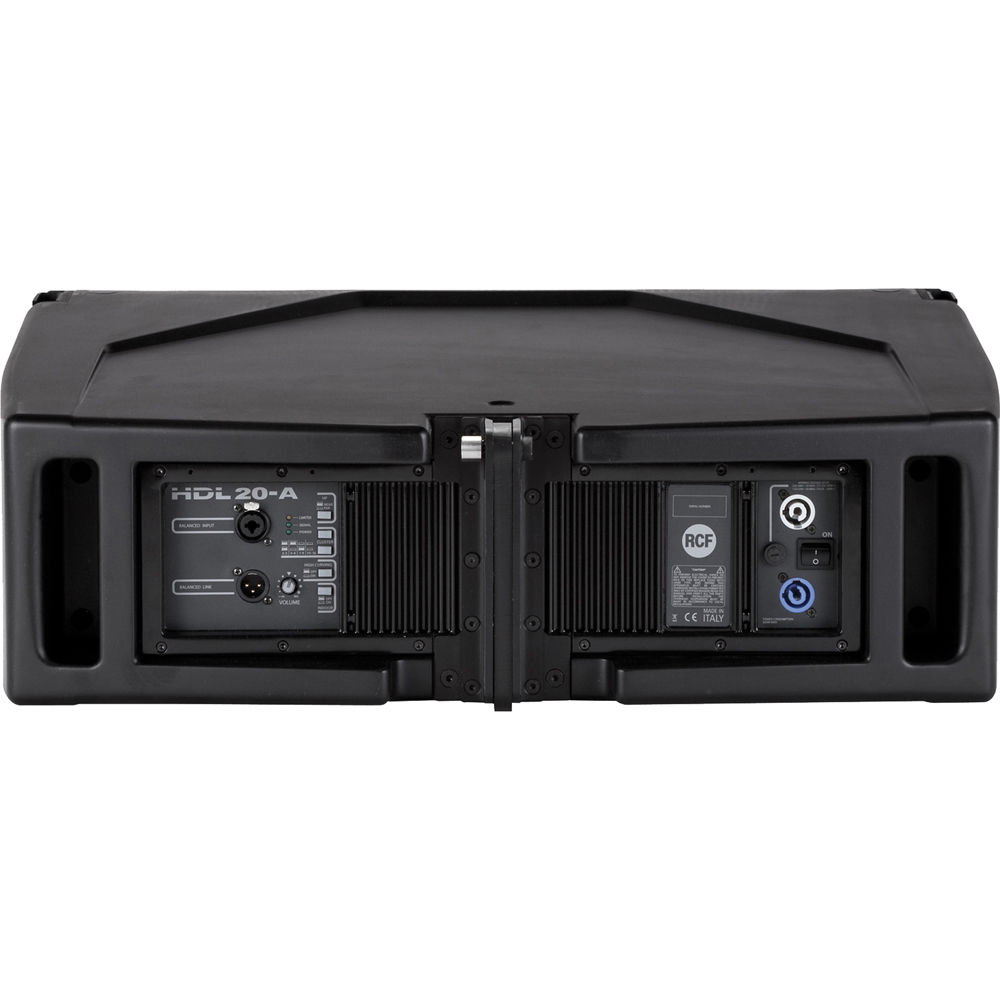

| Audio I/O | 1 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input 1 x XLR 3-Pin Male Balanced Line Thru/Output |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | None |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Signal Processing
| Crossover | 800 Hz |
| EQ | None |
| Parametric EQ | None |
| Semi-Parametric EQ | None |
| Dynamic Processing | Soft Limiter |
| Alignment Delay | None |
| Phase Adjustment | None |
| Digital Signal Processing | Venue Settings, Voicing Modes |
Power
| AC Input Power | 100 to 120 VAC, 60 Hz |
| AC Power I/O | 1 x powerCON Input 1 x powerCON Output |
Physical

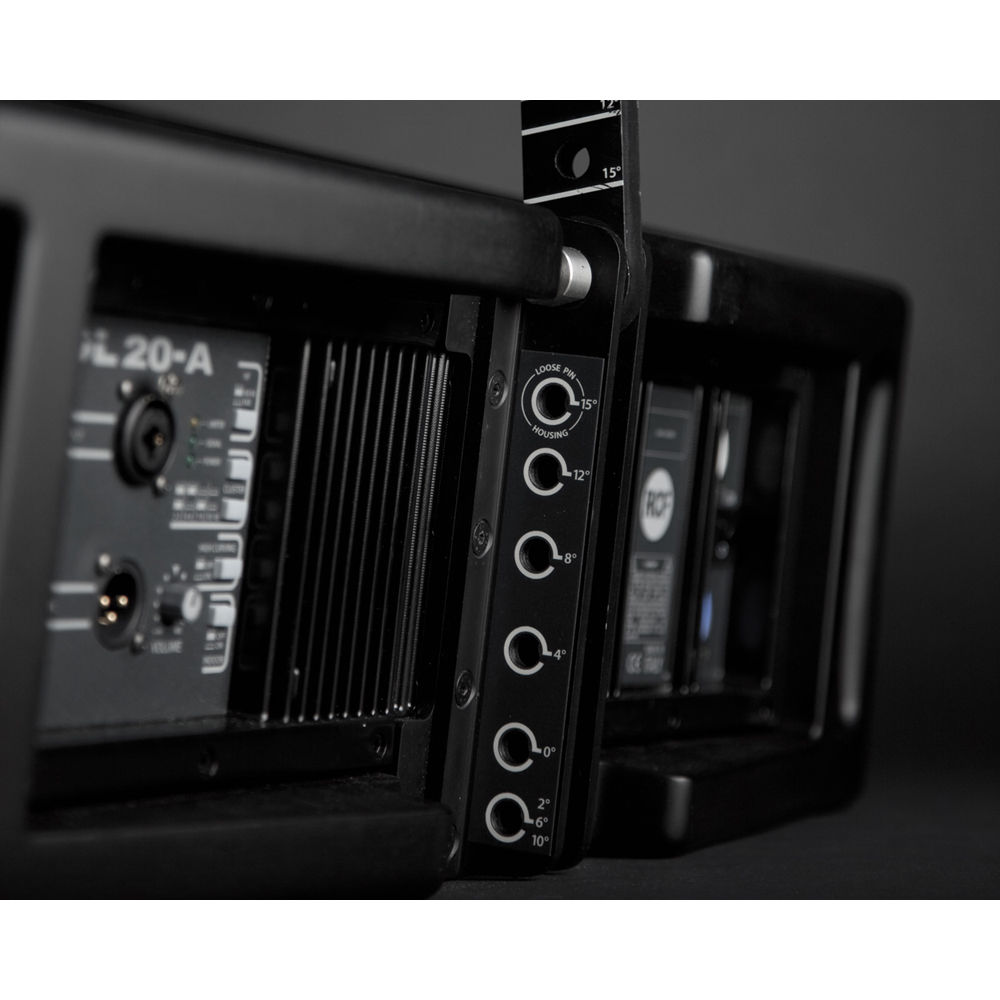

| Mounting | Integrated Rigging |

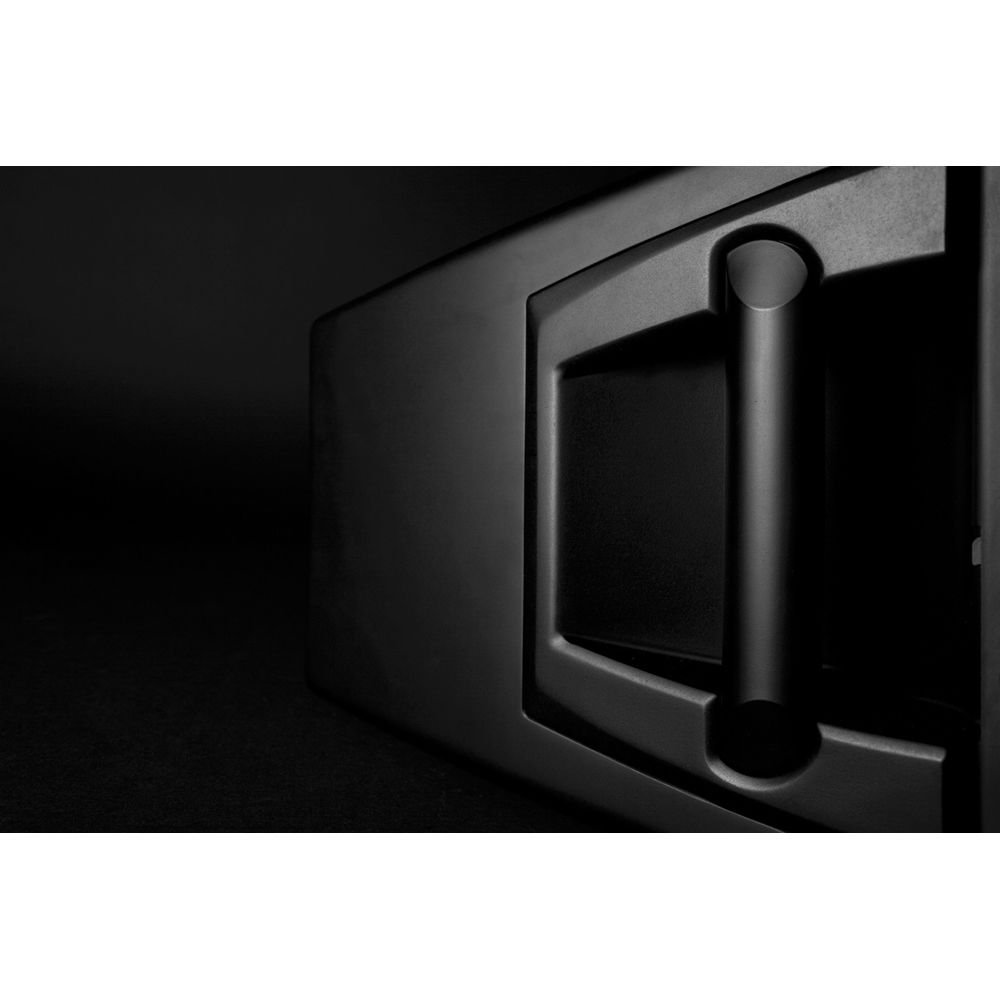

| Handles | 1 x Each Side 2 x Rear |
| Cooling | Convection |
| Construction Material | Composite, Polypropylene |
| Dimensions | 27.8 x 17.5 x 11.6" / 70.6 x 44.5 x 29.5 cm |
| Weight | 66.6 lb / 30.2 kg |
Packaging Info
| Package Weight | 75 lb |
| Box Dimensions (LxWxH) | 30.9 x 19.7 x 14.5" |
RCF HDL 20-A Reviews
