Description

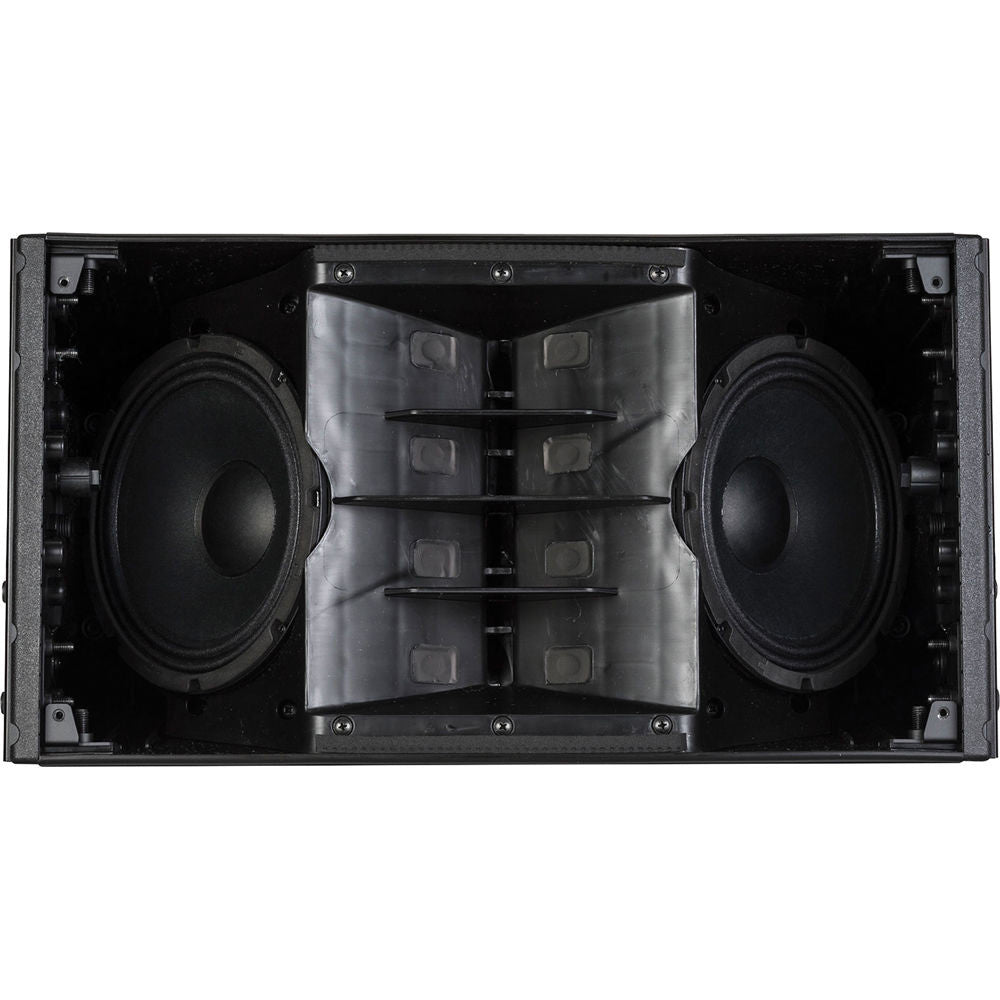

The HDL10-A Active Line Array Module from RCF is designed for use in live sound reinforcement and installed situations. The system is powered from a 1400W Peak Power two-way digital amplifier (split 400W for the HF and 1000W for the LF), and sound is processed from a powerful DSP. The system features two 10" transducers with a 2.5" voice coil for a solid bass reproduction, and a large format 2" compression driver to deliver vocal clarity and high definition. The custom-designed waveguide allows a coverage of 100° x 15°, whilst also delivering linear high frequency response.
The ND 640 compression driver's 2.5" voice coil allows a crossover point of 800Hz, which allows a wide vocal range to be produced by this driver. The DSP also includes presets for indoor/outdoor usage and highly curved arrays.

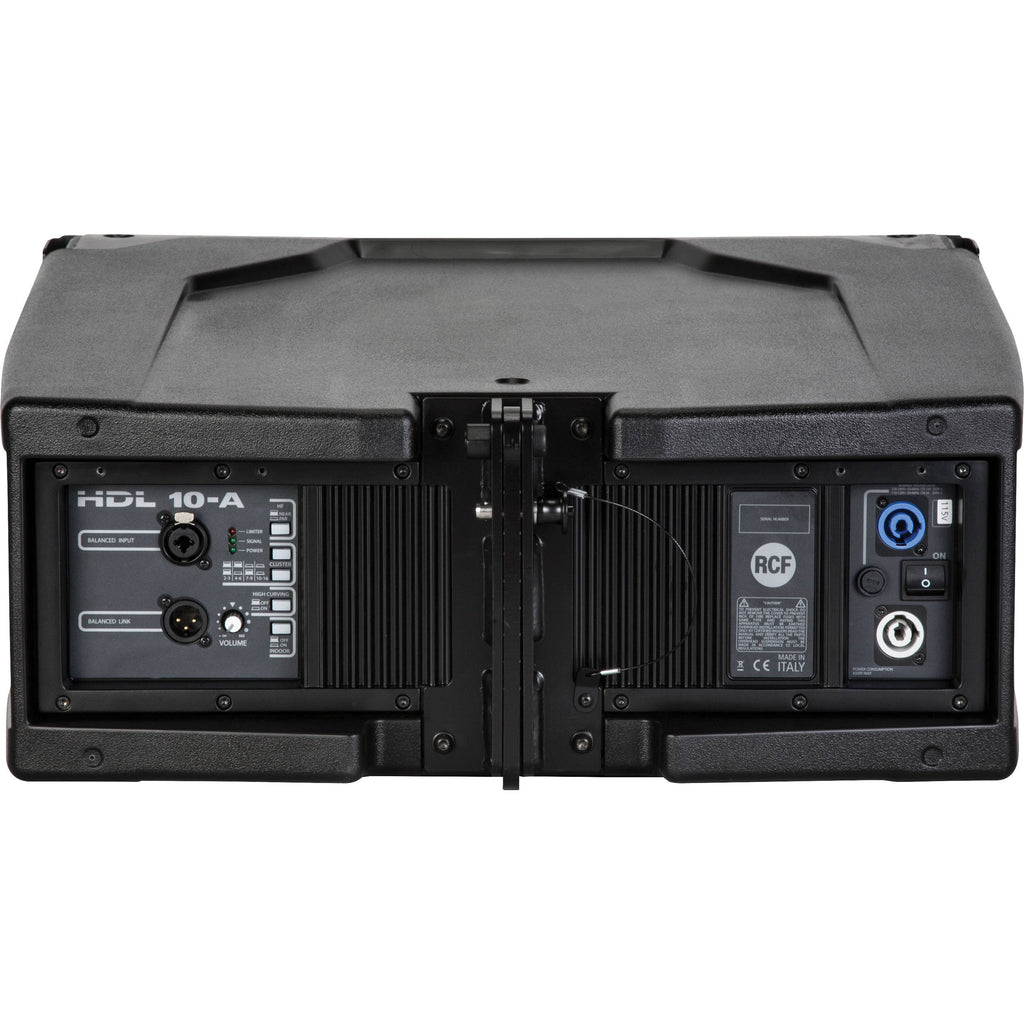

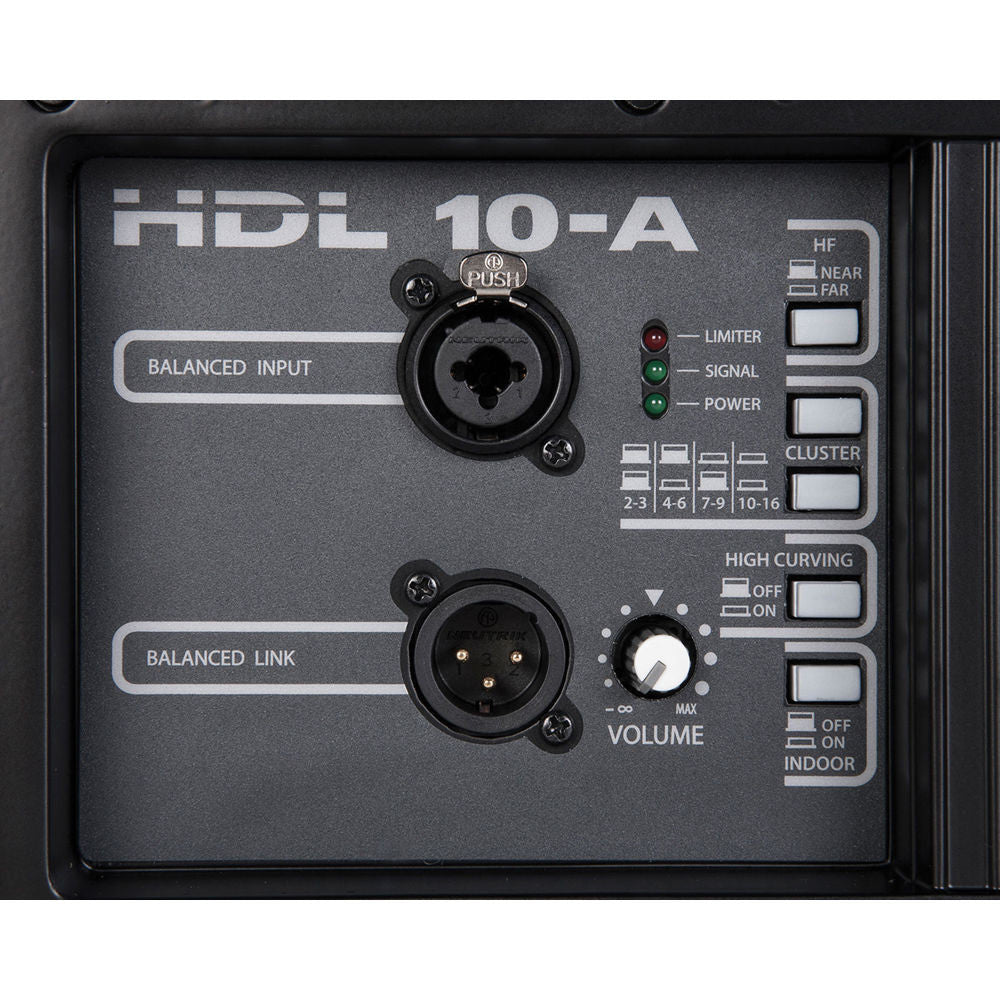

The back-panel controls on the allow a number of simple optimizations to be carried out: two possible HF settings, four possible cluster configurations, an EQ setting for high curved configurations, and an Indoor Correction EQ. A volume knob allows to set the overall volume of the speaker according to its application. This unit provides Power, Signal, and Status LEDs for monitoring the system.

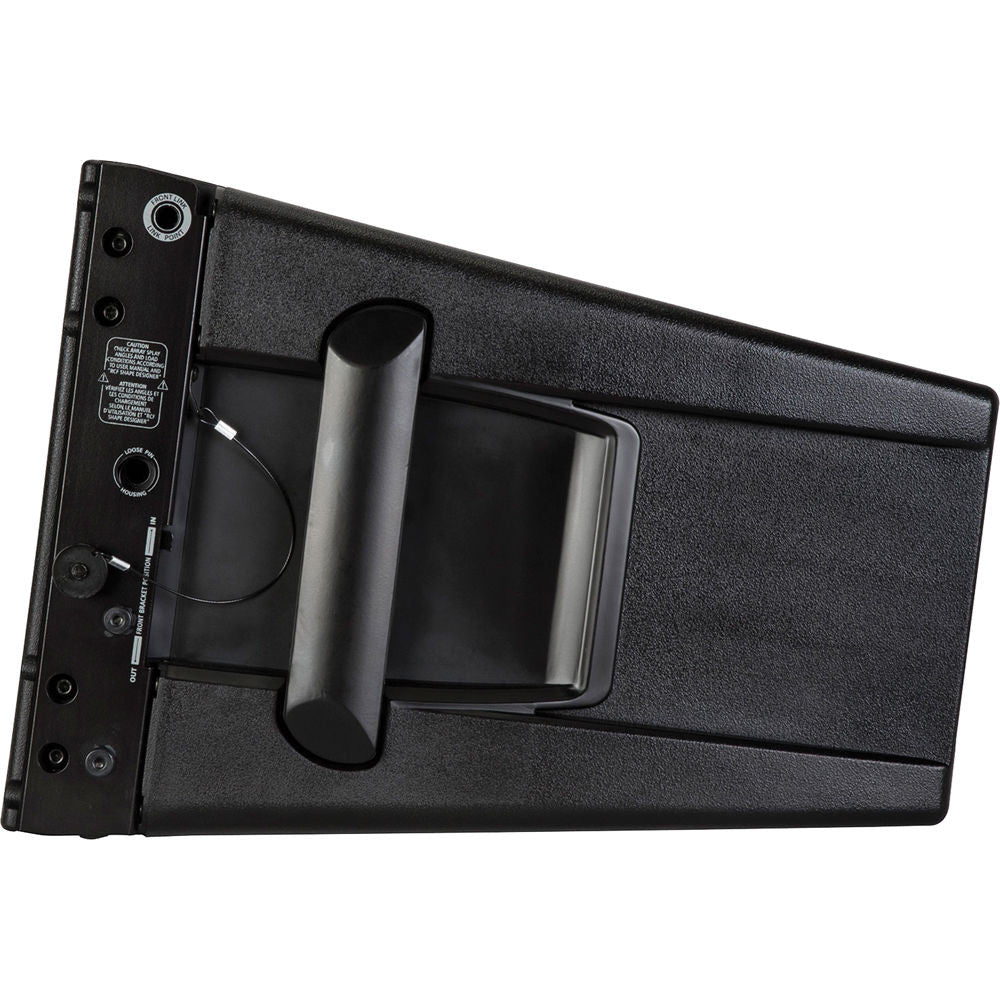

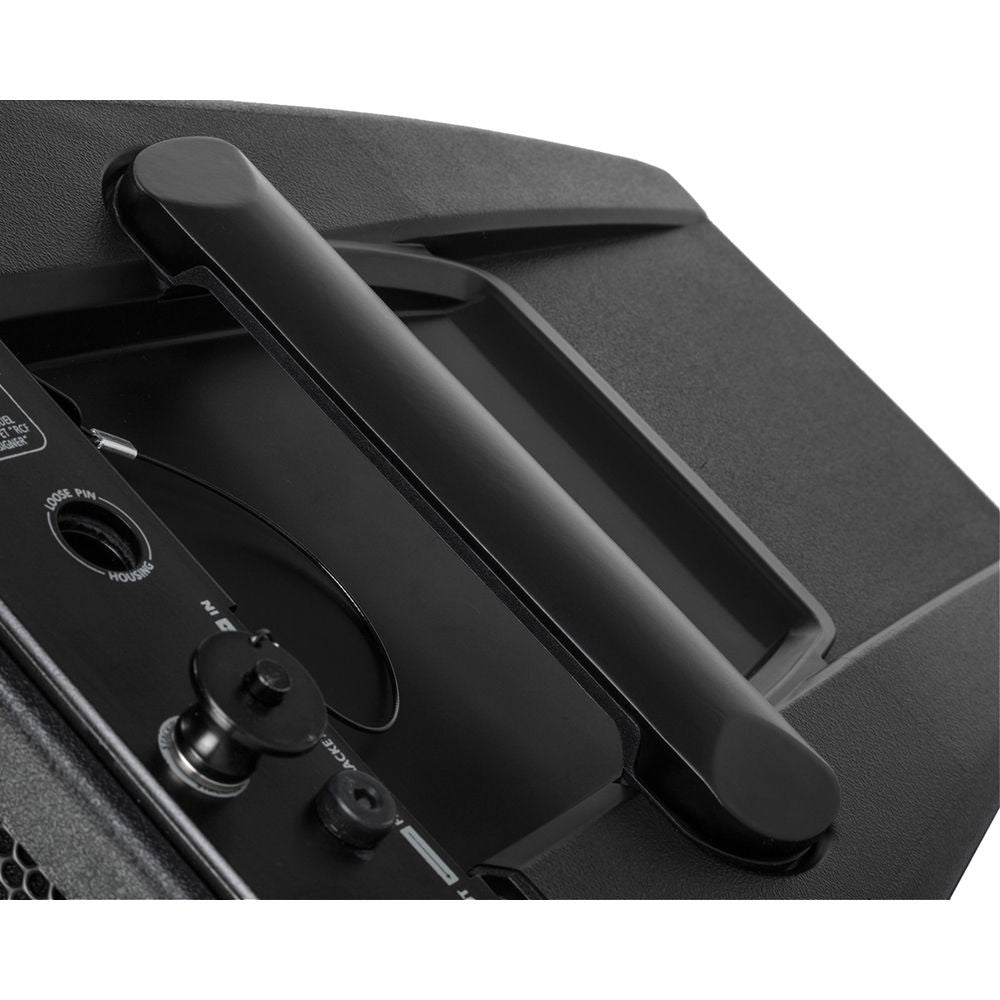

The HDL10-A features configurable mechanics, angles between cabinets are selectable with 2° resolution and allow the system engineer to create J-shaped or spiral arrays. HDL10-A cabinets are molded on a polypropylene composite material designed to dampen down vibrations even at maximum volume settings. The module is equipped with two aluminum side handles with a rubber handgrip for portability. The system is equipped with a heavy duty fly bar. The steel construction mechanics make it possible to fly up to 16 modules in daisy chain manner.
- Features:
-
- Provides up to 1400W of power (700W RMS)
- Two 8" woofers
- One 2" compression driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Wooden reinforced composite PP enclosure
�
- Applications:
-
- Live sound
- Rental
- Portable PA, clubs, ballrooms, live theatre
- Theme parks
- Music playback and sound reinforcement in small and mid-size venues
- Corporate A/V professionals and sound system hire companies
�
- Limited 1-Year Warranty
| Frequency Response | 65 Hz - 20 kHz |
| Maximum SPL | 133 dB |
| Horizontal Coverage Angle | 100� |
| Vertical Coverage Angle | 15� |
| Compression Driver | 2.0" (5.1 cm) with 2.5" (6.4 cm) voice coil |
| Woofer | 2 x 8.0" (20.3 cm) with 2.0" (5.1 cm) voice coil |
| Input Connectors | XLR-Jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
| Crossover Frequencies | 800 Hz |
| Protection | Thermal, RMS |
| Limiter | Soft limiter |
| Controls | Cluster, HF, high curving, indoor |
| Peak Power | Total: 1400 W High Frequencies: 400 W Low Frequencies: 1000 W |
| RMS Power | Total: 700 W High Frequencies: 200 W Low Frequencies: 500 W |
| Cooling | Convection |
| Other Connectors | PowerCON in/out |
| Material | Composite PP, wooden reinforced |
| Hardware | Rigging flyware |
| Handles | 2 side |
| Dimensions | 11.5 x 22.4 x 17.1" (29.4 x 56.9 x 25.4 cm) |
| Weight | 56.0 lb (25.4 kg) |
