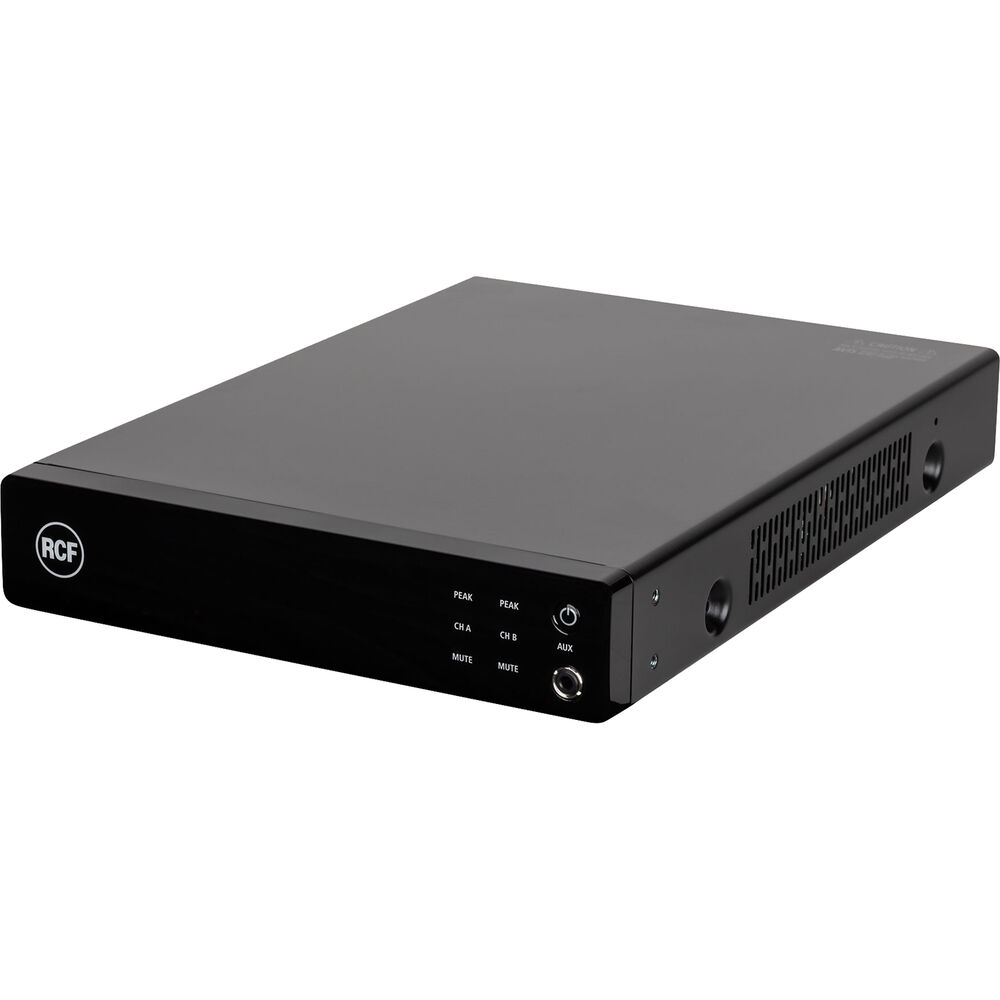

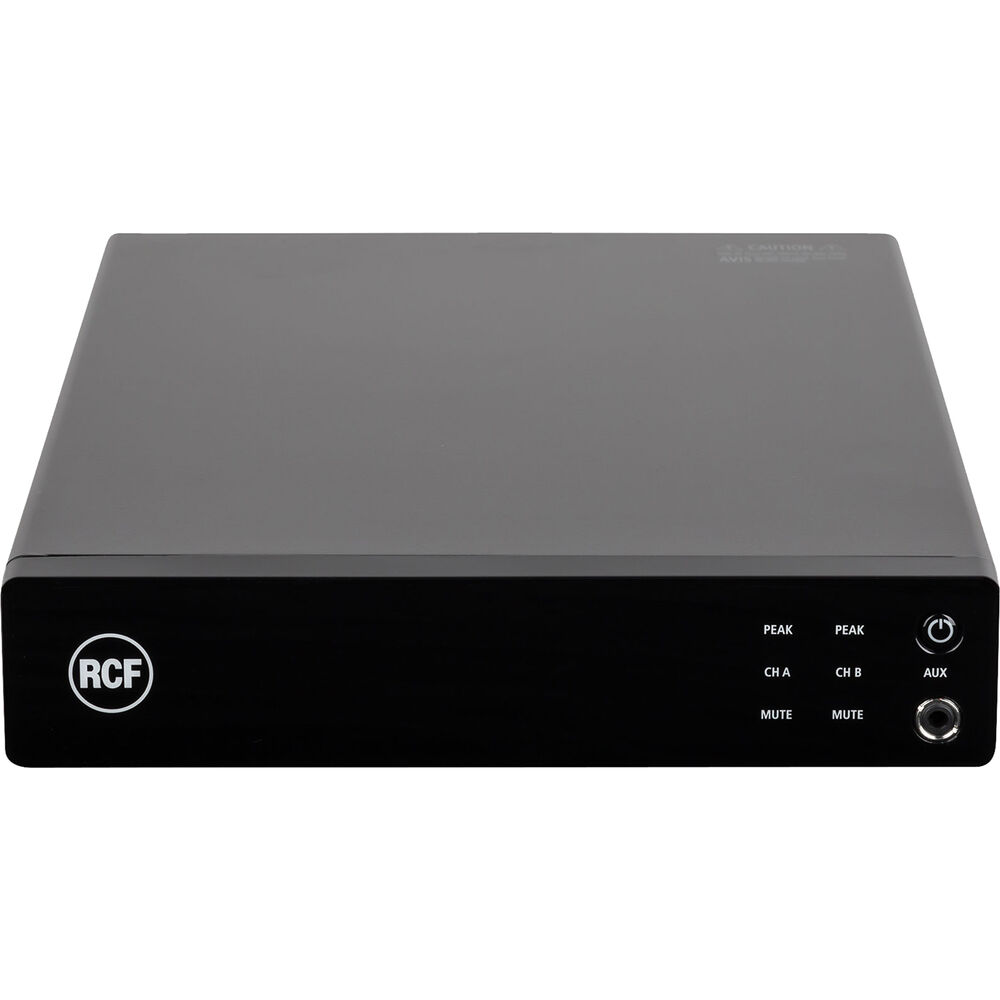

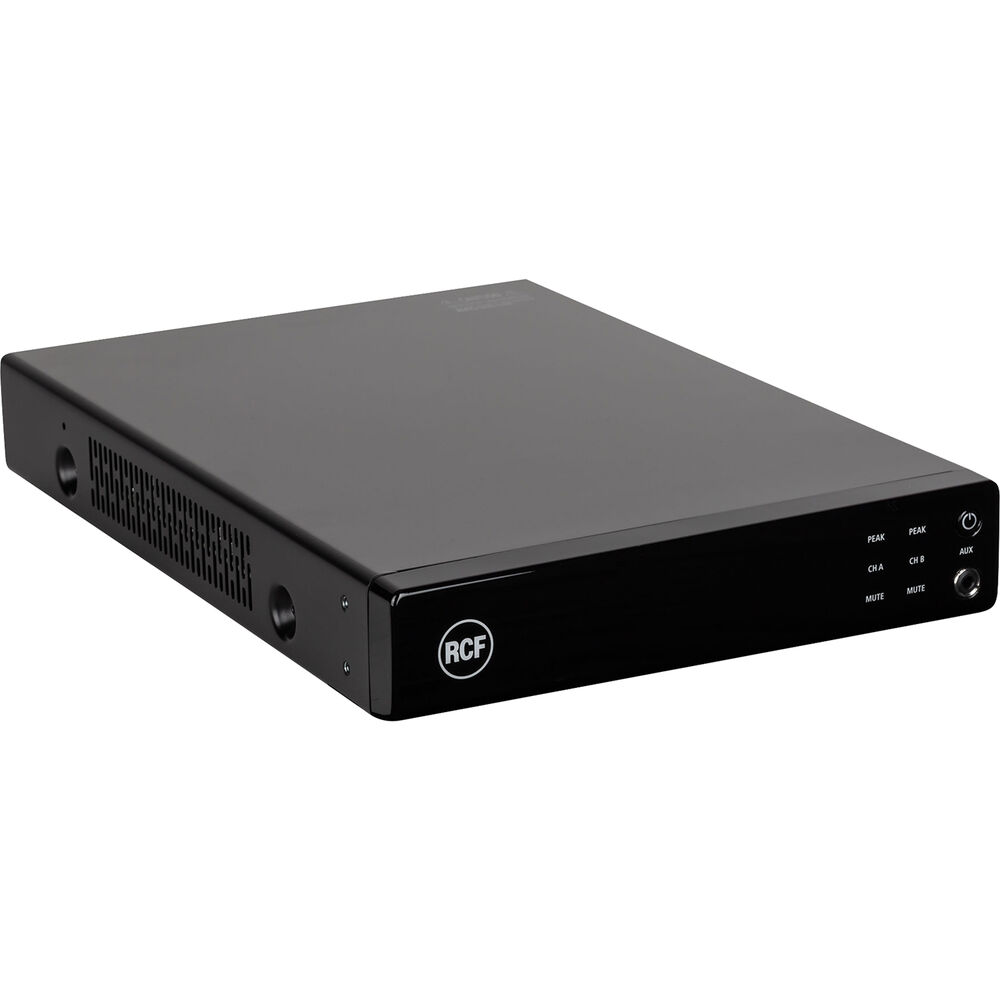

RCF DMA 162P 2-Channel 320W Digital Power Amplifier

Business Music Made Easy

When you need powerful audio amplification for commercial installations without the usual complications, look to the DMA 162P from RCF, a two-channel, dual 160W class-D power amplifier equipped for 4- / 8-ohm loads or hi-Z 70V power distribution, and featuring powerful internal DSP processing that can either be used in combination with a DMA 162 matrix amp for increased power or, thanks to its adaptability, as a standalone amplifier. With dedicated presets for RCF speakers, it ensures uniform and optimal audio quality for your entire system, and the DMA 162P supports scalable, multiroom architectures for nearly any requirement.

The DMA 162P sports comprehensive I/O for numerous audio inputs and outputs, speaker power, remote devices, and RJ45 powered four-channel analog audio I/O that can receive audio from a DMA 162 or be sent to a another DMA 162P. This power amplifier is easily desktop mounted on a wide range of surfaces, but can also be rack-mounted with an optional mounting kit (RM-Kit DMA) for integration into existing rack setups.

To manage all DSP functions and presets in standalone use, an optional RDNet board is required.

The DMA 162P sports class-D amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization. A complete set of processing functions is available, including speaker presets, proprietary bass enhancer algorithm, FIR filters, and environmental equalization. Thanks to its extremely compact size, accurate design, and robustness, it is ideal for a wide range of applications.

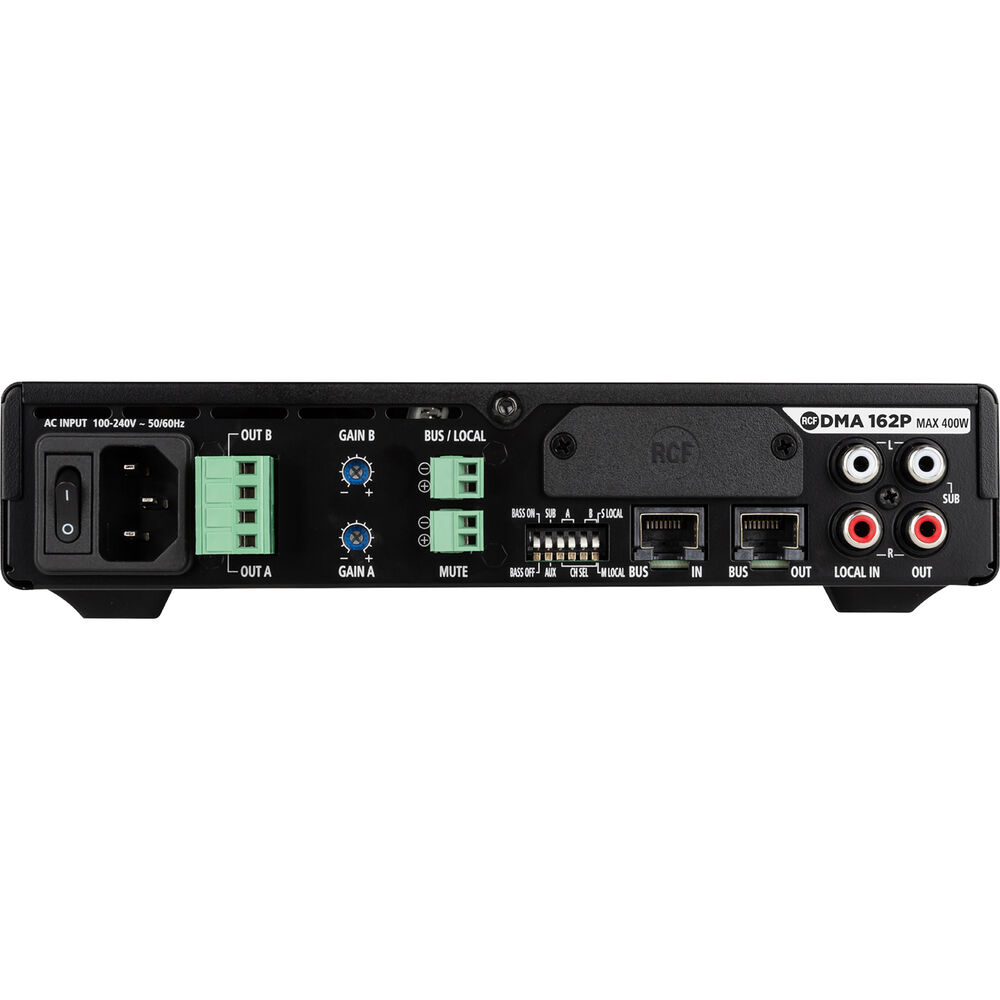

The DMA 162P is well equipped to handle connections to a plethora of controllers and paging accessories as well as secondary amplifiers, and more. Common Euroblock and RCA I/O make even complex setups hassle-free.

• Euroblock connections for bus/local dry contacts, mute, and speaker outputs
• RJ45 for analog audio bus input and output
• Unbalanced RCA I/O, including filtered low-pass signal specifically for subwoofers

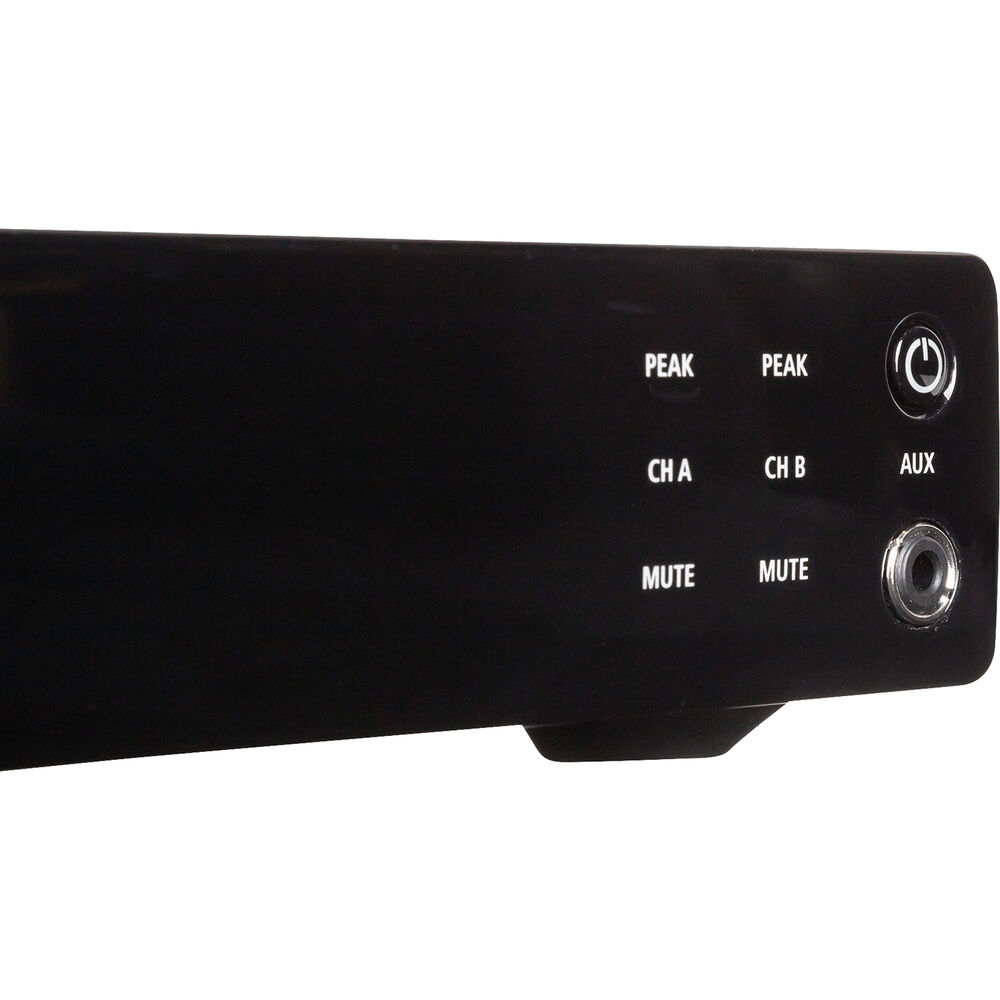

• Extra 3.5mm TRS Aux input on front panel for easy playback of external signals with system

This amplifier is equipped with a powerful DSP platform, integrating RCF proprietary technologies such as FiRPHASE, a FiR filtering technology, and BASS ENHANCER, a sophisticated algorithm that increases low-frequencies perception without affecting the output power. And with a wide frequency response of 20 Hz to 20 kHz, you will always get natural sound that remains faithful to the source.

Pre-loaded presets, to optimize the performance and equalization of any RCF speaker and to have the right RCF signature sound. Scroll through numerous presets for specific RCF speakers using the intuitive interface and assign presets per output.

RCF Business Music products are ready to use in few steps, even faster when connected to the RDNet networked management. The simple knob scrolling interface and bright OLED display make it easy to run through numerous settings in no time.

The DMA Connect app provides wireless control of RCF DMA Series Business Music amplifiers. With its functionality and user-friendly interface, it allows access to DMA settings such as: input and output levels, equalizers, routing, speaker preset selection, device information, and real-time VU-meters. Advanced settings for expert users are also available, including customizable names for input, outputs, and devices.

This feature requires the optional BT Board DMA accessory which is sold separately.

Some of the common applications for the DMA 162P amp include:

• Small and large retail spaces
• Meeting rooms
• Bars, pubs, and restaurants
• Multi-room clubs
• Supermarkets
• Fitness centers

RCF RDNet

RDNet is a robust management network and control platform for small, medium, and large arena-sized sound systems as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system.

Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well), and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers�you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
