Description
RCF COMPACT M 04 Overview
- 1Description
- 2At a Glance
- 3Multipurpose Sound
- 4Engage Your Customers
- 5Improve the Audio Atmosphere
- 6Smooth Installation

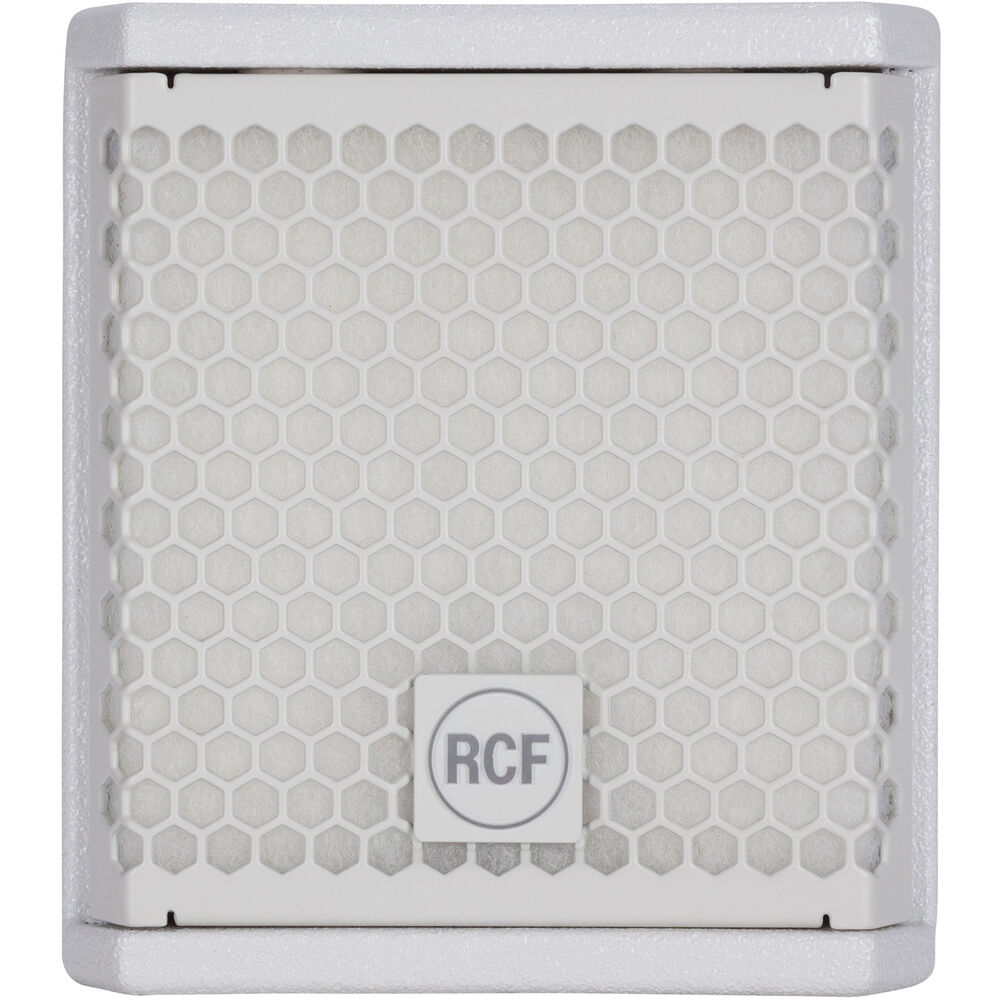

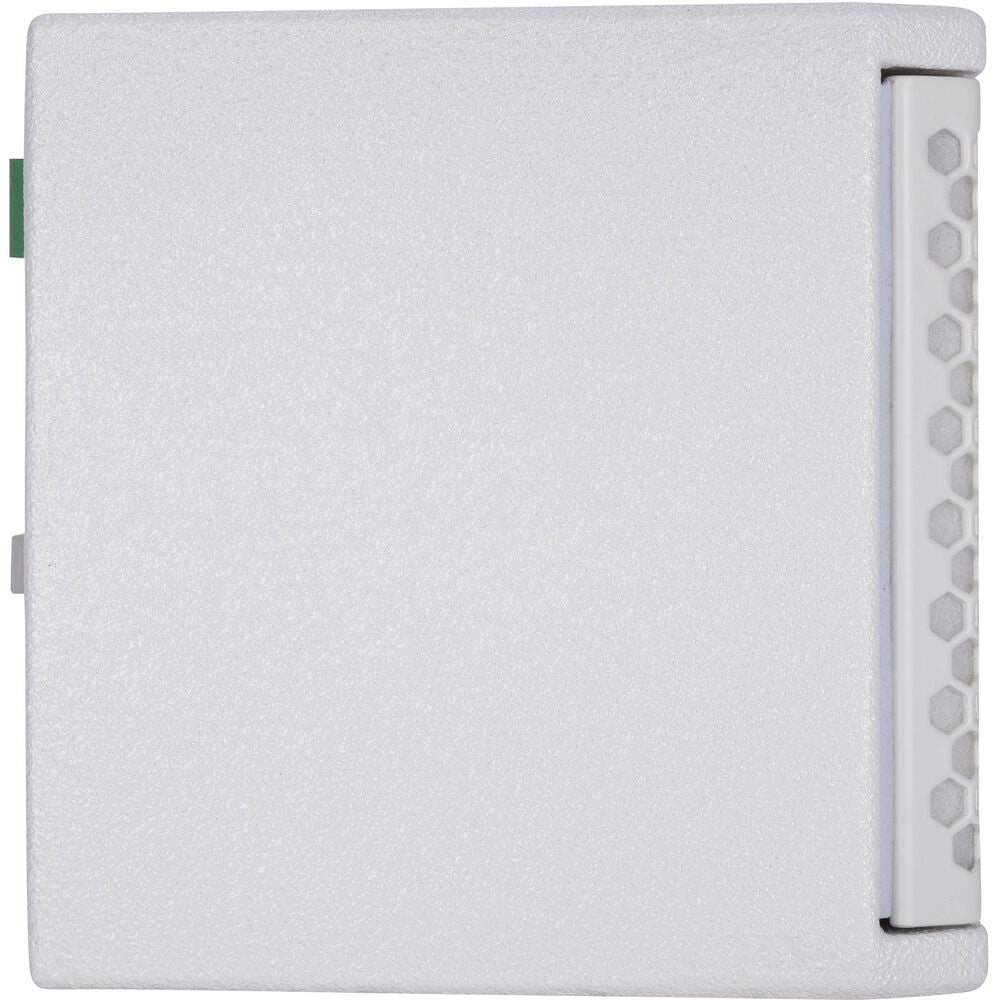

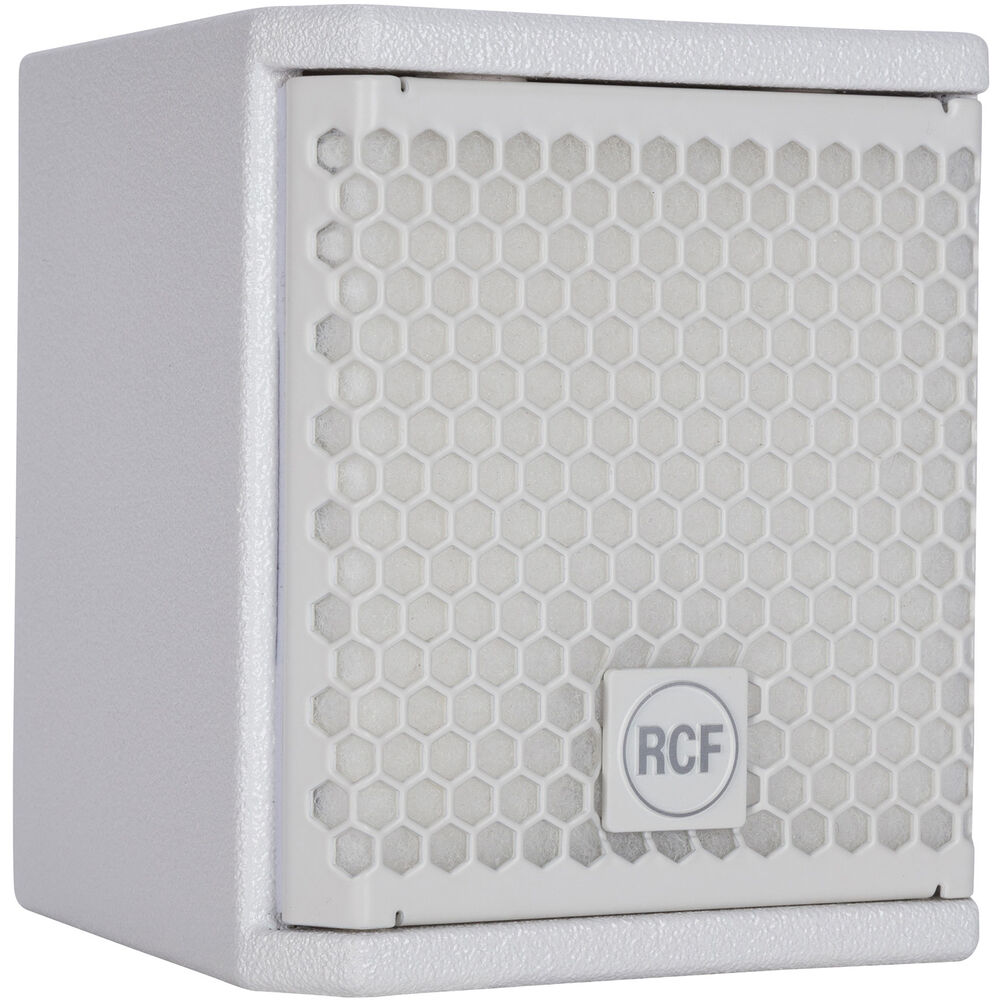

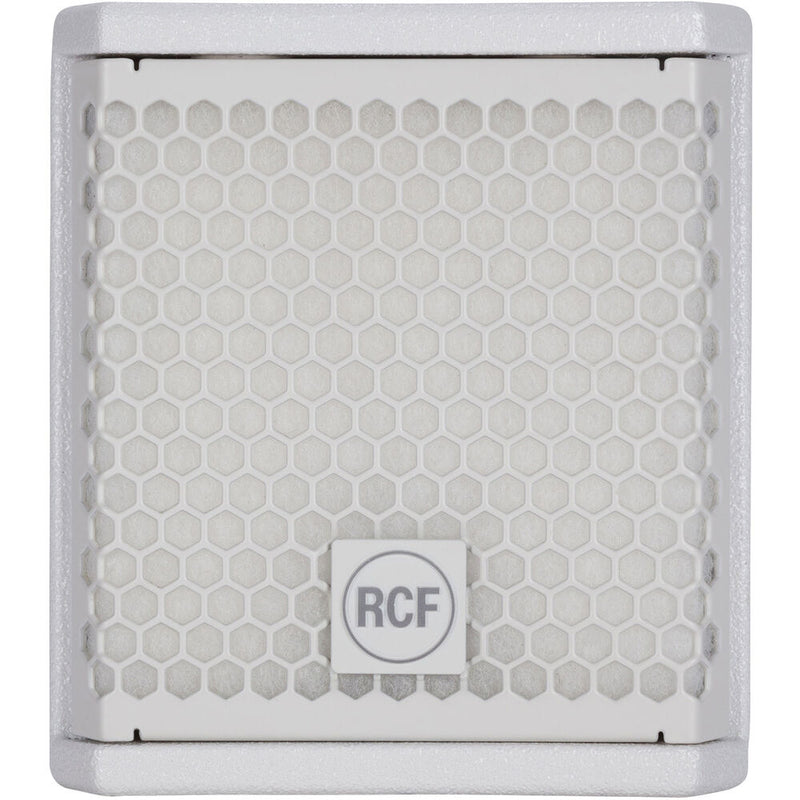

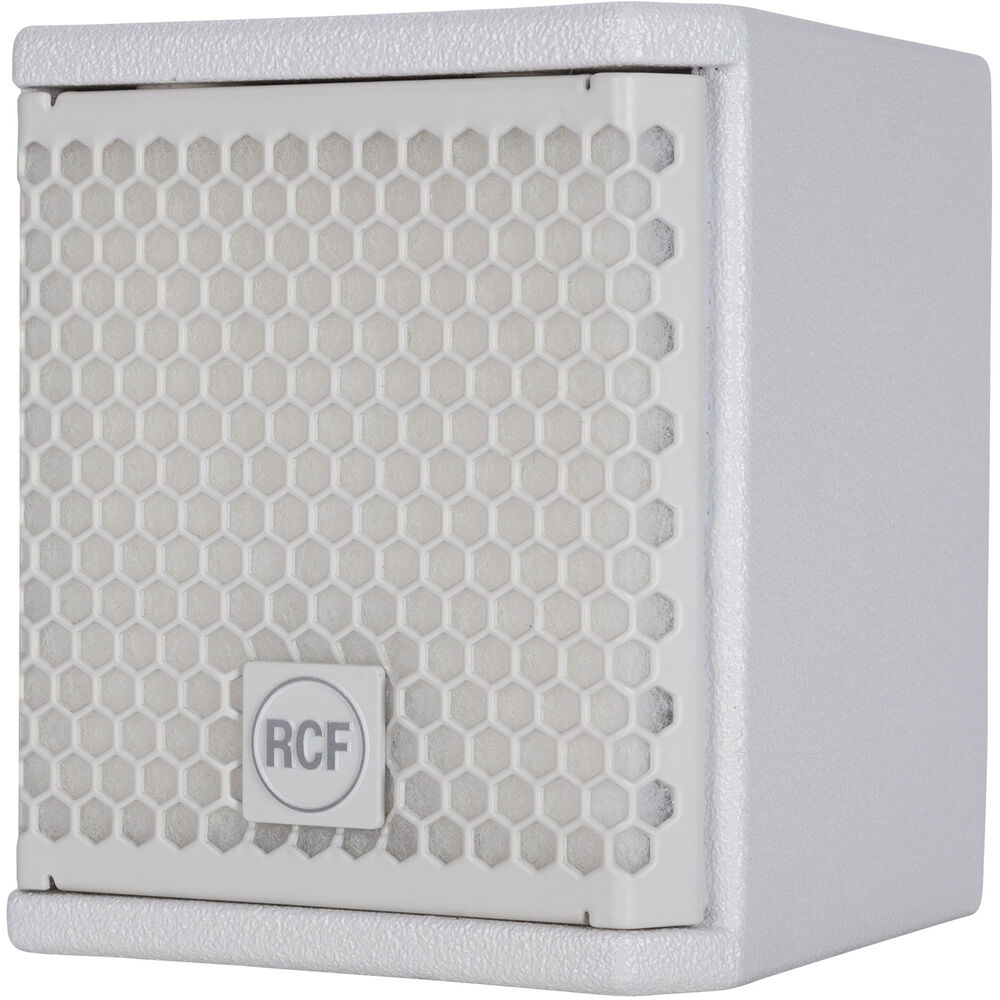

Give your customers, patrons, and employees the sound they deserve with the white RCF COMPACT M 04, an ultracompact passive speaker suitable for a wide range of installed applications. With its compact dimensions, frequency range, and constant directivity angle of 120 x 120°, this speaker provides a professional, hi-fi sound in a customer-facing environment.
This speaker delivers a good sound at low and high levels, making it suitable for background music and foreground sound applications. Its elegant and compact design makes it suitable for almost any installation-based scenario, especially since the mounting options are plentiful, with its M6 and M8 mounting options. A wall mount bracket is included.
- 60W RMS power handling
- 113 dB max SPL
- 90 Hz to 20 kHz frequency range
- 120 x 120° constant directivity coverage angle
- 1 x 4" coaxial woofer
- 1 x 1" voice coil neodymium dome tweeter
- High-quality plywood cabinet
- Wall-mount bracket included
- Description
- At a Glance
- Multipurpose Sound
- Engage Your Customers
- Improve the Audio Atmosphere
- Smooth Installation
RCF COMPACT M 04 Specs
| Configuration | Passive 2-Way |
| Enclosure Type | Sealed Loudspeaker |
| Total Power Capacity | Passive: 60 W RMS Passive: 240 W Peak |
| System Impedance | 16 Ohms |
| HF Driver | 1 x 1" / 25.4 mm Dome Tweeter |
| HF Voice Coil | 1" / 25.4 mm |
| MF Driver | None |
| LF Driver | 1 x 4" / 101.6 mm Woofer |
| LF Voice Coil | 1" / 25.4 mm |
| Frequency Range | 90 Hz to 20 kHz -10 dB |
| Maximum SPL | 113 dB SPL (Peak) |
| Coverage Angle | 120° H x 120° V |
| Directivity | 6 (Directivity/Q Factor) |
| Speaker Sensitivity | Passive: 89 dB HF: 91 dB LF: 88 dB |

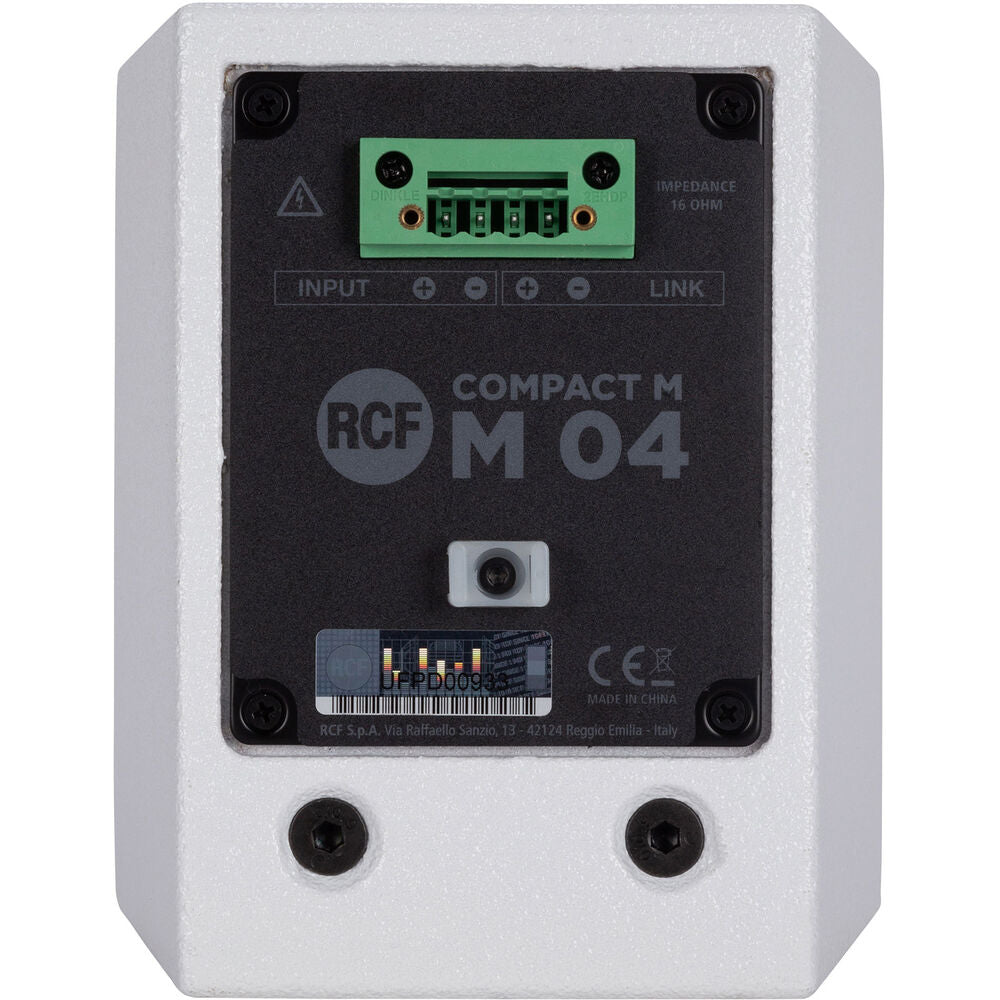

| Audio I/O | 1 x Block 4-Pin Speaker Input/Thru |
| Crossover | 1.8 kHz |
| Phase Adjustment | None |

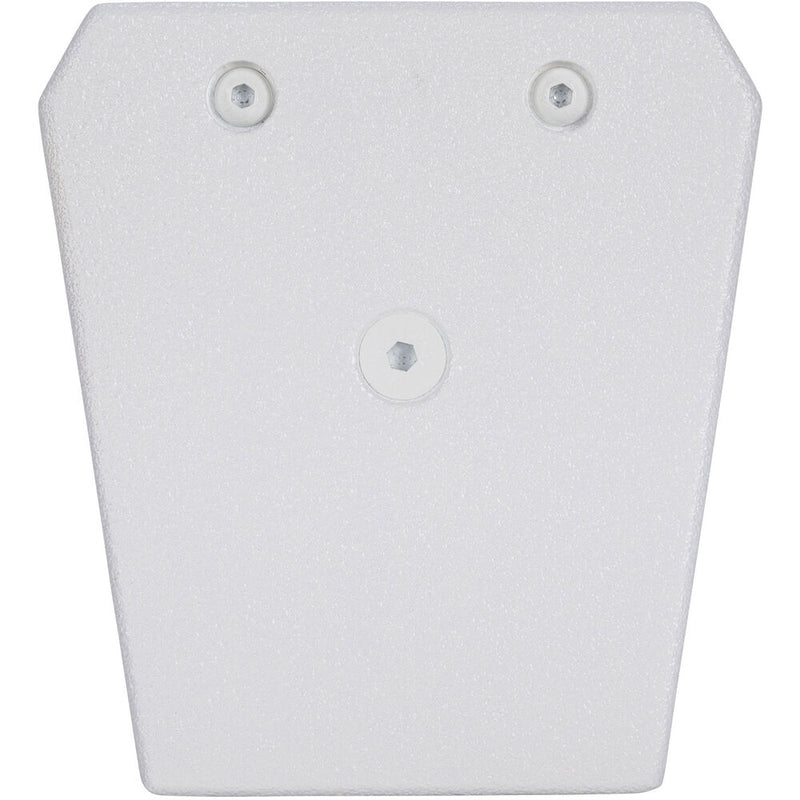

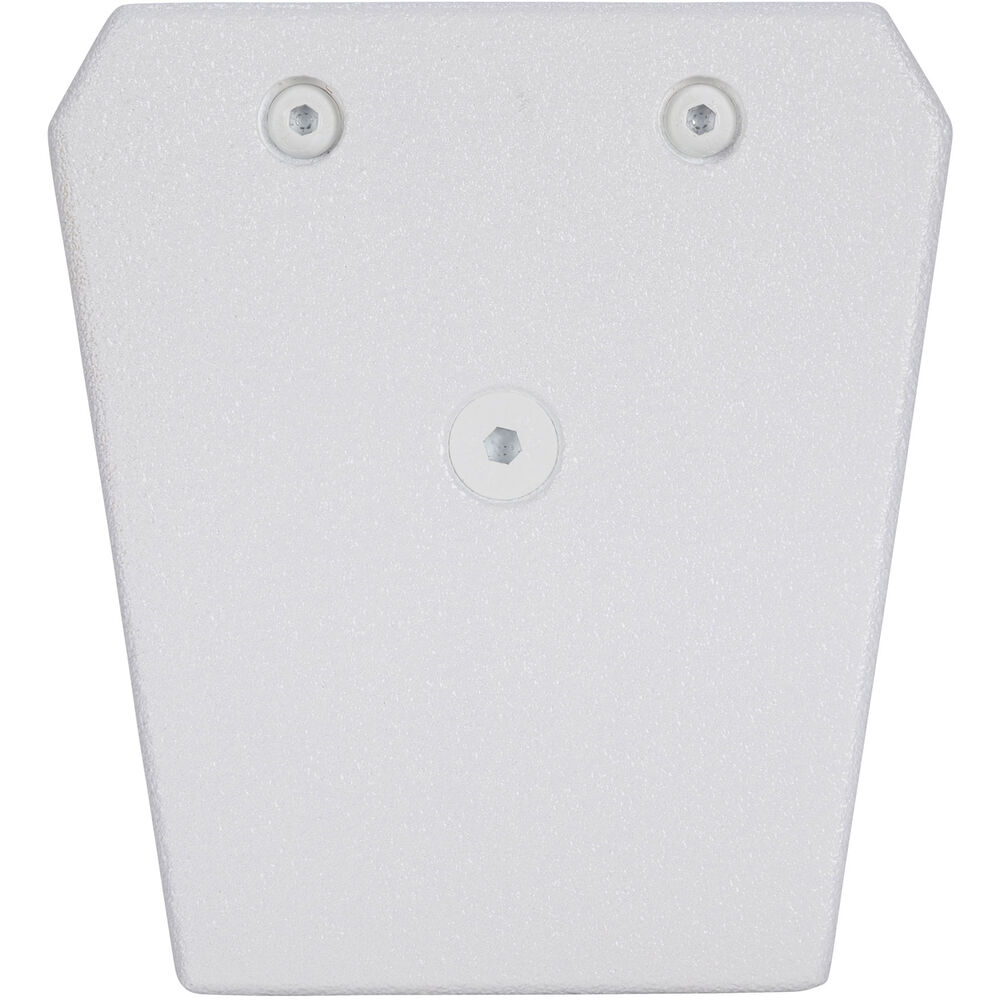

| Mounting | 2 x M8 Bracket Point 2 x M6 Bracket Point |
| Handles | None |
| Construction Material | Plywood, Stainless Steel Grille |
| Dimensions | 5.8 x 5.7 x 5.2" / 148 x 145 x 132 mm |
| Weight | 5.1 lb / 2.3 kg |
