Description
RCF COMPACT M 04 Overview
- 1Description
- 2At a Glance
- 3Multipurpose Sound
- 4Engage Your Customers
- 5Improve the Audio Atomsphere
- 6Smooth Installation

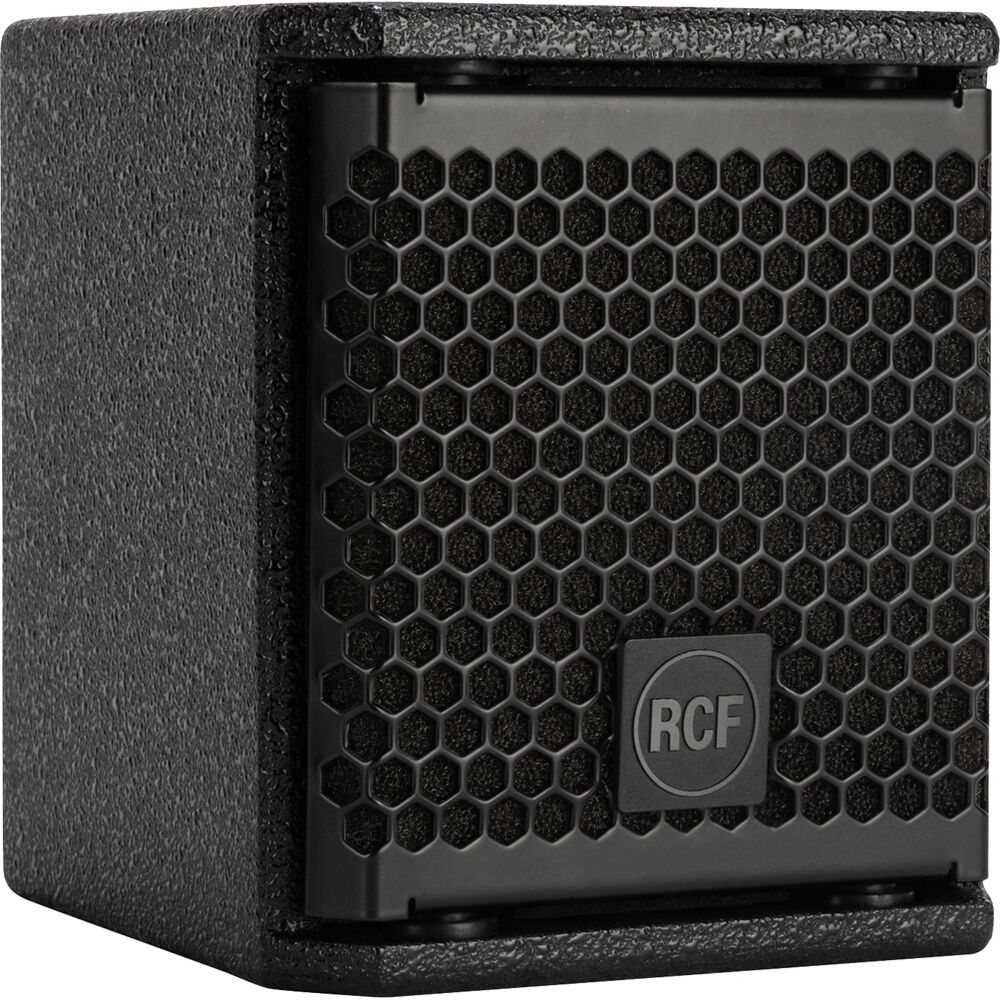

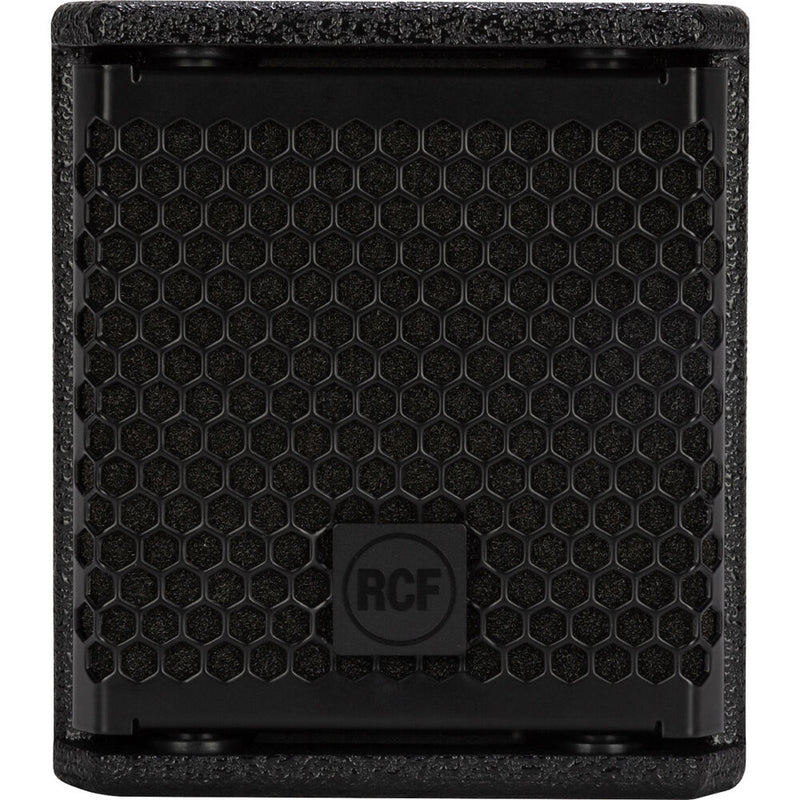

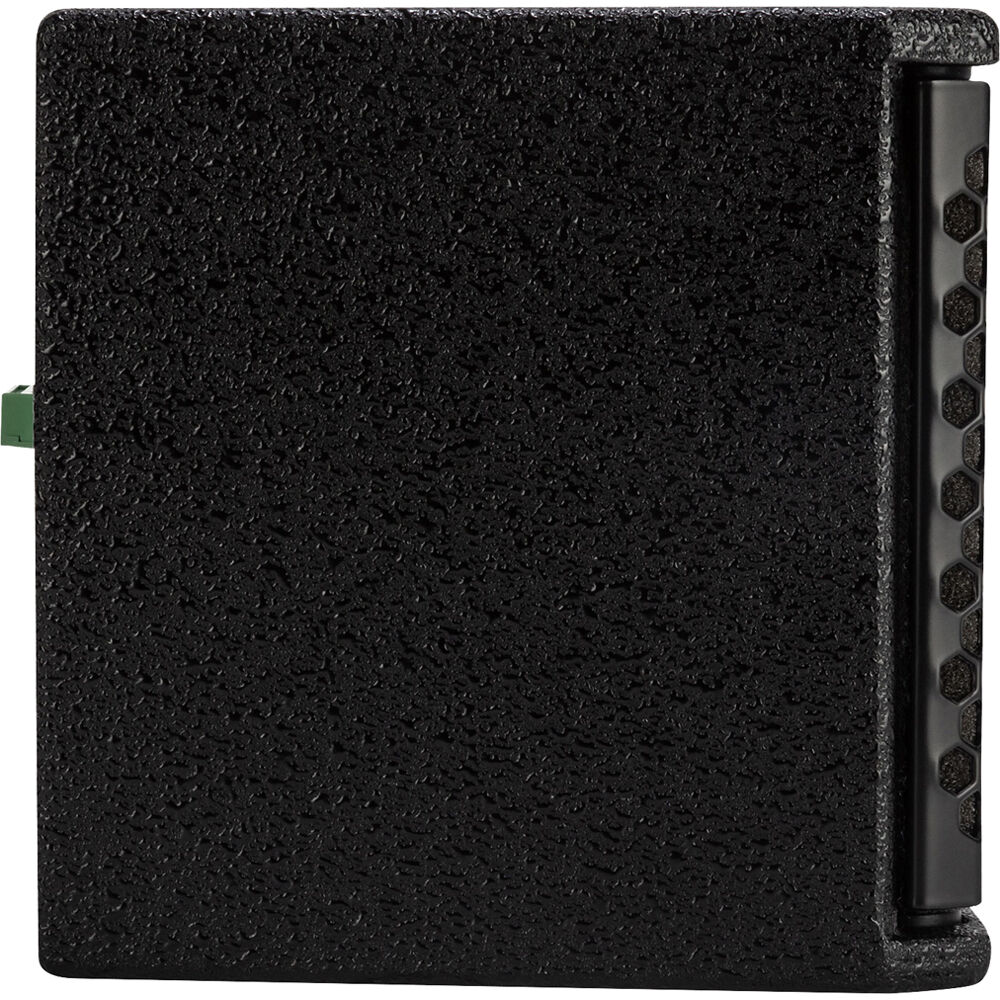

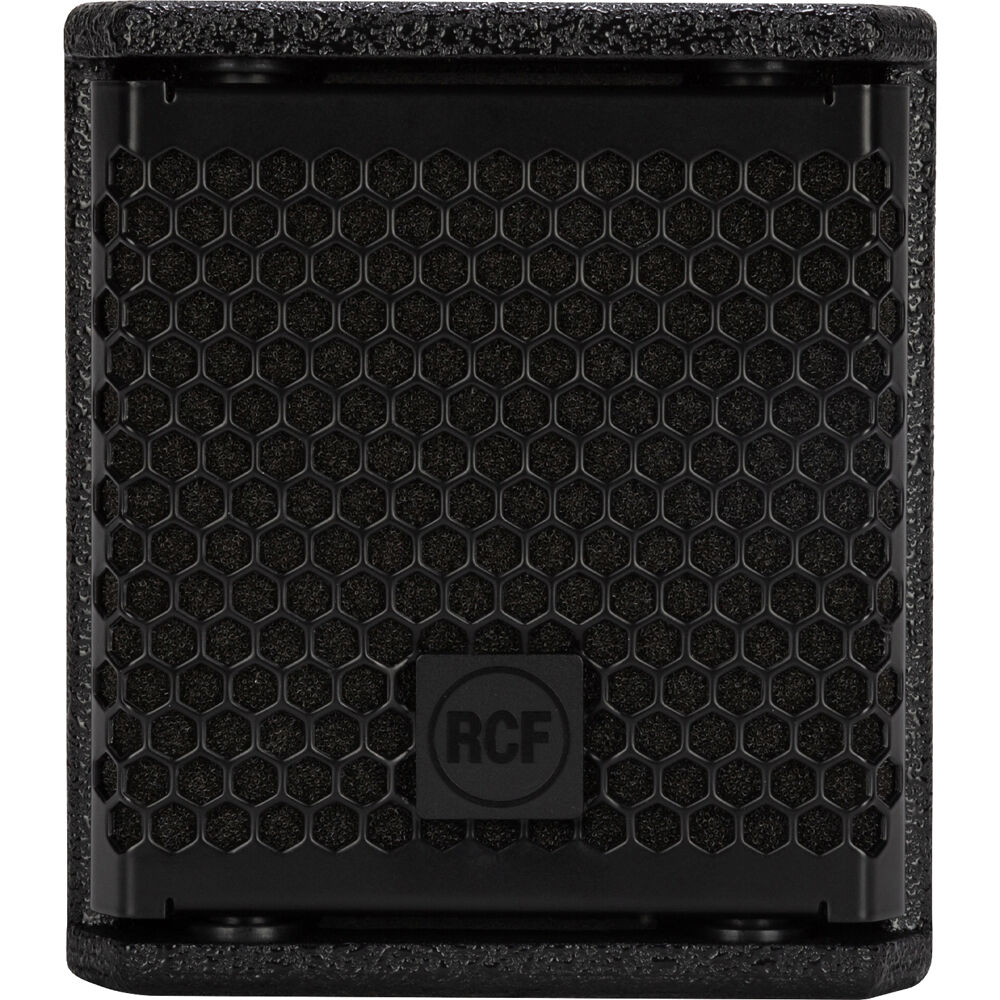

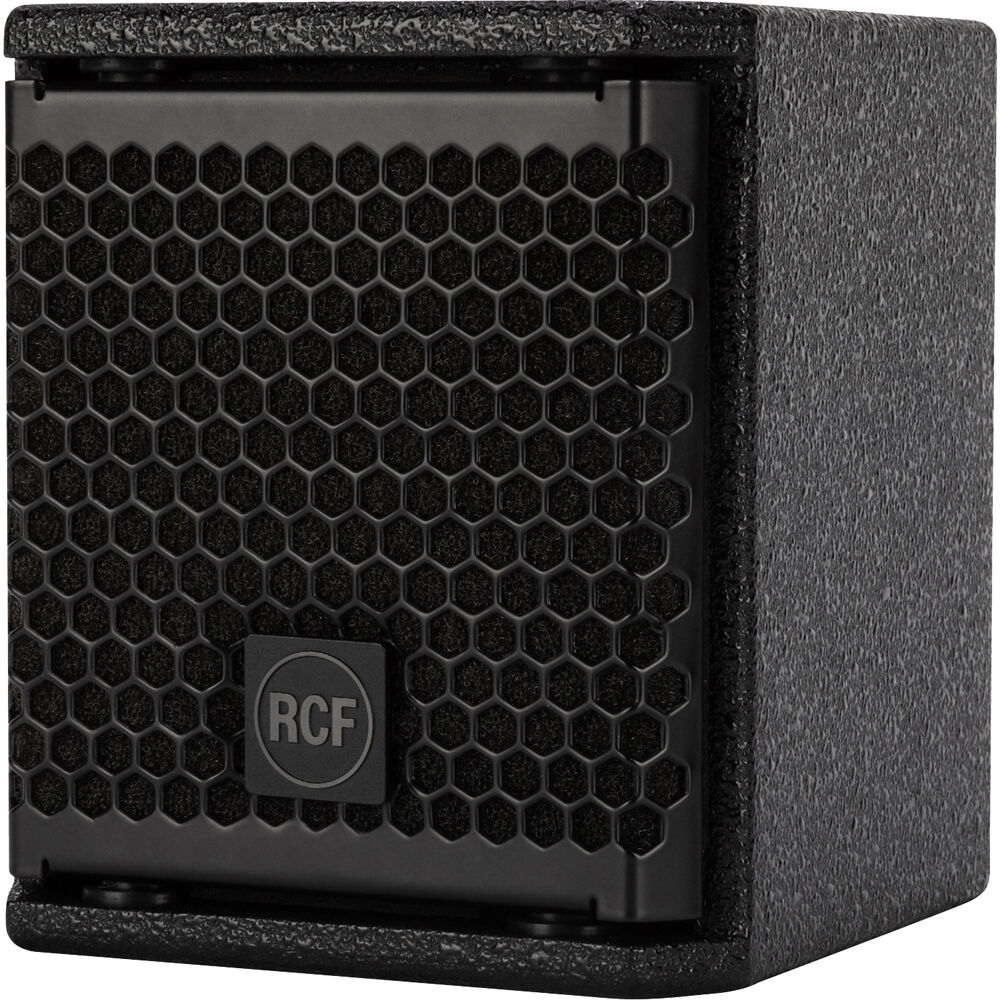

Give your customers, patrons, and employees the sound they deserve with the black RCF COMPACT M 04, an ultracompact passive speaker suitable for a wide range of installed applications. With its compact dimensions, frequency range, and constant directivity angle of 120 x 120°, this speaker provides a professional, hi-fi sound in a customer-facing environment.
This speaker delivers a good sound at low and high levels, making it suitable for background music and foreground sound applications. Its elegant and compact design makes it suitable for almost any installation-based scenario, especially since the mounting options are plentiful, with its M6 and M8 mounting options. A wall mount bracket is included.
Note:
A 120W amplifier is recommended for use with this speaker.
At a Glance
- 60W RMS power handling
- 113 dB max SPL
- 90 Hz to 20 kHz frequency range
- 120 x 120° constant directivity coverage angle
- 1 x 4" coaxial woofer
- 1 x 1" voice coil neodymium dome tweeter
- High-quality plywood cabinet
- Wall mount bracket included
Multipurpose Sound
Elegant design aesthetic, multiple formats, and RCF's signature sound quality that allows to deliver a suitable audio experience in any application, from restaurant and retail shops to clubs, corporate spaces, and venues.
Engage Your Customers
Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience enjoying an immersive musical experience.
Improve the Audio Atomsphere
Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of RCF Compact M Series�optimal performance in both background music and high-powered foreground audio.
Smooth Installation
Compact M speakers stick to the functionality and style of the Italian design, always in harmony with any type of interiors. With a complete range of solid-wood cabinets, multiple rigging points, and accessories, installation time is minimal. The EUROBLOCK connection panel can be replaced with female Neutrik speakON connection panel in seconds.
In the Box
- RCF COMPACT M 04 Passive 2-Way Speaker (Black)
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- At a Glance
- Multipurpose Sound
- Engage Your Customers
- Improve the Audio Atomsphere
- Smooth Installation
RCF COMPACT M 04 Specs
Key Specs
| Configuration |
Passive 2-Way
|
| Enclosure Type |
Sealed Loudspeaker
|
| Total Power Capacity |
Passive:
60 W RMS Passive: 240 W Peak |
| HF Driver |
1 x 1" / 25.4 mm Dome Tweeter
|
| LF Driver |
1 x 4" / 101.6 mm Woofer
|
| Frequency Range |
90 Hz to 20 kHz -10 dB
|
| Enclosure Type |
Sealed Loudspeaker
|
| Total Power Capacity |
Passive:
60 W RMS Passive: 240 W Peak |
| System Impedance |
16 Ohms
|

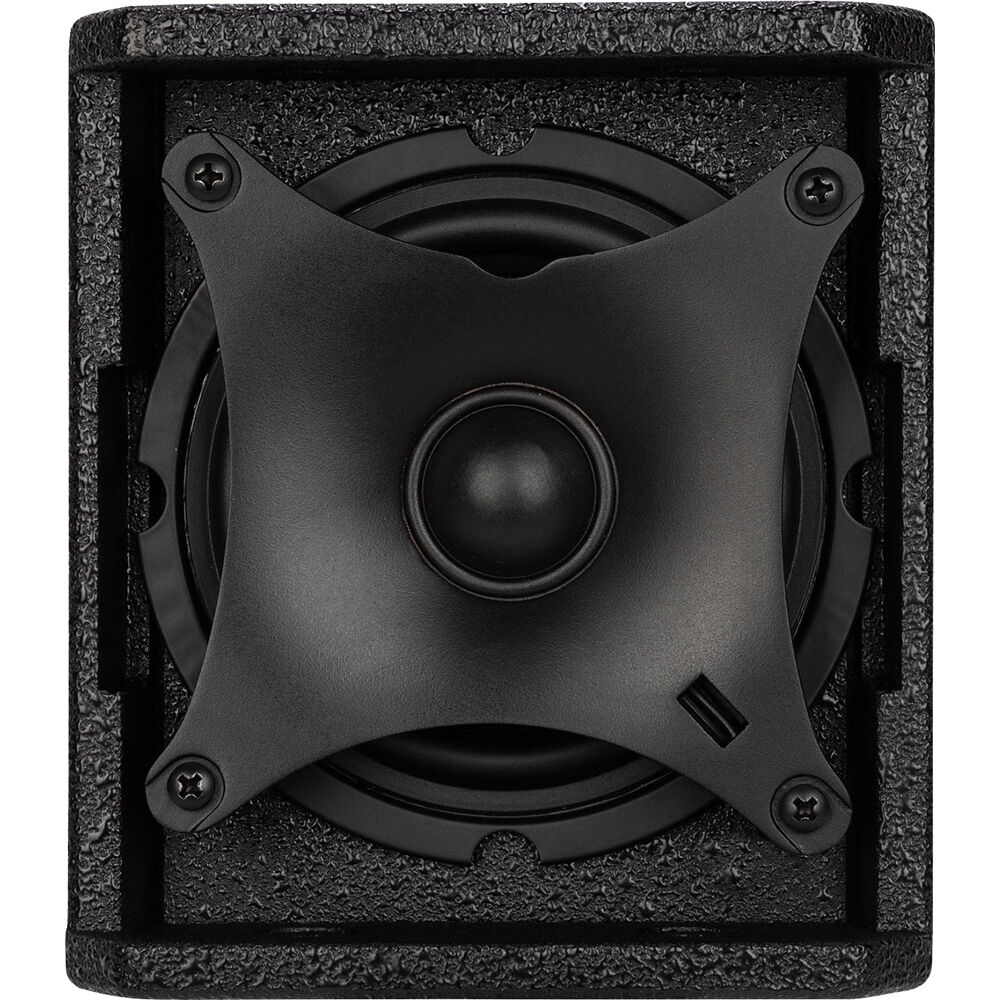

Drivers
| HF Driver |
1 x 1" / 25.4 mm Dome Tweeter
|
| HF Voice Coil |
1" / 25.4 mm
|
| MF Driver |
No
|
| LF Driver |
1 x 4" / 101.6 mm Woofer
|
| LF Voice Coil |
1" / 25.4 mm
|
Performance
| Frequency Range |
90 Hz to 20 kHz -10 dB
|
| Maximum SPL |
113 dB SPL (Peak)
|
| Coverage Angle |
120° H x 120° V
|
| Directivity |
6 (Directivity/Q Factor)
|
| Speaker Sensitivity |
Passive:
89 dB HF: 91 dB LF: 88 dB |

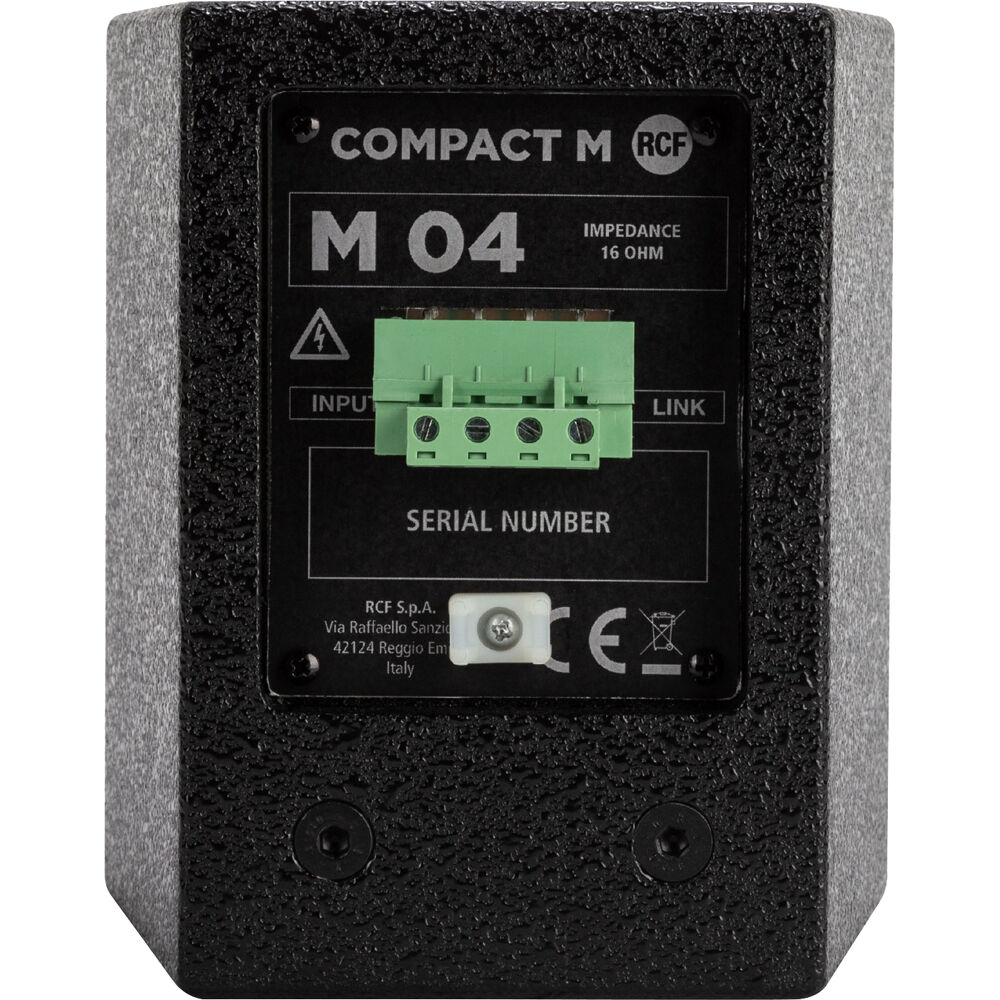

Connectivity
| Audio I/O |
1 x Euroblock 4-Pin Speaker Input/Thru
|
Signal Processing
| Crossover |
1.8 kHz
|
| Phase Adjustment |
No
|
Physical
| Mounting |
2 x M8 Bracket Point
2 x M6 Bracket Point |
| Handles |
No
|
| Construction Material |
Plywood, Stainless Steel Grille
|
| Dimensions |
5.8 x 5.7 x 5.2" / 148 x 145 x 132 mm
|
| Weight |
5.1 lb / 2.3 kg
|
