Description

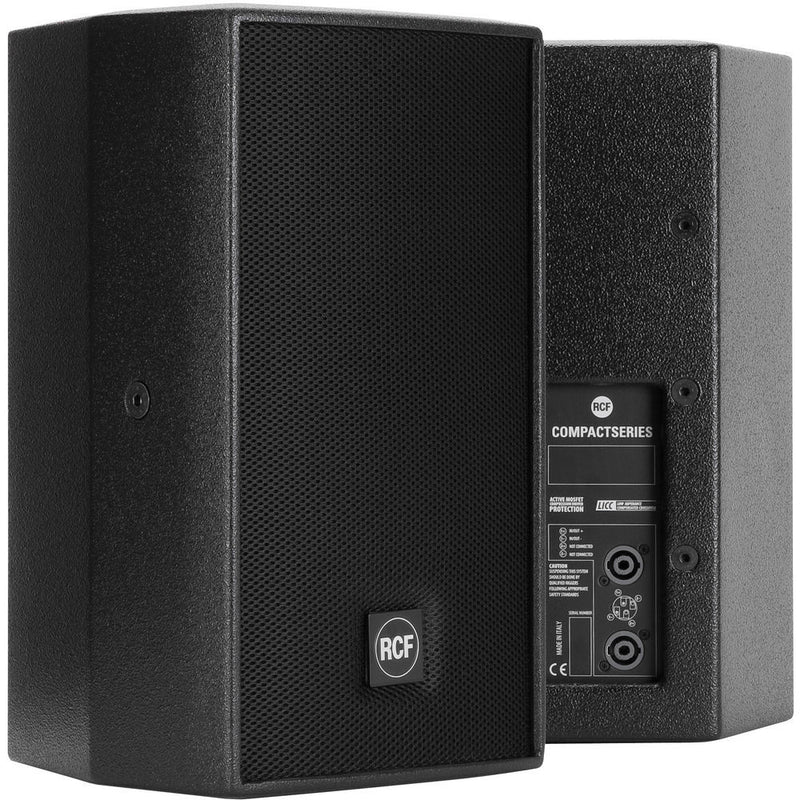

The black C3108-96 Two-Way Passive Speaker System from RCF features Constant Matching Design technology for optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity. The horn can be rotated, allowing the loudspeaker to be installed either vertically or horizontally. The high-frequency transducer in this system is a 1� compression driver with 1.5� voice coil for smooth, wide dispersion and features an 8� woofer with a 2� voice coil for low frequency signals.
The system includes a high-level crossover network that features the LICC (Low Impedance Compensated Crossover) that offers delay reduction, reduced phase shift, and superior transient response. Dynamic high-frequency driver protection is accomplished with the Active Mosfet Compression Driver Protection System (AMCDP) that complements the driver power curve.
The cabinet is made of Baltic birch and is equipped with top and bottom multiple plates for either wall or suspended mounting with chains. The steel front grille is protected with a double layer polyurethane fabric. Connections are made through two Neutrik Speakon NL4 connectors (audio input and parallel link output). It is suitable for use in permanent installations such as main reinforcement in small spaces, high-level AV playback, zone delay and fill systems, or under balcony installations.
- Features an 8" high-output woofer and a 1" compression driver
- 90� x 60� CMD (Constant Matching Design) constant directivity horn
- Rotatable horn for horizontal mounting
- Trapezoidal enclosure made of 12mm birch plywood
- HF driver with Active Mosfet Compression Driver Protection (AMCDP)
- Low Impedance Compensated Crossover (LICC)
- Rigging inserts: 6 x M8 (rear), 2 x M10 (lateral)
- Features multiple plates on top and bottom for either wall or suspended mounting with chains and includes installation points on its rear panel as well
- Easily rotatable front RCF logo
| System | |
|---|---|
| Frequency Response | -10 dB: 70 Hz to 20 kHz |
| Coverage Angle | Horizontal (-6 dB): 90� Vertical (-6 dB): 60� |
| Directivity Factor | Q: 10 |
| Sensitivity | 1 W, 3.3' (1.0 m): 95 dB |
| Maximum SPL | Peak Power, 3.3' (1.0 m): 126 dB |
| Impedance | 8 ? |
| Power | RMS: 300 W Peak: 1200 W |
| Protection | Dynamic HF protection |
| Crossover | 2 kHz |
| Transducers | |
|---|---|
| Type | Low Frequency: 8.0" (20.3 cm) woofer with 2.0" (5.1 cm) voice coil High Frequency: 1.0" (2.5 cm) driver with 1.5" (3.8 cm) voice coil |
| Impedance | 8 ? |
| Power | Low Frequency: 200 W (AES), 400 W (peak) High Frequency: 25 W (AES), 50 W (peak) |
| Sensitivity | 1 W, 3.3' (1.0 m) Low Frequency: 94 dB High Frequency: 106 dB |
| Physical | |
|---|---|
| Enclosure | Trapezoidal, 20� side angles, 12 mm birch plywood construction |
| Insert | Rigging Inserts: 6 x M8 (rear), 2 x M10 (lateral), multiple plates (top and bottom) |
| Grille | Perforated powder-coated steel covered with double layer polyurethane fabric |
| Input Connectors | 2 x SPEAKON NL4 |
| Dimensions (W x H x D) | 9.5 x 16.8 x 10.3" (24.2, 42.7, 26.3 cm) |
| Weight | 29.9 lb (12.2 kg) |
