Description

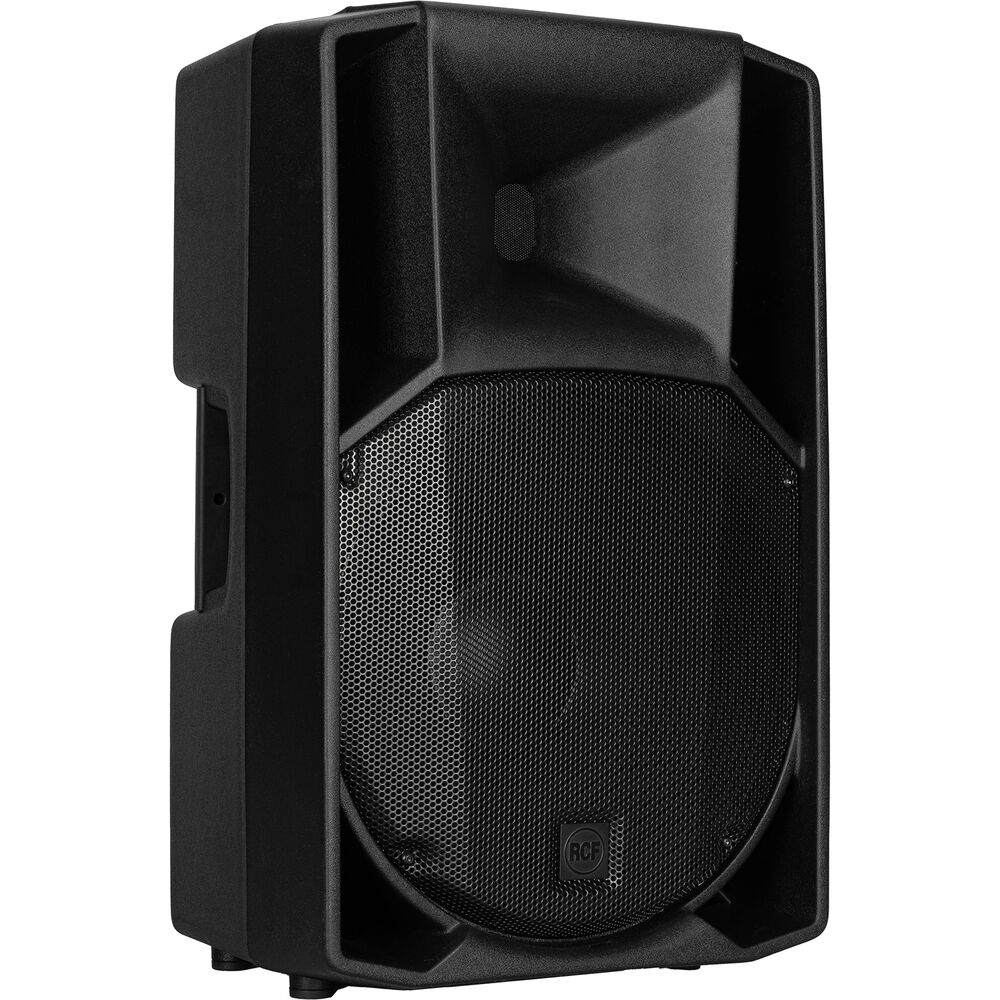

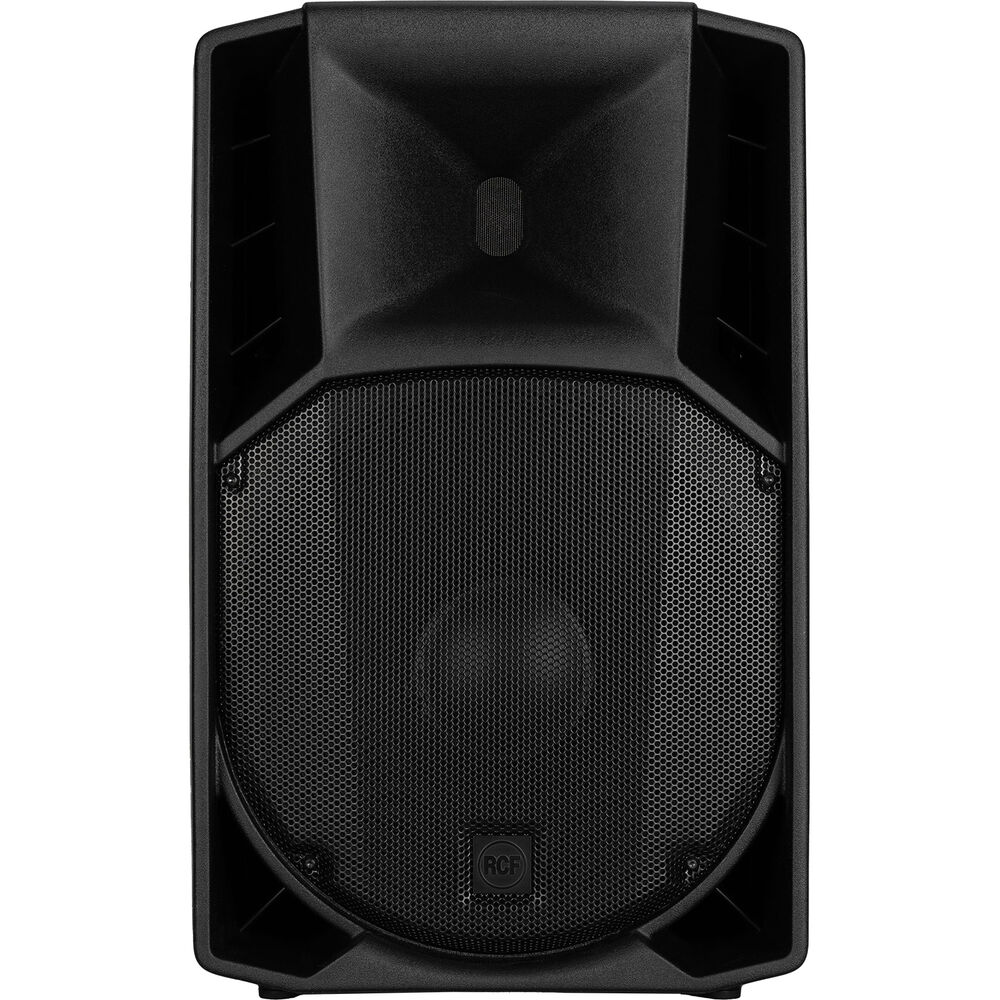

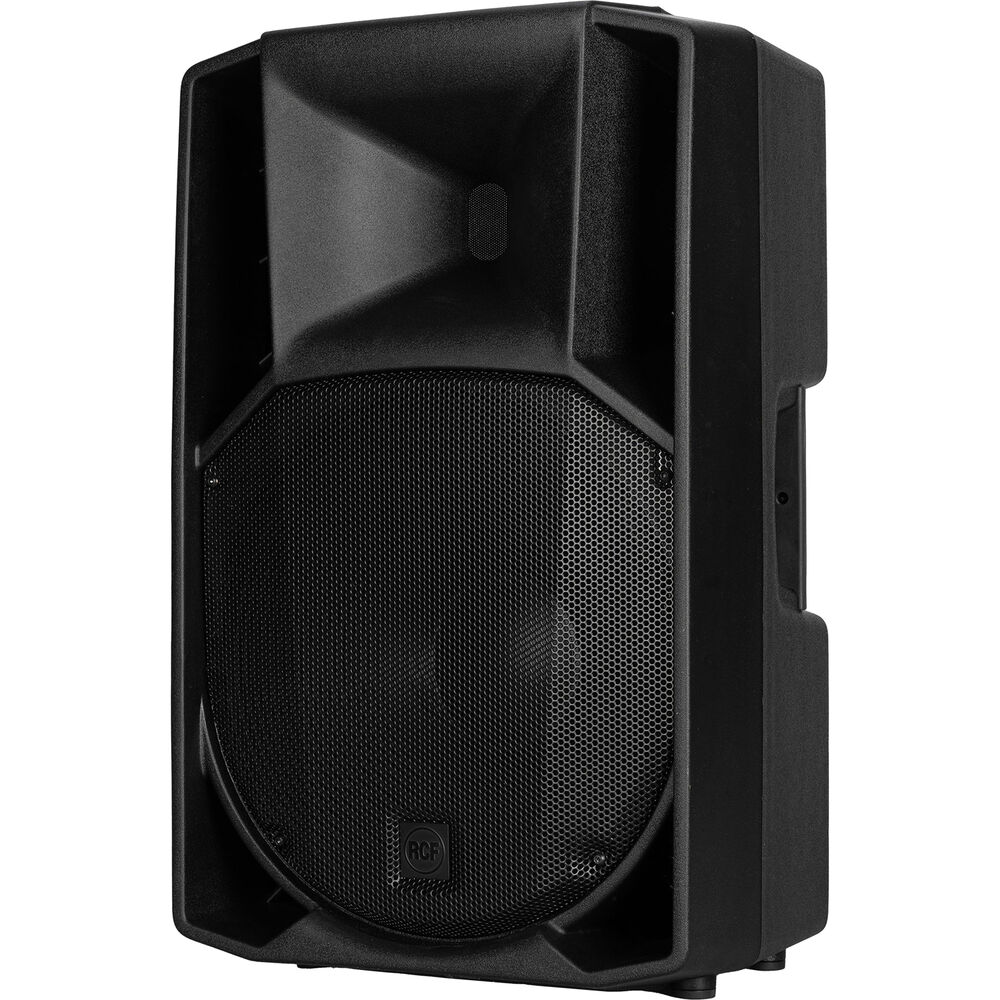

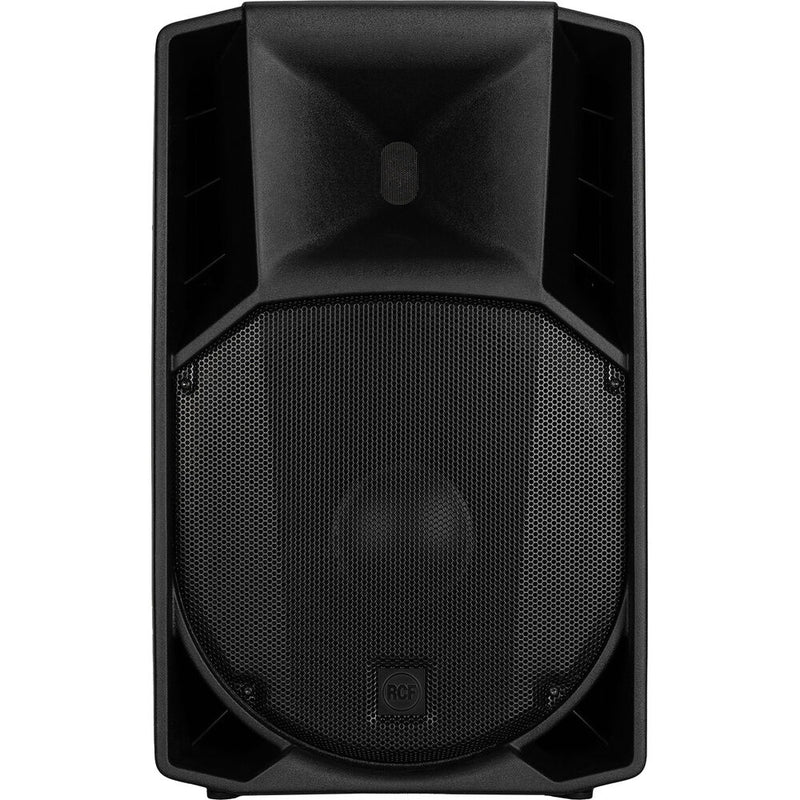

RCF ART-745A MK5 Overview
Designed to deliver stellar audio performance and versatility for intensive audio applications, the 15" RCF ART 745-A MK5 is a highly flexible, easy to use, 1400W powered PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers.
The ART 745-A MK5 employs a highly efficient 1400W Class-D bi-amplifier delivers 1000W to the 15" woofer and 400W to the 1" compression driver, which provide full-range audio (45 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. The ART 745-A MK5 includes a power cord.
What's New
Redesigned Firmware
- Newly tuned presets and settings that take full advantage of the XBOOST algorithm for optimal sound at any volume.
Kapton Diaphragms
- ART Series MK5 feature new compression drivers with Kapton diaphragms for increased definition, strength, and thermal resistance.
XBoost Low-Frequency Enhancer

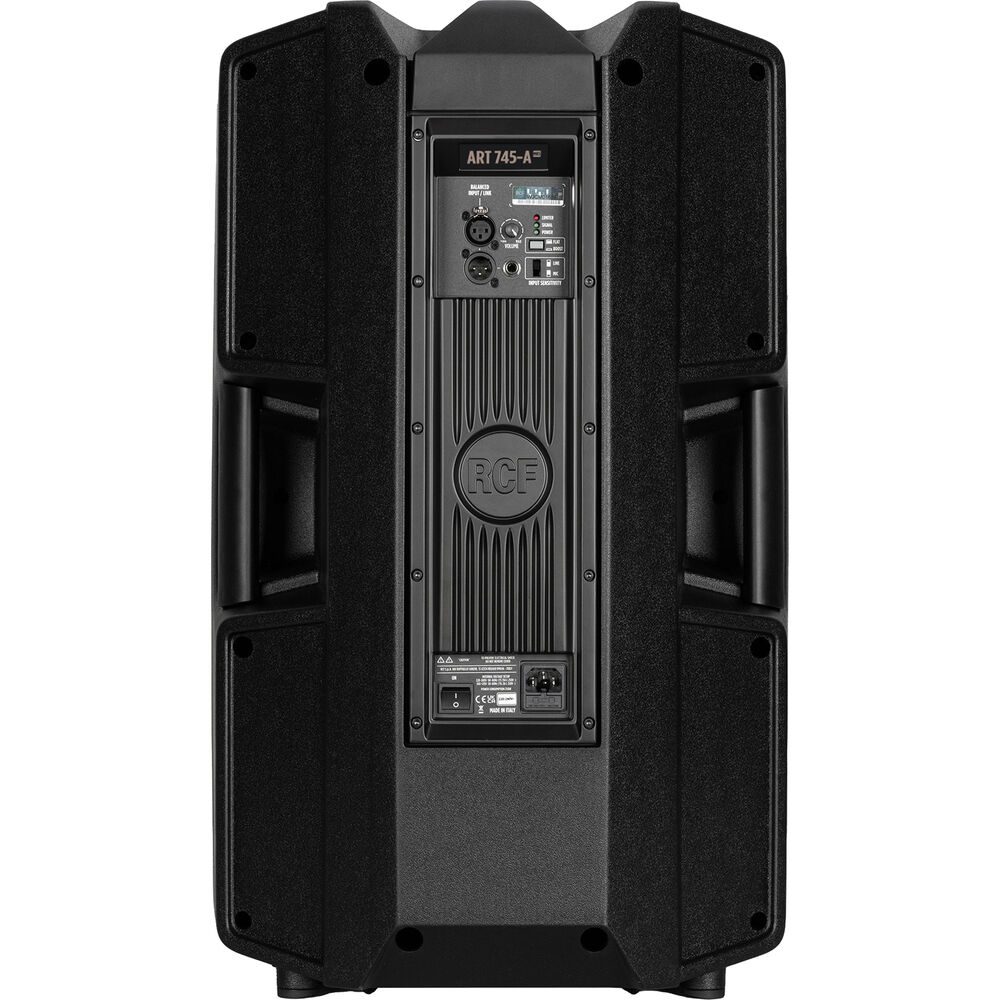

- XBoost increases the depth and richness of ART low frequencies by simply enabling the function from the speaker's rear panel.
Key Features
- 133 dB max SPL
- 1400W 2-way peak power
- 90 x 60° wide dispersion constant directivity horn
- Innovative DSP Processing
- 4" neodymium compression driver with Kapton diaphragm
- 15" neodymium Woofer
- FiRPHASE technology
- XBOOST low frequencies enhancer
Powerful Class D Amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultrafast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure, which not only stabilizes the amplifier during transportation but also helps the fanless heat dissipation.
Superior Transducers
Woofers and compression drivers are precision built taking advantage of RCF's technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.
X Boost - Experience the Depths of Sound
XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence, keeping the woofer excursion under control.
Ideal Stage Partner
The ART 7 speakers are the perfect choice for musicians and sound provider alike. Their cabinets are molded from a proprietary polypropylene composite engineered to quell vibrations, even at the highest volume levels. This translates to exceptional reliability and resilience under rigorous stage conditions.
New Perspective on Linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Bring ART with You

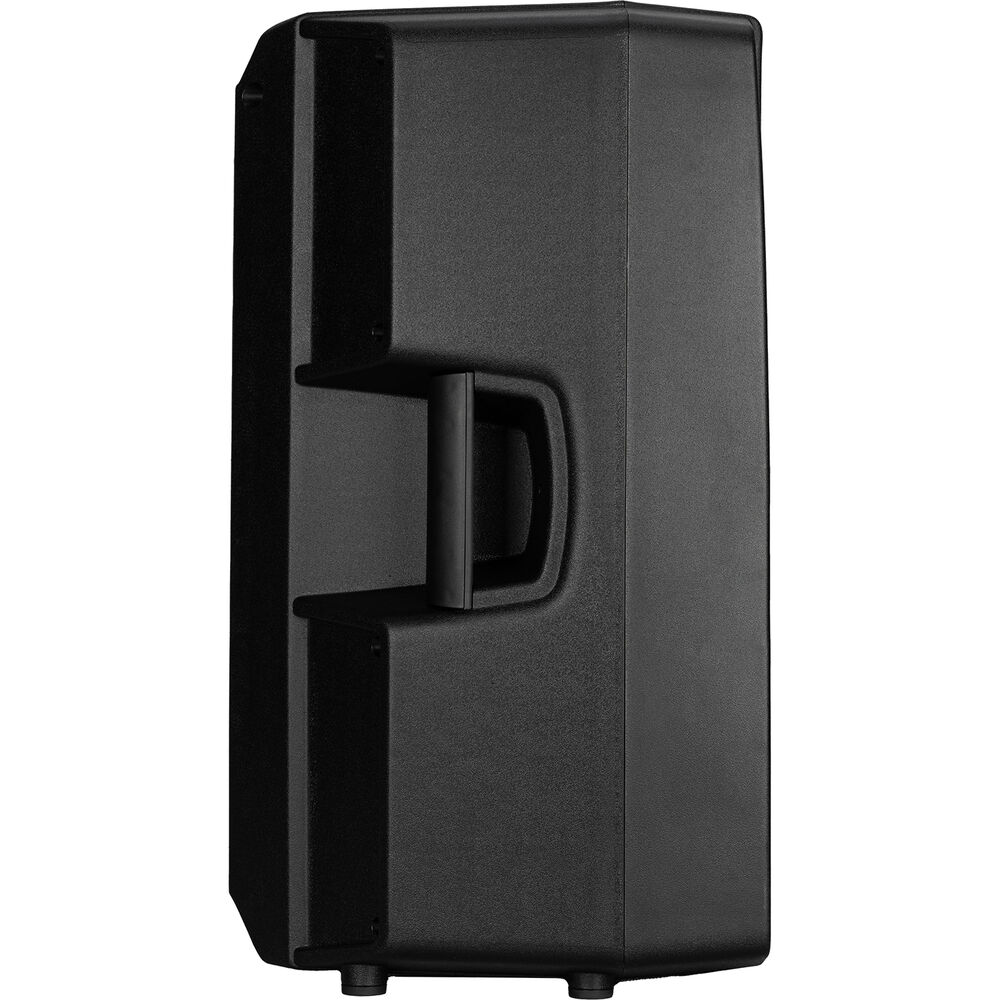

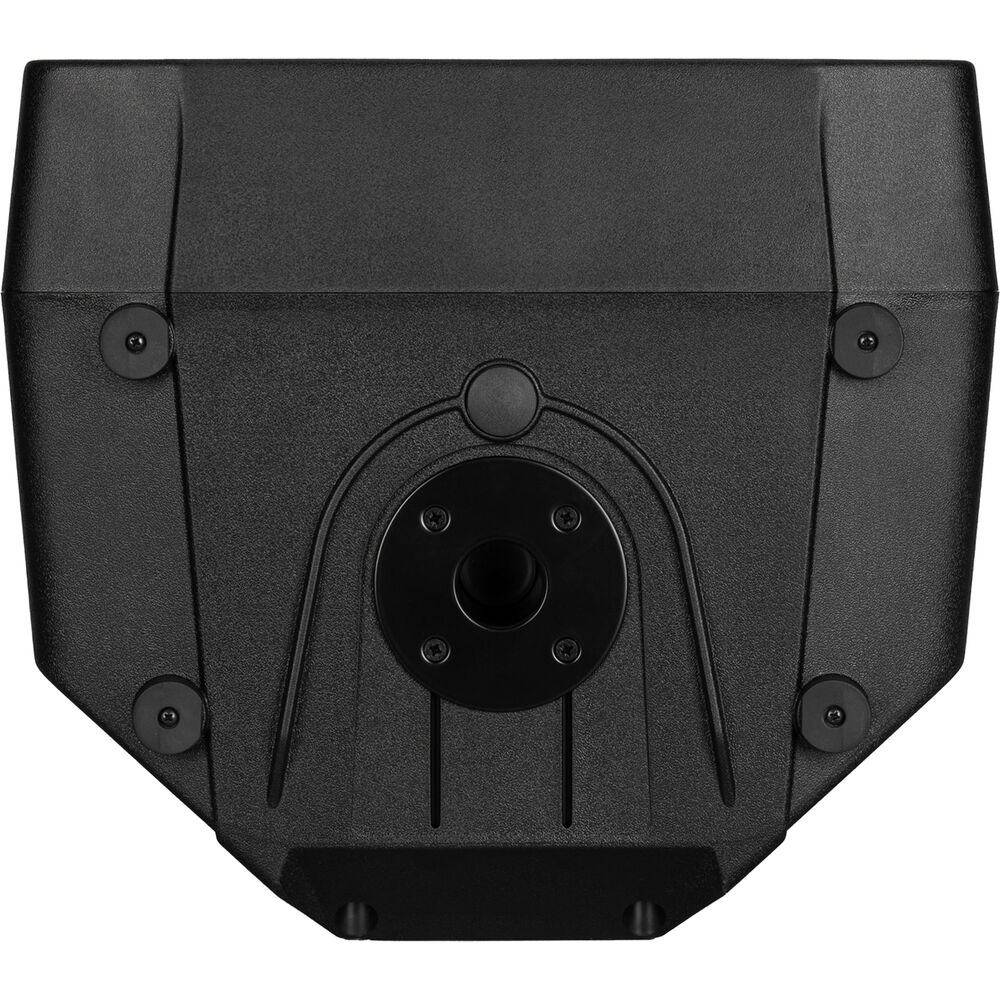

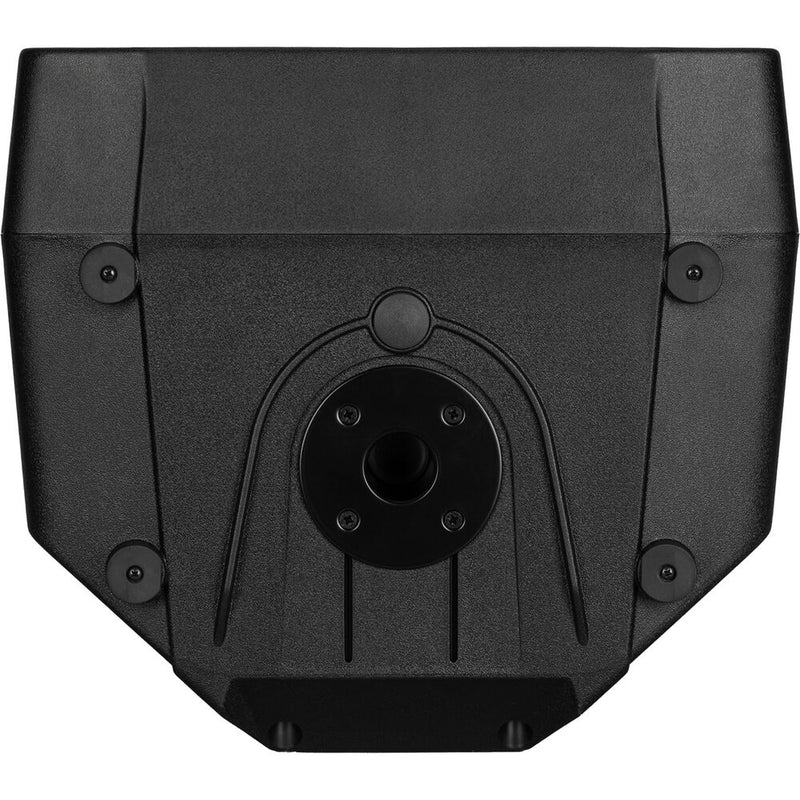

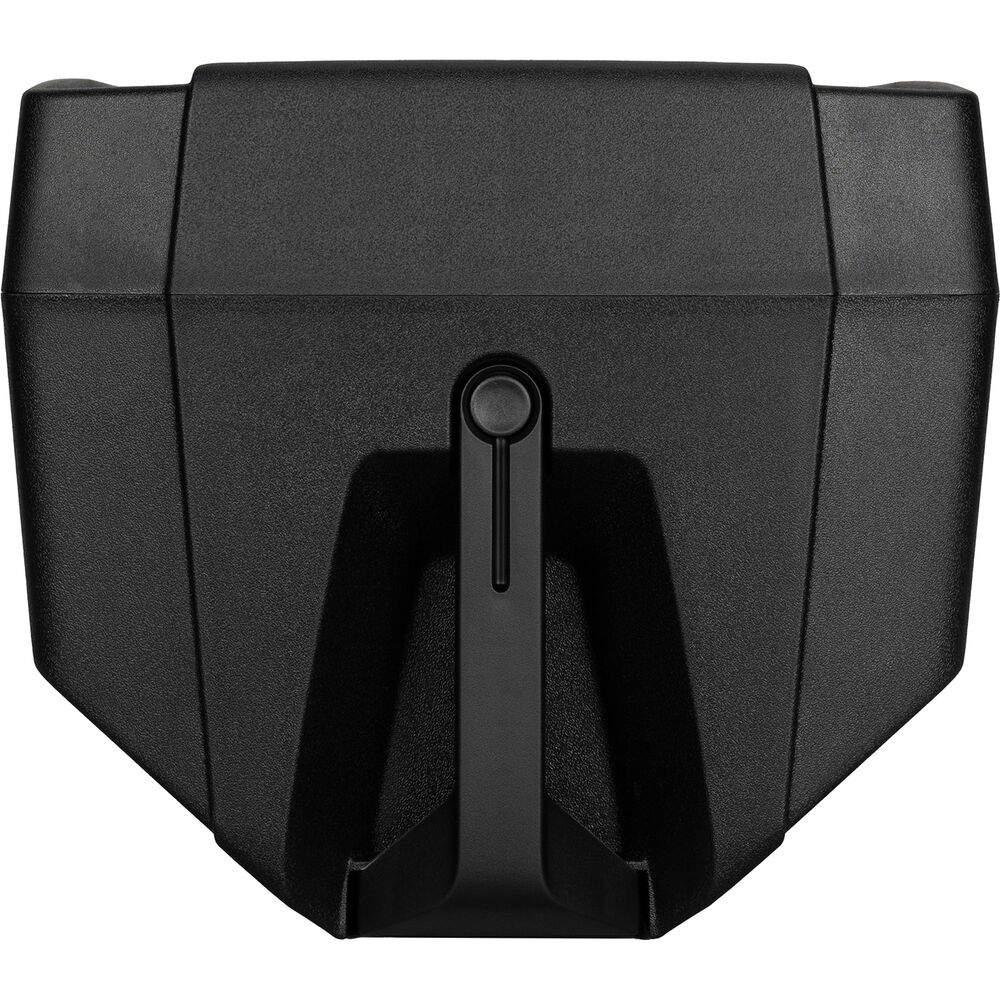

The sturdy, ergonomic cabinet is easy to carry, thanks to either the handle at the top or the practical handles on both sides. The base of each speaker includes a steel pole socket for mounting on a stand or on a subwoofer pole. Stability and safety are assured. The rear of the cabinet is shaped to be used as a floor monitor. Internal reinforcement prevents any deformation of the cabinet.
Items Included
- RCF ART 745-A MK5 15" 2-Way 1400W Active Speaker
- Power Cord
-
Limited 2-Year Manufacturer Warranty (Registration for Extension)
Registration Extension: 1-Year
Additional Resources
RCF ART-745A MK5 Specs
Key Specs
| Configuration |
Active 2-Way
|
| Total Power Capacity |
1400 W Peak
700 W RMS |
| HF Driver |
1 x 1" / 51 mm Mylar Dome
|
| MF Driver |
No
|
| LF Driver |
15" / 381 mm Woofer
|
| Wireless Connectivity |
No
|
| Color |
Black
|
| Total Power Capacity |
1400 W Peak
700 W RMS |
| Amplifier Power Rating |
HF:
400 W Peak 200 W RMS LF: 1000 W Peak 500 W RMS |
| Amplifier Class |
Class-D
|
Drivers
| HF Driver |
1 x 1" / 51 mm Mylar Dome
|
| HF Voice Coil |
4" / 101.6 mm
|
| MF Driver |
No
|
| LF Driver |
15" / 381 mm Woofer
|
| LF Voice Coil |
3.5" / 88.9 mm
|
Performance
| Frequency Response |
45 Hz to 20 kHz
|
| Maximum SPL |
132 dB
|
| Coverage Angle |
90° H x 60° V
|
| Input Sensitivity |
Line Input:
+4 dBu to -2 dBu Mic Input: -32 dBu |
| Protections |
RMS, Thermal
|
Connectivity
| Audio I/O |
1x XLR 3-Pin Balanced Input
1x 1/4" TRS Balanced/Unbalanced Input 1x XLR 3-Pin Male Balanced Output |
| Network I/O |
No
|
| USB I/O |
No
|
| Wireless Connectivity |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Signal Processing
| Crossover |
650 Hz
|
| EQ |
No
|
| Parametric EQ |
No
|
| Semi-Parametric EQ |
No
|
| Dynamic Processing |
Soft Limiter
|
| Alignment Delay |
No
|
| Phase Adjustment |
No
|
Power
| AC Input Power |
User Selectable:
100 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V) 200 to 240 VAC, 50 / 60 Hz (3.15 A L 250 V) |
| AC Power I/O |
1x VDE Input
|
Physical
| Color |
Black
|
| Mounting |
2 x M10
1 x 1.4" / 35 mm Pole Socket |
| Handles |
1x Top
1x Each Side |
| Cooling |
Convection
|
| Environmental Resistance |
No
|
| Dimensions |
27.9 x 17.2 x 15.3" / 70.9 x 43.7 x 38.9 cm
|
| Weight |
41.4 lb / 18.8 kg
|
Packaging Info
| Package Weight |
51 lb
|
| Box Dimensions (LxWxH) |
29.5 x 19 x 17.25"
|
