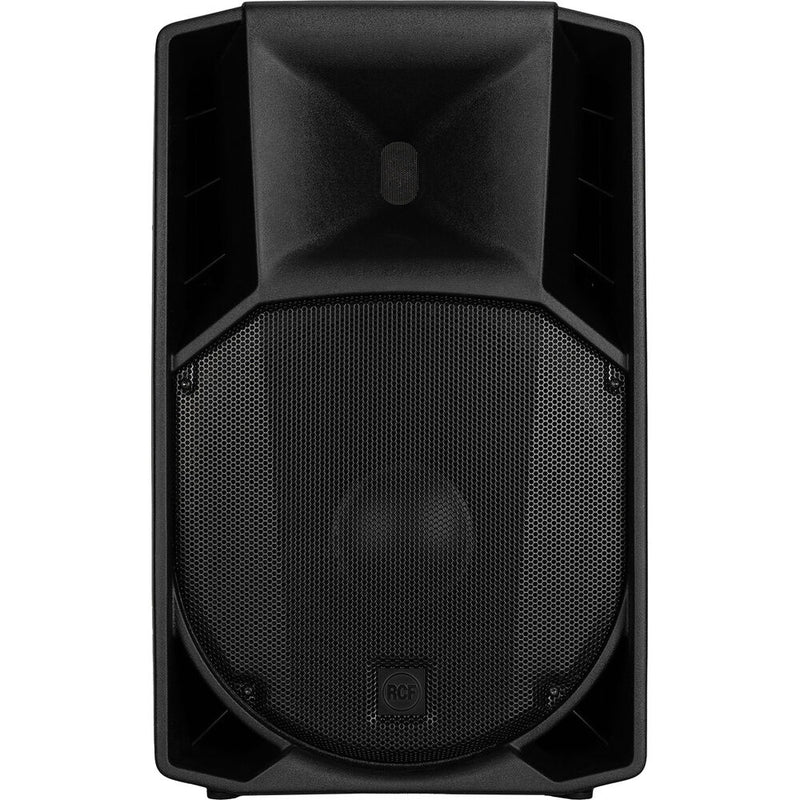

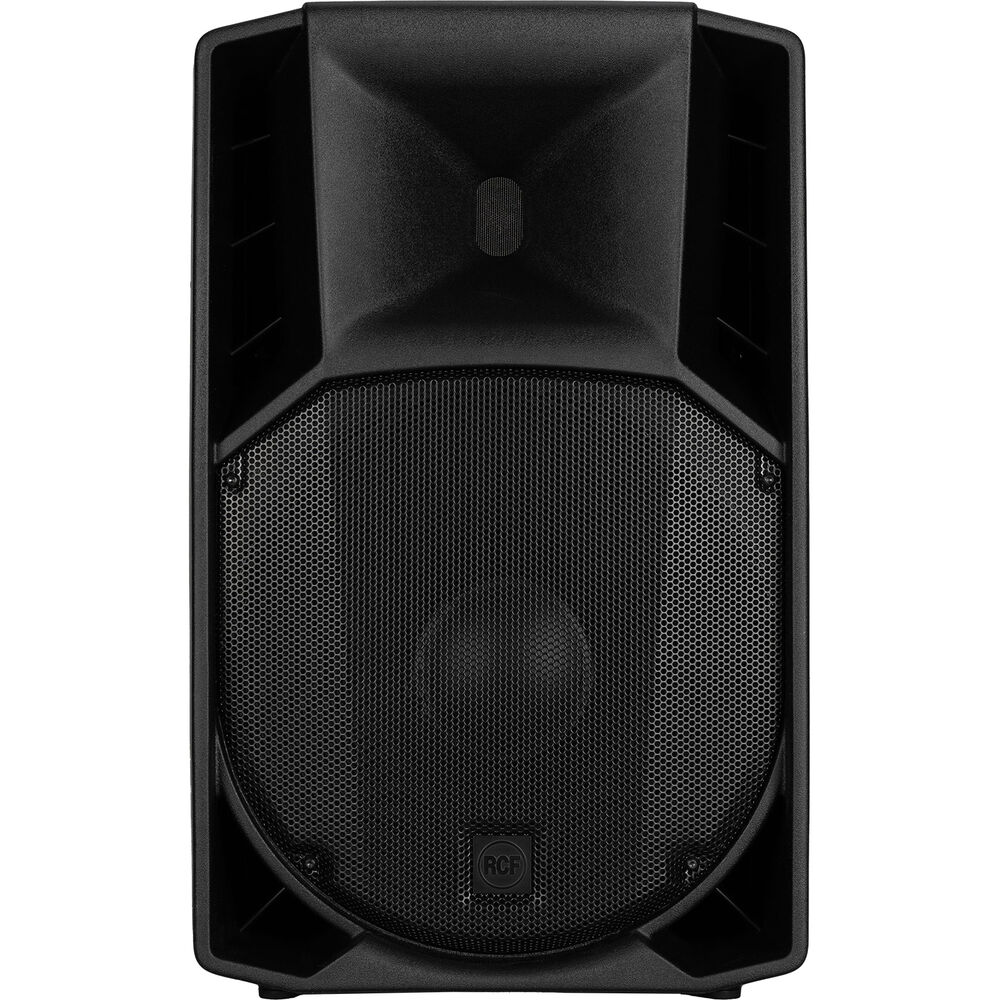

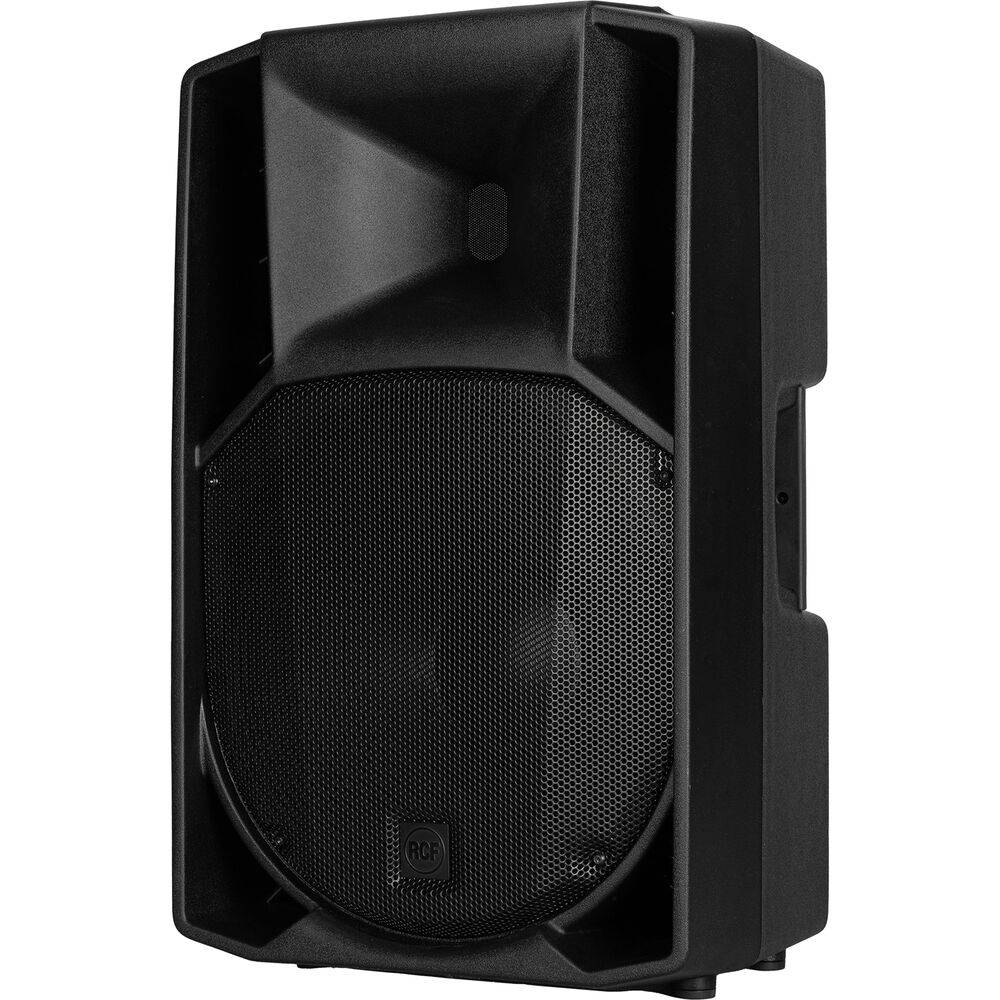

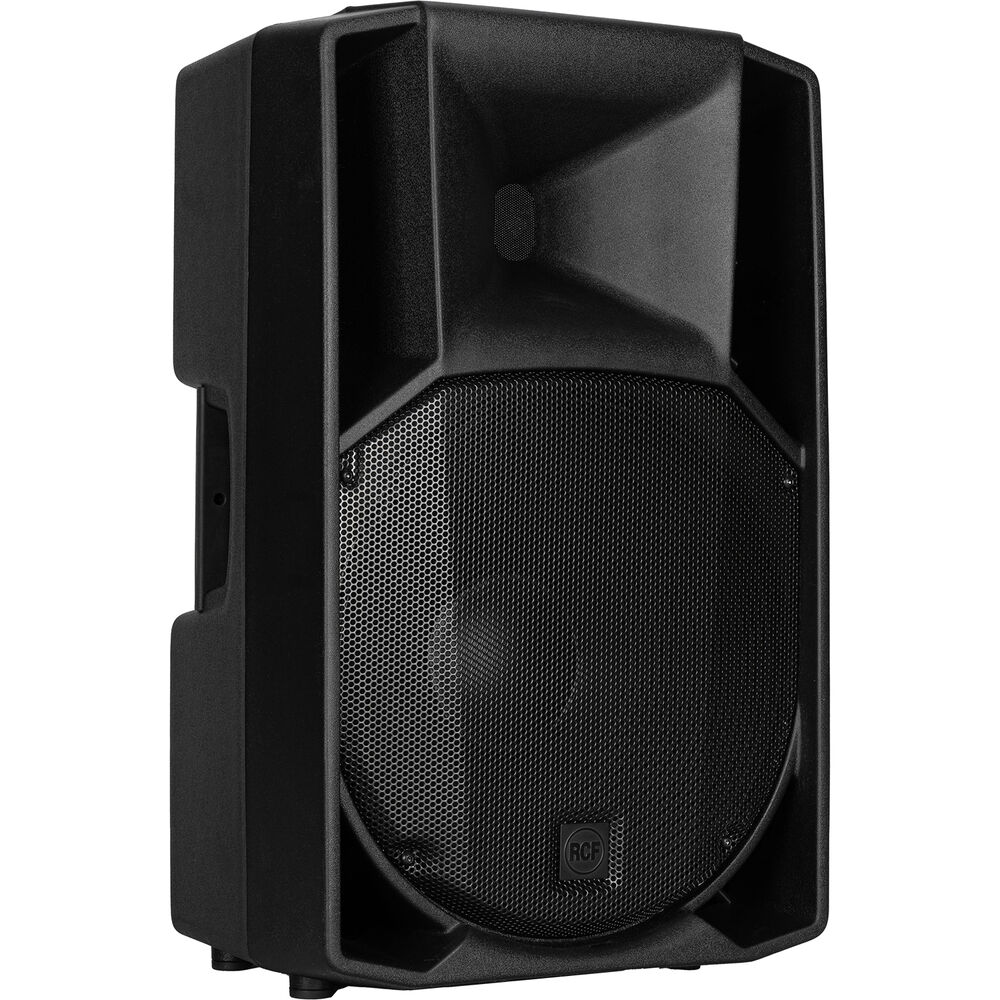

RCF ART 735-A MK5 15" 2-Way 1400W Active Speaker

What's New

Redesigned Firmware

• Newly tuned presets and settings that take full advantage of the XBOOST algorithm for optimal sound at any volume.

Superior Compression Drivers

• The ND840 Compression Driver in pure Titanium with a 3� voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.

Potent Woofer

• The low-frequency transducer is a high-power 15�� woofer with a 3" voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.

Key Features

• 132 dB max SPL
• 1400W 2-way peak power
• 90 x 60° wide dispersion constant directivity horn
• 45 Hz to 20 kHz
• Innovative DSP Processing
• 1" compression driver, 3" voice coil
• 15" woofer, 3" voice coil
• FiRPHASE technology
• XBOOST low frequencies enhancer

Powerful Class-D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilizes the amplifier during transportation dissipates heat without a fan.

X Boost-Experience the Depths of Sound

XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence and keeping the woofer excursion under control.

Ideal Stage Partner

The ART 7 speakers are the perfect choice for musicians and sound provider alike. Their cabinets are molded from a proprietary polypropylene composite engineered to quell vibrations, even at the highest volume levels. This translates to exceptional reliability and resilience under rigorous stage conditions.

New Perspective on Linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Bring ART with You

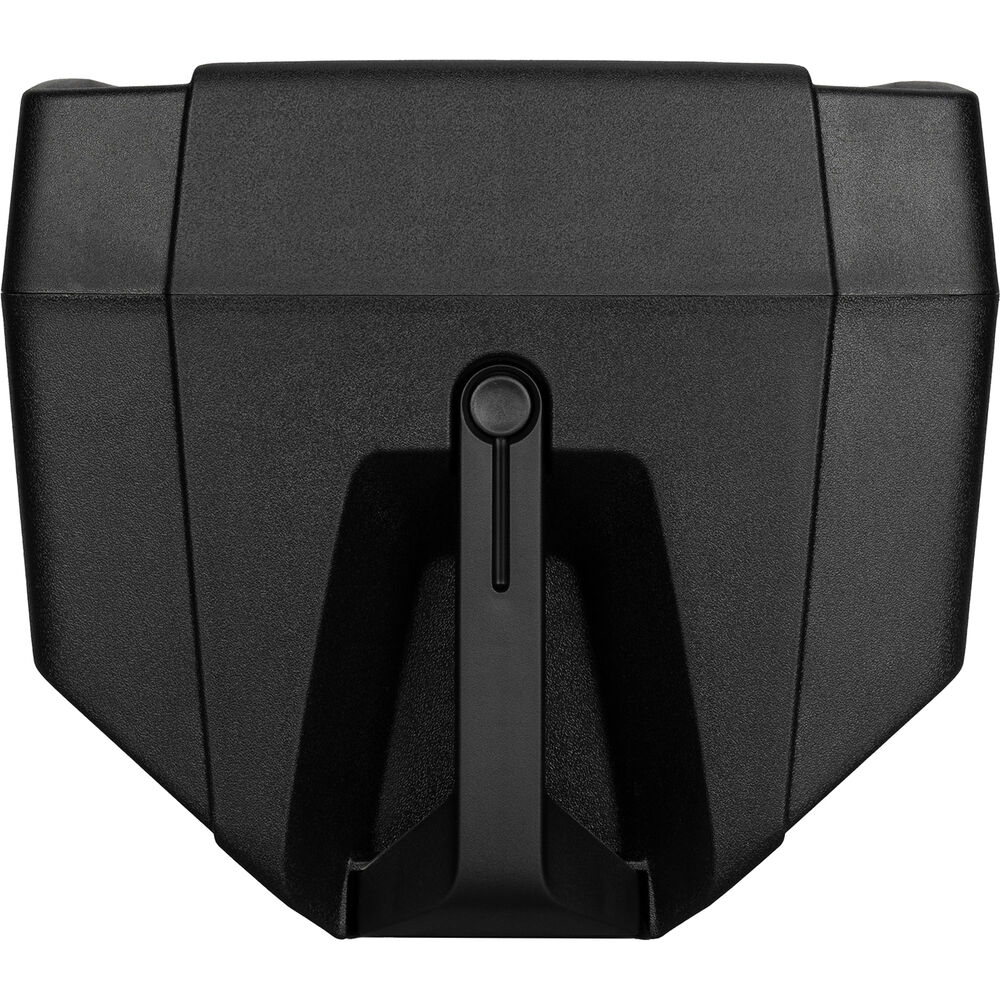

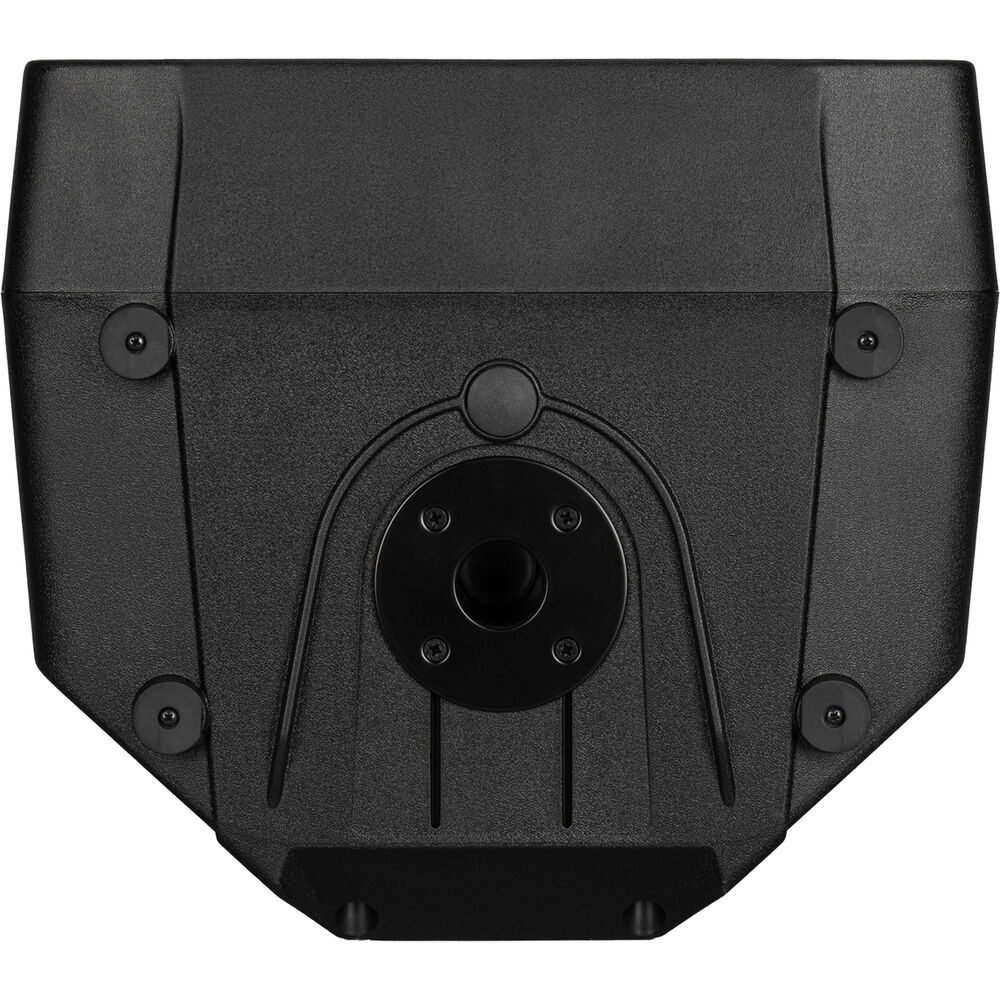

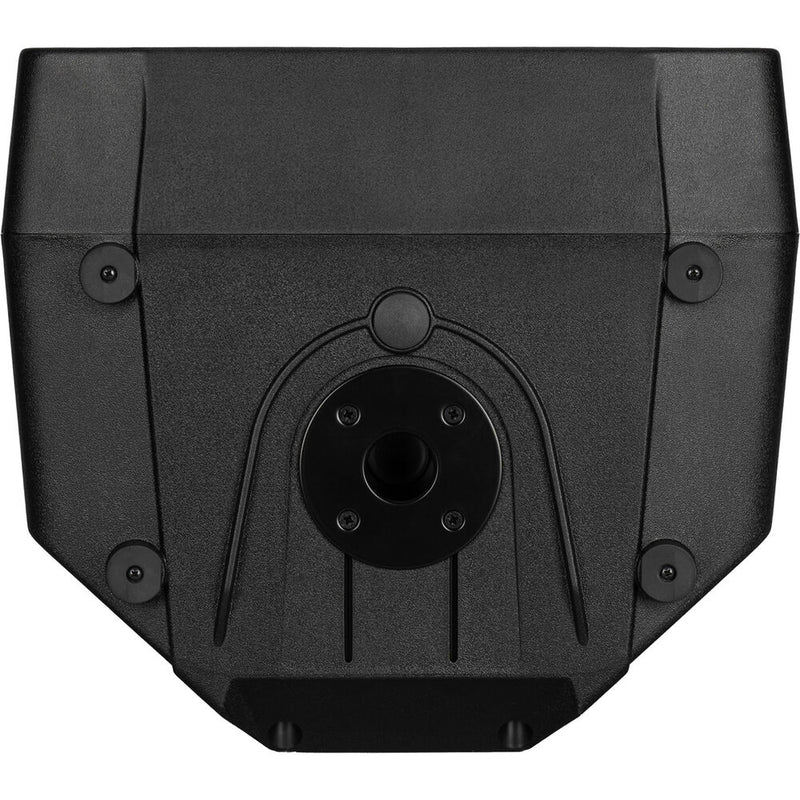

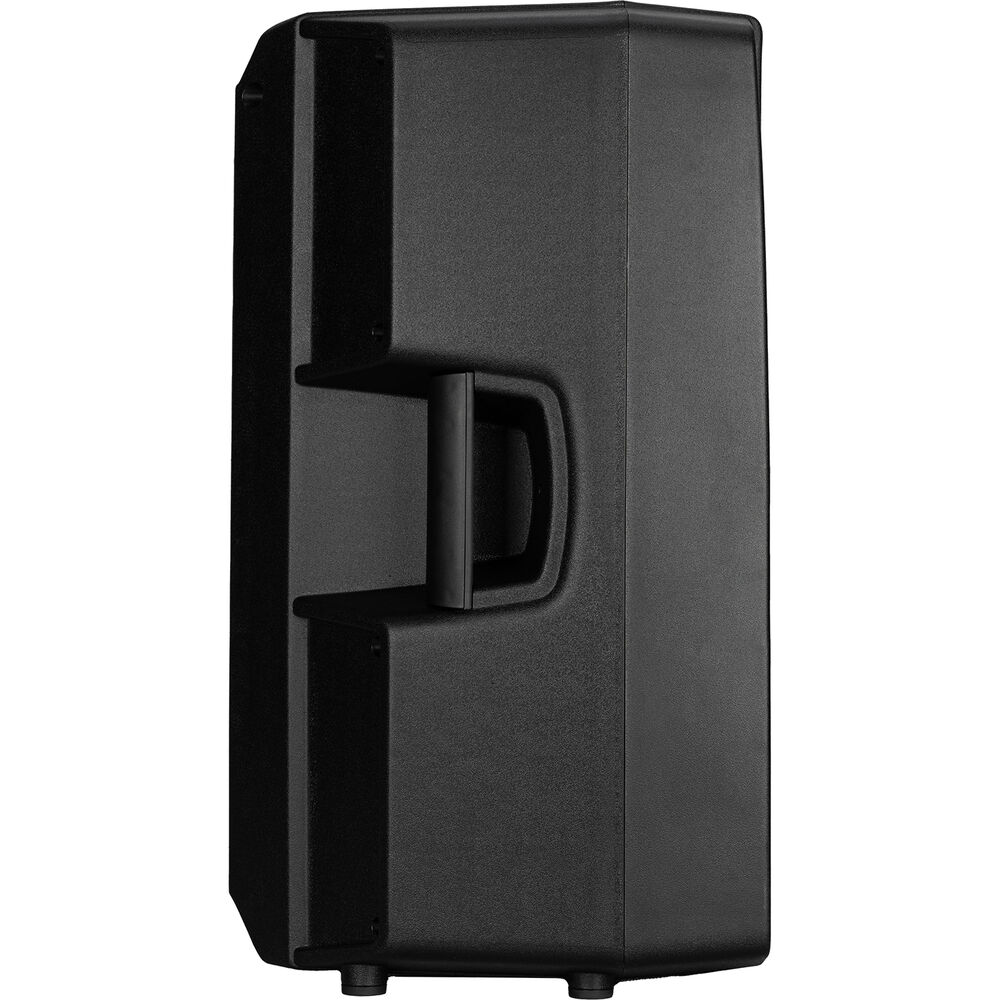

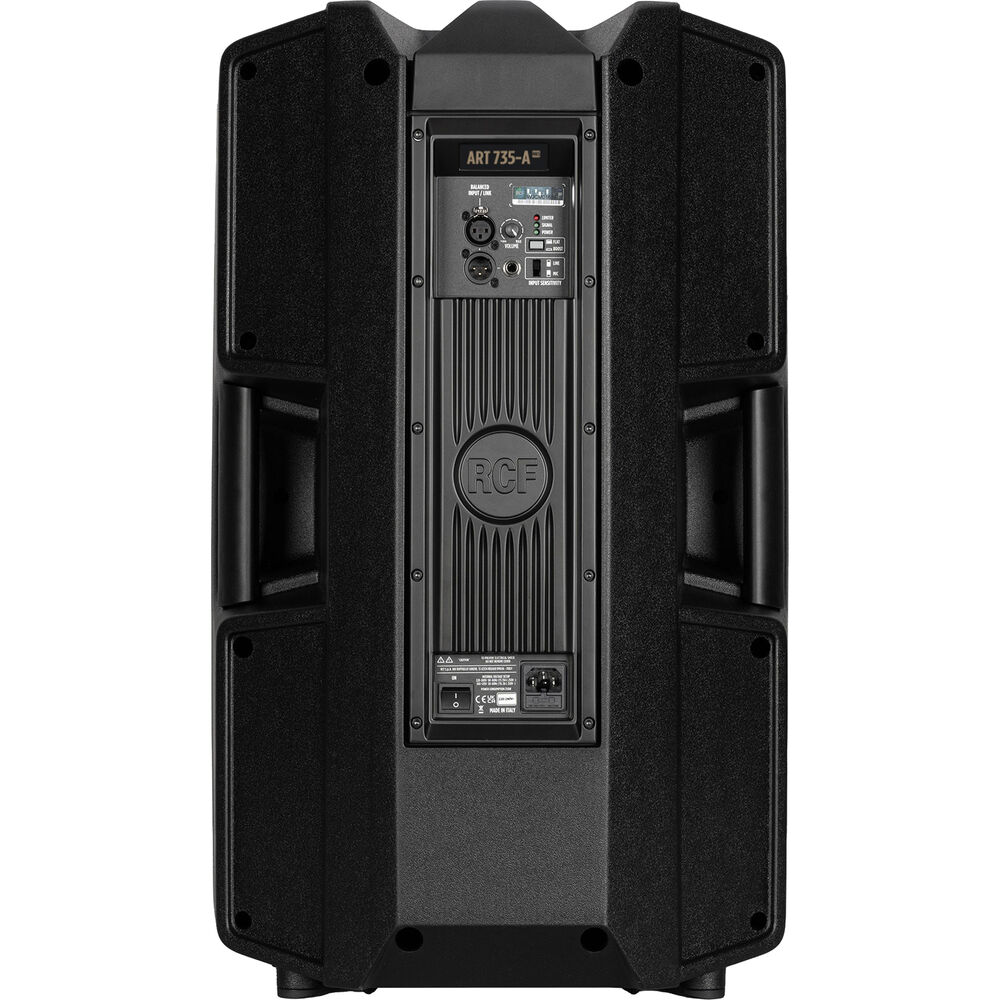

The sturdy, ergonomic cabinet is easy to carry, thanks to the handles at the top and on both sides. The base of each speaker includes a steel pole socket for mounting it on a stand or on a subwoofer pole. Stability and safety are assured. The rear of the cabinet is also shaped to be used as a floor monitor. Internal reinforcement prevents any deformation of the cabinet.

RCF ART-735A MK5 Specs

Configuration	Active 2-Way
Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	1400 W Peak 700 W RMS
HF Driver	1 x 1" / 51 mm Mylar Dome
MF Driver	No
LF Driver	15" / 381 mm Woofer
Wireless Connectivity	No
Color	Black

Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	1400 W Peak 700 W RMS
Amplifier Power Rating	HF: 400 W Peak 200 W RMS LF: 1000 W Peak 500 W RMS
Amplifier Class	Class-D

HF Driver	1 x 1" / 51 mm Mylar Dome
HF Voice Coil	3" / 76.2 mm
MF Driver	No
LF Driver	15" / 381 mm Woofer
LF Voice Coil	3" / 76.2 mm

Frequency Response	45 Hz to 20 kHz
Maximum SPL	132 dB
Coverage Angle	90° H x 60° V
Input Sensitivity	Line Input: +4 dBu to -2 dBu Mic Input: -32 dBu
Protections	RMS, Thermal

Audio I/O	1x XLR 3-Pin Balanced Input 1x 1/4" TRS Balanced/Unbalanced Input 1x XLR 3-Pin Male Balanced Output
Network I/O	No
USB I/O	No
Wireless Connectivity	No
Bluetooth	No
Mobile App Compatible	No

Crossover	800 Hz
EQ	No
Parametric EQ	No
Semi-Parametric EQ	No
Dynamic Processing	Soft Limiter
Alignment Delay	No
Phase Adjustment	No

AC Input Power	User Selectable: 100 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V) 200 to 240 VAC, 50 / 60 Hz (3.15 A L 250 V)
AC Power I/O	1x VDE Input

Color	Black
Mounting	2 x M10 1 x 1.4" / 35 mm Pole Socket
Handles	1x Top 1x Each Side
Cooling	Convection
Environmental Resistance	No
Construction Material	Polypropylene, Steel
Dimensions	27.9 x 17.2 x 15.3" / 70.9 x 43.7 x 38.9 cm
Weight	47.2 lb / 21.4 kg

Package Weight	57 lb
Box Dimensions (LxWxH)	29.75 x 19 x 17.25"
