Description

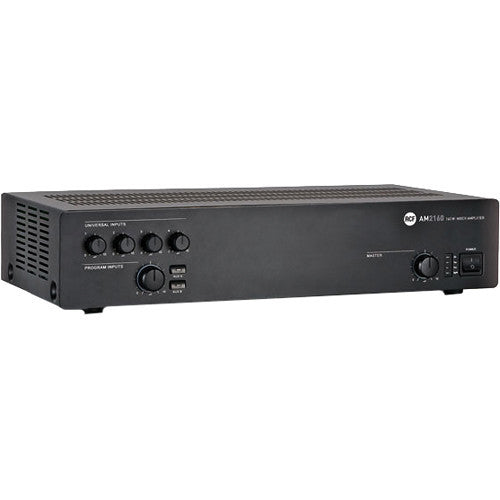

The AM 2160 from RCF is a 160 W mixer-amplifier with 4 audio inputs on removable connectors. It features two aux inputs for music sources such as CD or MP players, tuners, etc., and the first input has an XLR socket.
160 W nominal output power is available for either low impedance loudspeakers or 100 - 70 VAC constant voltage line.-
- Full digital technology Mixer Amplifier 160 W RMS
- 100 V - 70 V and 4 Ohm outputs

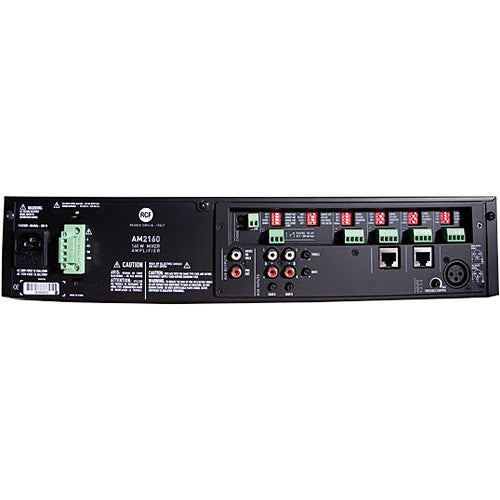

- 4 universal inputs with phantom facility on screw terminal connections
- Presence Control and per-channel High-Pass filters
- XLR connector on input 1
- RJ45 connectors on input 2 and 3 for connection to BM 3001 microphone
- Configurable Priority settings, VOX facility on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- Music On Hold and PRE outputs
- Microprocessor controlled
- Digital Chime and Siren built-in generator
- 24 V / 0.5 A priority relay output
In the Box
RCF AM 2160 Mixer Amplifier with 4 Audio Inputs
- Limited 3-Year Warranty, Extendable to 5-Years with Registration
| Power Output | 160 W RMS |
| Frequency Response | 50 Hz to 18 kHz |
| Distortion | < 3% |
| Signal-to-Noise Ratio (SNR) | (MIC) > 60 dB; (AUX) > 80 dB |
| Crosstalk | (MIC) > 60 dB; (AUX) > 80 dB |
| Phantom Power | 32 V dc |
| Input Sensitivity | MIC: -56 dBu PHANTOM: -28 dBu LINE: -7 � + 19 dBu AUX: -4 � + 15 dBu |
| Input Impedance | MIC: 10 k? PHANTOM: 5 k? LINE: 10 k? AUX: 10 k? |
| Tone | Bass: (80 Hz) � 8 dB Treble: (13 kHz) � 8 dB Presence control:(2.15 kHz) + 10 dB High-pass filter: 150 Hz |
| Output Level | -1 dBu |
| Output Impedance | 600 ohms |
| Output Voltage | 100 V ; 70 V |
| Outputs | Output Level: -1 dBu Output impedance: 600 ohms Phantom power voltage/current: 32 VDC 0.018 Amperes Output Loudspeaker Low impedance: 4 ohms Output Loudspeaker Constant voltage: 100 VAC ; 70 VDC AUX output: Pre ; Music on hold |
| Protection | Overload, thermal, short circuit and fuse |
| Power Requirement | Voltage: 220-240, 110-120 VAC, ~50/60 Hz Consumption: 240 W Fuse: T3.15AL - 250 V; T6.3AL - 250 V |
| Dimensions (H x W x D) | 3.5 x 17.4 x 9.1" (88.0 x 442.0 x 230.0 mm) |
| Weight | 9 lb (4 Kg) |
