Description

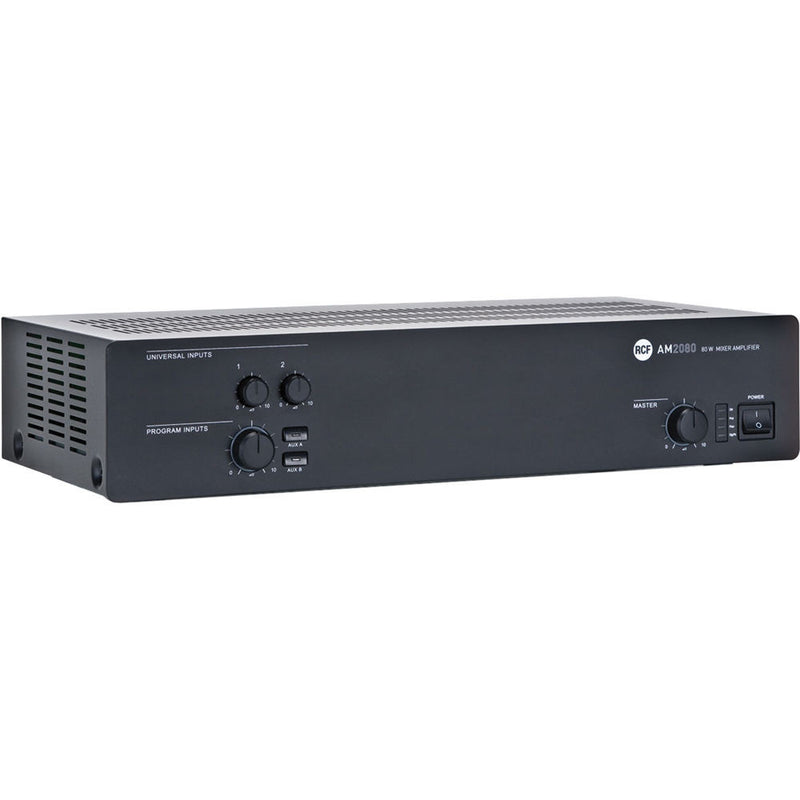

The AM 2080 Mixer-Amplifier with 2 Microphone/Line and 2 Auxiliary Inputs from RCF is a mixer-amplifier with two mic-line audio inputs on removable connectors (the first input also has an XLR socket) and two aux inputs for music sources such as CD players and tuners. The nominal power is 80W. The amplifier output is available either for low impedance loudspeakers or 70-100V constant voltage line.
- Full digital technology Mixer-Amplifier 80W RMS
- 70-100V and 4 Ohms outputs
- 2 universal inputs with phantom power on screw terminal connections
- XLR connector on input 1
- RJ45 port on input 2 for connection to a BM3001 microphone
- Configurable Priority settings, VOX feature on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- Music On-Hold and PRE outputs
- Digital Chime and Siren built-in generator
- Suitable for use at restaurants, boutiques, pubs, beauty centers, markets, hotels, office buildings, and medical centers
In the Box
RCF AM 2080 Mixer-Amplifier with 2 Microphone/Line and 2 Auxiliary Inputs
- 2 x Audio 4-Pole Removable Connectors
- Amplifier Output 4-Pole Removable Connector
- Safety Protection Cover for Outputs
- Rack Mount Kit
- AC Power Cord
- Limited 3-Year Warranty
| Amplifier | |
|---|---|
| Power Output | 80 W RMS |
| Frequency Response | 50 Hz - 18 kHz (� 3 dB) |
| Distortion | < 0.3% |
| Signal / Noise | Channels 1 - 2: 60 dB Aux input: 80 dB |
| Phantom Power | 30 VDC, 18 mA |
| Inputs | |
|---|---|
| Sensitivity | Channels 1 - 2, Mic: -62 dBu Channels 1 - 2, Line: -29 to 11 dBu Aux: -18 to 20 dBu |
| Impedance | Channels 1 - 2, Mic: 10 kOhms Channels 1 - 2, Line: 10 kOhms Aux: 20 kOhms |
| AUX Inputs | EQ Bass: (100 Hz) -9 to 6 dB Treble: (10 kHz) -14 to 8 dB |
| High Pass Filter | 150 Hz |
| Outputs | |
|---|---|
| Output Level | 0 dBu |
| Loudspeaker | Low impedance: 4 Ohms Constant voltage: 100 V, 70 V |
| AUX Outputs | Pre, Music on hold |
| Protections | Overload, thermal, Short circuit, fuse |
| Power Requirement | |
|---|---|
| Operating Voltage | 115 - 230 VAC, 50 - 60 Hz |
| Power | 160 W |
| Fuse | T1.6AL - 250 V, T3.15AL - 250 V |
| Physical Specifications | |
|---|---|
| Dimensions | 17.4 x 3.5 x 9.9" (44.2 x 8.8 x 25.1 cm) |
| Weight | 8.37 lb (3.80 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 12.35 lb |
| Box Dimensions (LxWxH) | 19.4 x 13.1 x 8.3" |
