Description
- 12" Woofer, 2.5" Voice Coil
- 2-Way Class-D 1400W Amplifier
- 131 dB SPL Max
- 50 Hz - 20 kHz Frequency Response
- For Use as FOH or Satellite Speaker
- FiRPHASE Filters
- Switchable EQ Mode
- Mic/Line Sensitivity Switch
- Power, Status & Signal LEDs
- Multiple Rigging Points

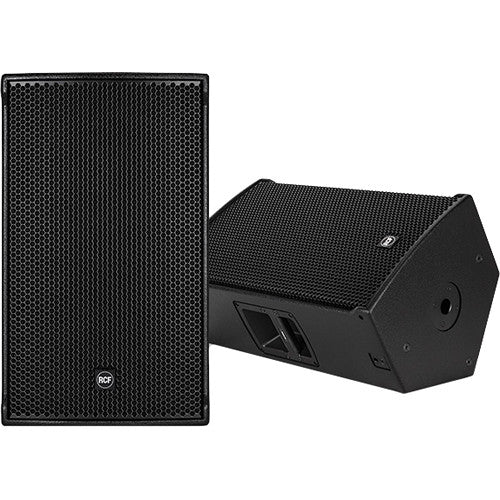

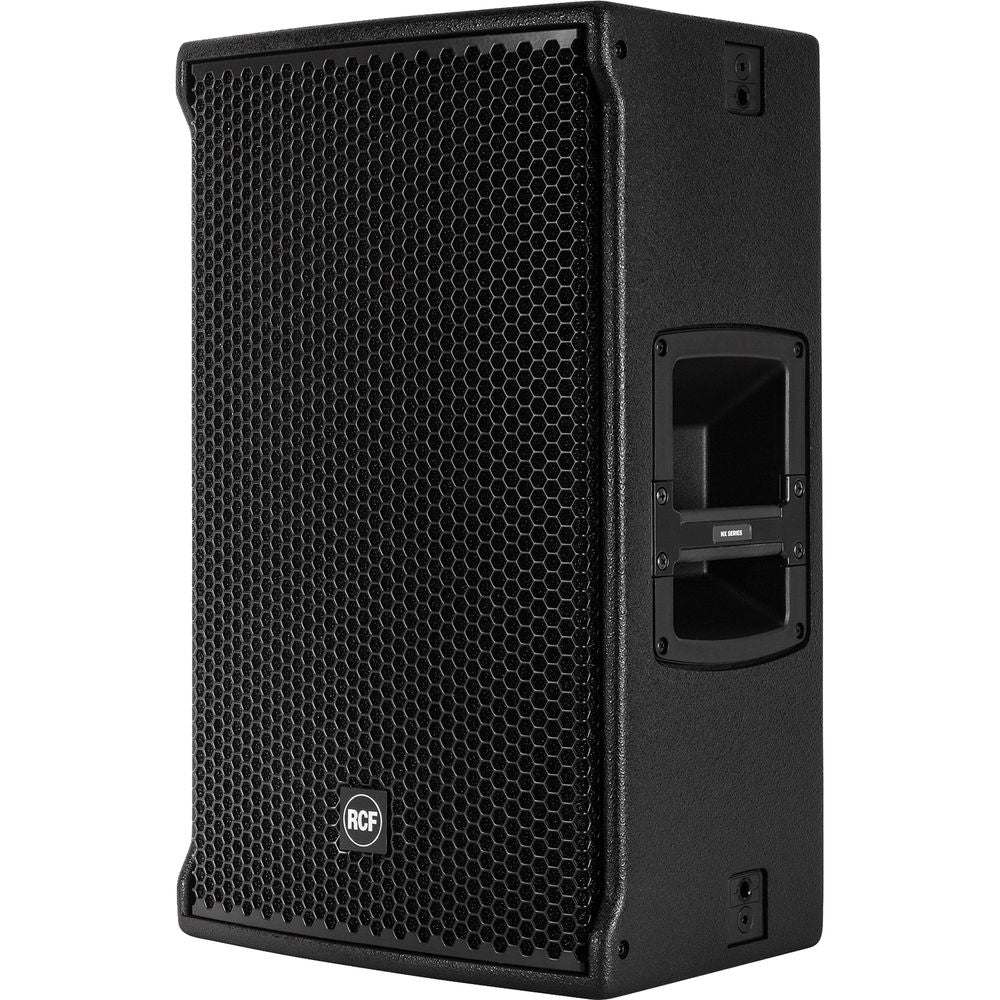

The Active Two-Way Multi-Purpose Speaker from RCF can be used either as a standalone FOH system or as a satellite speaker and is designed to be an everyday tool for rental companies and professional musicians. The integrated two-way 1400W amplifier features a solid machined aluminum structure, which not only stabilizes it during transportation but also assists in heat dissipation. The internal DSP has limiters and protections for the transducers and uses FiRPHASE filters to help achieve a coherent distribution of sound without phase distortion. A single button shapes the sound for background music purposes when the system plays at minimum volume levels.

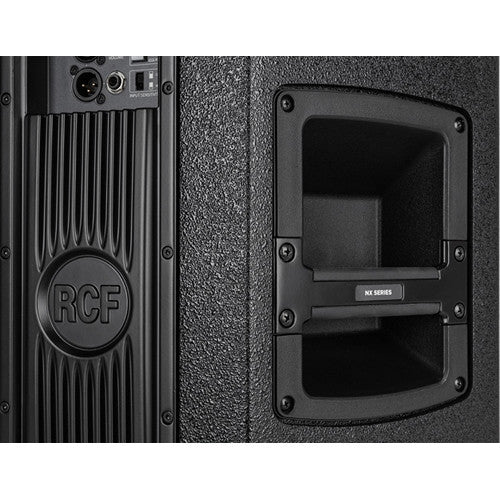

- In/Out Connectors
- The amplifier presents both XLR in/out connectors and a jack input for connection versatility.
- Switchable EQ
- A switchable EQ Mode makes it easier to select among two different equalization presets:
- Extended response switch, slightly emphasizes bass response for playback music and low-volume applications
- Linear response switch, useful when the speaker is used to amplify a live mix � the amplifier's built-in limiter circuit prevents clipping or over-driving the transducers.
- Mic/Line Switch
- A mic/line switch helps adjust the input sensitivity. When used for speech, the mic setting allows to use a microphone directly with the speaker. Set the selector to line when using the speaker for live music or playback.
- Volume Knob
- An easy-to-reach volume knob on the back allows to set the overall volume of the speaker according to its application.
- Status LEDs
- Status LEDs are provided for monitoring the system's power, signal, and status.
RCF NX32A specs
| Acoustic Specifications | |
|---|---|
| Frequency Response | 50 Hz - 20 kHz at -3 dB |
| Max SPL | 131 dB |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 40° |

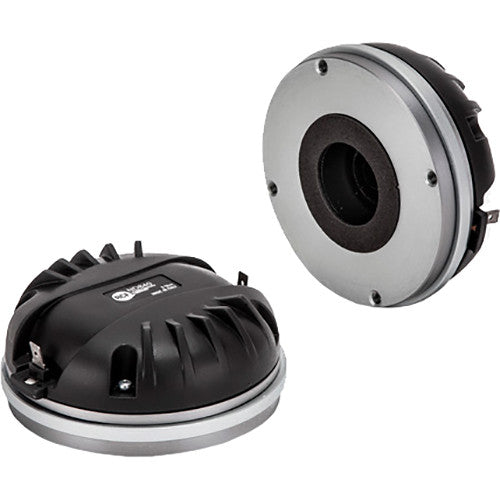

| Compression Driver | 1.4" / 36 mm, neodymium, 3.0" / 76 mm voice coil |
| Woofer | 12" / 305 mm, 2.5" / 63 mm voice coil |
| Input / Output | |
|---|---|
| Input Signal | Balanced/unbalanced |
| Input Connectors | XLR, jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 / +4 dBu |
| Mic Input Sensitivity | -32 dBu |
| Processor Section | |
|---|---|
| Crossover Frequencies | 700 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft limiter |
| Controls | Volume, boost, mic/line |
| Amplifier Specifications | |
|---|---|
| Peak | Total Power: 1400 W High Frequencies: 400 W Low Frequencies: 1000 W |
| RMS Power | Total Power: 700 W High Frequencies: 200 W Low Frequencies: 500 W |
| Cooling | Convection |
| Connections | PowerCON in/out |
| Cabinet | |
|---|---|
| Material | Baltic birch plywood |
| Hardware | 5 x M10, 4 x quick lock |
| Handles | 2, side-mounted |
| Pole Mount/Cap | Yes |
| Grille | Steel |
| Physical Specifications | |
|---|---|
| Dimensions | 23.62 x 14.37 x 14.88" / 60.0 x 36.5 x 37.8 cm |
| Weight | 46.51 lb / 21.1 kg |
In the Box
RCF Active Two-Way Multi-Purpose Speaker
- Limited 3-Year Warranty
