Description
RCF ART 932-A Overview
- 1Description
- 2At a Glance
- 3Preset Selector
- 4Power that Moves
- 5M-Brace Cabinet Design
- 6Bass Motion Control
- 7FiRPHASE
- 8True Resistive Waveguide
- 9Remarkable Transducers
Designed to deliver stellar audio performance and versatility for intensive audio applications, the 12" RCF ART 932-A is a highly flexible, easy to use, 2100W powered PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of ART 932-A's is well equipped to cover an audience of up to 300.
A push button on the back of the speaker allows you to physically switch between three preset modes: Linear, for standard applications; Boost, which provides loudness equalization for background music played at low volumes; and Stage for using the speaker as a stage monitor. The ART 932-A employs True Resistive Waveguide technology, which incorporates several refinements of the transducers and the vented port design to create a resonance-free signal that reduces high-frequency distortion. The speaker also utilizes Bass Motion Control (BMC), which bypasses the need for a high-pass filter and instead uses an advanced woofer excursion management feature that can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

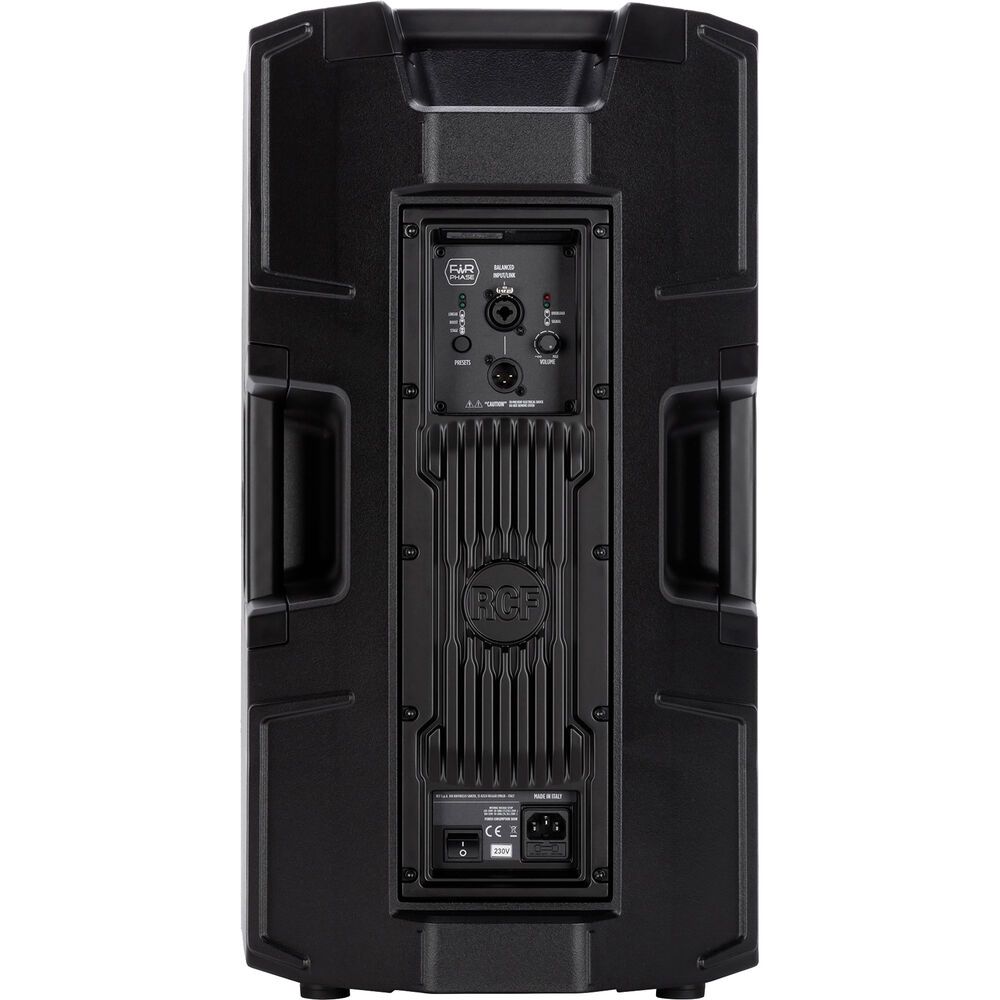

A single combo XLR-1/4" connector can accept both unbalanced and balanced signals. There is also an XLR Thru-Output for daisy-chaining to additional speakers or other audio equipment. The highly efficient 2100W Class-D bi-amplifier delivers 1400W to the 12" woofer and 700W to the 3" titanium/neodymium compression driver, which provide full-range audio (50 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. The ART 932-A includes a power cord.
- Up to 132 dB sound pressure level
- 2100W Class-D bi-amplification
- 50 Hz to 20 kHz linear frequency response
- 3" Titanium/Neodymium compression driver
- 12" woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management
- LINEAR: This preset is recommended for all regular applications of the speaker
- BOOST: This preset creates a loudness equalization recommended for background music applications when the system plays at a low level
- STAGE: This preset is recommended when the speaker is used as a stage monitor
- With 2100W of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultrafast attack, realistic transient response, and very low heat loss
- ART 9 is very energy-efficient, so there is no need for a cooling fan�the amplifier is attached to a solid aluminum heat exchanger in the back of the unit�with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels
- All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight
- The sleek cabinet uses a special polypropylene composite material with a radically new construction concept
- The grille cover is heavy-duty steel, protecting both transducers and vented ports
- The purpose-designed M-brace connects the four internal sides of the cabinet and amplifier, preventing any deformation for a completely inert body, with augmented acoustical damping, even at maximum volume settings
- It also performs as a reinforcement structure, for greater resistance to mechanical stress
- When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature.
- ART 9 with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
- The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer.
- When high-pass filters normally protect the woofer motion from becoming destructive, but change the phase behavior, the BMC algorithm breaks conventional rule. In combination with FiRPHASE technology, ART 9 has a level of DSP audio performance never achieved in this range of speakers.
- The design of the FIR filter for this specific purpose starts from an accurate measurement of the loudspeaker phase.
- FiRPHASE algorithm uses this measurement and adapts the loudspeaker�s phase without touching the amplitude equalization. The heart of the advanced technique used by FiRPHASE is a recursive method (least-squares method) combined with a proprietary algorithm that calculates the best FIR filter coefficients set in according to amplitude and phase constraints
- The algorithm corrects phase and amplitude (if necessary) by considering the weak points of the transducers and the resonances or cancellations due to the cabinet of the loudspeaker.
- This technique allows a deep control of phase at the mid-low frequency with relatively small filters, reaching a higher resolution than that one as theory suggests.
- The True Resistive Waveguide is the result of several refinements in both the transducers' and the vented ports' design with Finite Element Analysis, and constant measurement in RCF anechoic chambers.
- Thanks to FiRPHASE technology, the new shape, and the placement of the ports, the speaker now acts as a single ideal source for a perfect sound image.
- Acoustically, the TRW waveguide mimics a resonance-free pure resistive load reducing the high-frequency distortion of a classic horn. With its asymmetrical sound shaping, the coverage angle of the waveguide provides constant directivity to the entire listening area and improved stereo panorama.
- Compression Driver: The ND840 Compression Driver in pure Titanium with a 3" voice coil allows a crossover point at only 700 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
- Woofer: The low-frequency transducer is a high-power 12" woofer with a 2.5" voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.
In the Box
- RCF A932-A Two-Way 12" 2100W Powered PA Speaker with Integrated DSP
- Power Cord
- Limited 3-Year Manufacturer Warranty
- Description
- At a Glance
- Preset Selector
- Power that Moves
- M-Brace Cabinet Design
- Bass Motion Control
- FiRPHASE
- True Resistive Waveguide
- Remarkable Transducers
RCF ART 932-A Specs
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor |
| Total Power Capacity | 2100 W |
| Amplifier Power Rating | LF: 1400 W Peak HF: 700 W Peak |
| Amplifier Class | Class-D |
| HF Driver | 1 x 1.4" / 35.6 mm Titanium Compression Driver |
| HF Voice Coil | 3" / 76.2 mm |
| MF Driver | None |
| LF Driver | 1 x 12" / 304.8 mm Woofer |
| LF Voice Coil | 2.5" / 63.5 mm |
| Magnet | Neodymium |
| Frequency Response | 50 Hz to 20 kHz |
| Maximum SPL | 132 dB (Peak) |
| Coverage Angle | 100° H x 60° V |
| Protections | RMS, Signal Limiter, Thermal |
| Audio I/O | 1 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Input 1 x XLR 3-Pin Male Thru/Output |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | None |
| Crossover | 700 Hz (Internal) |
| EQ | None |
| Parametric EQ | None |
| Semi-Parametric EQ | None |
| Dynamic Processing | Soft Limiter |
| Alignment Delay | None |
| Phase Adjustment | None |
| Digital Signal Processing | FIR Filter, Venue Settings |
| AC Input Power | 100 to 120 VAC, 60 Hz |
| AC Power I/O | 1 x IEC Input |
| Power Consumption | 300 W |
| Mounting | 2 x M10 Fly Point (Top) 1 x M10 Fly Point (Each Side) 1 x 1.38" / 35 mm Pole Socket (Bottom) |
| Handles | 1 x Top 1 x Each Side |
| Cooling | Convection, Heat Sink |
| Construction Material | Composite, Stainless Steel Grille |
| Dimensions | 25.3 x 14.6 x 14.3" / 642.6 x 370.8 x 363.2 mm |
| Weight | 41.4 lb / 18.8 kg |
| Package Weight | 50.2 lb |
| Box Dimensions (LxWxH) | 28 x 17 x 17" |
