Description

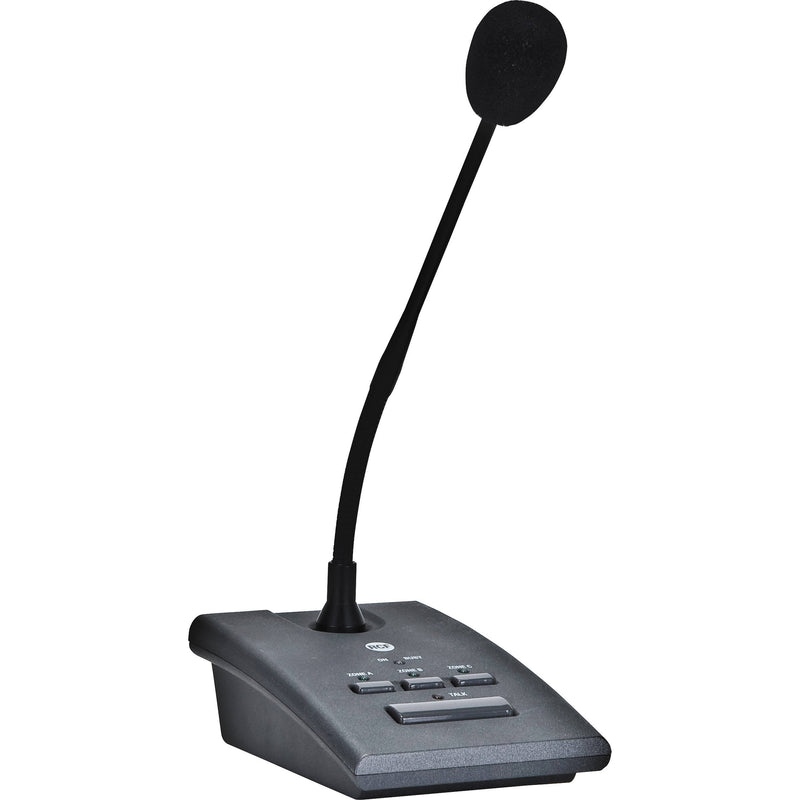

The RCF 3-Zone Paging Microphone allows you to make selective calls to 3 zones and is suitable for use with the RCF ES 3323 Mixer Amplifier (with tuner and CD/USB-MP3 player inside).
The inputs 2 and 3 of the RCF ES 3323 Amplifier have a RJ-45 port (each) to connect a BM 3003 Paging Microphone quickly and directly (through a CAT5 cable) or a line made of a maximum of 12 BM 3003 paging microphones by using 1 or more additional power supply units.
- Plastic body with 11.8" (300.00mm) gooseneck
- PTT button with LED, zone buttons with LED
- Power supplied by Phantom (18 to 48 VDC), for the BM 3003 directly connect to the ES 3323 Amplifier
- Can be directly connected to ES 3323 amplifiers
- External AC power supply AD2405 (Sold separately) to be used with BM 3003
- Lines of maximum 12 BM 3003 paging microphones
- Polyurethane foam wind screen
- 16.4' (5.0m) connecting cable (with RJ-45 plugs) included
In the Box
RCF 3-Zone Paging Microphone
- CAT5 FTP Cable 16.4' (5.0m)
- Limited 3-Year Warranty
| General | |
|---|---|
| Type | Desktop paging microphone with electret capsule |
| Directivity | Cardioid |
| Frequency Response | 50 Hz to 18 kHz |
| Microphone Sensitivity | -65 +/- 3 dB (0 dB = 1 �bar at 1 kHz) |
| Minimum Load Impedance | 470 ? |
| Nominal Output Voltage | 100 mV rms (at 3.3 k?); maximum 1 Vrms |
| Phantom Power | 18 to 48 VDC |
| Connector | 8 pole RJ 45 |
| Power Requirements | |
|---|---|
| Power Consumption | 2.8 mA |
| Power Supply | 24 V direct current (consumption 150 mA) or 18 V alternating current (consumption 200 mA) |
| Physical | |
|---|---|
| Dimensions (H x W x D) | 4.0 x 5.0 x 12.0" (10.2 x 12.7 x 30.5 cm) |
| Weight | 1.80 lb (0.82 kg) |
