Description

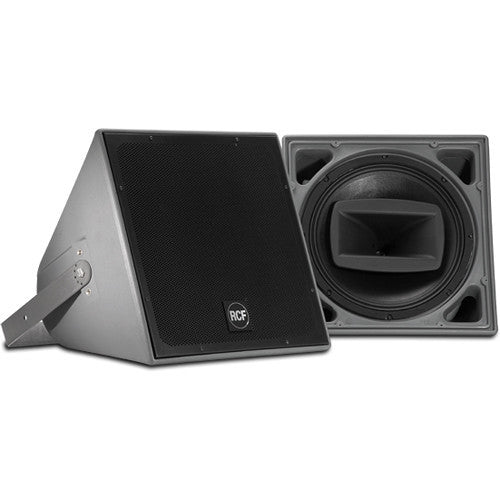

15" 300W Coaxial Weatherproof 2-Way Speaker System from RCF is a weatherproof, full-range, wide-dispersion, coaxial 2-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.
The high-frequency section is a constant directivity CMD horn loaded to a 1" RCF precision compression driver with a 1.5" diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 15" woofer with a 2.5" voice coil. The cabinet is a single piece rotation molded in medium density polyethylene and is fully UV protected.
The cabinet is equipped with 12 x M 10 brass inserts, a stainless steel U-bracket and pair of spacers for 90� mounting. The system meets the requirements of the IP55 code.
- Cabinet is a single piece rotation molded in medium density polyethylene, fully UV protected and waterproof IP 55
- Front grille in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing
- Stainless steel bracket
- One 15" high-output LF transducer with 2.5" voice coil
- One RCF precision 1" compression driver with 1.5" voice coil
- 60 x 90� constant directivity horn
- 10 x 20� enclosure sides for array configurations
- Active mosfet cvompression driver protection
- 12 brass suspension points (M10)
- Line transformer
- 12 x M10 Brass Inserts
- Steel U-Bracket
- 2 x Spacers
- 4 x Input Cables
- Limited 3-Year Warranty
| Acoustical | |
|---|---|
| Frequency Response | 75 Hz - 20 kHz |
| Maximum SPL | 129 dB @ 1 m |
| Coverage Angle | Horizontal: 90� Vertical: 60� |
| Directivity | Index, Q: 13.3 |
| Sensitivity | 98 dB |
| Impedance | 16 ohms; |
| Power Handling | 300 W |
| Peak Power Output | 1200 W |
| Protection | Dynamic |
| Crossover Frequencies | 1300 Hz |
| Transducers | |
|---|---|
| Driver | 1.00" (2.54 mm) HF diver, 1.5" (38.1 mm) voice coil |
| Woofer | 15" (381 mm) woofer, 2.5" (63.5 mm) voice coil |
| Impedance | Compression Driver: 8 ohms Woofer: 16 ohms |
| Input Power | Compression Driver: 25 W AES Woofer: 250 W AES |
| Sensitivity | Compression Driver: 108 dB Woofer: 98 dB |
| Input | |
|---|---|
| Input Connector | 4 x Neoprene cable |
| Cable Length | 16.4' (5 m) |
| Voltage | Constant Voltage Transformer: 70/100 |
| Power | Selection: 70 V/ 30 W, 15 W; 100 V/ 60 W, 30 W |
| Cabinet / Accessories | |
|---|---|
| Material | Polyethylene roto-molded |
| Grille | Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing |
| Dimensions | 18.22 x 18.22 x 17.04" (463 x 463 x 433 mm) |
| Weight | 42.76 lb (19.40 kg) |
