Description

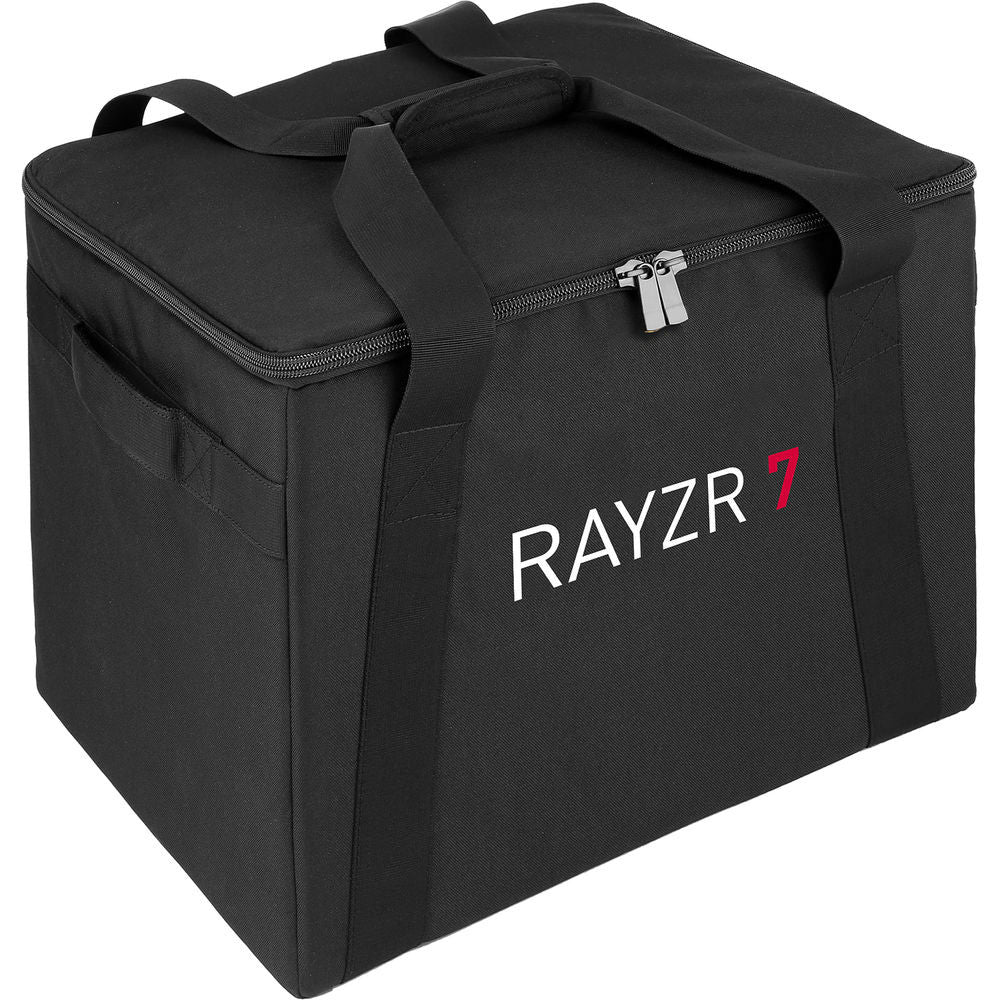

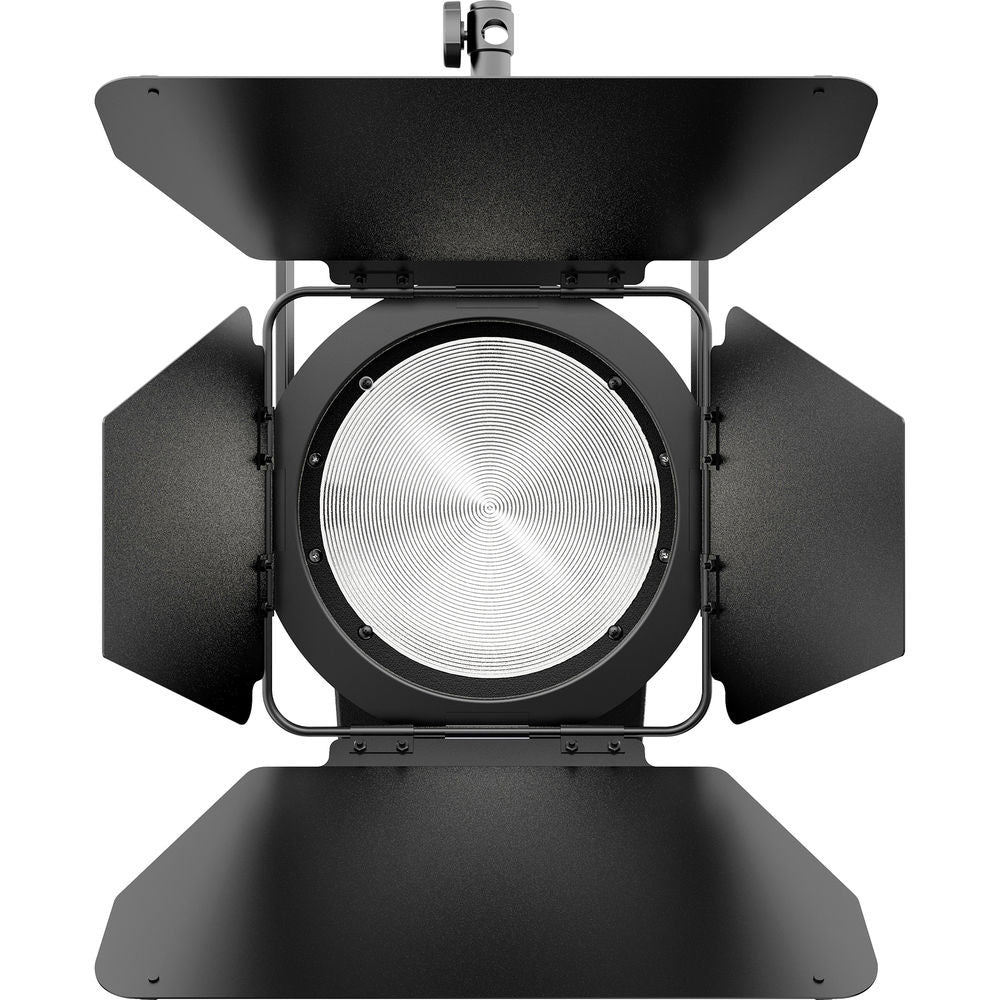

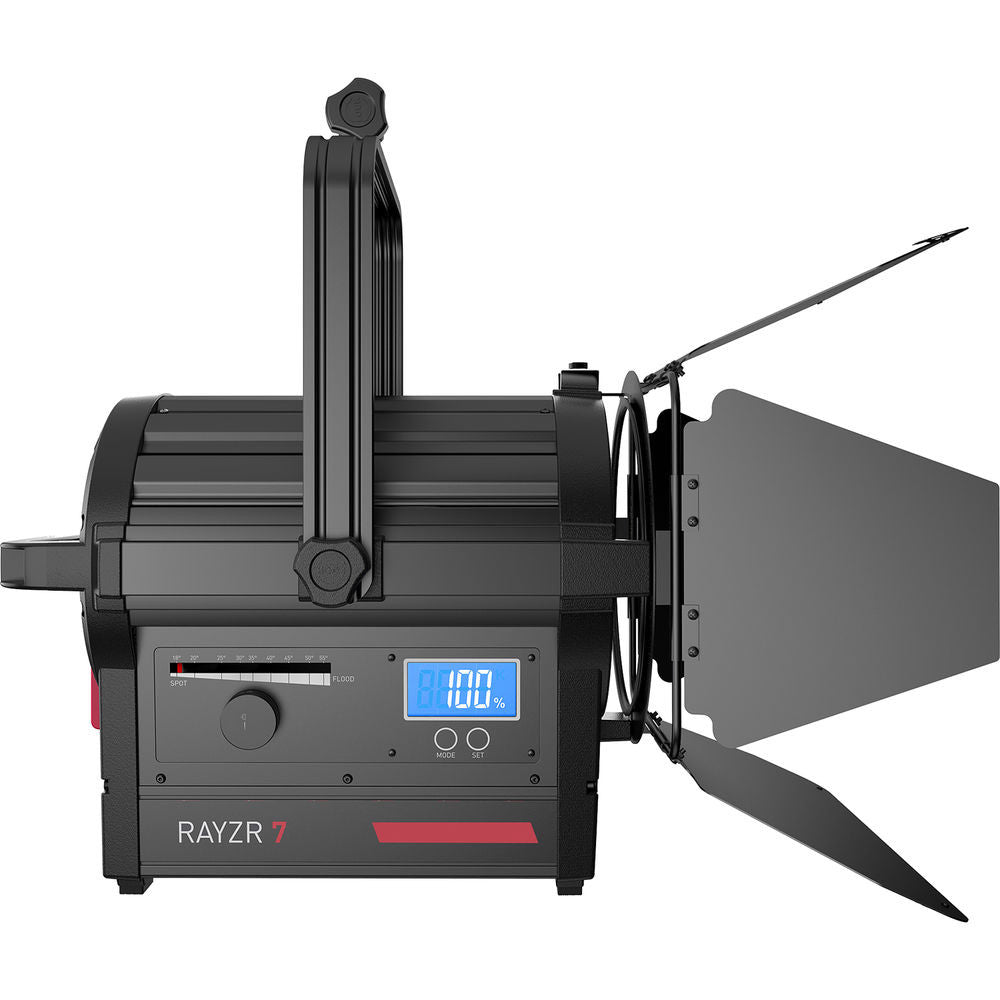

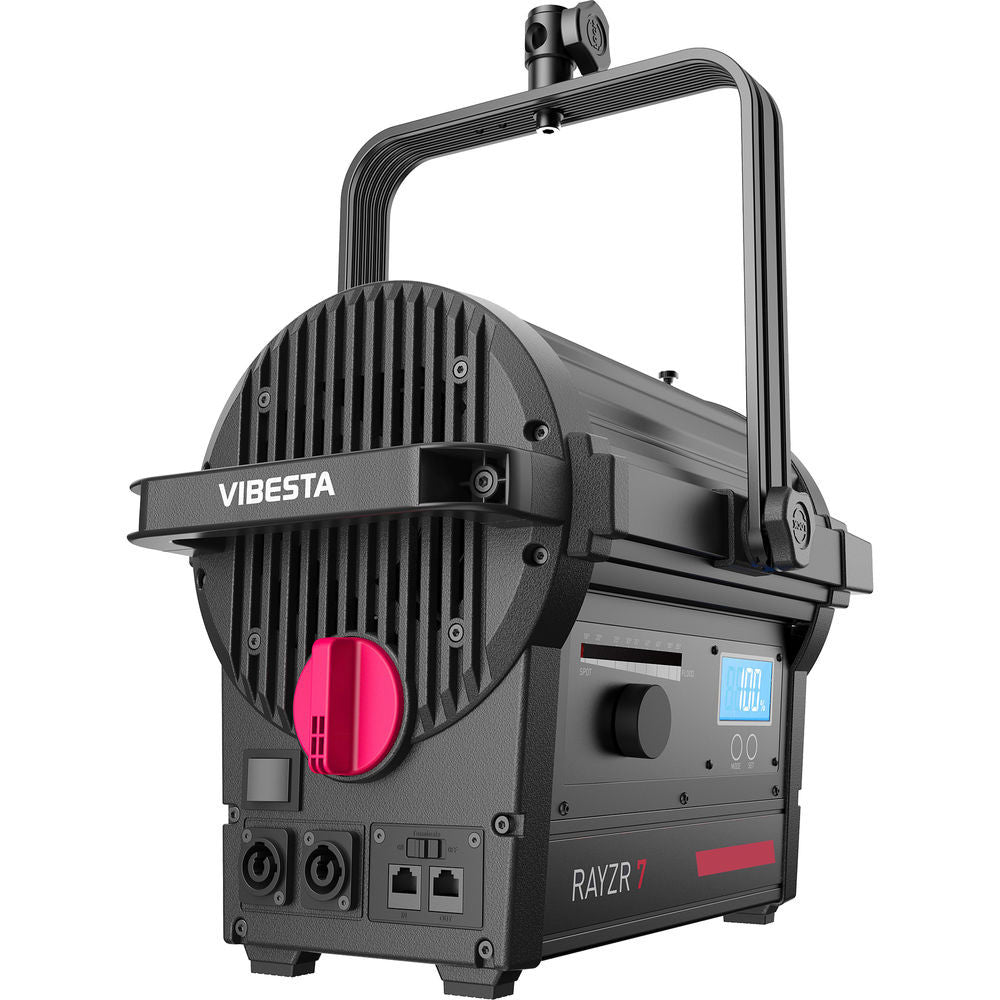

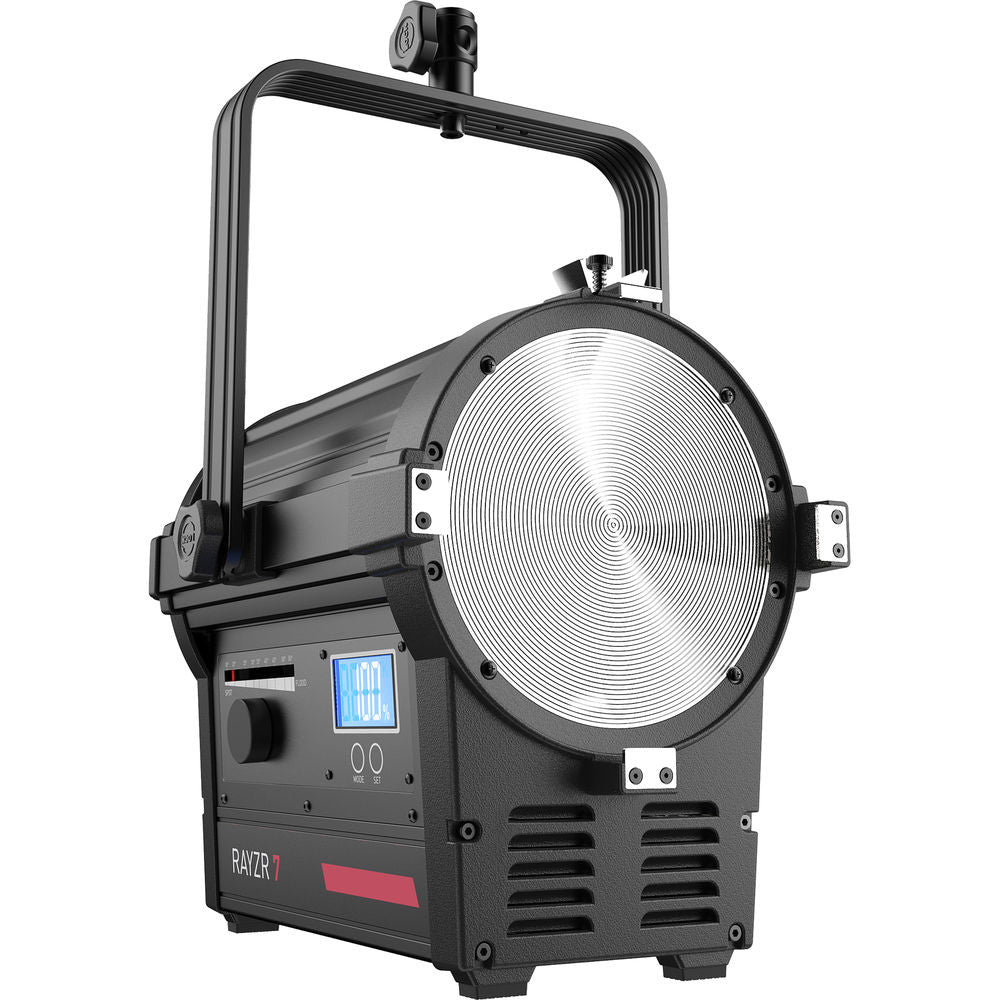

The black 7" 300W Bi-Color LED Fresnel Light (Premium Pack) from Rayzr offers a total power output of 300W (150W + 150W) and uses a vapor cooling system. It offers a color temperature of 3200 to 5600K (bi-color)) and beam angle of 18 to 50°. The light comes with a RJ45 DMX in and through control and an onboard controller. In addition to the 7" LED Fresnel, the premium pack includes 4-leaf barndoor, a power supply, and a travel case.
- 300W (150W + 150W) power output
- Flicker-free operation up to 15,000 fps
- TLCI up to 98
- Even and uniform light beam
- Full control over light beam shaping
- Built-in DMX
In the Box
Rayzr 7 7" 300W Bi-Color LED Fresnel Light (Premium Pack)
Rayzr 7 300B specs
| Rating | 300 W (150 W + 150 W) |
| Beam Angle | 18 to 50° (half peak angle) |
| White Light Lamp | Bi-color 3200 to 5600K Continuously Variable CCT |
| Photometric Data | Spot: 18° At 9.84' (3 m) 100% 3200K: 3717 lux, 345 fc 100% 5600K: 4047 lux, 376 fc At 16.4' (5 m) 100% 3200K: 1338 lux, 124 fc 100% 5600K: 1457 lux, 135 fc At 23' (7 m) 100% 3200K: 683 lux, 63 fc 100% 5600K: 743 lux, 69 fc At 29.5' (9 m) 100% 3200K: 413 lux, 38 fc 100% 5600K: 450 lux, 42 fc Middle: 30° 100% 3200K: 2391 lux, 222 fc 100% 5600K: 2666 lux, 248 fc At 16.4' (5 m) 100% 3200K: 861 lux, 80 fc 100% 5600K: 960 lux, 89 fc At 23' (7 m) 100% 3200K: 439 lux, 41 fc 100% 5600K: 490 lux, 45 fc At 29.5' (9 m) 100% 3200K: 266 lux, 25 fc 100% 5600K: 296 lux, 28 fc Flood: 50° 100% 3200K: 974 lux, 90 fc 100% 5600K: 1105 lux, 103 fc At 16.4' (5 m) 100% 3200K: 351 lux, 33 fc 100% 5600K: 398 lux, 37 fc At 23' (7 m) 100% 3200K: 179 lux, 17 fc 100% 5600K: 203 lux, 19 fc At 29.5' (9 m) 100% 3200K: 108 lux, 10 fc 100% 5600K: 123 lux, 11 fc |
| Color Temperature Tolerance | +/- 150K (nominal) |
| CRI / TLCI | CRI 94 ± 2 / TLCI 95 to 98 |
| Control | RJ-45 DMX in and through, onboard controller |
| LED Lifetime | Estimated: 50,000 hours (15 years of average use) |
| Current | Input Current Range: Maximum 2.2 A @ 90 V, 0.73 A @ 264 V |
| Power Consumption | Nominal: 172 W Maximum: 192 W |
| Power Connection Type | Neutrik power CON TRUE1 NAC3MPX Plug: Neutrik power CON TRUE1 NAC3FX-W |
| DC Voltage | Power Voltage Range: 24 to 36 VDC Input Current Range: Maximum 6.9 A @ 24 V 4.5 A @ 36 V Power Consumption: 162 W (nominal), 180 W (maximum) Power Connection: Neutrik speak ON NL2MP, Plug: Neutrik speak ON NL2FX |
| Optical System | Focusable fresnel |
| Lens Diameter | 6.7" (170 mm) |
| Thermal Design | Vapor cooling |
| Tilt Angle | +/- 90° |
| Ambient Temperature | -4 to +113°F (-20 to 45°C) |
| Protection Class | IP20 |
| Certifications | CE, FCC, RoHS, REACH |
| Operating Voltage | 90 to 264 VAC, 50/60 Hz |
| Dimming | 0 to 100% continuous |
| Cable | Power cable |
| Mount | 0.6" (16 mm) / 1.1" (28 mm) combo pin (Baby 5/8" / Junior 1-1/8" combo pin) |
| Dimensions | 18.8 x 10.9 x 14.3" (478 x 250 x 363 mm) |
| Weight | 14.1 lb (6.4 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 32.35 lb |
| Box Dimensions (LxWxH) | 22.1 x 18.1 x 17.5" |
