| ₹ 171080.0 includes GST and import duties. | |
| B2B customers can avail ₹ 26089.7 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

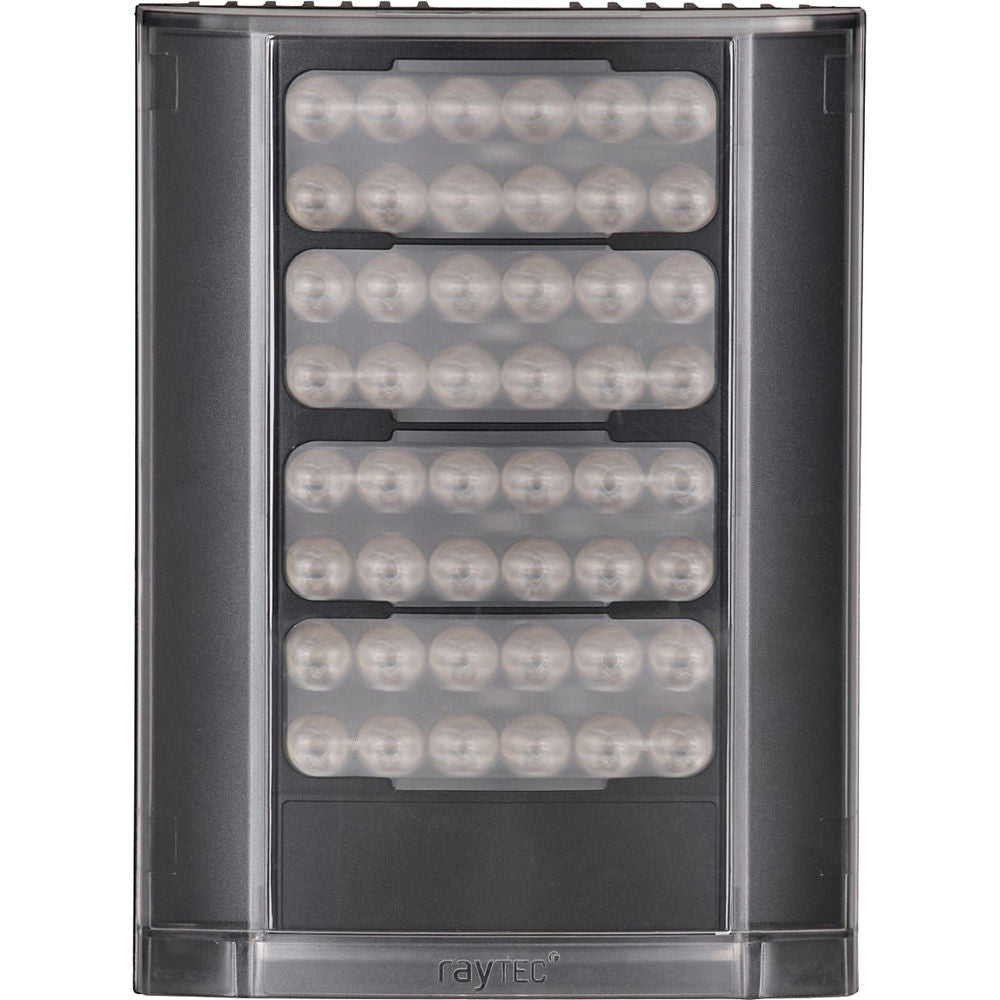

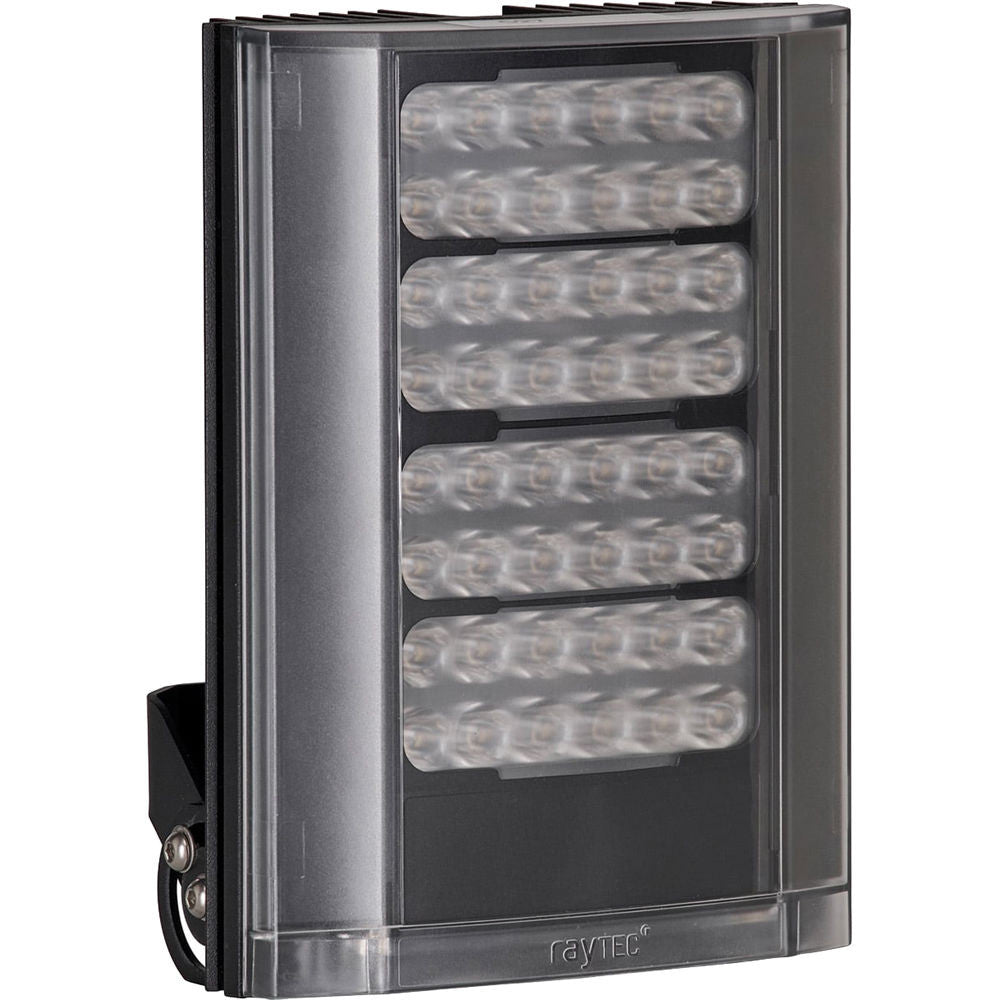

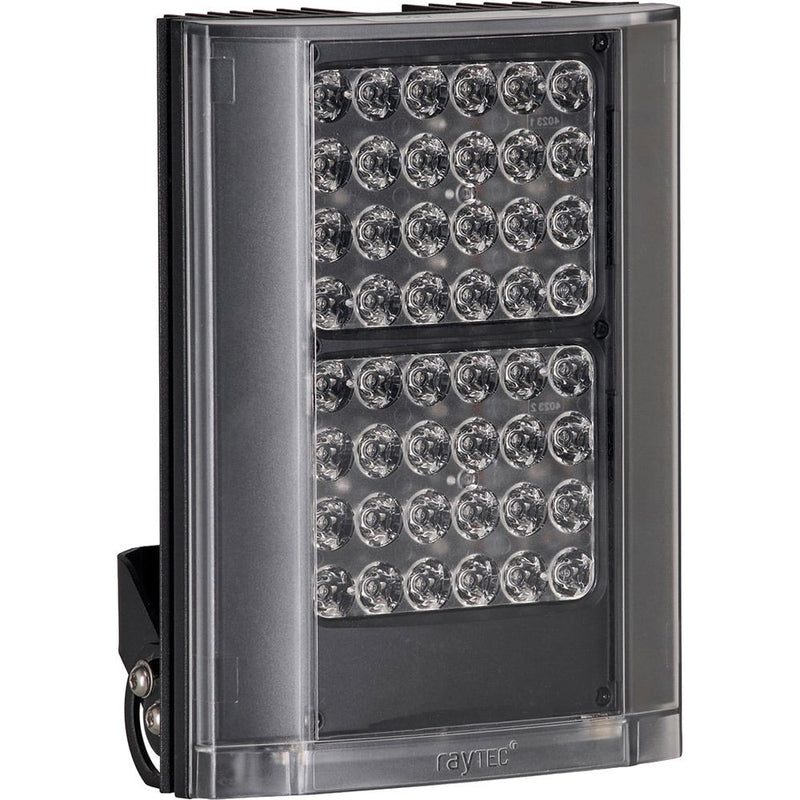

The black VARIO2 i16 Long Range Infrared Illuminator from Raytec uses PLATINUM Elite SMT LED technology to achieve an operating range of up to 1640'. It features an interchangeable lens system with Hot-spot Reduction Technology to deliver even illumination. With the optional hand-held remote control, VARIO2 makes installation and commissioning quick and easy.
-
- Utilizes PLATINUM Elite SMT LED technology together with Cool Running thermal management system

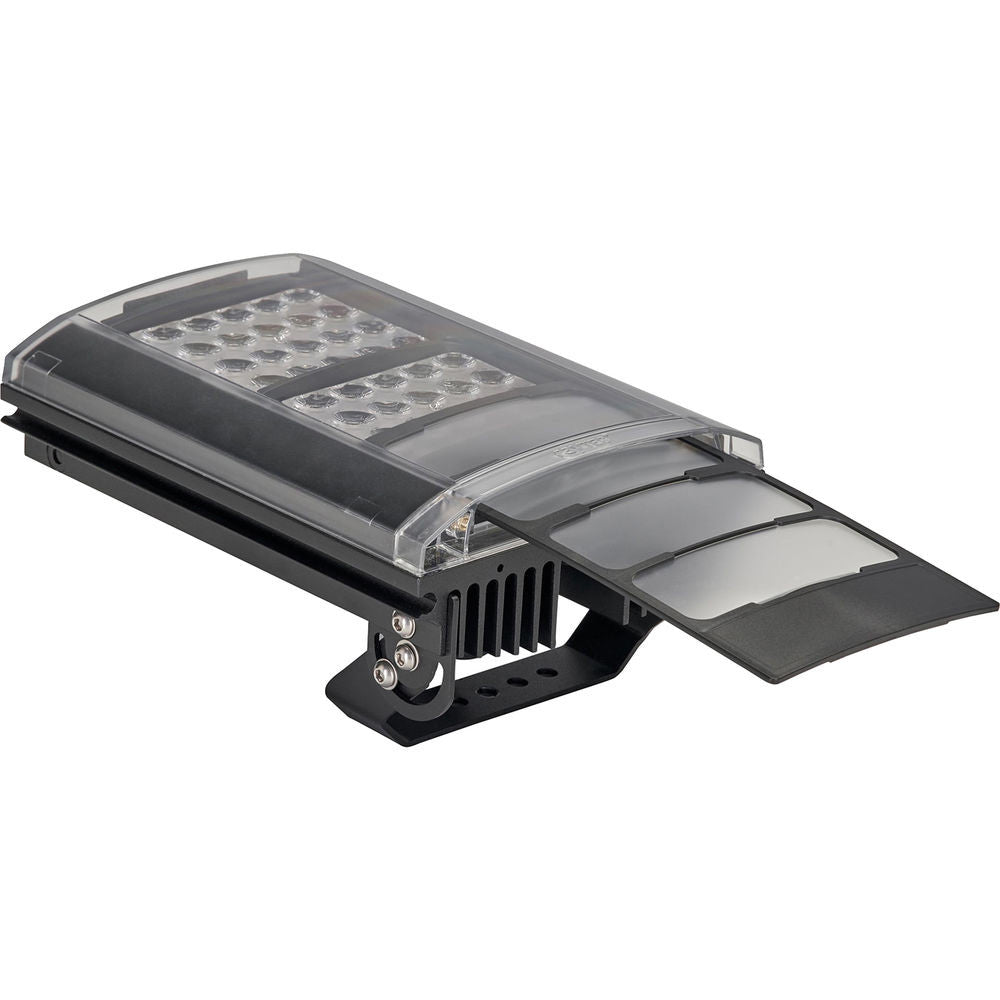

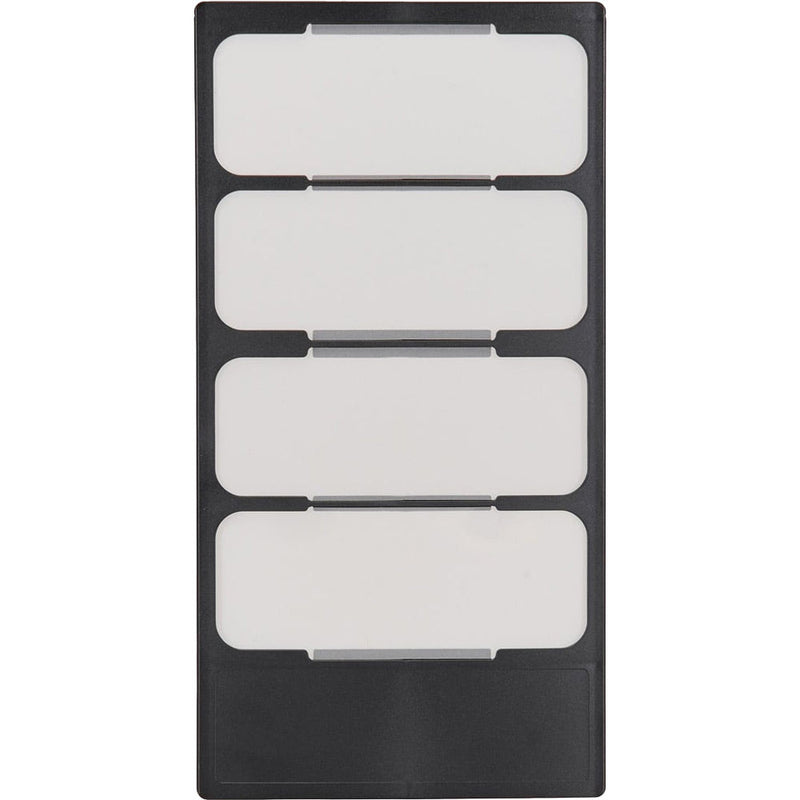

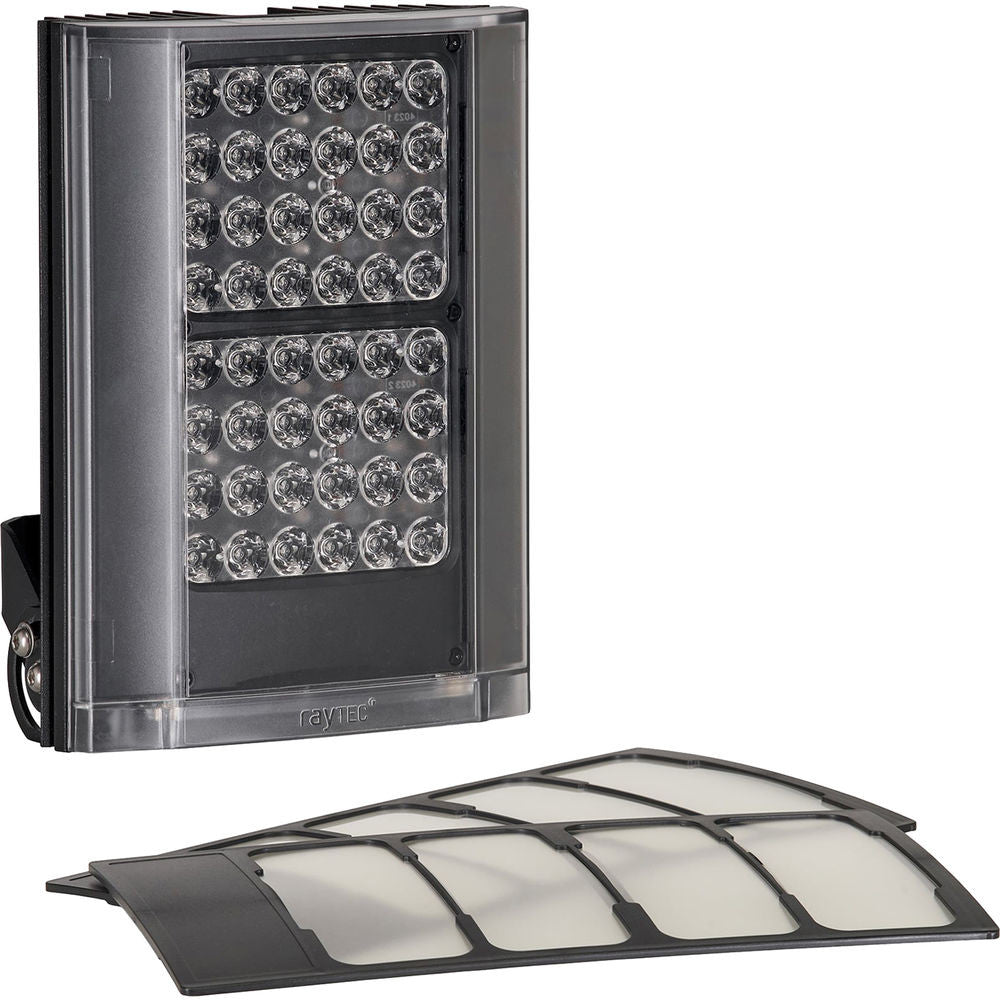

- Angle of illumination can be quickly adjusted by changing the VARIO holographic lens insert to match a specific camera's field of view
- Hot-Spot Reduction Technology delivers a highly diffused, elliptical beam shape and prevents overexposure of foreground objects
- LED status indicator for quick operational feedback on status and performance of the illuminator
- Programming inputs on both the VARIO remote control (not included) and on the VARIO2 illuminator can be disabled if required
- Built-in green features include power adjustment, telemetry control, and timer function to enhance the potential for energy savings
- Supports power adjustments from 20 to 100%
- Built-in photocell for automatic on/off operation
In the Box
Raytec VARIO2 i16 Long Range Semi-Covert Infrared Illuminator (Black, 850nm)
- 10° x 10° Lens
- 60° x 25° Lens
- U-Bracket
- Limited 5-Year Warranty
| Maximum Range | 1640' (500 m) |
| Input | 24 VAC/DC |
| Voltage | 13.5 V current controlled |
| Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) |
| Beam Angle | 10 x 10°: 1640' (500 m) 35 x 10°(Fitted as Standard): 820' (250 m) 60 x 25°: 443' (135 m) 80 x 30° (Optional): 344' (105 m) 120 x 50° (Optional): 213' (65 m) |
| Consumption | 100 W maximum |
| LED | 48 x Platinum Elite SMT LEDs |
| Wavelength | 850 nm |
| IP Rating | IP66 |
| Temperature Range | -58 to 122°F (-50 to 50°C) |
| Cable Length | 8.2' (2.5 m) |
| Dimensions | 7 x 11 x 2.9" (18 x 27.7 x 7.5 cm) approximately |
| Weight | 6.8 lb (3.1 kg) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 12.0 x 8.0 x 5.0" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 167658.4 |
| 3-5 | ₹ 165947.6 |
| 5-10 | ₹ 162526.0 |
| 10+ | ₹ 159104.4 |
Bulk discount will be automatically applied during checkout based on quantity.
