Description
Raytec VAR2-XTR-W16 Overview
- 1 Description
- 2 Extreme Durability in Challenging Conditions
- 3 Wide Operating Temperature Range
- 4 VARIO Interchangeable Lens System
- 5 Hot-Spot Reduction Technology (HRT)
- 6 LED Status Indicator
- 7 Platinum Elite SMT LED Technology
- 8 Active LED Life Control
- 9 Other Features

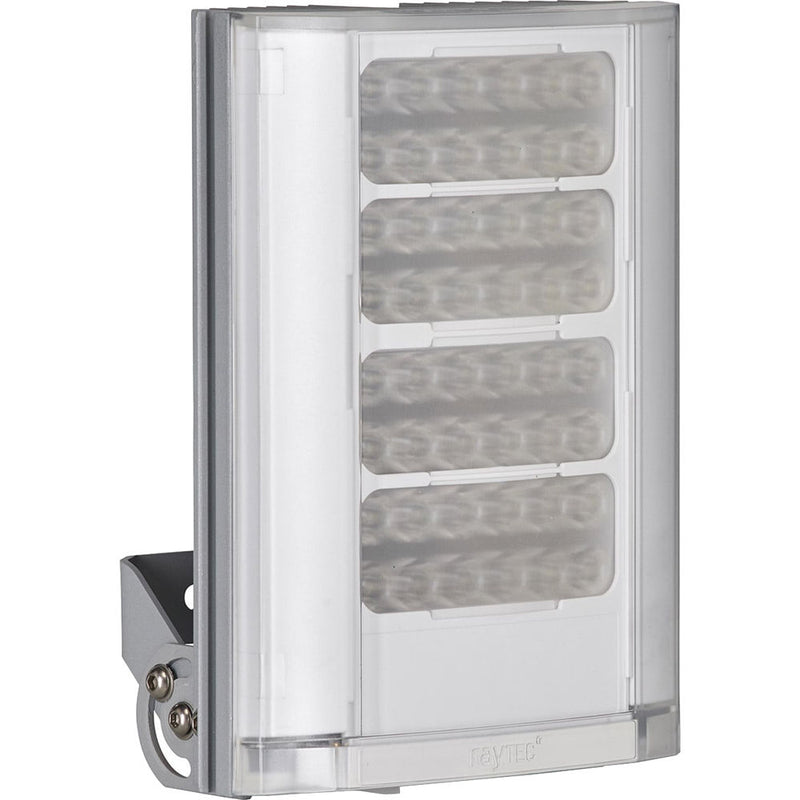

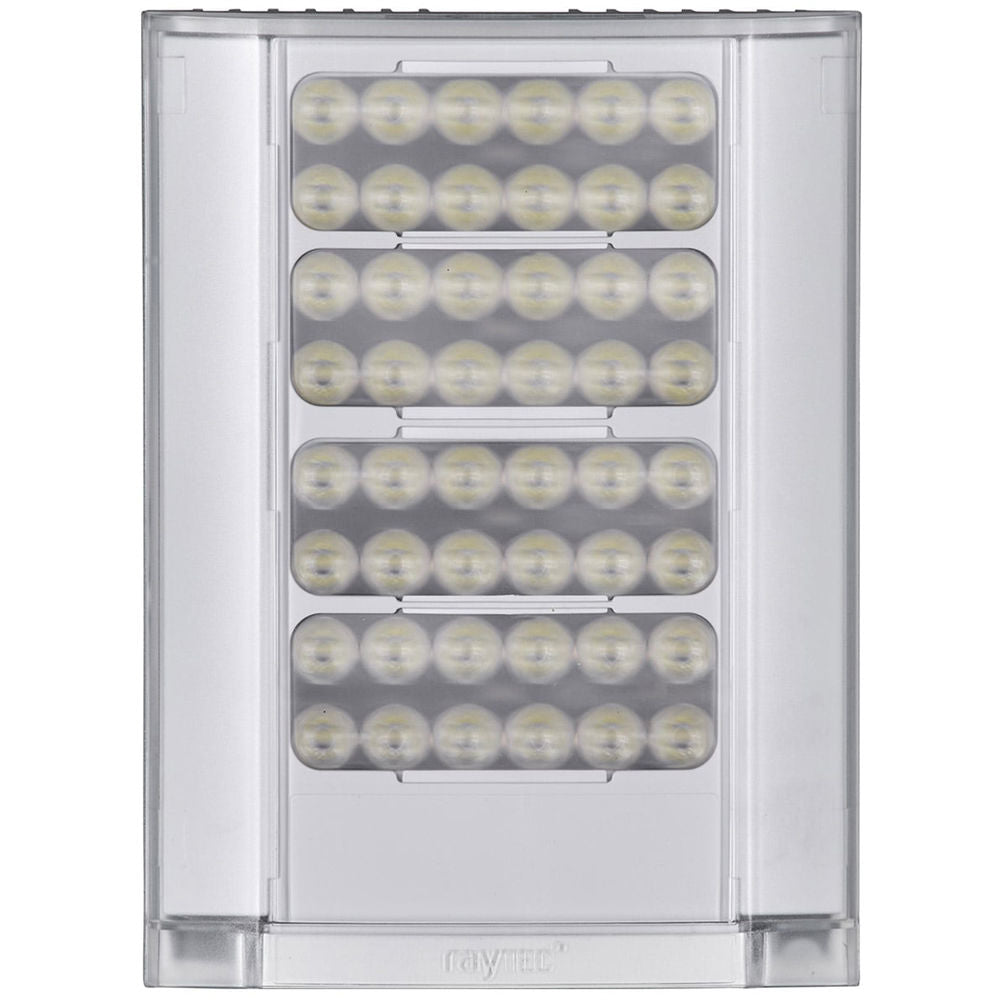

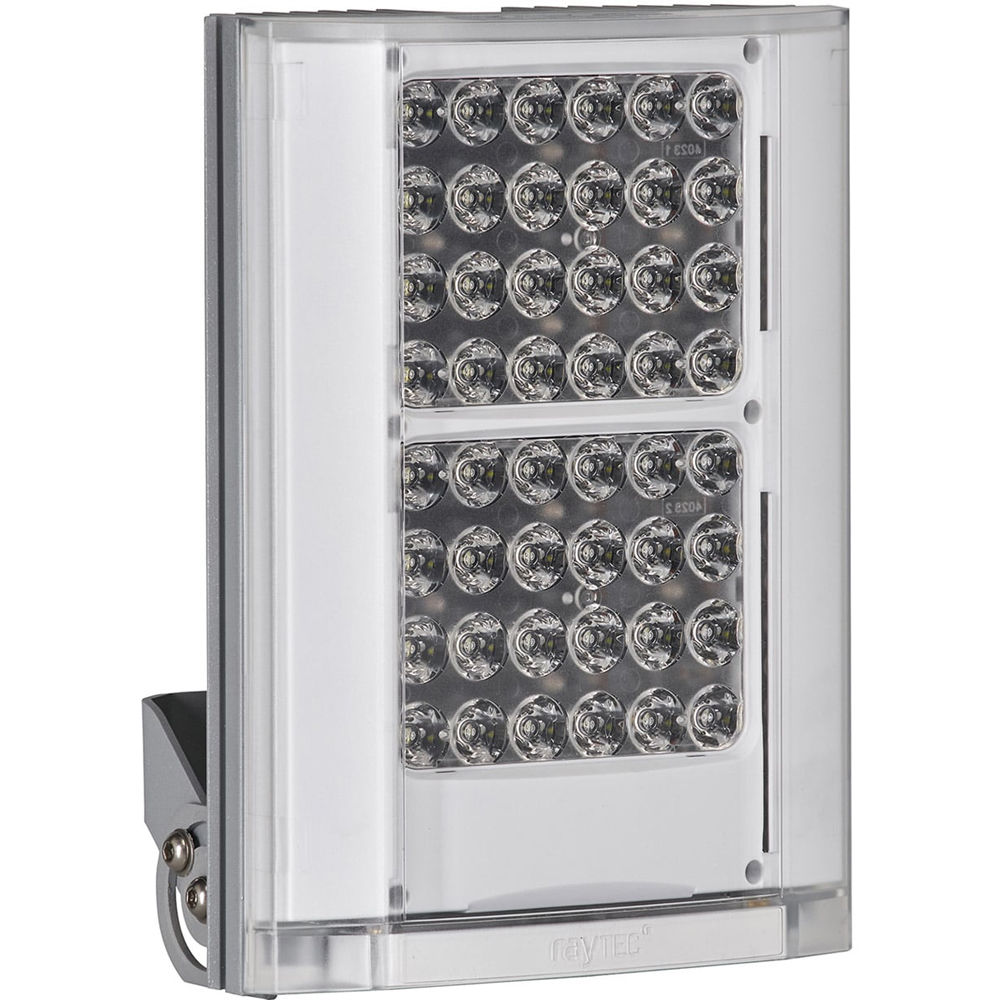

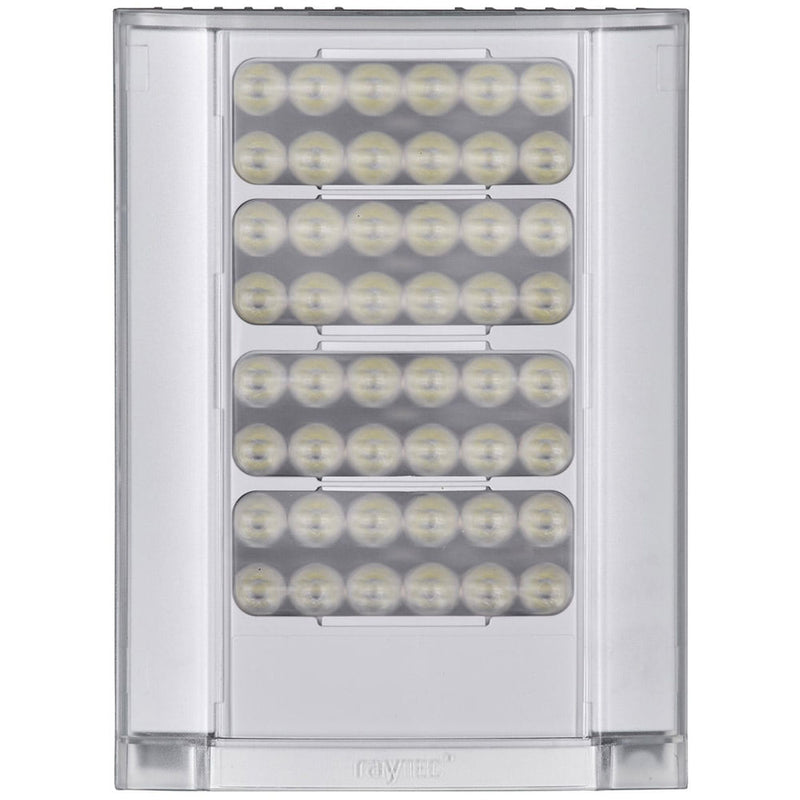

Equipped with 48 Platinum Elite SMT LEDs, the VARIO2 Extreme High-Performance White-Light Illuminator from Raytec provides up to 820' of visible light to help cameras produce color video in otherwise dark environments. The unit's interchangeable lens system with HRT is designed to deliver even illumination without causing overexposed white spots. Three lenses are included, a 10 x 10° circular, a 35 x 10°, and a 60 x 25° elliptical lens. Suitable for use in vandal-prone outdoor locations, the illuminator is housed in an IP67- and IK09-rated enclosure.
Extreme Durability in Challenging Conditions
The VARIO2 Extreme is suitable for use in harsh environmental and operating conditions. It is IP67 and IK09 rated for weather and vandal resistance. Additionally, it is designed to withstand extreme salinity, extreme humidity, and extreme vibration.
Wide Operating Temperature Range
With a wide operating temperature range of -58 to 167°F, the VARIO2 Extreme illuminator provides solid, industrial-grade performance in a variety of environments.
VARIO Interchangeable Lens System

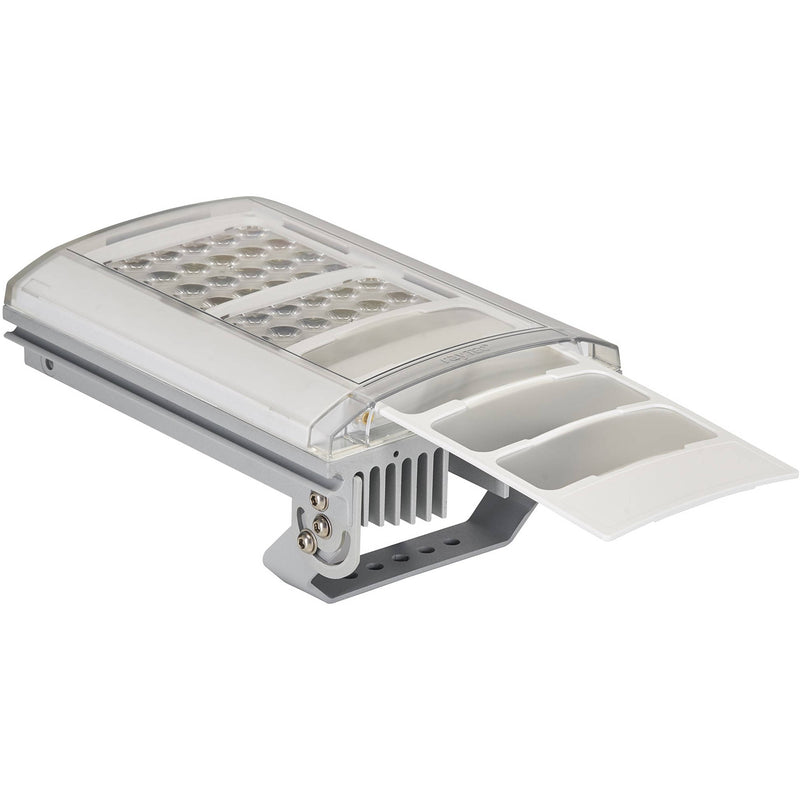

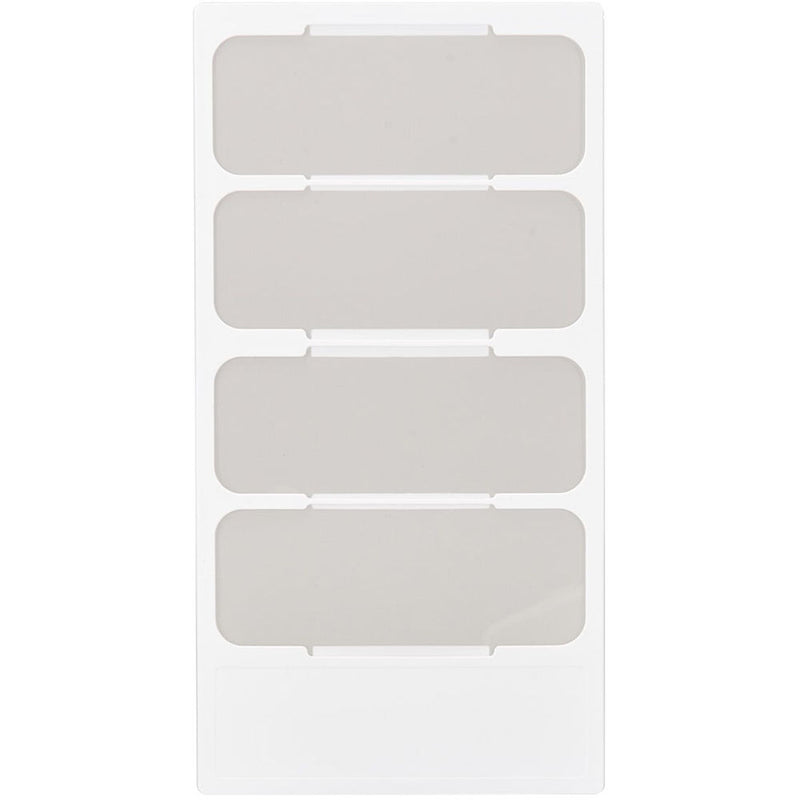

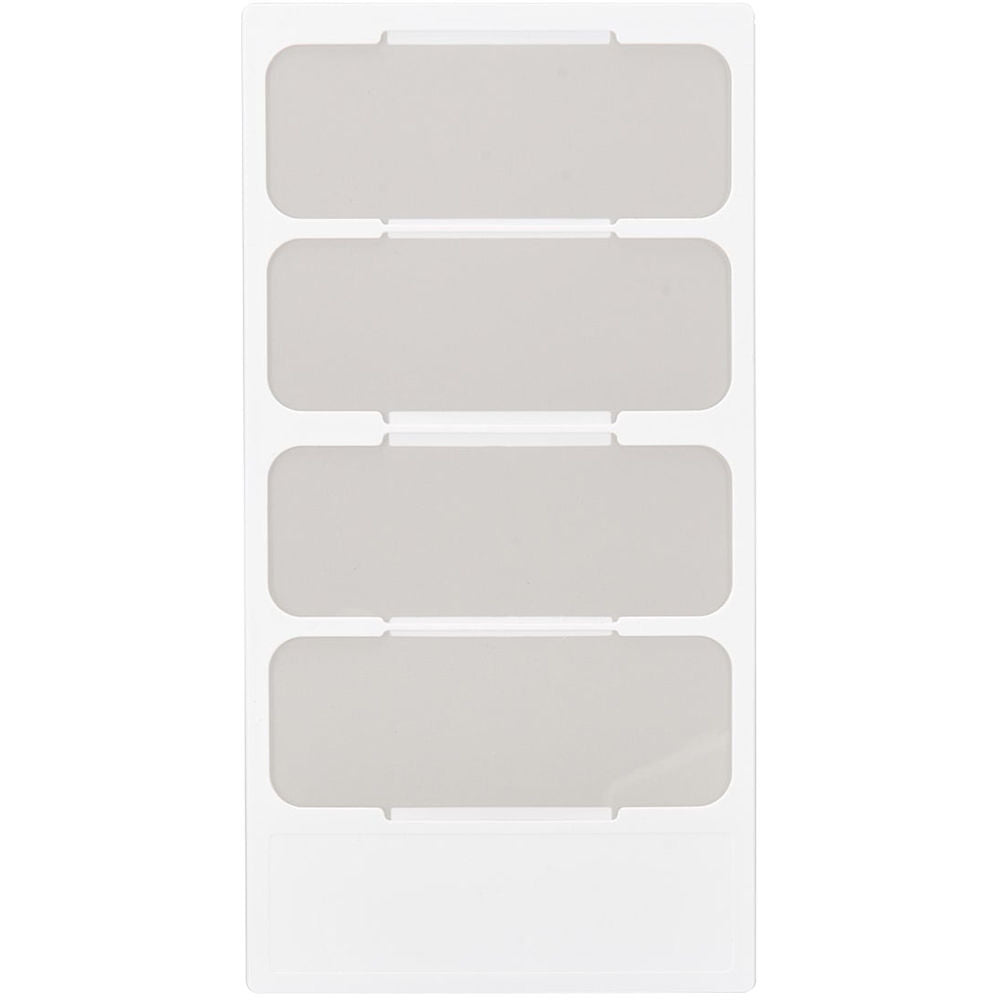

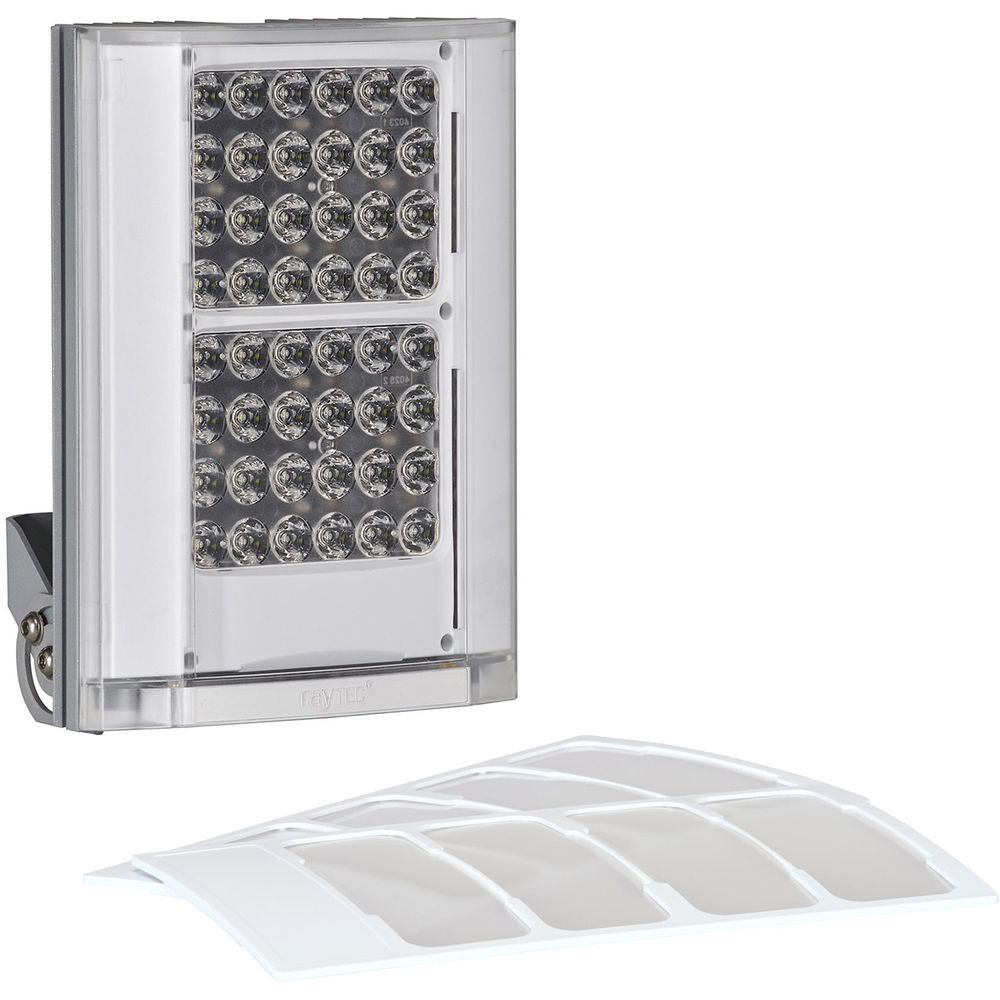

The angle of illumination can be easily, quickly, and precisely adjusted by changing the VARIO holographic lens insert to match your camera's field of view.
Hot-Spot Reduction Technology (HRT)
Hot-Spot Reduction Technology (HRT) produces a highly diffused elliptical beam to deliver more light where it is needed, maximizing the illumination range and minimizing light wastage. HRT also prevents overexposure of foreground objects.
LED Status Indicator
The illuminator's LED status indicator provides quick operational feedback on status and performance.
Platinum Elite SMT LED Technology
The VARIO2 pairs Platinum Elite SMT LED technology with the Cool Running thermal management system for flexible and reliable performance.
Active LED Life Control
The integrated Advanced Cool Running system draws heat away from the LEDs, shielding them from abnormal stress and allowing them to deliver consistent performance throughout the illuminator's operational life.
Other Features
- Power adjustment from 20 to 100%
- Built-in photocell for automatic on/off
- Photocell following output
- Photocell sensitivity adjustment
- Telemetry input
- LED status indicator can be switched on/off
- Programming mode can be disabled

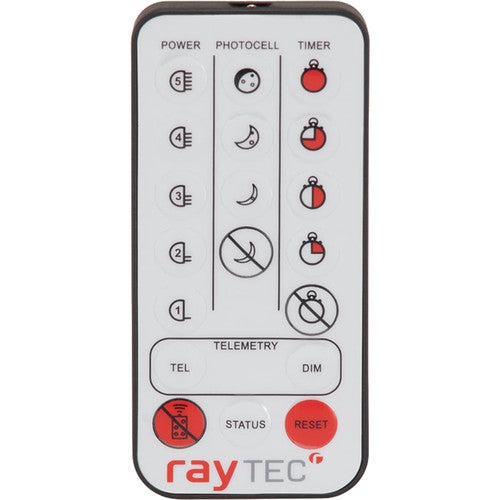

- VARIO remote control available separately
In the Box
- Raytec VARIO2 Extreme High-Performance White-Light Illuminator (820')
- 10 x 10° Lens
- 35 x 10° Lens (Preinstalled)
- 60 x 25° Lens
- U-Bracket
- Limited 5-Year Warranty
Table of Contents
- Description
- Extreme Durability in Challenging Conditions
- Wide Operating Temperature Range
- VARIO Interchangeable Lens System
- Hot-Spot Reduction Technology (HRT)
- LED Status Indicator
- Platinum Elite SMT LED Technology
- Active LED Life Control
- Other Features
Raytec VAR2-XTR-W16 Specs
| Lumens | 7453 Lumens, Total |
| Maximum Range | 820' / 250 m |
| Number of LEDs | 48 x PLATINUM Elite SMT LEDs |
| Color Temperature | 6000K Approximate |
| CRI | >70 |
| Lens System | VARIO Interchangeable Lens System |
| Beam Pattern | Elliptical with HRT |
| Beam Angle & Range | 10 x 10° (Included): 820' / 250 m 35 x 10° (Preinstalled): 410' / 125 m 60 x 25° (Included): 230' / 70 m 80 x 30° (Optional): 157' / 48 m 120 x 50° (Optional): 115' / 35m |
| Power Source | 24 VAC, 24 VDC |
| Power Consumption | 84 W Maximum |
| IP Rating | IP67 |
| IK Rating | IK09 |
| Environmental Rating | Extreme Salinity, Extreme Humidity, Extreme Vibration |
| Temperature Range | -58 to 167°F / -50 to 75°C |
| Cable Length | 8.2' / 2.5 m |
| Dimensions | 7.0 x 11.0 x 2.9" / 180 x 277 x 75 mm Approximate |
| Weight | 6.8 lb / 3.1 kg |
