Description

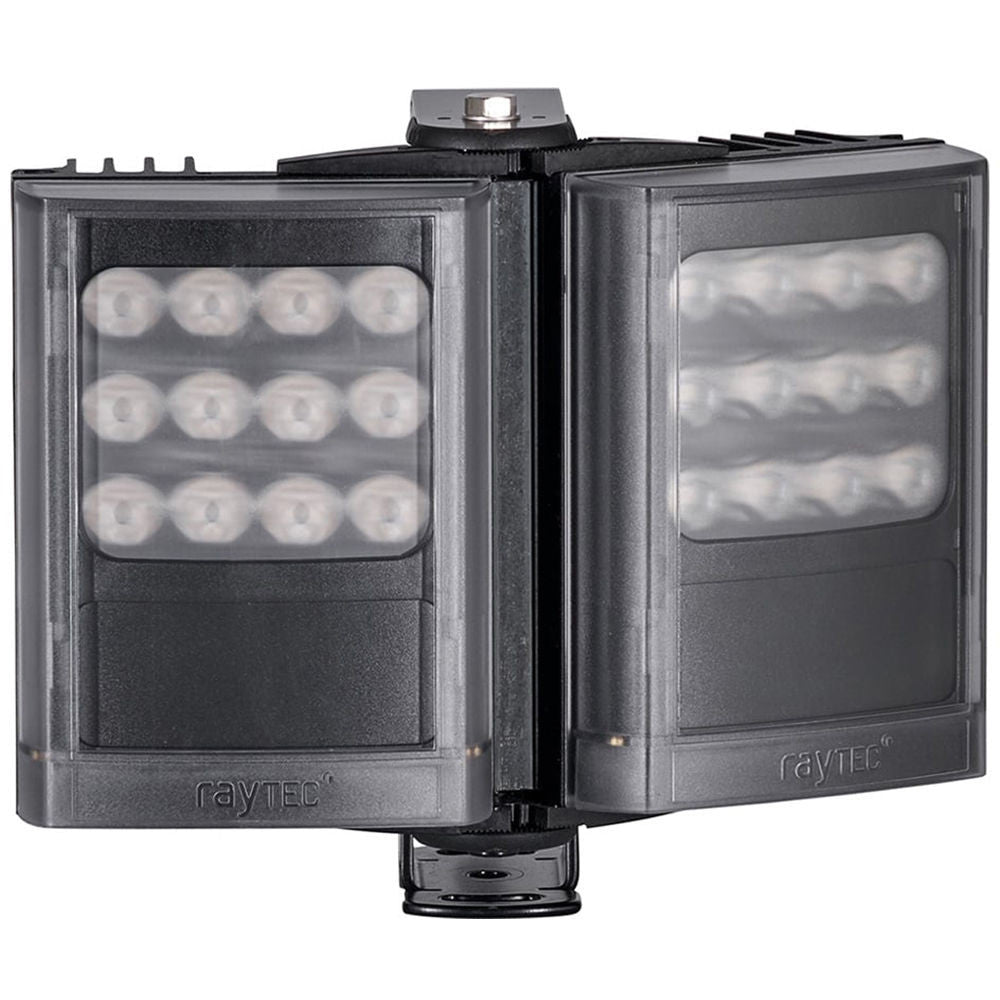

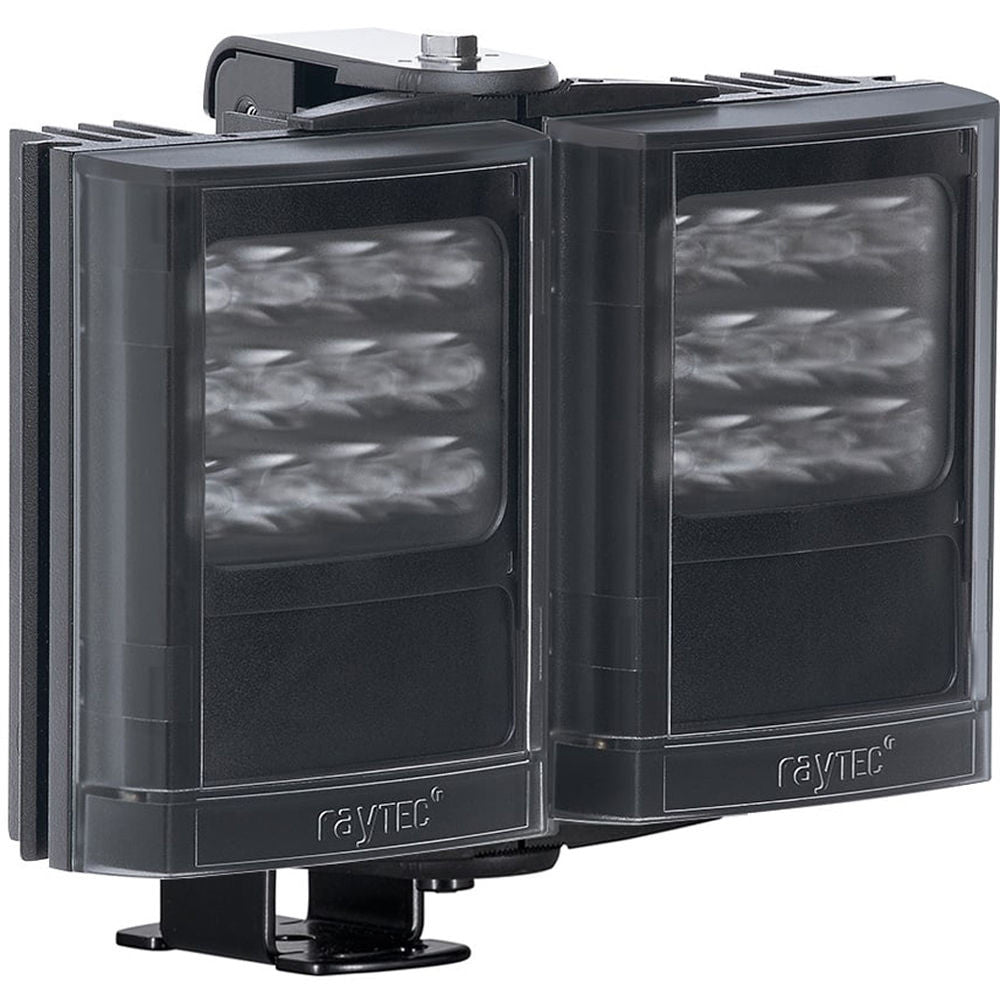

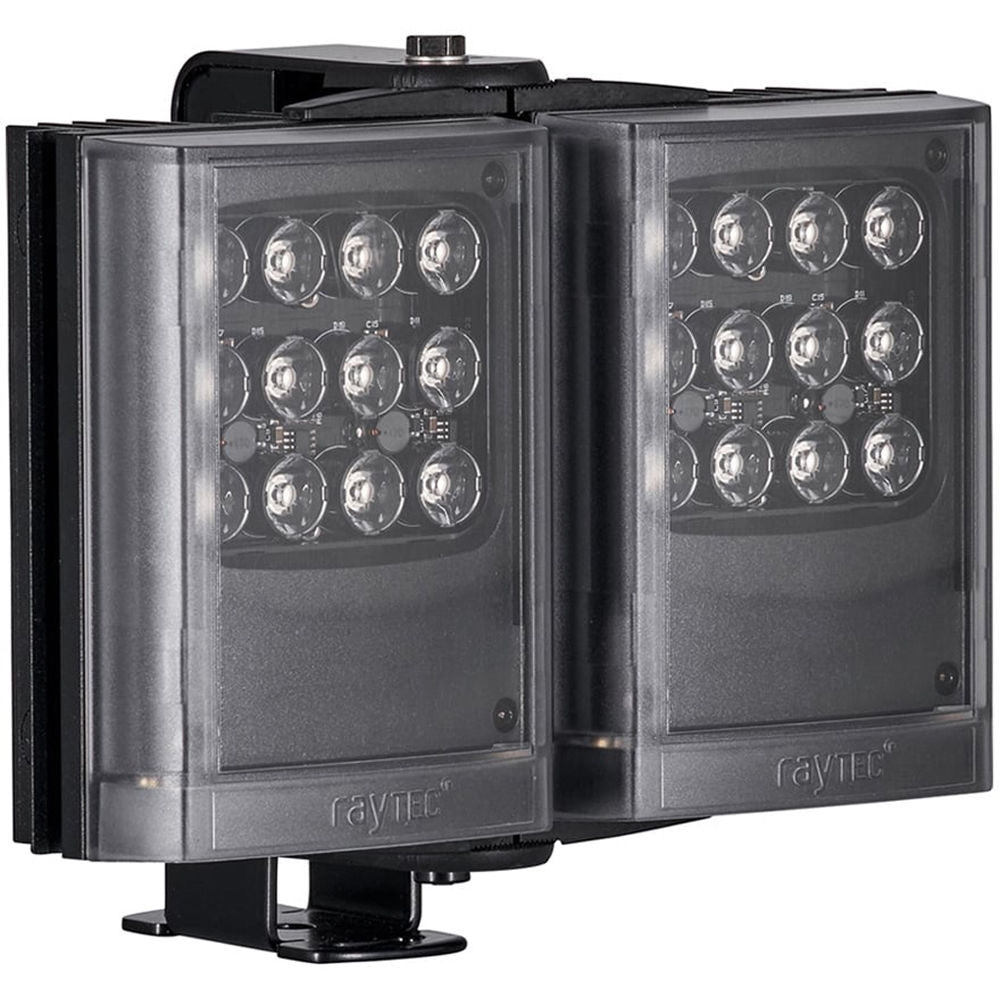

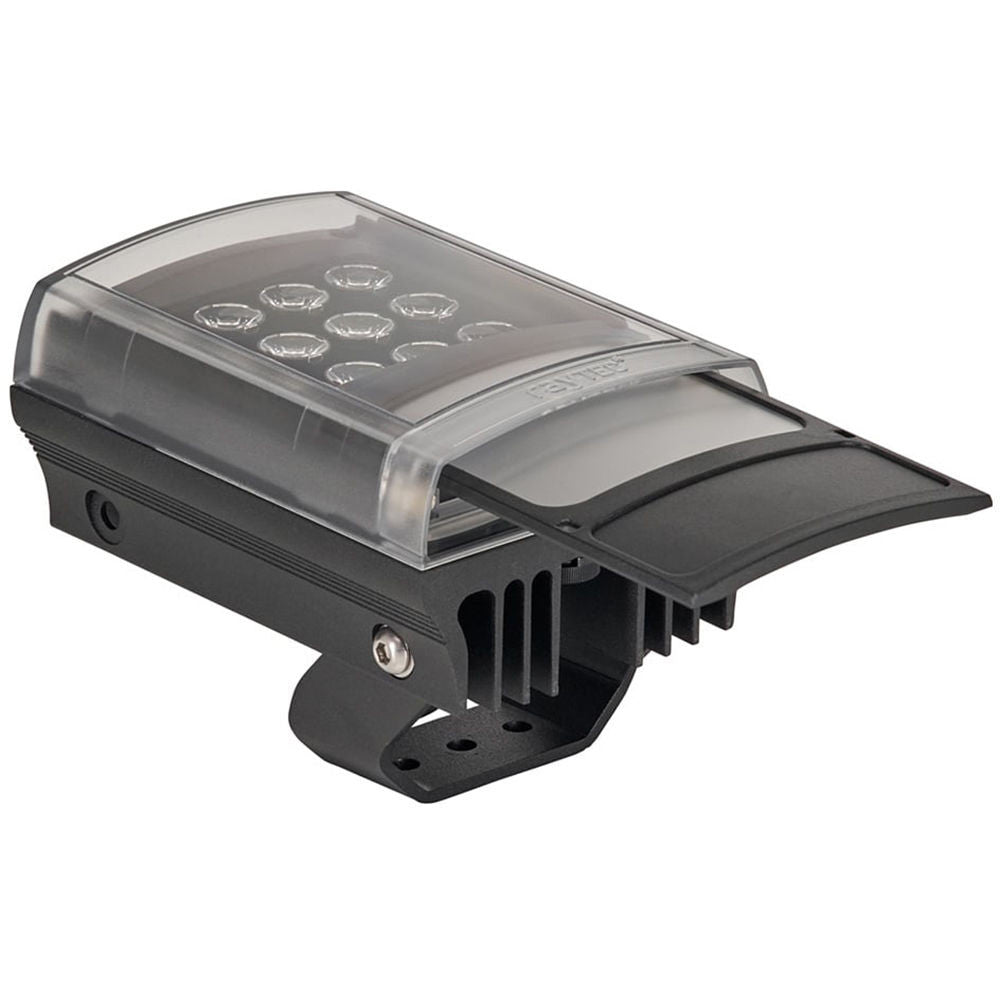

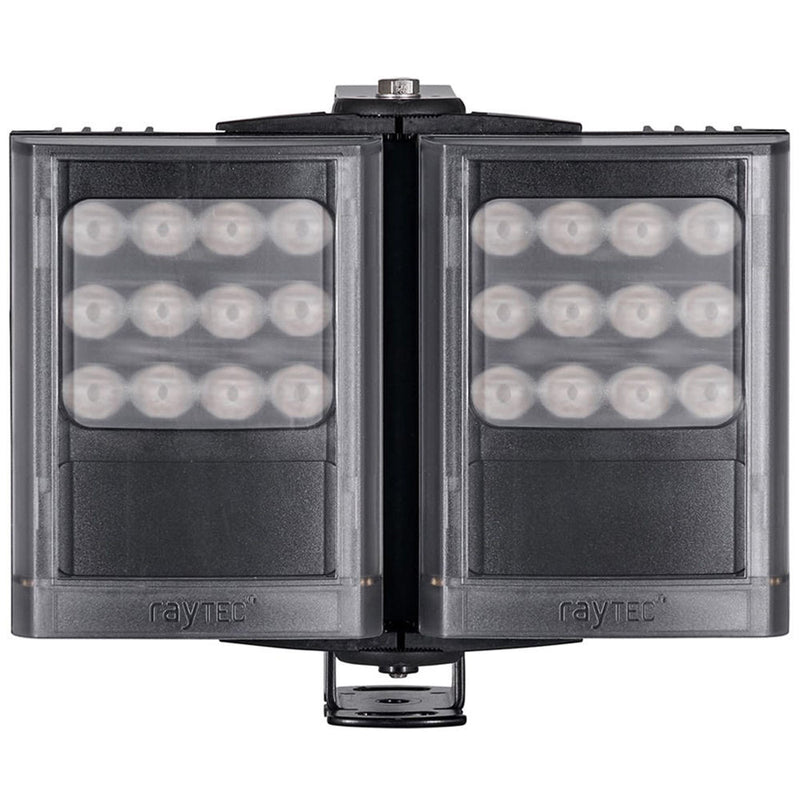

The black VAR2-I4-2 Long-Range Double-Panel Semi-Covert IR Illuminator from Raytec uses PLATINUM Elite SMT LED technology to provide illumination to a range of up to 722'. It features an interchangeable lens system with Hot-Spot Reduction Technology and Adaptive Illumination to deliver even lighting. Adaptive Illumination allows the installer to adjust the angle of the light projection from a single unit to fit the specific demands of any installation. With the optional hand-held remote control, this illuminator makes installation and commissioning quick and easy.
-
- Utilizes PLATINUM Elite SMT LED technology together with Cool Running thermal management system
- Angle of illumination can be quickly adjusted by changing the VARIO holographic lens insert to match a specific camera's field of view
- Hot-Spot Reduction Technology delivers a highly diffused, elliptical beam shape and prevents overexposure of foreground objects
- LED status indicator for quick operational feedback on status and performance of the illuminator
- Programming inputs on both the VARIO remote control (not included) and on the VARIO2 illuminator can be disabled if required
- Built-in green features such as power adjust, telemetry control, and timer function enhance the potential for energy savings
- Supports power adjusting from 20 to 100%
- Built-in photocell for automatic on/off operation
- Photocell following output
In the Box
Raytec VAR2-I4-2 Long-Range Double-Panel Semi-Covert IR Illuminator (850nm, Black)
- 10 x 10° Lens
- 35 x 10° Lens
- 60 x 25° Lens
- Adaptive Illumination Mounting Bracket
- Limited 5-Year Warranty
| Maximum Range | 722' (220 m) |
| Input | 12 VAC / 24 VDC |
| Consumption | 26 W maximum |
| Beam Pattern | Elliptical with HRT (Hot-Spot Reduction Technology) |
| Beam Angle | 10 x 10° 35 x 10° (fitted as standard) 60 x 25° 80 x 30° (optional) 120 x 50° (optional) |
| Distance | Narrow Angle Distance: 722' (220 m) at 10° 394' (120 m) at 35° 249' (76 m) at 60° 167' (51 m) at 80° 112' (34 m) at 120° Wide Angle Distance: 512' (156 m) at 20° 279' (85 m) at 70° 177' (54 m) at 120° 125' (38 m) at 140° 92' (28 m) at 180° |
| LED | 18 x PLATINUM Elite SMT LEDs |
| Wavelength | 850 nm |
| IP Rating | IP66 |
| Temperature Range | -58 to 122°F (-50 to 50°C) |
| Cable Length | 8.2' (2.5 m) |
| Dimensions | 8 x 7 x 3" (209 x 178 x 67 mm) approximately |
| Weight | 5 lb (2.3 kg) |
