Description

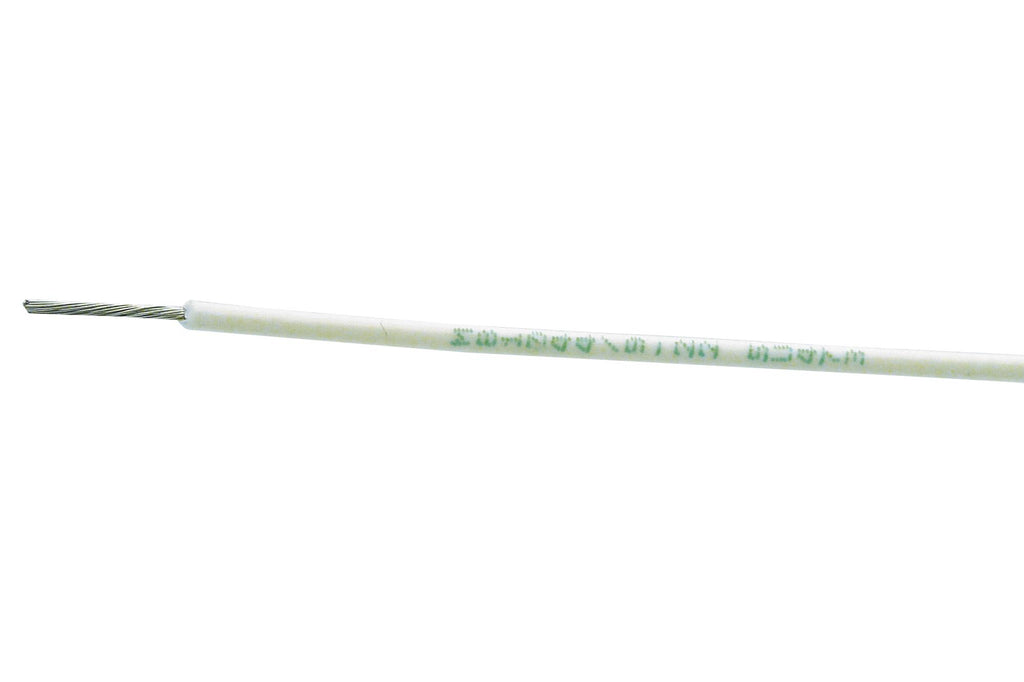

The M81044/12-20-9 from Raychem - TE Connectivity is a general purpose equipment wire. This wire has cross-linked polyalkene primary insulation and cross-linked modified PVDF jacket insulation with dual-wall construction. The wire was formerly listed under MIL-W-81044 and is supplied in full compliance with SAE AS81044 specification requirements.
- Voltage rating is 600V
- 20AWG (19 x 32) stranded tinned copper conductor
- Temperature rating is 150°C
- White colour insulation
- Conductor outer diameter range from 0.037inch to 0.041inch
- Maximum resistance at 20°C is 9.88ohm
Applications
Industrial
Product details
| Jacket Material: Polyalkene |
| Jacket Colour: White |
| Wire Gauge: 20AWG |
| Conductor Area CSA: - |
| Reel Length (Imperial): 328ft |
| Reel Length (Metric): 100m |
| Operating Temperature Max: 150°C |
| No. of Max Strands x Strand Size: 19 x 32AWG |
| Voltage Rating: 600V |
| Conductor Material: Tinned Copper |
| External Diameter: 1.45mm |
| Approval Specification: - |
| Product Range: Spec 44 |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | M81044/12-20-9 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
