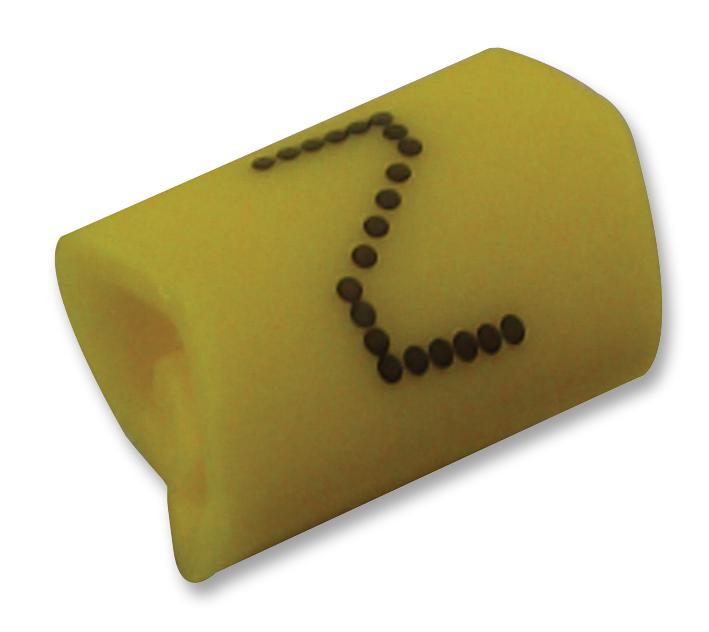

The 13611435 is a yellow K-type Cable Marker made of plasticized PVC with Z pre-printed black legend. The EC6489-000 marker is used to identify wire bundles, cables, pipes and conduits. The oval shaped profile has been designed to allow markers to be accurately positioned onto a carrier strip. The marker and carrier strip assembly is attached to the substrate using cable ties. K-type marker is ideal for post termination applications or where retrofitting is required. It comes in one standard size to fit carrier strip that can hold from 7 to 18 markers.
- Self-extinguishing
- Resistant to key Industrial fluids
- Post termination cable identification
- Installation friendly
Applications
Industrial, Aerospace, Defence, Military
Product details
| Marker Type |
Pre Printed |
| Legend |
Z |
| Legend Colour |
Black |
| Marker Colour |
Yellow |
| Marker Dimensions |
5.8mm x 12.56mm |
| Cable Diameter Max |
10mm |
| Cable Diameter Min |
4mm |
| Marker Material |
PVC (Polyvinylchloride) |
| Product Range |
- |
Other details
| Brand |
RAYCHEM - TE CONNECTIVITY |
| Part Number |
13611435 |
| Quantity |
Reel of 500 |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
