- 100-240 VAC, 50/60 Hz
- Max. Recommended Wattage: 350W
- Selectable Sockets via Rocker Switches
- 5/8" Receiver
- Locking Tilt Knob

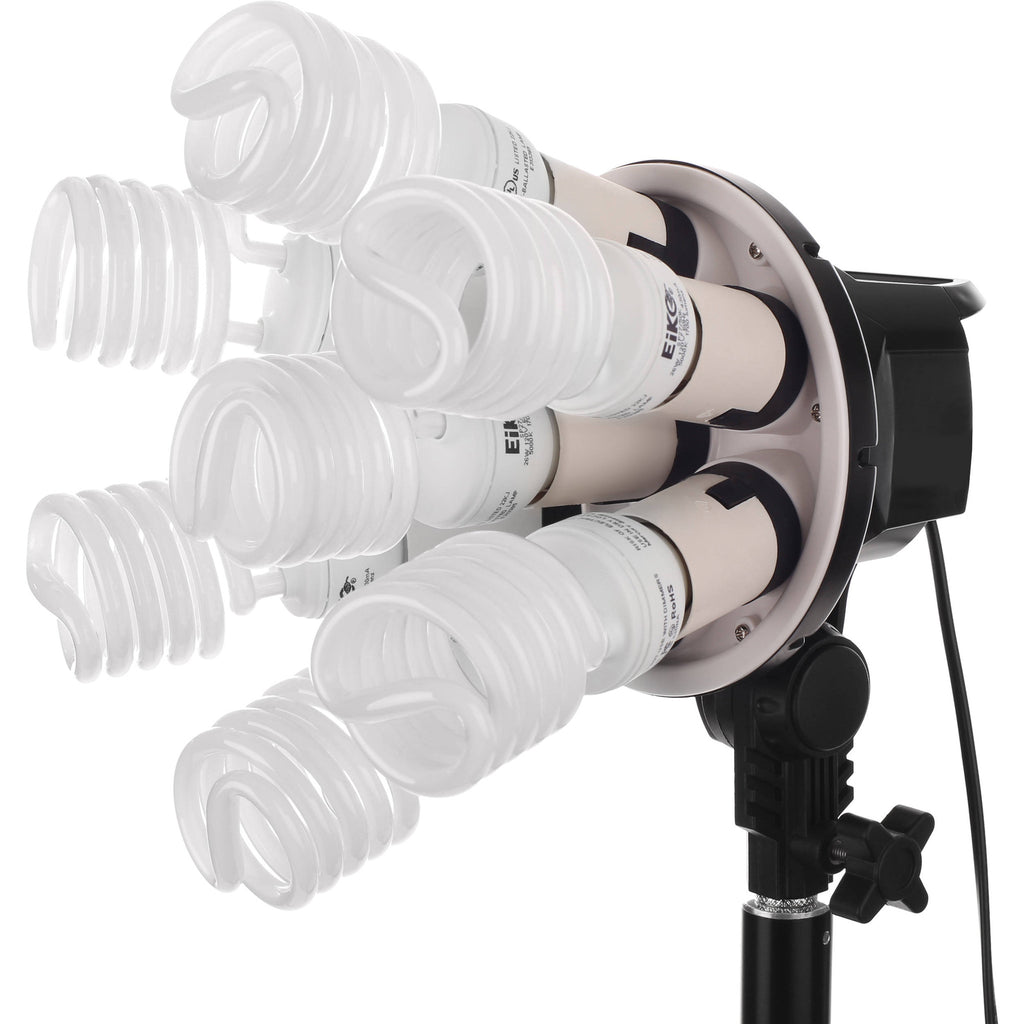

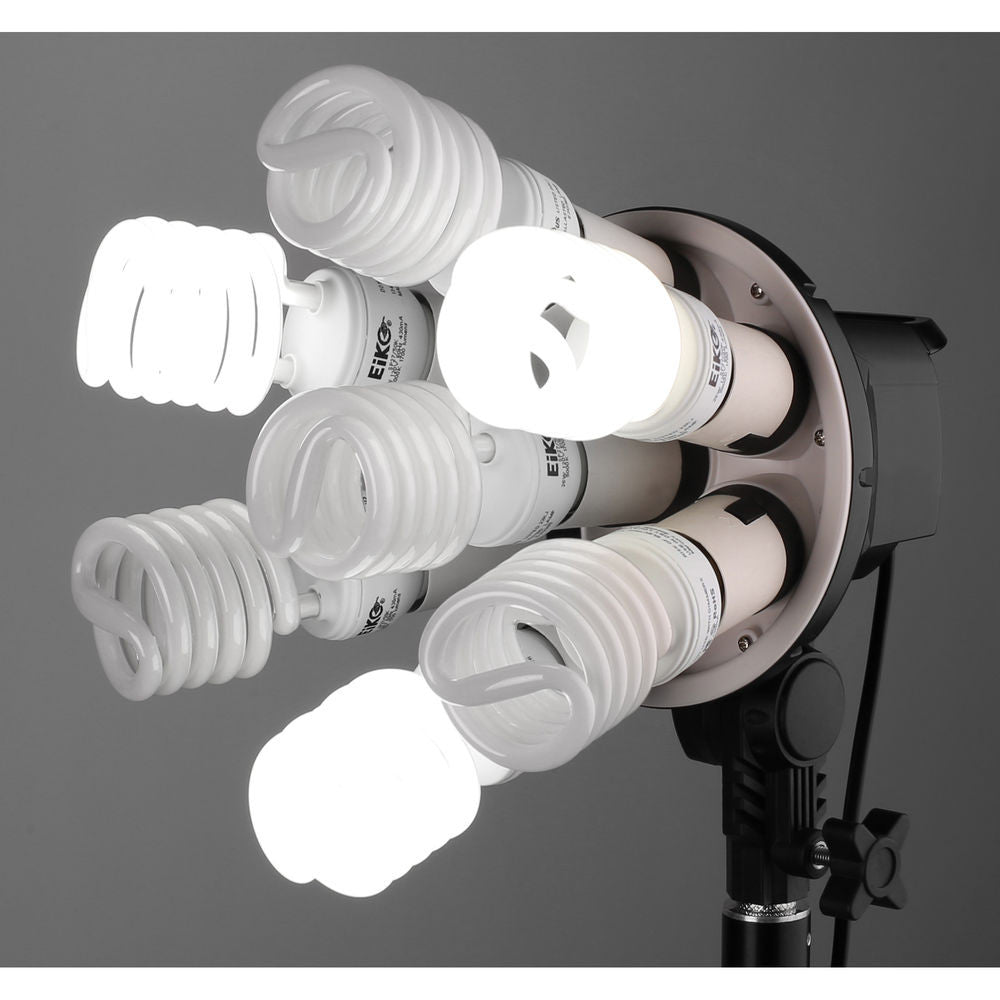

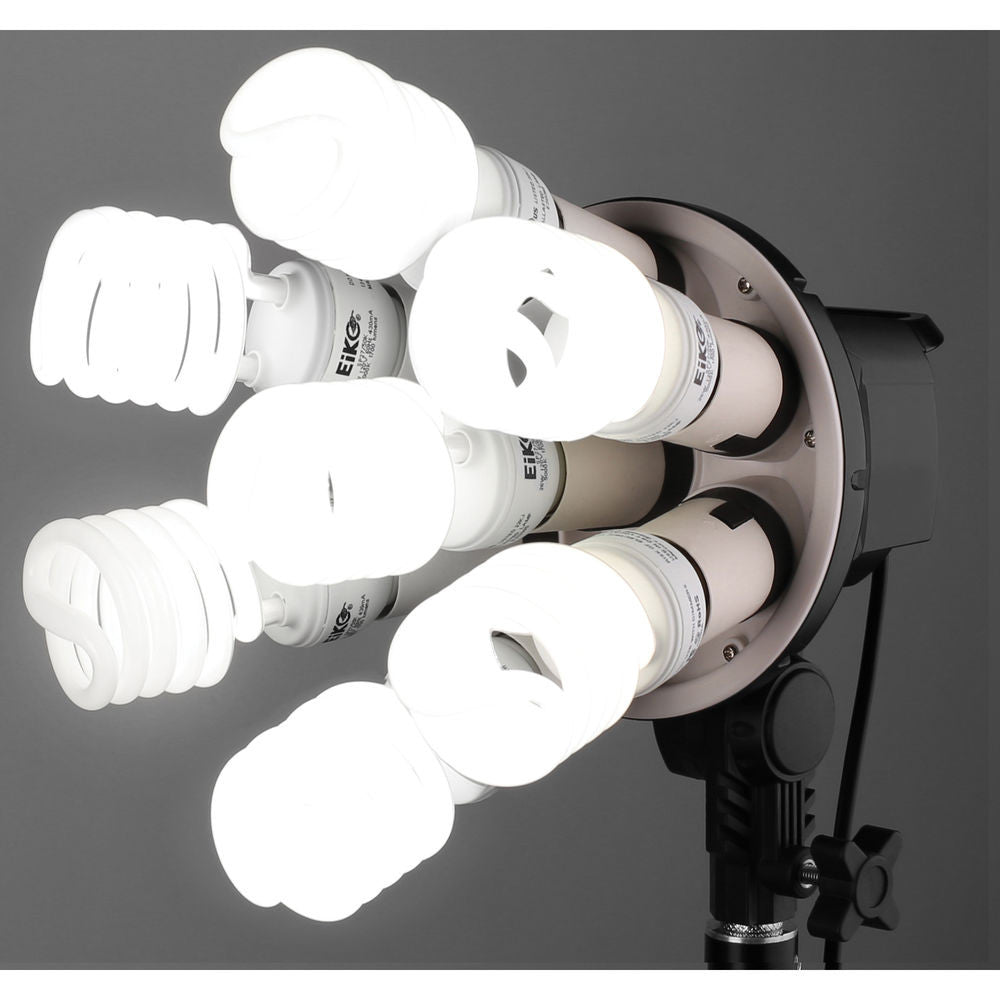

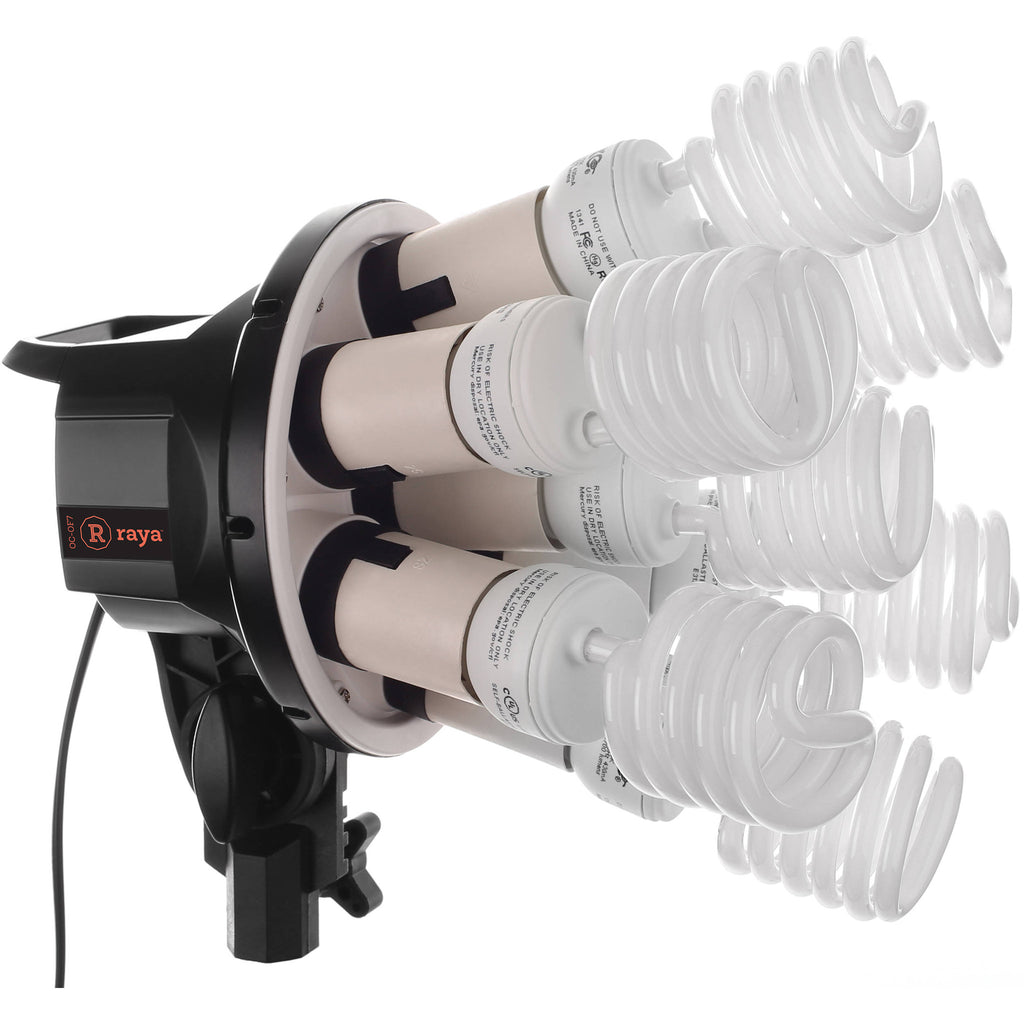

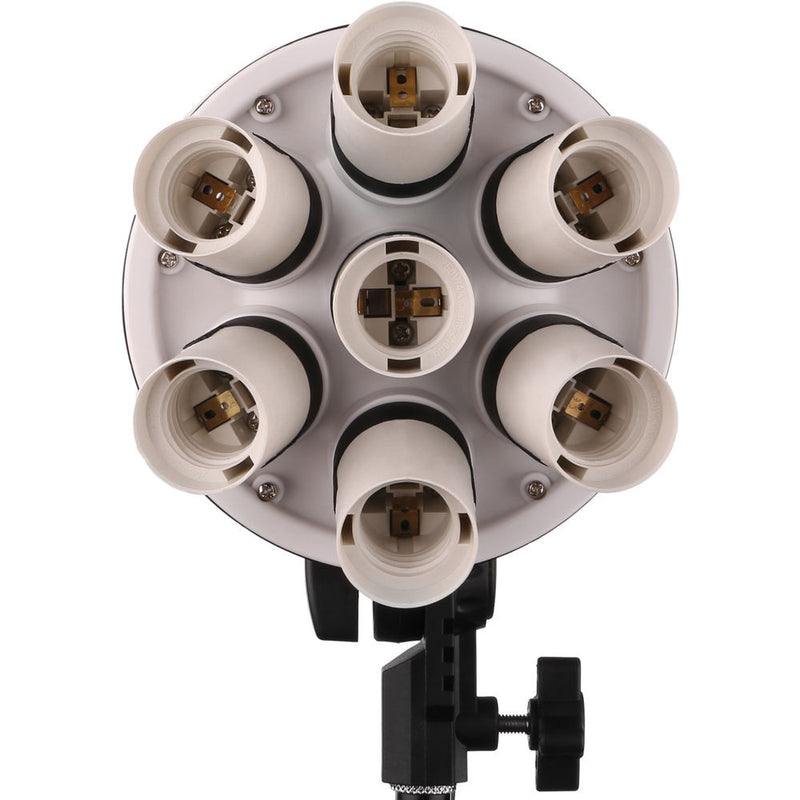

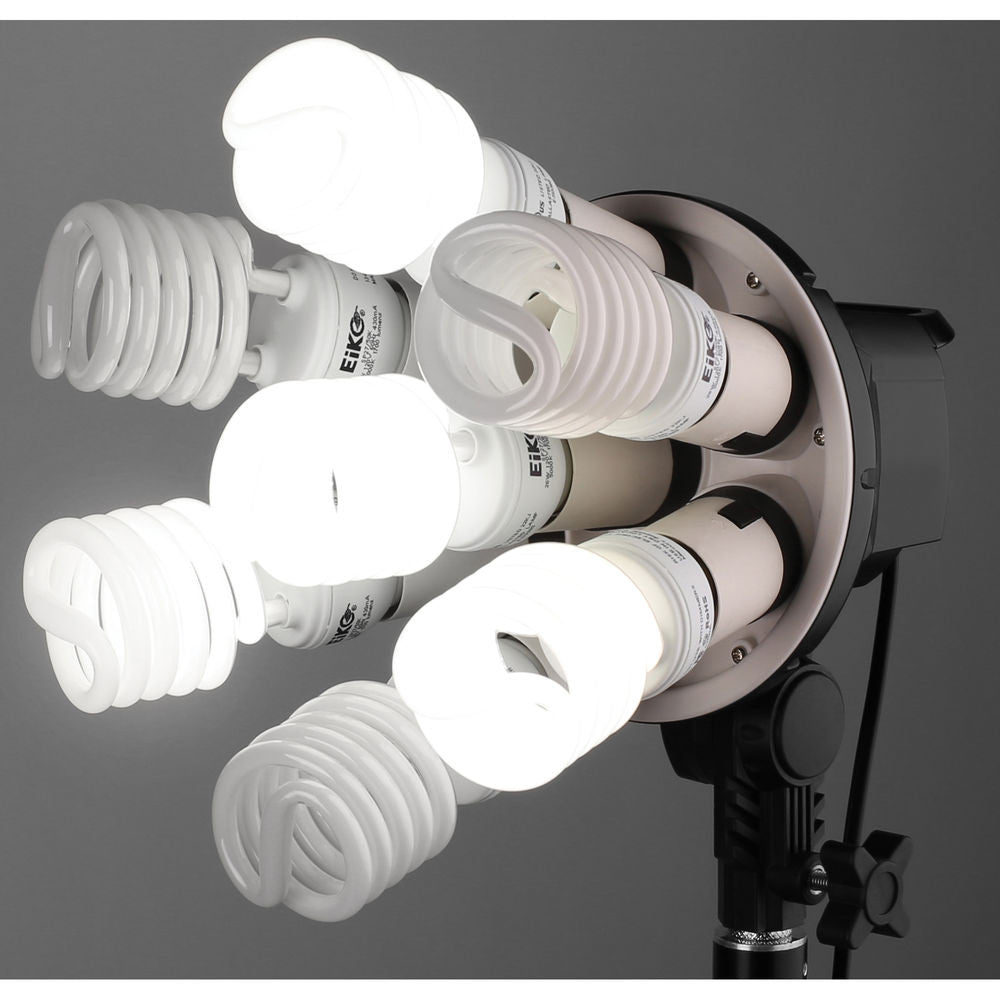

The OC-OF7 Octa Fluorescent 7 Socket Fixture from Raya is a 7 Edison socket base that accepts up to seven 50W CFL fluorescents with a combined wattage of 350W. Individual socket rating is 105 watts.

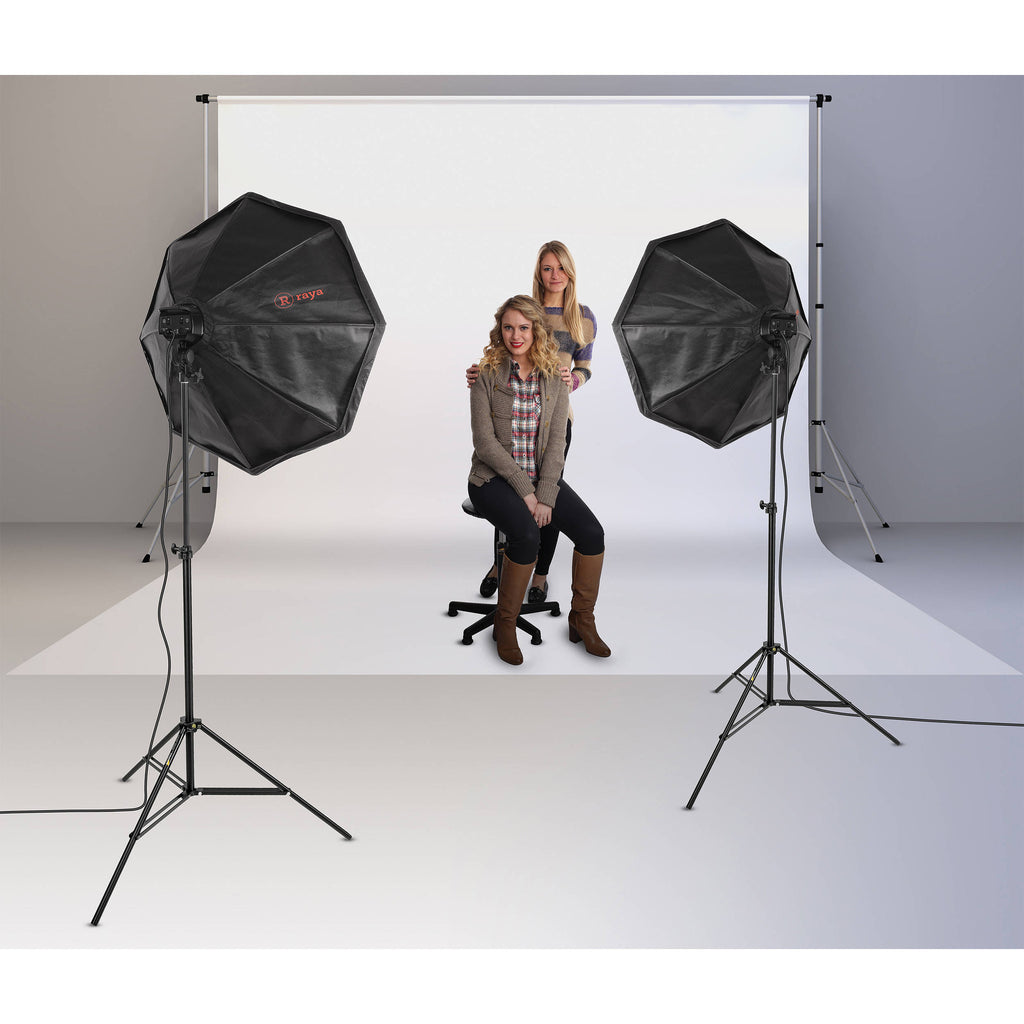

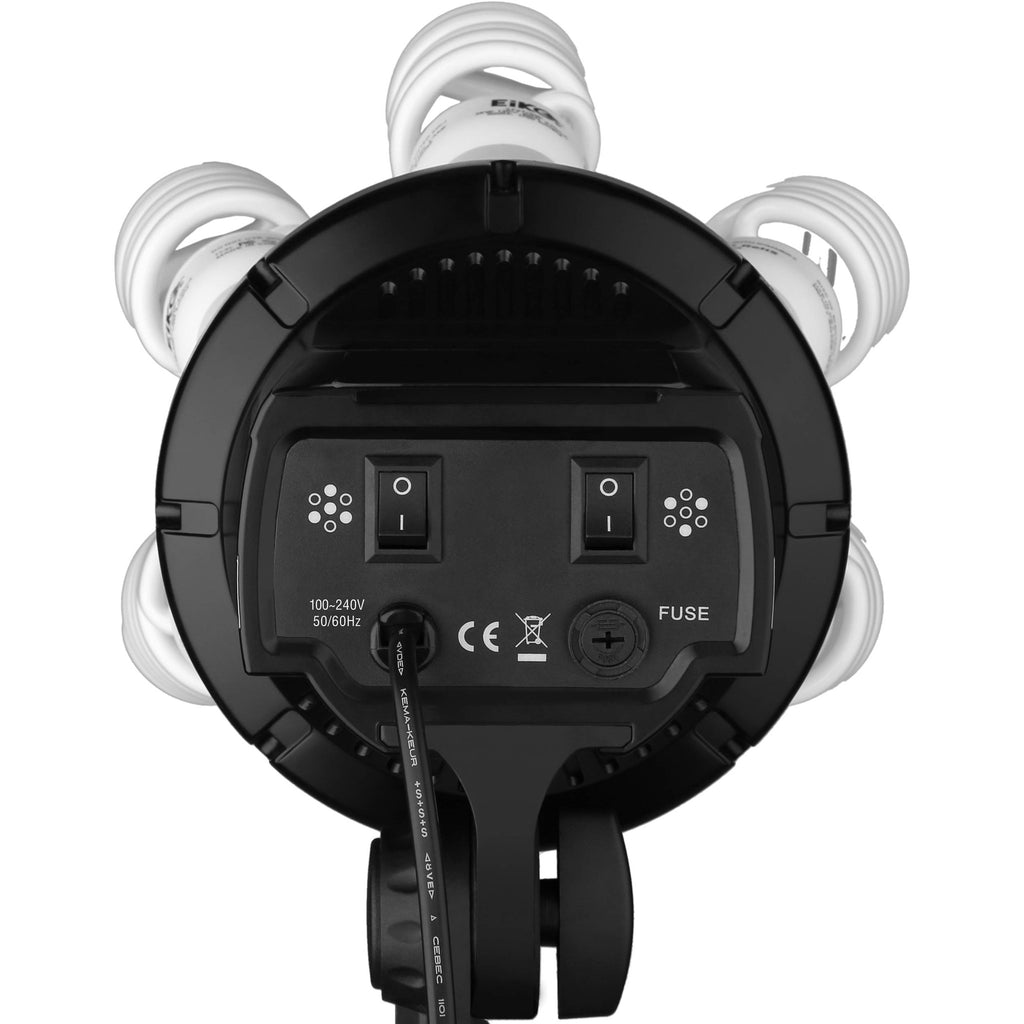

The OC-OF7's back panel has dual rocker switches, each of which control on/off function for 3 or 4 lamps allowing the creation of a light ratio. The Octa OC-OF7 has a multi-voltage power supply for worldwide use (with optional adapter plug) and has a standard 5/8" receiver for light stands and accessories. The OC-OF7 can also be combined with the optional Raya OC-OSB80 32" Octa Softbox, which has been custom designed to modify the light output of this fixture.
UPC: 847628581166
Input Voltage | 100-240 VAC, 50/60 Hz |
Lamps | Up to 7 Edison-base compact fluorescent lamps |
Maximum Wattage | 350 W (tungsten equiv. 1,400 W) |
Ballast | In lamps |
Mounting | 5/8" (16 mm) |
Cord Length | 11' (3.3 m) |
Plug | U.S. (North American) 2-bladed ground plug |
Dimensions | 5.0 x 6.0 x 8.7" (12.7 x 15.2 x 22 cm) |
Weight | 1.6 lb (0.72 kg) |
Packaging Info |
Package Weight | 2.0 lb |
Box Dimensions (LxWxH) | 8.0 x 8.0 x 7.0" |
In the Box
Raya Octa Fluorescent 7 Socket Fixture
