Description

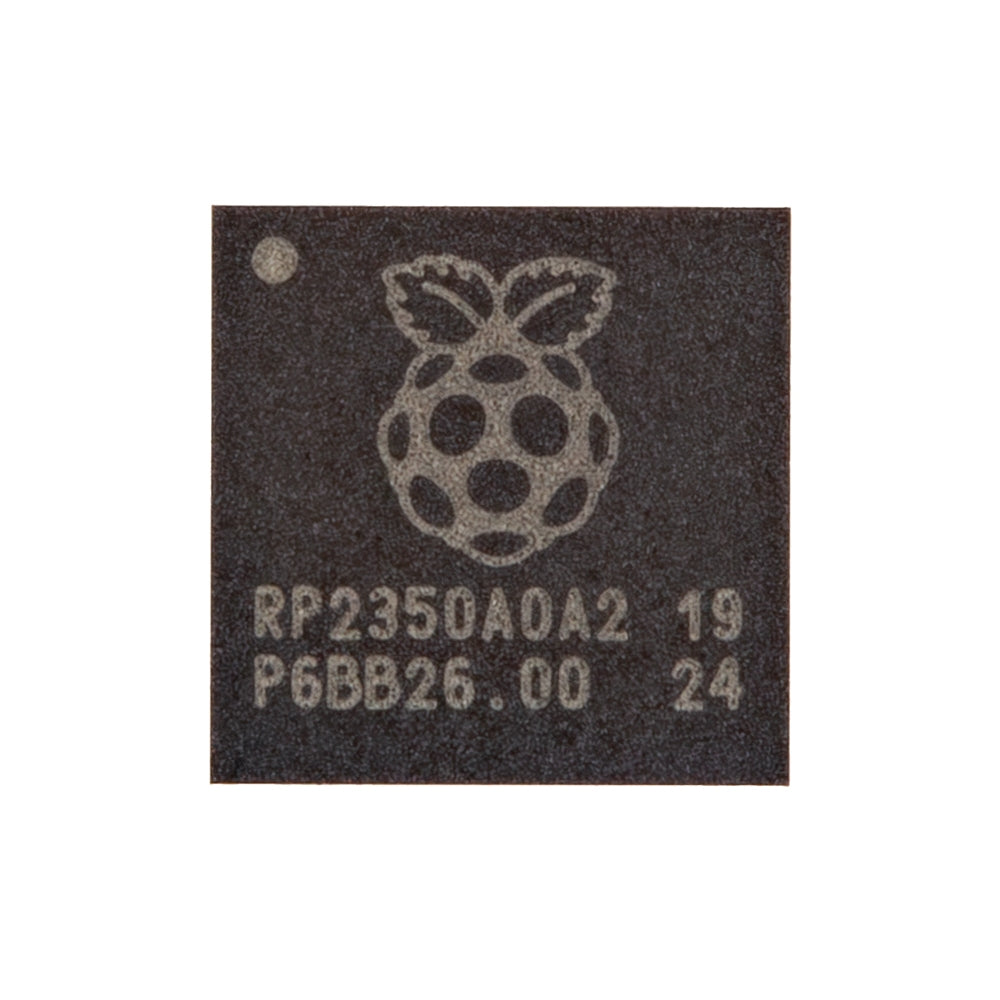

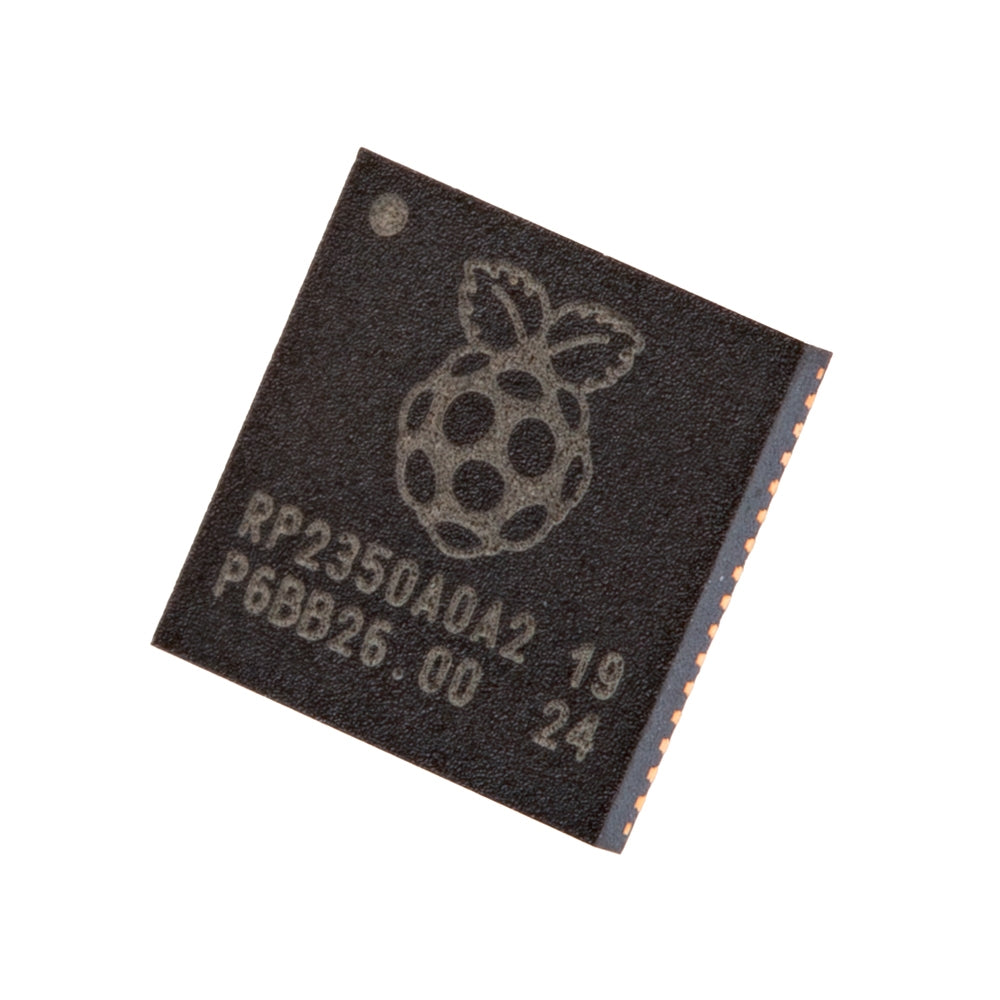

The individual RP2350 ICs, Raspberry Pi’s next-generation microcontroller that blends high performance, robust security, and remarkable flexibility—all at an impressively low cost.
Features & Specs
- CPU
- Dual-core Arm Cortex-M33 or dual-core Hazard3 RISC-V (selectable via OTP/software)
- Up to 150 MHz clock speed
- Memory
- 520 KB SRAM
- 8 KB OTP memory
- QSPI interface for external flash/PSRAM (no internal flash)
- I/O and Peripherals
- 30 GPIOs
- 2 × SPI
- 2 × I²C
- 2 × UART
- 1 × QSPI (1/2/4-bit, 2 CS)
- 1 × HSTX (digital video out)
- 24 PWM channels
- 12 PIO state machines
- 4 × ADC (12-bit) + internal temperature sensor
- USB 1.1 (host/device, LS/FS)
- Security
- TrustZone (Arm only)
- Hardware SHA-256
- TRNG
- Boot signature verification
- Fault injection mitigation
- Timers and Clocks
- Real-time clock
- Watchdog timer
- General-purpose timers (PWM, capture/compare)
- Crystal and internal RC oscillators
- Dual PLLs (48 MHz USB, 150 MHz core)
- Power
- Multiple low-power modes
- On-chip SMPS and LDO

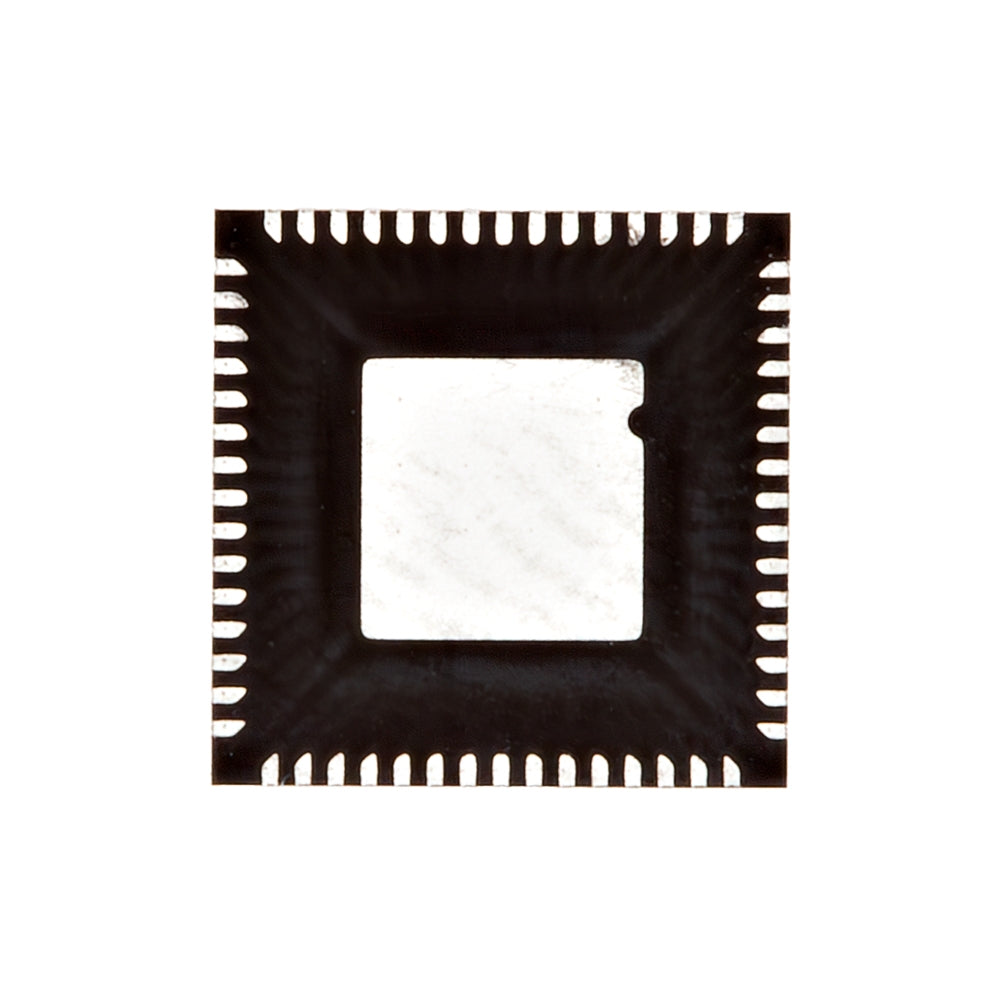

- 7×7 mm QFN-60EP package
- Software compatible with RP2040 (not pin-compatible)
- Production supported through at least 2045
Features & Specs
- CPU
- Dual-core Arm Cortex-M33 or dual-core Hazard3 RISC-V (selectable via OTP/software)
- Up to 150 MHz clock speed
- Memory
- 520 KB SRAM
- 8 KB OTP memory
- QSPI interface for external flash/PSRAM (no internal flash)
- I/O and Peripherals
- 30 GPIOs
- 2 × SPI
- 2 × I²C
- 2 × UART
- 1 × QSPI (1/2/4-bit, 2 CS)
- 1 × HSTX (digital video out)
- 24 PWM channels
- 12 PIO state machines
- 4 × ADC (12-bit) + internal temperature sensor
- USB 1.1 (host/device, LS/FS)
- Security
- TrustZone (Arm only)
- Hardware SHA-256
- TRNG
- Boot signature verification
- Fault injection mitigation
- Timers and Clocks
- Real-time clock
- Watchdog timer
- General-purpose timers (PWM, capture/compare)
- Crystal and internal RC oscillators
- Dual PLLs (48 MHz USB, 150 MHz core)
- Power
- Multiple low-power modes
- On-chip SMPS and LDO
- 7×7 mm QFN-60EP package
- Software compatible with RP2040 (not pin-compatible)
- Production supported through at least 2045
