Description

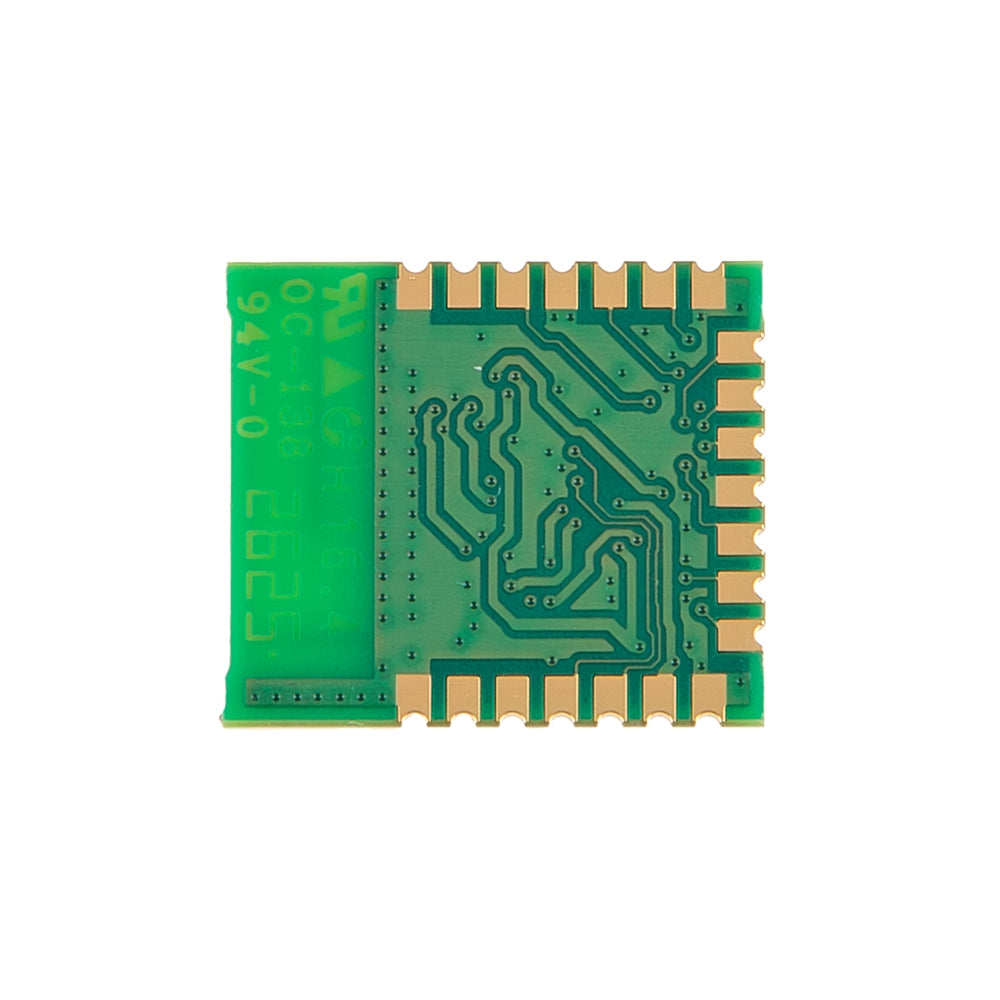

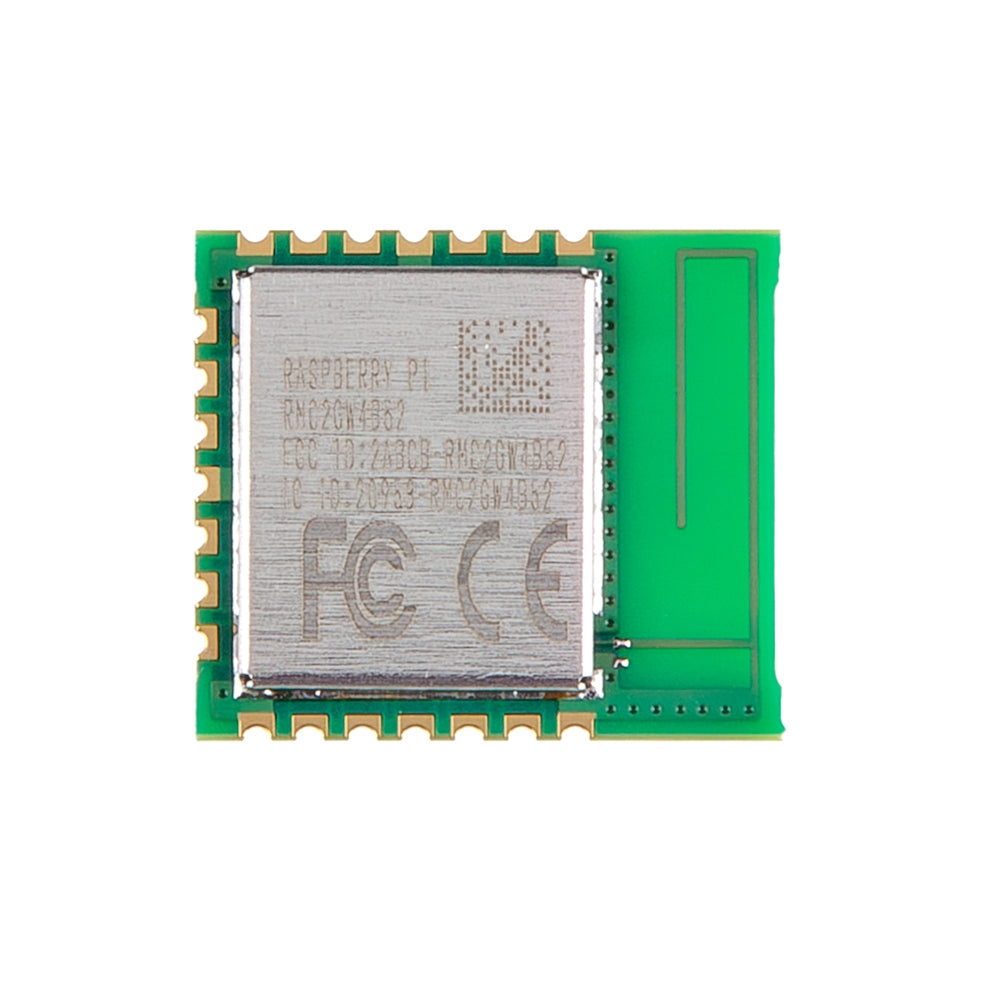

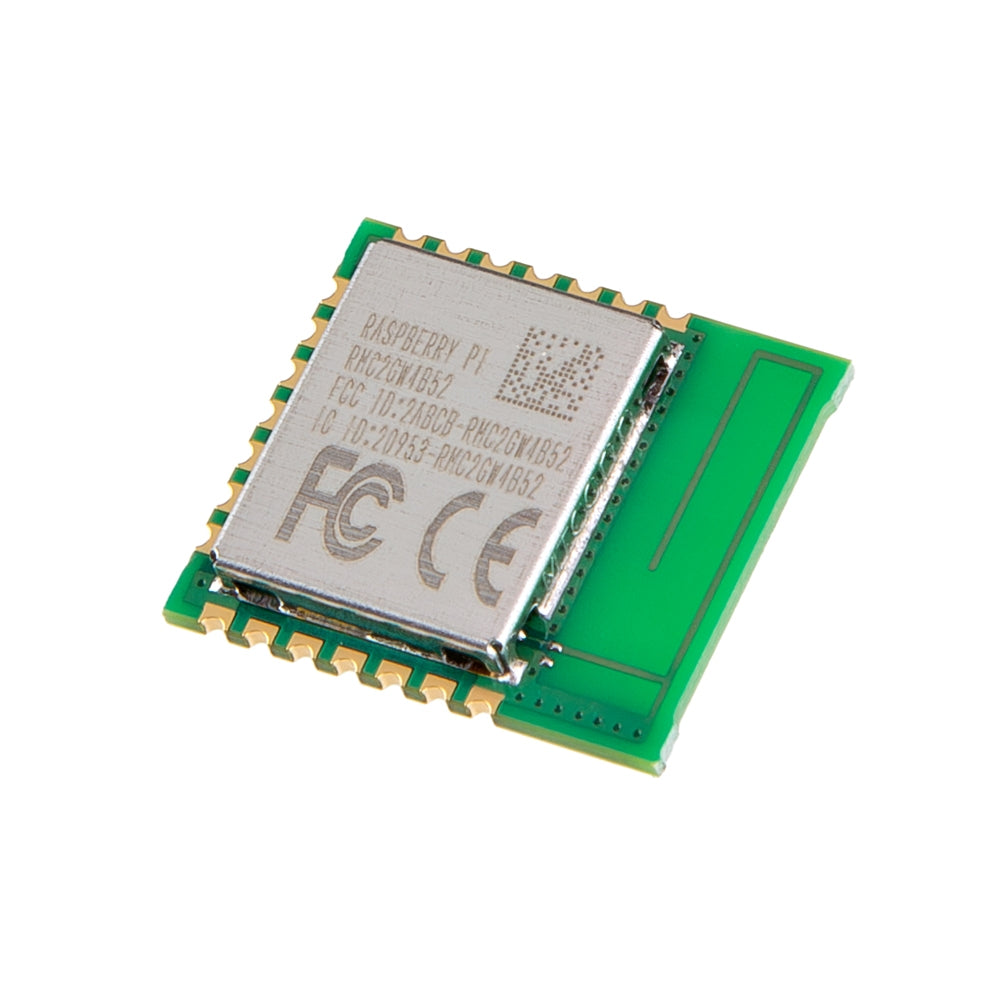

The Raspberry Pi Radio Module 2 is a pre-certified and compact solution for adding 2.4 GHz WiFi and Bluetooth 5.2 to your product, simplifying RF design and eliminating costly certification.
Features & Specs
- Infineon CYW43439 Wi-Fi + Bluetooth combo chipset
- Wi-Fi 4 (802.11n), 2.4 GHz band only, up to 96 Mbps PHY data rate
- Bluetooth 5.2 (Classic + BLE), ~100 m range (Class 1), ~10 m range (Class 2)
- Integrated PA, LNA, and shared 2.4 GHz antenna
- Host interface: low-pin-count gSPI
- Additional I/O: 3 host-controlled GPIOs
- Power consumption:Idle (PM1, DTIM1): ~1.19 mA
- Receive at –50 dBm: ~43 mA
- Transmit at 16 dBm: ~271 mA
- Operating voltage: supplied via host (typical 3.3 V I/O domain)
- Operating temperature range: –30 °C to +70 °C
- Package: 21-pad castellated module

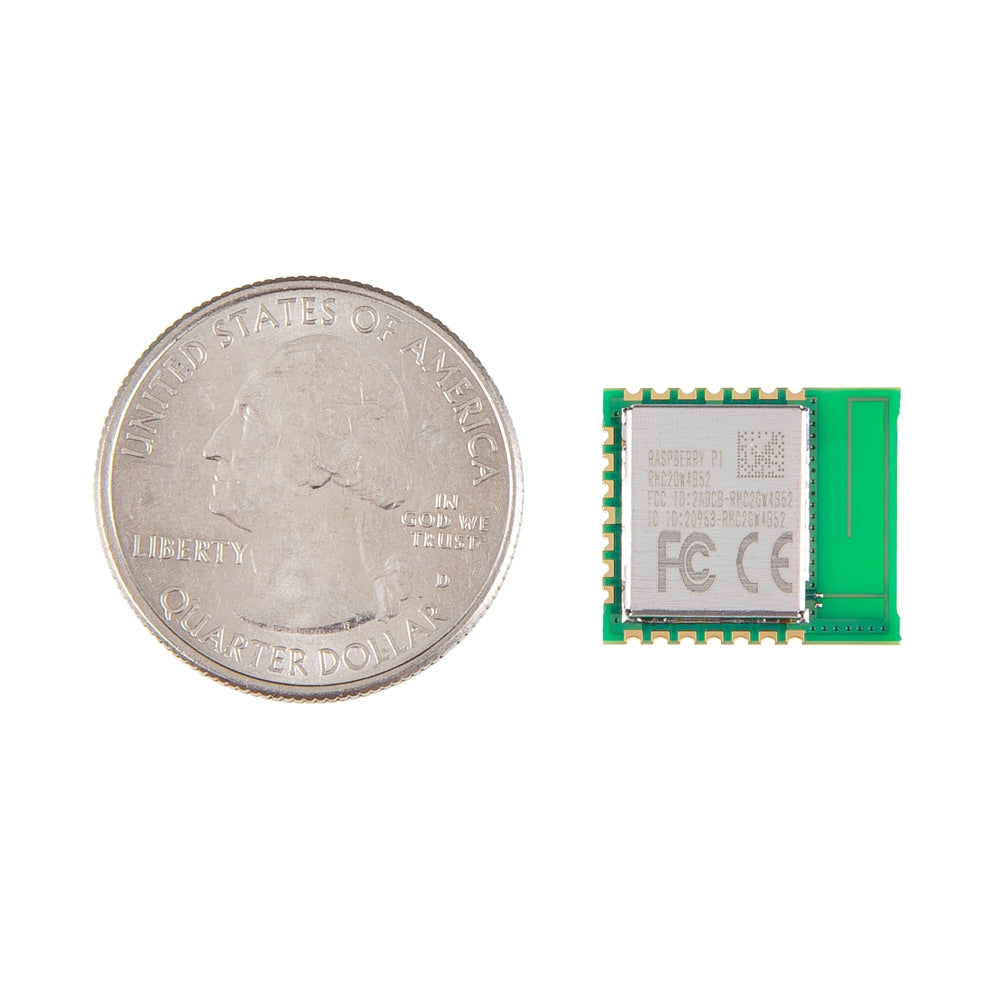

- Dimensions: 16.5 mm × 14.5 mm × ~2.55 mm
- Software compatibility: Raspberry Pi Pico SDK
- Full modular certifications (radio/regulatory)
- Guaranteed production until at least January 2036
Features & Specs
- Infineon CYW43439 Wi-Fi + Bluetooth combo chipset
- Wi-Fi 4 (802.11n), 2.4 GHz band only, up to 96 Mbps PHY data rate
- Bluetooth 5.2 (Classic + BLE), ~100 m range (Class 1), ~10 m range (Class 2)
- Integrated PA, LNA, and shared 2.4 GHz antenna
- Host interface: low-pin-count gSPI
- Additional I/O: 3 host-controlled GPIOs
- Power consumption:Idle (PM1, DTIM1): ~1.19 mA
- Receive at –50 dBm: ~43 mA
- Transmit at 16 dBm: ~271 mA
- Operating voltage: supplied via host (typical 3.3 V I/O domain)
- Operating temperature range: –30 °C to +70 °C
- Package: 21-pad castellated module
- Dimensions: 16.5 mm × 14.5 mm × ~2.55 mm
- Software compatibility: Raspberry Pi Pico SDK
- Full modular certifications (radio/regulatory)
- Guaranteed production until at least January 2036
Documentation
