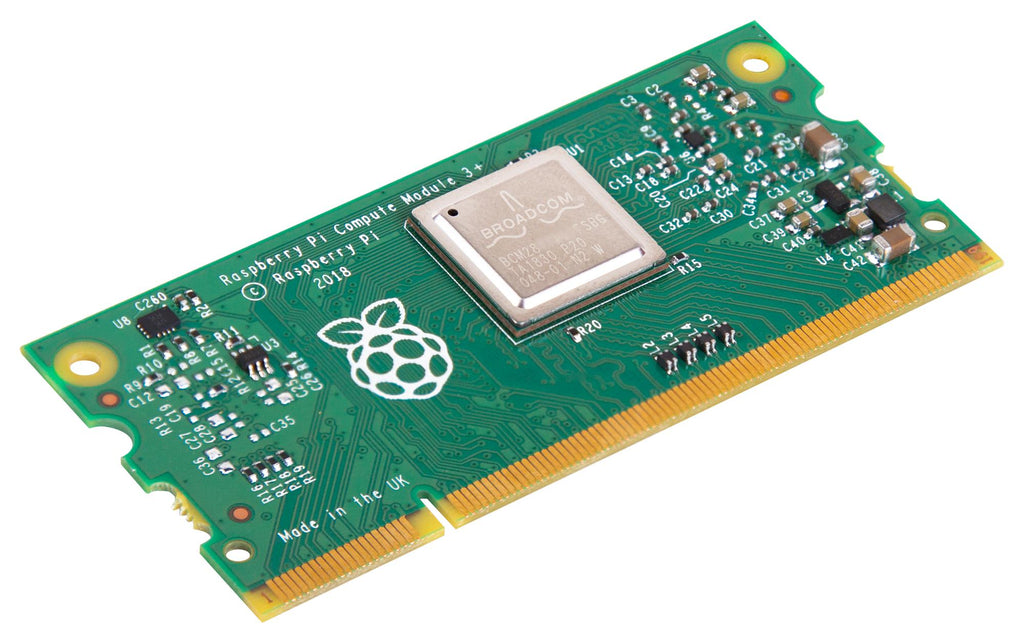

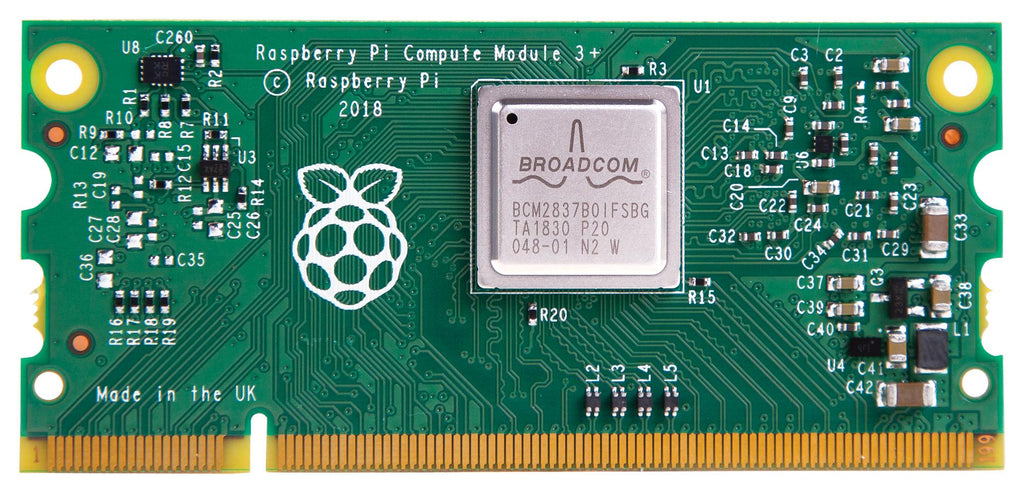

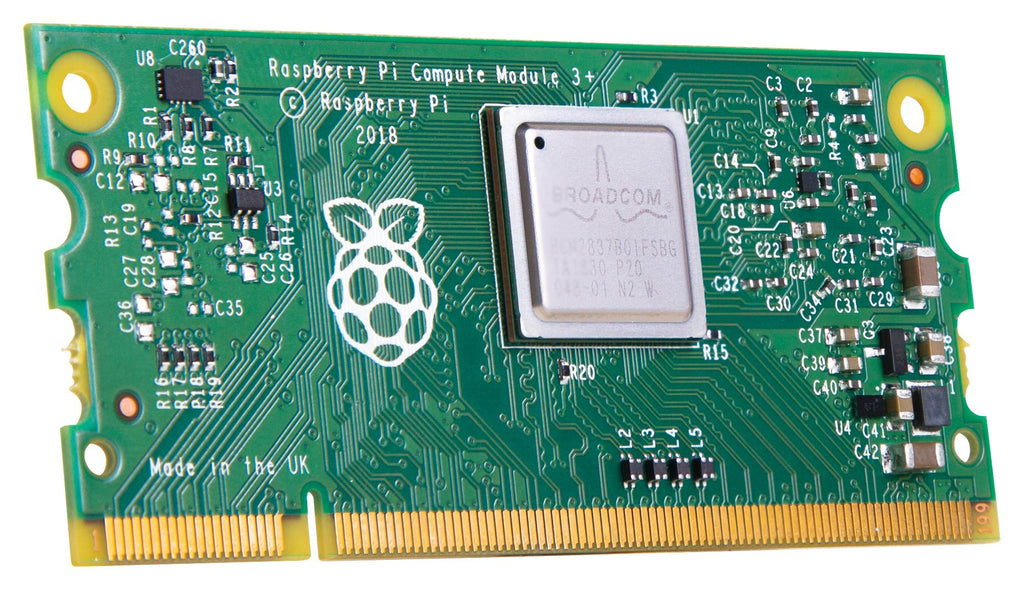

The Raspberry Pi Compute Module 3 + (CM3+) are DDR2-SODIMM-mechanically-compatible System on Modules (SoMs) containing a processor, memory, eMMC Flash (except "Lite" version) and supporting power circuitry. These modules allow a designer to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. In addition the modules have extra I/O interfaces over and above what is available on the Raspberry Pi model A/B boards, providing more options and fostering rapid development for the designer. The Compute Module 3 + 32GB has a 200 pin SODIMM design and contains 32GB of on-board eMMC flash memory.
- Broadcom BCM2837B0 Cortex-A53 64-bit 1.2GHz SoC
- 1GB LPDDR2 SDRAM Memory
- 32GB eMMC flash memory storage on-board
- Production life guaranteed until January 2026
- H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics
- Compatible with NOOBS_3_0_0
Applications
Embedded Design & Development, Electronics Design, Industrial, IIoT (Industrial Internet of Things), IoT (Internet of Things)
Product details
| Silicon Manufacturer |
Broadcom |
| Silicon Family Name |
BCM2xxx |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-A53 |
| Silicon Core Number |
BCM2837B0 |
| Kit Contents |
Compute Module 3 w/32GB eMMC Memory |
| Product Range |
Compute Modules 3+ |
Other details
| Brand |
RASPBERRY-PI |
| Part Number |
CM3+/32GB |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Miscellaneous EN |
|
