| ₹ 40660.0 includes GST and import duties. | |
| B2B customers can avail ₹ 6200.65 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

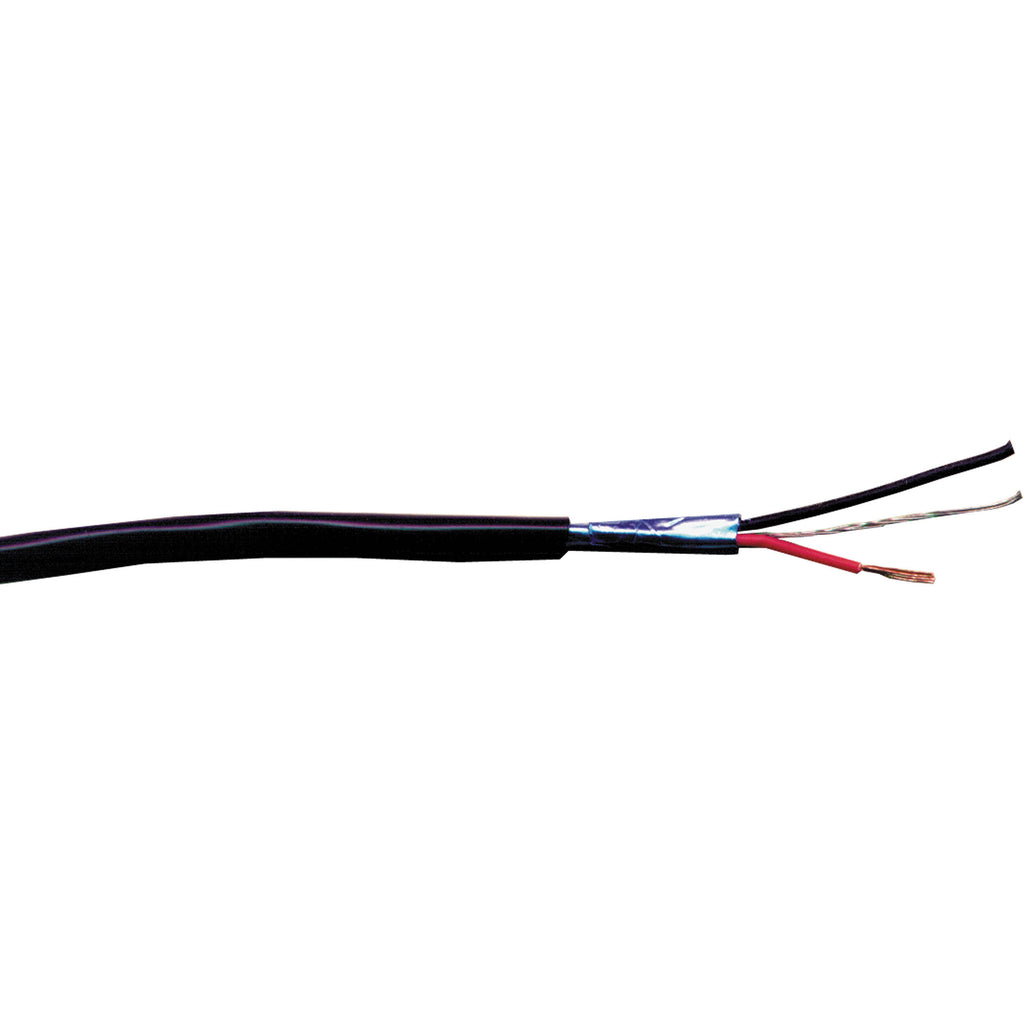

RapcoHorizon MIC2.K-1000 Specs
| Connector 1 |
1x Pigtail/Unterminated Bare Wire Straight
|
| Connector 2 |
1x Pigtail/Unterminated Bare Wire Straight
|
| Cable Length |
1000' / 304.8 m
|
| Conductor Material |
Bare Annealed Copper (BAC)
|
| Number of Conductors |
2
|
| Wire Gauge |
11 AWG
|
| Wire Stranding |
7x Strands of 30 AWG
|
| Outer Diameter |
0.14" / 3.56 mm
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Color |
Black
|
| Shielding |
Aluminum-Polyester
|
| Insulation Type |
Polypropylene
|
| Nominal Impedance |
45 Ohms
|
| Conductor Capacitance |
32 pF/ft at 1 kHz
|
| Conductor DC Resistance |
15.3 Ohms/ft (Up to 1000' / 304.8 m)
|
Additional Resources
No additional resources available
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 39846.8 |
| 3-5 | ₹ 39440.2 |
| 5-10 | ₹ 38627.0 |
| 10+ | ₹ 37813.8 |
Bulk discount will be automatically applied during checkout based on quantity.
