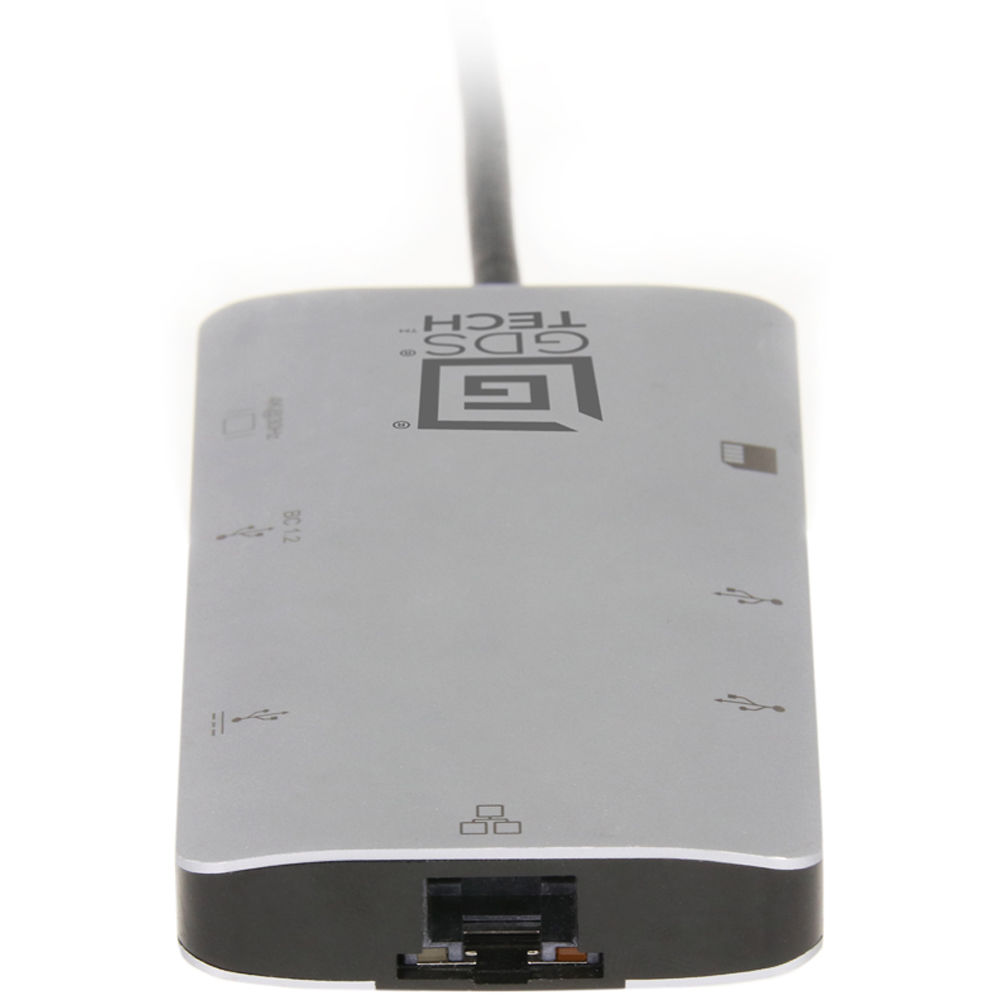

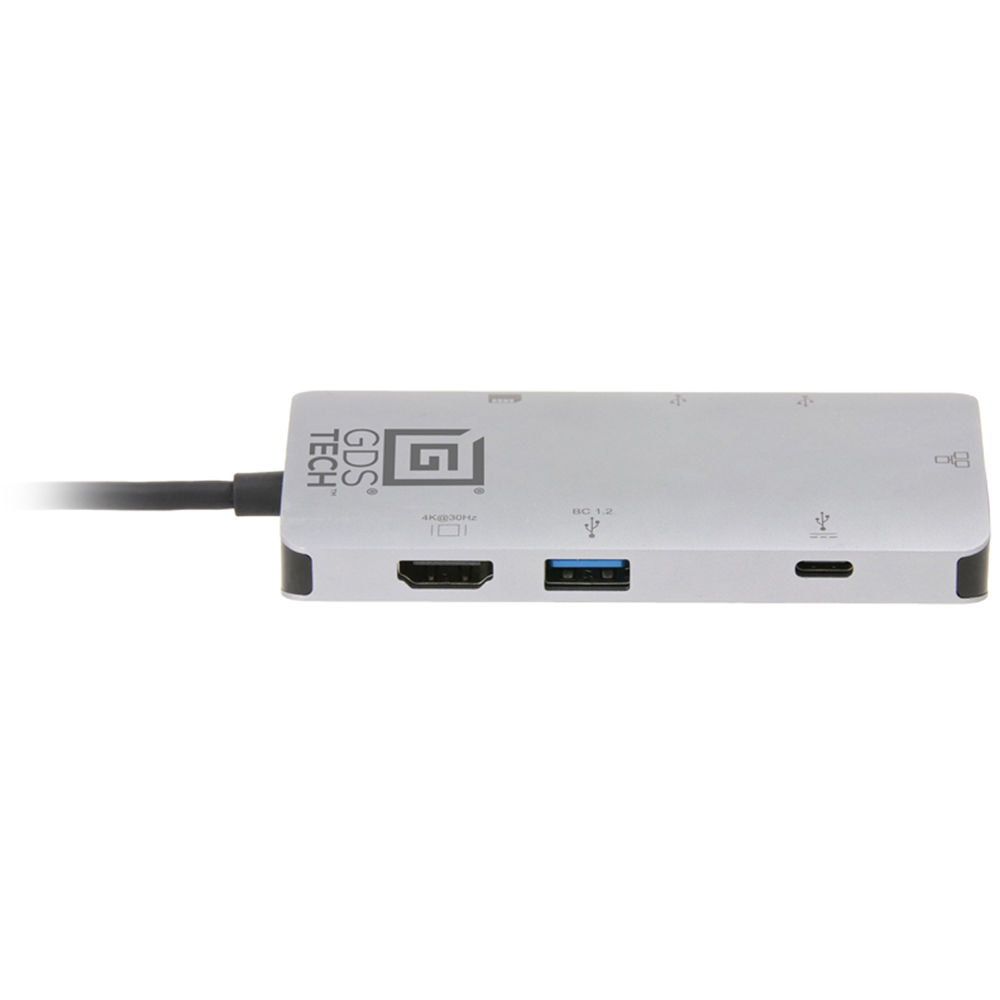

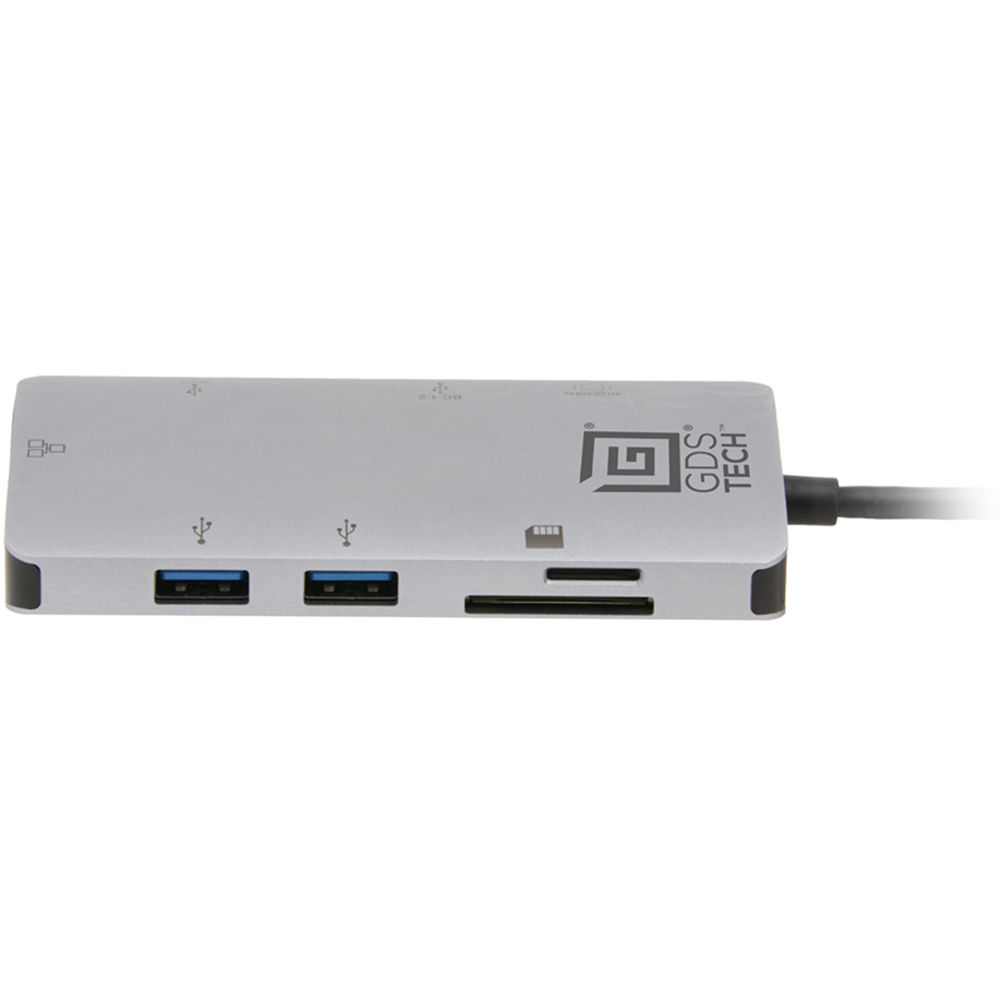

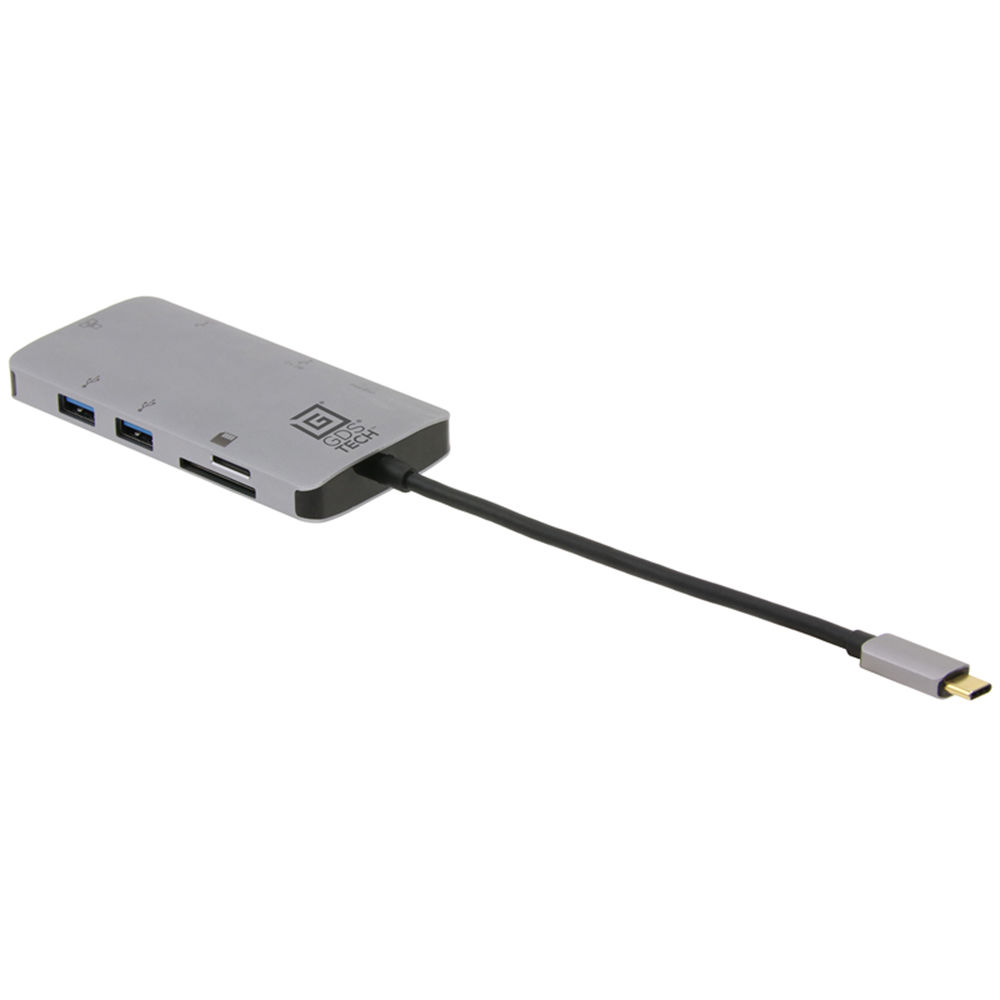

RAM MOUNTS GDS Overview
Compatible with any Type-C power supply, The GDS USB Type-C Hub from RAM MOUNTS provides additional connectivity options to mobile phones and tablets with USB Type-C ports. There are four USB Type-A ports, with one supporting BC 1.2 with power up to 7.5W. The hub features an HDMI port that supports both Samsung DeX and screen mirroring and a USB Type-C port that supports data and PD charging. Other connections include an RJ45 port and MicroSD card slot. The hub is FCC, CE, WEEE and RoHS certified.
USB 3.1 Gen 1 Type-A ports transfer data at a rate up to 5 Gb/s
One USB Type-A port supports BC 1.2 with power up to 7.5W (5V/1.5A)
RJ45 port supports 10/100/1000 Mb/s bandwidth
HDMI port supports a resolution of up to 4K x 2K at 30 Hz
USB Type-C port supports data and PD charging at 100 W (20V/5A)
Micro SD card slot supports secure digital v3.0 UHS-I (ultra-high speed), ?SDR12(12.5 MB/s)/SDR25(25 MB/s)/SDR50(50 MB/s)/DDR50(50 MB/s)/SDR104(104 MB/s)
RAM MOUNTS GDS Specs
Ports
USB |
4 x USB-A USB 3.0 / 3.1/3.2 Gen 1 1 x USB-C USB 3.0 / 3.1/3.2 Gen 1 |
Thunderbolt |
None |
Ethernet |
1 x RJ45 (10/100/1000 Mb/s) |
Display |
1 x HDMI |
Media Card Reader |
1 x microSD (Unspecified Type) (UHS-I [104 MB/s]) |
Host Connections
Host Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 |
Connection Type |
Integrated Cable |
Environmental
Certifications |
CE FCC RoHS WEEE *as per Manufacturer |
Operating Temperature |
14 to 158°F / -10 to 70°C |
Storage Temperature |
32 to 113°F / 0 to 45°C |
Packaging Info
Package Weight |
0.295 lb |
Box Dimensions (LxWxH) |
9.45 x 4.75 x 0.95" |
