Description

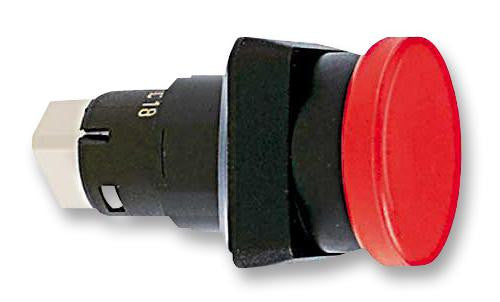

The 1.15.154.016/0301 is a LUMOTAST 25 Emergency-stop Pushbutton with latching contact function, 2NC contacts and opaque red lens. The emergency-stop pushbutton features ring nut mounting, gold-plated contacts and snap-action contact system.
- Yellow square collar
- 100mR Maximum contact resistance
- IP65 Protection rating
- -25 to +70°C Operating temperature range
Applications
Industrial
Product details
Pushbutton Actuator Style | Round |
Contact Voltage DC Nom | 25V |
Switch Operation | Off-On |
Contact Voltage AC Nom | 25V |
Switch Terminals | Quick Connect, Solder |
Contact Configuration | 2NC |
Product Range | LUMOTAST 25 Series |
IP Rating | IP65 |
Contact Current Max | 100mA |
Other details
Brand | RAFI |
Part Number | 1.15.154.016/0301 |
Quantity | Each |
Technical Data Sheet EN |
