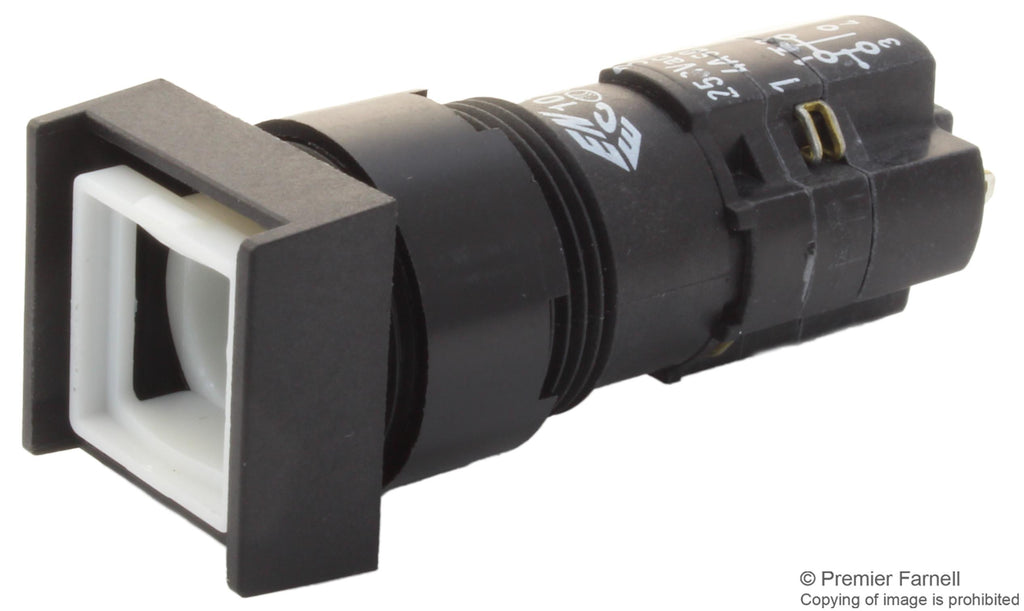

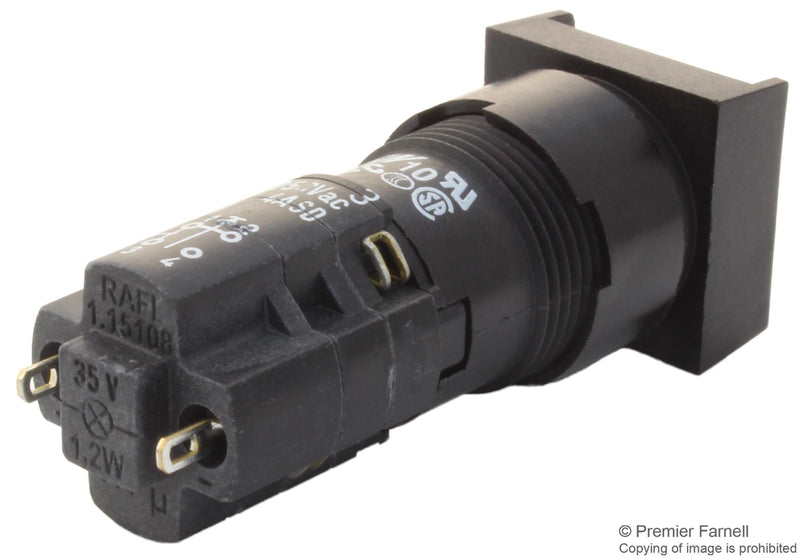

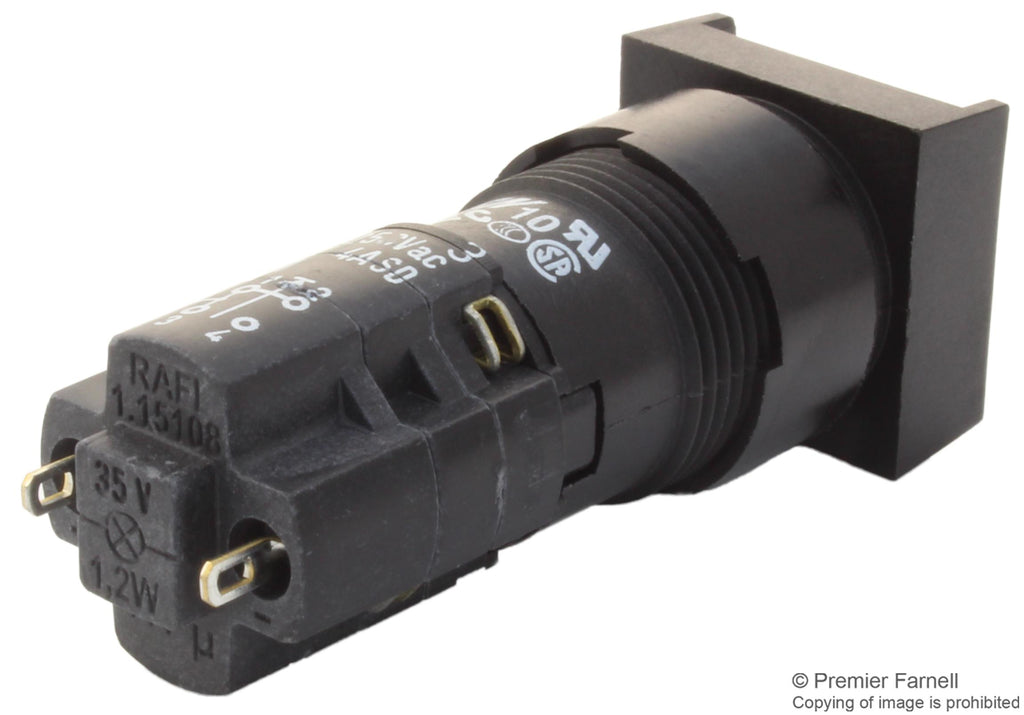

The 1.15.108.051/0000 is an illuminated momentary Pushbutton Switch with Ag contacts, rectangular black collar without lens. This switch is designed with snap-action bridge contact system.
- Ring nut mounting
- -25 to 70°C Operating temperature range
Applications
Industrial
Footnotes Lens sold separately
Product details
| Product Range |
- |
| Panel Cutout Diameter |
16.2mm |
| Contact Configuration |
SPST-NO, SPST-NC |
| Switch Operation |
Momentary |
| Pushbutton Actuator Style |
Flush |
| Actuator / Cap Colour |
Transparent |
| Contact Current AC Max |
4A |
| Contact Voltage VAC |
250V |
| Contact Current DC Max |
200mA |
| Contact Voltage VDC |
230V |
| IP Rating |
IP40 |
| Switch Mounting |
Panel Mount |
| Switch Terminals |
Solder Lug |
| Illumination Colour |
- |
| Panel Cutout (H x W) |
- |
Other details
| Brand |
RAFI |
| Part Number |
1.15.108.051/0000 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
