Description

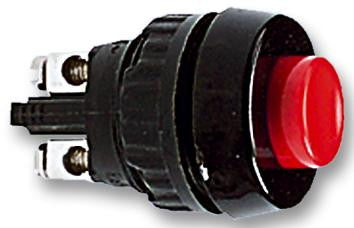

The 1.10.001.151/0301 is a single-pole single-throw (SPST) Pushbutton Switch with screw terminals, opaque red protruding lens, momentary contact function and 1NC contact. The pushbutton switch features ring nut mounting and silver-plated contacts.
- IP40 Protection rating
- -25 to +85°C Operating temperature range
Applications
Industrial
Product details
| Contact Voltage DC Nom | - |
| Switch Operation | Off-(On) |
| Contact Voltage AC Nom | 250V |
| Switch Terminals | Screw |
| Contact Configuration | SPST-NC |
| Product Range | - |
| Contact Current Max | 700mA |
Other details
| Brand | RAFI |
| Part Number | 1.10.001.151/0301 |
| Quantity | Each |
| Technical Data Sheet EN |  |
