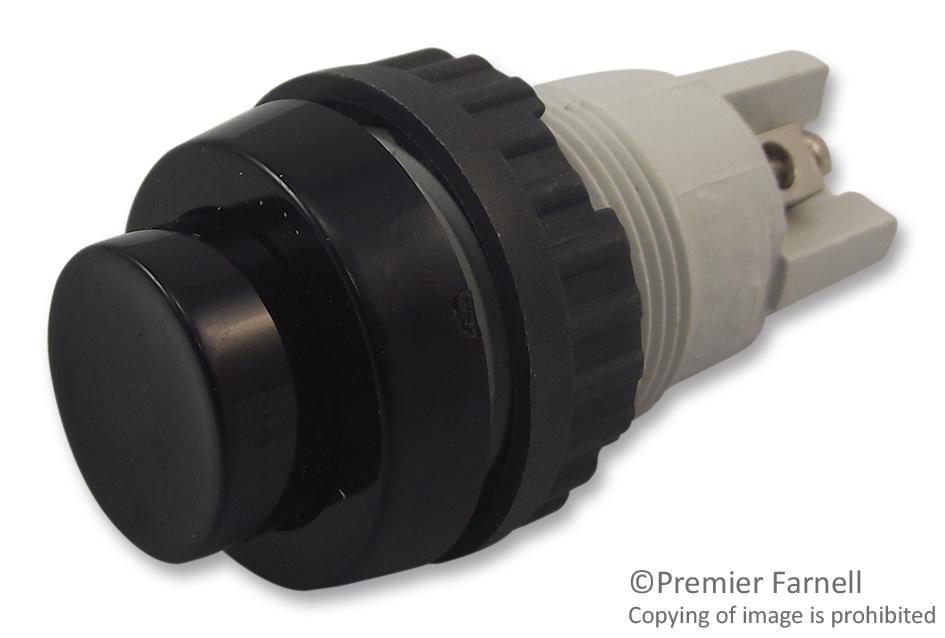

The 1.01.102.001/0104 is a double-pole double-throw (DPDT) Pushbutton Switch with screw terminals, opaque black protruding lens, momentary contact function and 2NO contacts. The pushbutton switch features ring nut mounting and silver-plated contacts.
- 200mR Maximum contact resistance
- IP40 Protection rating
- -25 to +85°C Operating temperature range
Applications
Industrial
Product details
| Product Range |
- |
| Panel Cutout Diameter |
18.2mm |
| Contact Configuration |
DPST-NO |
| Switch Operation |
Off-(On) |
| Pushbutton Actuator Style |
Round |
| Actuator / Cap Colour |
Black |
| Contact Current AC Max |
2A |
| Contact Voltage VAC |
250V |
| Contact Current DC Max |
- |
| Contact Voltage VDC |
- |
| IP Rating |
IP40 |
| Switch Mounting |
Panel Mount |
| Switch Terminals |
Screw |
| Illumination Colour |
Non Illuminated |
| Panel Cutout (H x W) |
- |
Other details
| Brand |
RAFI |
| Part Number |
1.01.102.001/0104 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
