Description

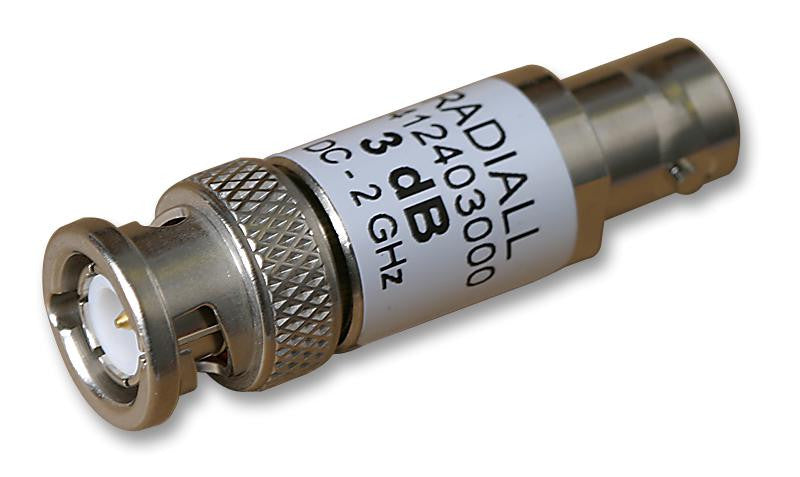

The R412403124. is a 3GHz 3dB BNC Attenuator with gold over nickel plated beryllium copper female center contact, gold over nickel plated brass male contact and nickel-plated brass body. This attenuator has PTFE insulation, thick film resistor, worldwide standardised coaxial connectors, bayonet coupling and good RF performance.
- Proven strength and reliability
- Meets MIL-C-39012/MIL STD 348-A/301, IEC 169-8, CECC 22120 and UTE-C-93564 standards
- 50R Nominal impedance
- 100W Peak power
- 1W Average power
- -40 to 85�C Temperature range
Applications
Aerospace, Defence, Military, RF Communications, Test & Measurement, Communications & Networking, Industrial, Consumer Electronics
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | BNC Coaxial |
| Coaxial Termination | - |
| Connector Mounting | Cable Mount |
| Connector Body Style | - |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 3GHz |
Other details
| Brand | RADIALL |
| Part Number | R412403124 |
| Quantity | Each |
| Technical Data Sheet EN |  |
