Description

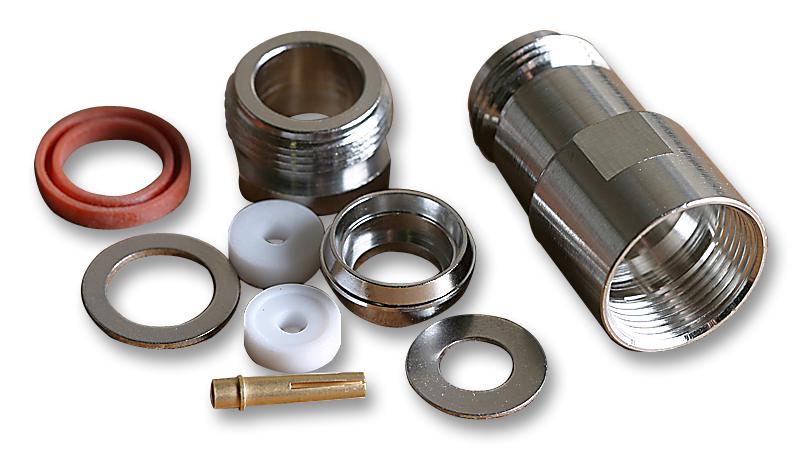

The R161220000 is a clamp N-type Straight Jack for use with RG11, RG144, RG165, RG213, RG214, RG216, RG225 and RG393 RF coaxial cables. It has BBR2-plated brass body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.
- 5000MR Minimum insulation resistance
- 2500Veff Minimum dielectric withstanding voltage
- 1400Veff Maximum voltage rating
- 500-cycle Mating life
- -55 to 155°C Operating temperature range
Applications
RF Communications, Industrial
Product details
| Connector Type: N Coaxial |
| Connector Body Style: Straight Jack |
| Coaxial Termination: Solder |
| Impedance: 50ohm |
| Coaxial Cable Types: RG11, RG144, RG165, RG213, RG214, RG216, RG225, RG393 |
| Contact Material: Beryllium Copper |
| Contact Plating: Gold Plated Contacts |
| Frequency Max: 11GHz |
| Connector Mounting: Cable Mount |
| Product Range: - |
Other details
| Brand | RADIALL |
| Part Number | R161220000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
