Description

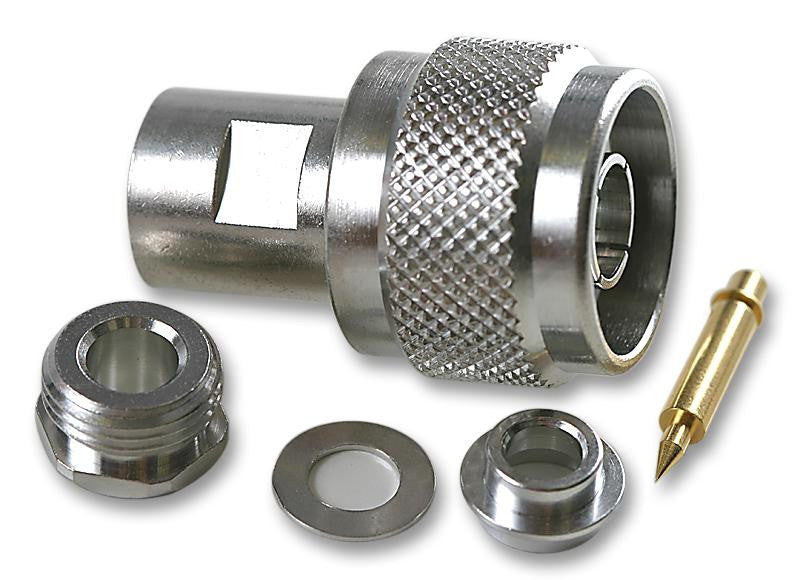

The R161004000 is a straight N Plug, clamp type, with BBR-plated brass outer contact, gold over nickel plated brass center contact, BBR plated brass body, for 2.6/50+75 cable. This N series plug has PTFE insulation, cable mounting and solder termination, high durability and proven strength.
- Standard coaxial connector
- Screw-on coupling
- High power rating
- Excellent RF performance
- Meets MIL-C-39012/MIL STD 348-304, CEI 169-16, CECC 22210, NF-C-93566 and DS 8811 standards
- -55 to 155°C Temperature range
Applications
Wireless, Aerospace, Defence, Military, Industrial
Product details
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Connector Type | N Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | Cable Mount |
| Connector Body Style | Straight Plug |
| Coaxial Cable Types | RG179, RG187, RG188, RG316 |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 11GHz |
Other details
| Brand | RADIALL |
| Part Number | R161004000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
