Description

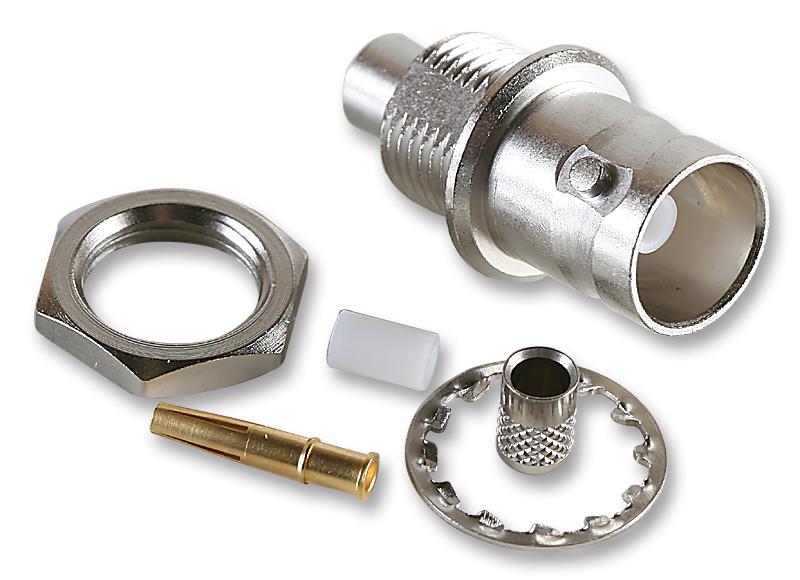

The R142306503 is a bulkhead crimp BNC Straight Jack for use with RG179 and RG187 RF coaxial cables. It has nickel-plated brass body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.
- 5000MR Minimum insulation resistance
- 1000Veff Minimum dielectric withstanding voltage
- 335Veff Maximum voltage rating
- 500-cycle Mating life
- -65 to 165°C Operating temperature range
RF Communications, Industrial
Other details
| Brand | RADIALL |
| Part Number | R142306503 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
