| ₹ 8213.6 includes GST and import duties. | |
| B2B customers can avail ₹ 1252.57 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

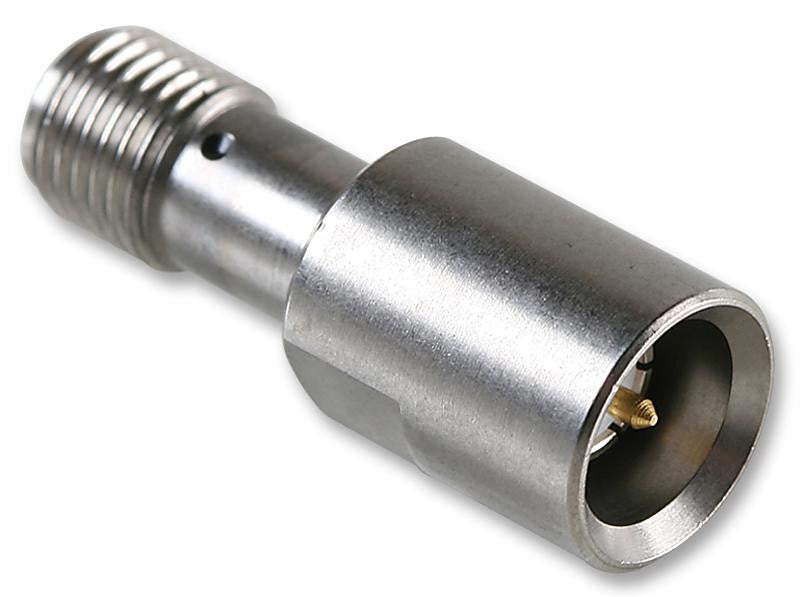

The R125791501 is a male push-on female SMA Adapter, SMA series, with gold over nickel plated beryllium copper center contact, nickel-plated beryllium copper outer contact, stainless steel body, PTFE insulation. The stainless steel SMA connector has been designed for applications where reliability, durability, robustness and high frequency are very important. Radiall offers an extended frequency SMA range allowing coaxial system operation up to 27GHz. This series mates with the standard SMA series and maintains the same mechanical characteristics (part numbers ending with 700, 701 or 702).
- Subminiature coaxial connector
- Screw-on coupling
- High RF performance
- Wide hermetically sealed range
- Meets MIL-C-39012, EC 169-1, CECC 22110, CECC 22111 - 801 to 808 and BS 9210 N006 standards
- -65 to 165�C Temperature rating
Applications
Communications & Networking, Test & Measurement, Aerospace, Defence, Military
Product details
| Convert From Gender | Plug |
| Convert To Gender | Jack |
| Convert From Coax Type | SMA |
| Convert To Coax Type | SMA |
| Connector Type | Inter Series Coaxial |
| Product Range | - |
| Adapter Body Style | Straight Adapter |
Other details
| Brand | RADIALL |
| Part Number | R125791501 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 8049.33 |
| 3-5 | ₹ 7967.19 |
| 5-10 | ₹ 7802.92 |
| 10+ | ₹ 7638.65 |
Bulk discount will be automatically applied during checkout based on quantity.
